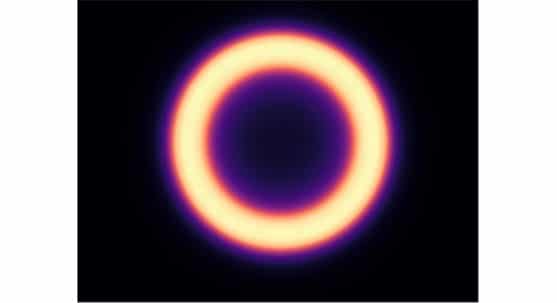

Standard ring shaping of CANUNDA-HP

Canunda-HP | High Power Laser Beam Shaper

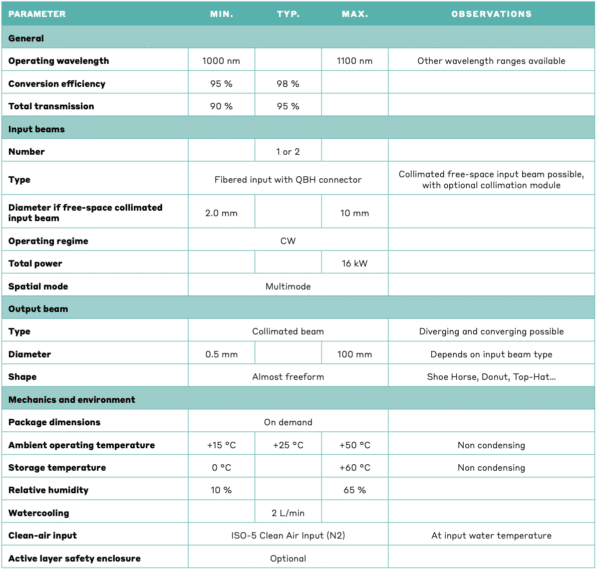

Max input power

16 kW

Operating wavelength

1000 - 1100nm

Transmission

> 95% (90% typical)

Input beam type

Fibered QBH or collimated free-space

Output beam shape

Almost free-form (donut, top-hat etc)

Stability

Focus shift improved

Designed to improve laser processing, the CANUNDA range provides versatile and effective laser beam shaping. CANUNDA improves the quality, precision, speed and stability of processing for all types of laser source, whether single-mode or multimode.

The CANUNDA range of fully reflective solutions ensure stable, low-loss beam shaping capable of withstanding the high power of cutting or welding lasers or the high energy levels achieved by ultrashort pulse lasers for micromachining processes.

The CANUNDA-HP beam shaping modules can be used to shape high-power continuous lasers. They can perform symmetrical (ring, or ring with a central spot) or asymmetrical shaping, such as a spot followed by a line.

The fully reflective design of the shaping module supports very high average power (16 kW, demonstrated in partnership with the Institut Maupertuis). It can be cooled in a homogeneous manner for optimal results, thus minimizing thermal focus shift.

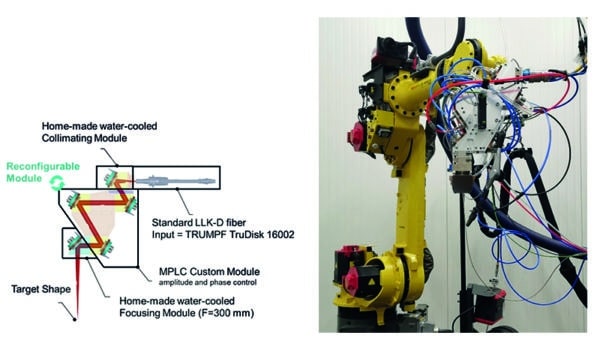

CANUNDA-HP modules have been integrated in industrial environments with optical fiber lasers on robot arms. The shaping module can either be fitted directly to the laser connector and integrate the entire optical chain up to the machining plane, or it can be integrated into standard, off-the-shelf collimation and focusing optical instruments.

Designed to improve laser processing, the CANUNDA range provides versatile and effective laser beam shaping. CANUNDA-HP is a high-power laser beam shaper that improves the quality, precision, speed and stability of processing for all types of laser source, whether single-mode or multimode.

The CANUNDA range of fully reflective solutions ensure stable, low-loss beam shaping capable of withstanding the high power of cutting or welding lasers or the high energy levels achieved by ultrashort pulse lasers for micromachining processes.

The CANUNDA-HP beam shaping modules can be used to shape high-power continuous lasers. They can perform symmetrical (ring, or ring with a central spot) or asymmetrical shaping, such as a spot followed by a line.

The fully reflective design of the shaping module supports very high average power (16 kW, demonstrated in partnership with the Institut Maupertuis). It can be cooled in a homogeneous manner for optimal results, thus minimizing thermal focus shift.

CANUNDA-HP modules have been integrated in industrial environments with optical fiber lasers on robot arms. The shaping module can either be fitted directly to the laser connector and integrate the entire optical chain up to the machining plane, or it can be integrated into standard, off-the-shelf collimation and focusing optical instruments.

CANUNDA for the improvement of high power CW or pulsed laser-based processes such as macro-machining, cutting, welding and selective laser sintering for additive manufacturing.

Designed to improve laser processes, the CANUNDA product line provides versatile and effective laser beam shaping by improving the quality, precision, speed and stability of processing for all types of laser source, whether single-mode or multimode. The fully reflective solutions ensure stable, low-loss beam shaping capable of withstanding the high power of cutting or welding lasers or the high energy levels achieved by ultrashort pulse lasers for micro-machining processes.
