CMS4 Series | VIS / NIR Multispectral Cameras

Sensor type

CMOS

Raw image resolution - pixel pitch

2048 x 2048 px - 5.5 µm

Spectral image resolution (H) x (V)

682 x 682 px

Number of bands

9 (3 x 3 Bayer-like filter)

Typical Spectral Range

430 to 930 nm

Bandwidth (FWHM avg)

30-50 nm

CMS4 Series Multispectral Cameras

CMS4 multispectral cameras are specially designed to allow high integration of VIS/NIR multispectral systems. These lightweight (less than 170g) and very small footprint (52x62x40mm) cameras split the image into 8 spectral bands plus 1 B&W channel. Made by hybridization of a custom Bayer-like mosaic filter on a commercial 4.2 MPixel CMOS Sensor, they allow extracting the spectrum on each point of an image. SILIOS offers three different CMS4 cameras (CMS4-C, CMS4-V and CMS4-S) to address a wide spectrum of applications.

SILIOS offers three different CMS4 cameras to address a wide spectrum of applications:

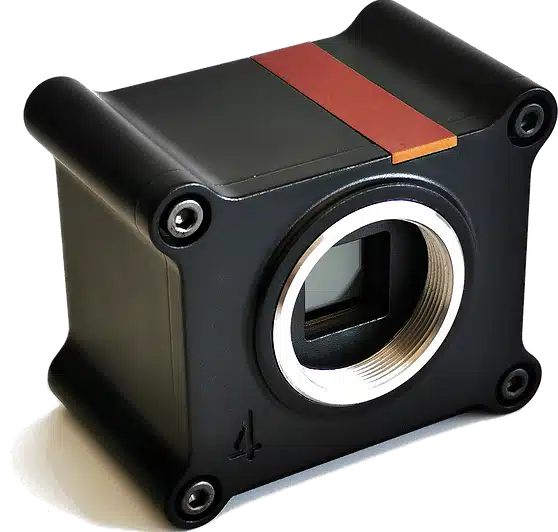

CMS4-C: Color-dedicated (orange)
CMS4-V: Vegetation-dedicated (green)

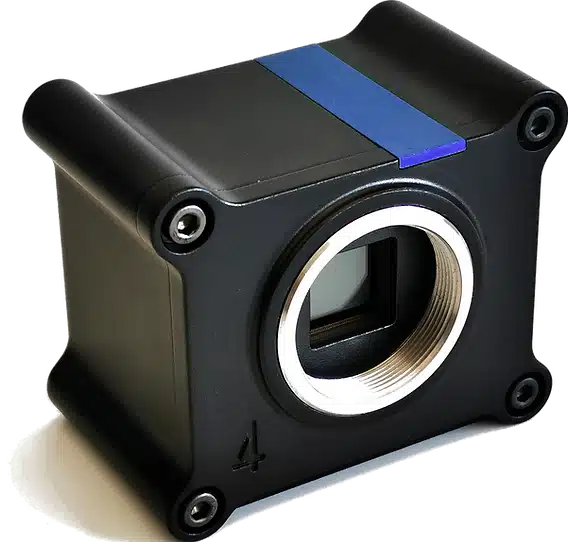

CMS4-S: Security-dedicated (blue)

CMS Sensor & Camera Specifications
Array Type	CMOS (Si)
Spectral Band	400-1000 nm
Resolution (HxV)	2048 x 2048
Spectral Image Resolution (HxV)	682 x 682
Pixel Pitch	5.5µm
Optical Interface	CS-Mount
Max Frame Rate	65 Hz (camera acquisition) / 20 Hz (COLOR SHADES Lab)
Exposure Time Rate	100 µs to 5 s
ADC	10 Bits
Camera Control	USB 3.0
Power Supply	USB 3.0
Bayer Filter	3x3 bands
Type of Pixel	8 colors (narrow bands) + 1 B&W
Dimensions (WxHxL)	52 x 63 x 40 mm^3
Weight Camera Head	170 g

Filter Specifications
Model	CMS4-C	CMS4-V	CMS4-S
Wavelength Range	430-700 nm typical	550-830 nm typical	650-930 nm typical
Band 1	λc: 426 nm \| FWHM: 55 nm \| Tmax: 42%	λc: 548 nm \| FWHM: 37 nm \| Tmax: 48%	λc: 654 nm \| FWHM: 38 nm \| Tmax: 59%
Band 2	λc: 459 nm \| FWHM: 50 nm \| Tmax: 53%	λc: 585 nm \| FWHM: 33 nm \| Tmax: 48%	λc: 696 nm \| FWHM: 36 nm \| Tmax: 59%
Band 3	λc: 495 nm \| FWHM: 45 nm \| Tmax: 59%	λc: 625 nm \| FWHM: 30 nm \| Tmax: 47%	λc: 731 nm \| FWHM: 35 nm \| Tmax: 57%
Band 4	λc: 532 nm \| FWHM: 43 nm \| Tmax: 63%	λc: 663 nm \| FWHM: 28 nm \| Tmax: 48%	λc: 774 nm \| FWHM: 34 nm \| Tmax: 57%
Band 5	λc: 579 nm \| FWHM: 41 nm \| Tmax : 66%	λc: 706 nm \| FWHM: 27 nm \| Tmax: 48%	λc: 810 nm \| FWHM: 35 nm \| Tmax: 55%
Band 6	λc : 620 nm \| FWHM : 40 nm \| Tmax : 64%	λc: 744 nm \| FWHM: 26 nm \| Tmax: 47%	λc: 853 nm \| FWHM: 34 nm \| Tmax: 53%
Band 7	λc: 663 nm \| FWHM: 39 nm \| Tmax : 63%	λc: 785 nm \| FWHM: 26 nm \| Tmax: 47%	λc: 888 nm \| FWHM: 34 nm \| Tmax: 53%
Band 8	λc: 703 nm \| FWHM: 38 nm \| Tmax: 60%	λc: 824 nm \| FWHM: 27 nm \| Tmax: 46%	λc: 931 nm \| FWHM: 34 nm \| Tmax: 51%
Band 9	Neutral density : Tmean = 18 % over [400-800]nm	Neutral density : Tmean = 9 % over [500-900]nm	Neutral density : Tmean = 12 % over [500-1000]nm

Multispectral Sensor Specifications
Model	CMS4-C	CMS4-V	CMS4-S

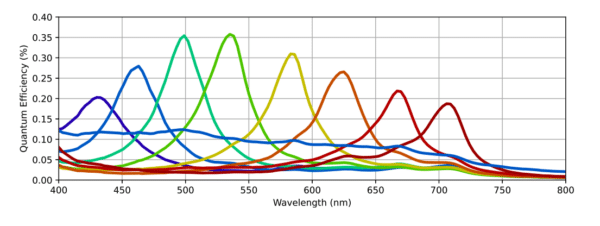

Band 1	λc: 430 nm \| FWHM: 51 nm \| QE max: 20%	λc: 549 nm \| FWHM: 37 nm \| QE max: 22%	λc: 656 nm \| FWHM: 35 nm \| QE max: 19%
Band 2	λc: 460 nm \| FWHM: 49 nm \| QE max: 28%	λc: 582 nm \| FWHM: 30 nm \| QE max: 21%	λc: 698 nm \| FWHM: 35 nm \| QE max: 16%
Band 3	λc: 498 nm \| FWHM: 43 nm \| QE max: 35%	λc: 623 nm \| FWHM: 30 nm \| QE max: 19%	λc: 733 nm \| FWHM: 36 nm \| QE max: 14%
Band 4	λc: 534 nm \| FWHM: 44 nm \| QE max: 35%	λc: 660 nm \| FWHM: 27 nm \| QE max: 18%	λc: 774 nm \| FWHM: 34 nm \| QE max: 12%
Band 5	λc: 583 nm \| FWHM: 42 nm \| QE max: 31%	λc: 707 nm \| FWHM: 29 nm \| QE max: 14%	λc: 809 nm \| FWHM: 30 nm \| QE max: 10%
Band 6	λc: 622 nm \| FWHM: 46 nm \| QE max: 26%	λc: 742 nm \| FWHM: 28 nm \| QE max: 13%	λc: 851 nm \| FWHM: 35 nm \| QE max: 7%
Band 7	λc: 667 nm \| FWHM: 35 nm \| QE max: 22%	λc: 784 nm \| FWHM: 28 nm \| QE max: 9%	λc: 887 nm \| FWHM: 37 nm \| QE max: 5%
Band 8	λc: 705 nm \| FWHM: 37 nm \| QE max: 19%	λc: 821 nm \| FWHM: 30 nm \| QE max: 7%	λc: 927 nm \| FWHM: 37 nm \| QE max: 3%
Band 9	Neutral density : QE mean = 8% over [400-800]nm	Neutral density : QE mean = 5% over [500-900]nm	Neutral density : QE mean = 3% over [500-1000]nm
Pixel Operability	≥99.94%	≥99.97%	≥99.94%

CMS4-C

CMS4-V

CMS4-S

CMS4-C (Color Dedicated)

Color measurements
Color process control
Waste sorting (papers, plastic bottles…)
Fruits & vegetables aspect control

CMS4-V (Vegetation Dedicated)

Vegetation index measurement (NDVI, MCARI, MSR, SAVI, TVI…)
Field mapping for modern agriculture monitoring
Fertilization and irrigation optimization
Environmental monitoring…

CMS4-S (Security Dedicated)

Surveillance
Authentication
Forensics
Oximetry
Defense…

Data Sheets and Brochures

CMS4 Series Data Sheet

CMS4-C Datasheet

CMS4-V Datasheet

CMS4-S Datasheet

COLOR SHADES® LAB

The SDK for the SILIOS multispectral cameras (CMS, CMS4, TOUCAN and ANT). It allows :

displaying the raw images, false color images, gray scale images or overlaid images with different indexation methods (such as “spectrum recognition”),
normalizing the spectral channels,
applying multispectral image corrections such as the crosstalk correction,
extracting the hypercubes.

COLOR SHADES® LAB runs with real time acquisition, but can also run with recorded single image or series of images (“replay mode”).

COLOR SHADES® LAB supports any of the SILIOS cameras and recognizes each plugged one via its S/N number. The specific spectral data of the corresponding multispectral sensor are then used for spectral corrections and treatments.
