ManxR | SWIR linescan camera | Rectangular pixels

Sensor Type

InGaAs

Resolution

2048, 1024, 512 x 1

Pixel size

12.5 µm x 250 µm

Shutter Mode

Global shutter

Max line rate (kHz)

128 [“130” version], 256 [“260” version]

Interface

CoaXPress

World’s fastest InGaAs line-scan camera with rectangular pixels

Based on a brand new, in-house developed InGaAs linear detector, the Manx rectangular (R) is a high-performance short-wave infrared (SWIR) camera providing high speed and quality line-scan imaging. At unprecedented line rates of up to 256 kHz (or 128 kHz), the Manx rectangular (R) stands as the fastest line-scan InGaAs camera available in the world.

The Manx rectangular (R) is able to provide up to 2048 pixel resolution. It also presents the lowest noise performance record for a 2048 pixel SWIR linear camera, combined with excellent dynamic range.

The use of CoaXPress interfacing enables fast and reliable data transfer.

The Manx rectangular (R) is offered in 3 different resolutions of 512, 1024 or 2048 pixels.

The Manx rectangular (R) products are suitable for spectroscopy and spectral-domain optical coherence tomography (OCT).

Benefits & Features

• World’s fastest SWIR line-scan imaging up to 256 kHz
• High resolution
• Low noise, low dark current
• CoaXPress interfacing for reliable streaming of data
• Versatility with 4 gain modes

World’s fastest InGaAs line-scan camera with rectangular pixels

Based on a brand new, in-house developed InGaAs linear detector, the Manx rectangular (R) is a high-performance short-wave infrared (SWIR) camera providing high speed and quality line-scan imaging. At unprecedented line rates of up to 256 kHz (or 128 kHz), the Manx rectangular (R) stands as the fastest line-scan InGaAs camera available in the world.

The Manx rectangular (R) is able to provide up to 2048 pixel resolution. It also presents the lowest noise performance record for a 2048 pixel SWIR linear camera, combined with excellent dynamic range.

The use of CoaXPress interfacing enables fast and reliable data transfer.

The Manx rectangular (R) is offered in 3 different resolutions of 512, 1024 or 2048 pixels.

The Manx rectangular (R) products are suitable for spectroscopy and spectral-domain optical coherence tomography (OCT).

Benefits & Features

• World’s fastest SWIR line-scan imaging up to 256 kHz
• High resolution
• Low noise, low dark current
• CoaXPress interfacing for reliable streaming of data
• Versatility with 4 gain modes

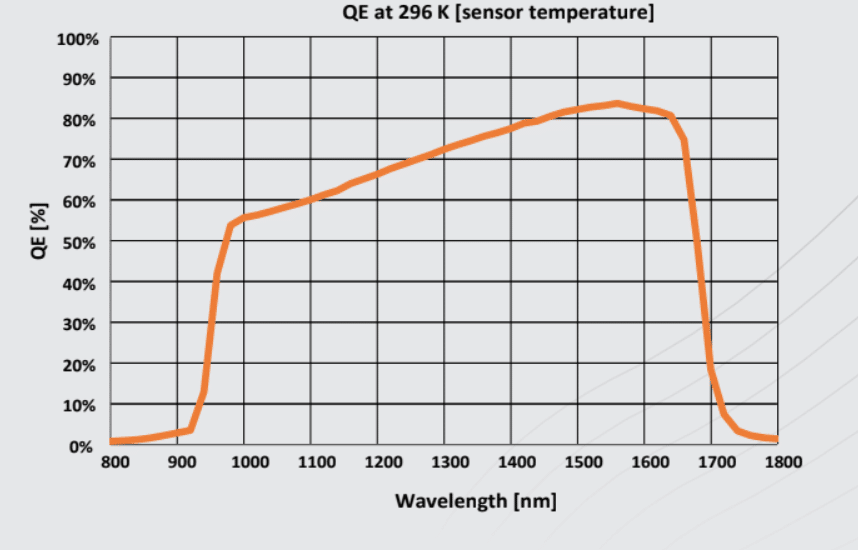

Sensitivity

900-1700 nm (SWIR)
Material

InGaAs
Resolution

2048 x 1, 1024 x 1, 512 x 1
Frame Rate

> 1,000 fps
Pixel Pitch

12.5 µm x 250 µm
Cooling

TEC-cooled
Type

Camera
Interface

CoaXPress
Array Type

1D array / linescan
