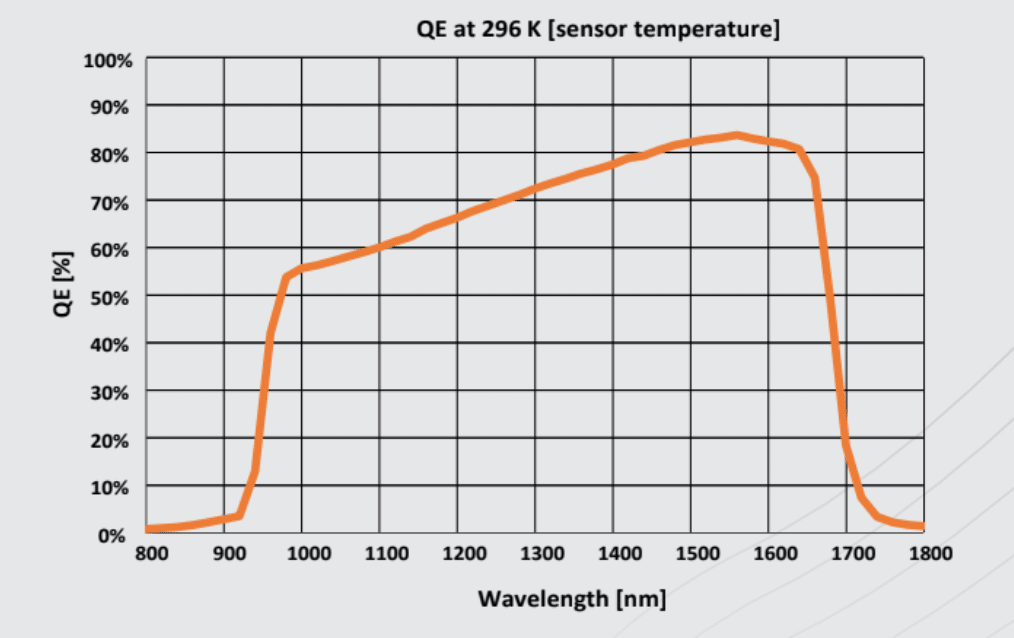

QE Curve
Applications
Videos
Downloads| Sensitivity | 900-1700 nm (SWIR) |
|---|---|
| Material | InGaAs |
| Resolution | 2048 x 1, 1024 x 1, 512 x 1 |
| Frame Rate | > 1,000 fps |
| Pixel Pitch | 12.5 µm x 12.5 µm |
| Cooling | TEC-cooled |
| Type | Camera |
| Interface | CoaXPress |
| Array Type | 1D array / linescan |

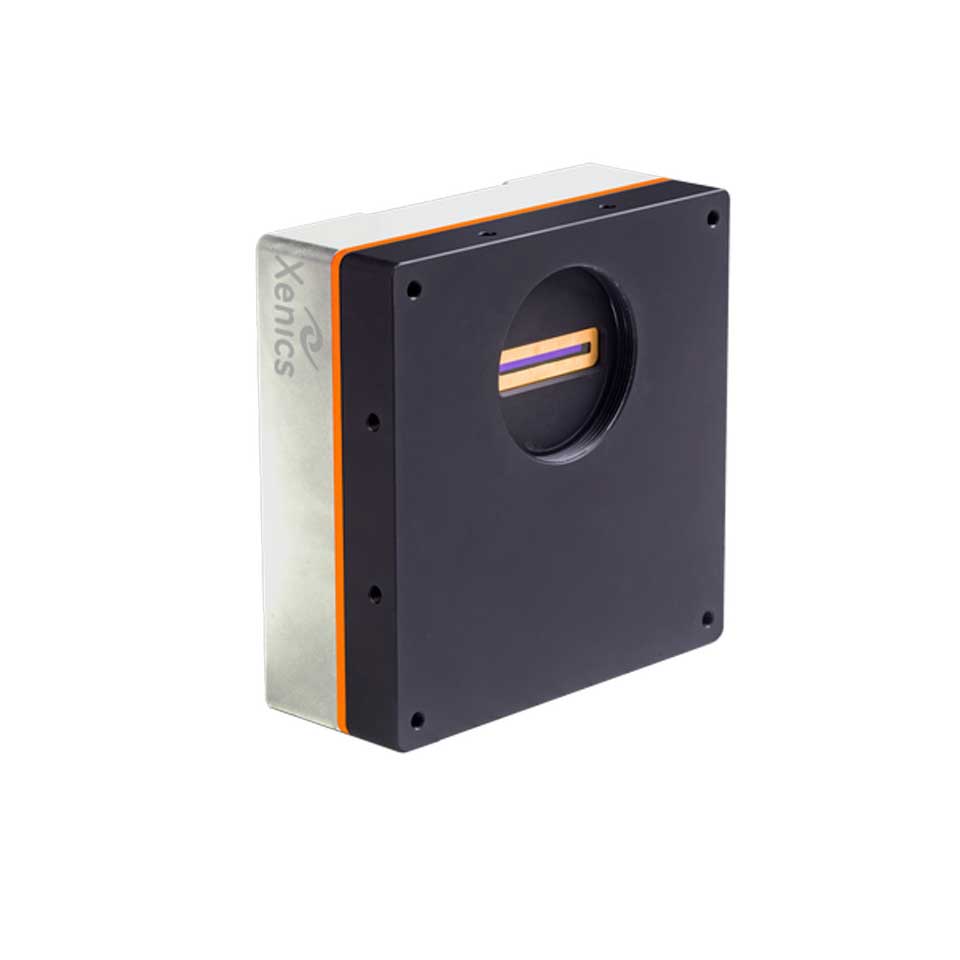

ManxSQ | SWIR linescan camera | Square pixels
Sensor Type
InGaAs
Resolution
2048, 1024, 512 x 1
Pixel size
12.5 µm x 12.5 µm
Shutter Mode
Global shutter
Max line rate (kHz)
128 [“130” version], 256 [“260” version]
Interface
CoaXPress
World’s fastest InGaAs line-scan camera with square pixels
Based on a brand new, in-house developed InGaAs linear detector, the Manx square (SQ) is a high-performance short-wave infrared (SWIR) camera providing high speed and quality line-scan imaging. At unprecedented line rates of up to 256 kHz (or 128 kHz), the Manx square (SQ) stands as the fastest line-scan InGaAs camera available in the world.
The Manx square (SQ) is able to provide up to 2048 pixel resolution. It also presents the lowest noise performance record for a 2048 pixel SWIR linear camera, combined with excellent dynamic range.
The use of CoaXPress interfacing enables fast and reliable data transfer.
The Manx square (SQ) is offered in 3 different resolutions of 512, 1024 or 2048 pixels.
Silicon wafer inspection, TFT screen inspection, food and agricultural produce sorting are some industrial applications that would benefit from this new line of ultra fast linear SWIR cameras.
Benefits & Features
• World’s fastest SWIR line-scan imaging up to 256 kHz
• High resolution
• Low noise, low dark current
• CoaXPress interfacing for reliable streaming of data
• Versatility with 4 gain modes
