effilux-1

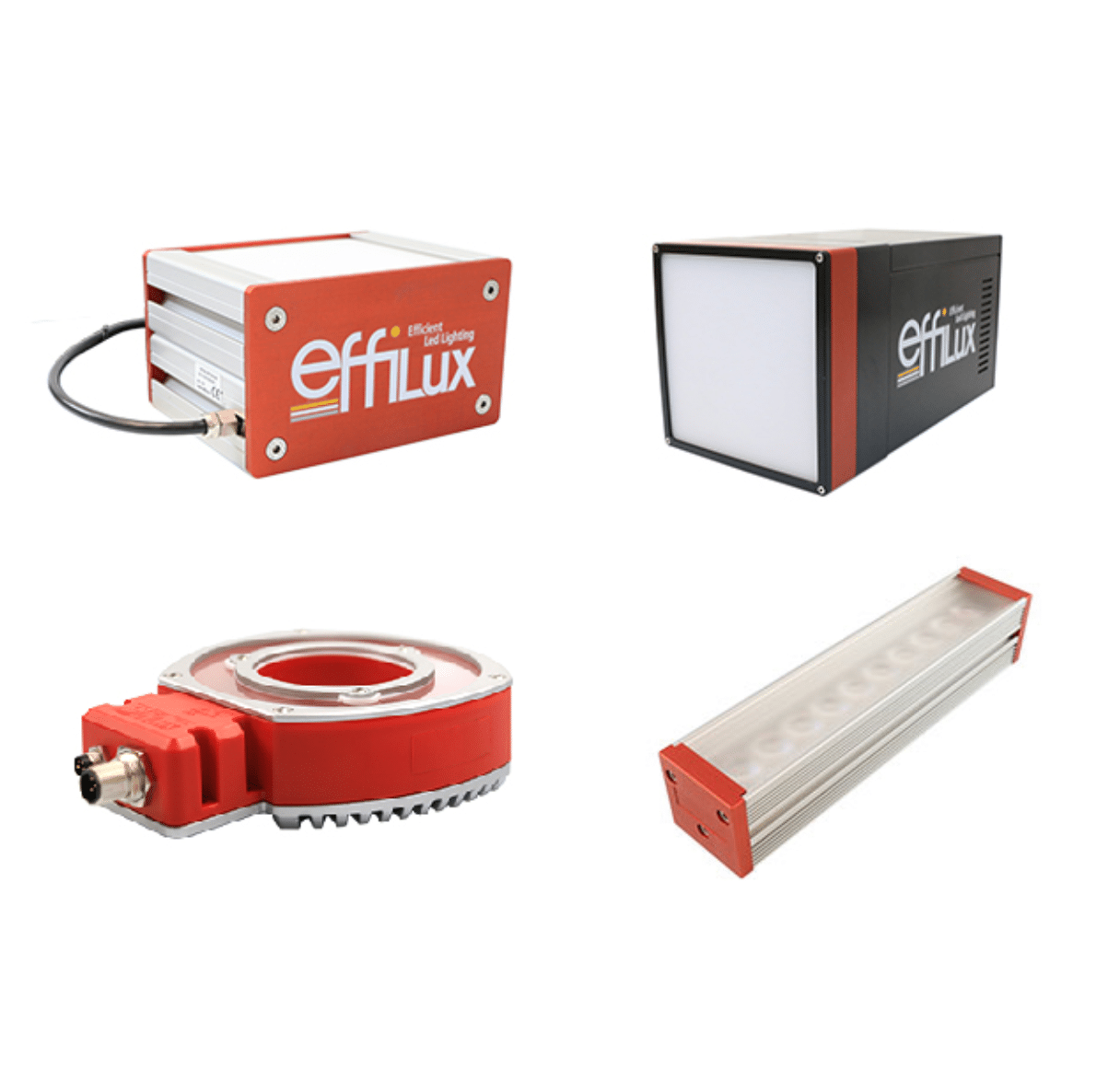

SWIR LED Lightings | LED bar, backlight & donut shape

Available shapes

Bar, ring, backlight

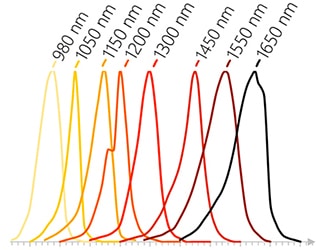

Available wavelengths (nm)

980 - 1050 - 1150 - 1200 - 1300 - 1450 - 1550 - 1650

Input power

24 VDC

Operation

CW or strobe

The SWIR is the spectral band typically defined between 1 and 2.5 μm. On the boundary between visible and thermal imaging, this light field has unique properties.

Indeed, its proximity to the visible range gives it all its imaging qualities in terms of contrast and resolution, and at the same time its infrared spectrum allows it to reveal phenomena and elements invisible to the naked eye:

• Control in transmission of opaque materials (plastics, silicon …)
• Reveal elements like water, lipids, collagen …
• See through smoke, fog and dust, day and night.

The SWIR range, specially designed for industrial and scientific applications, leads the way to new applications

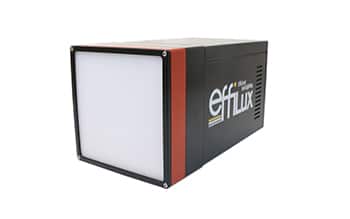

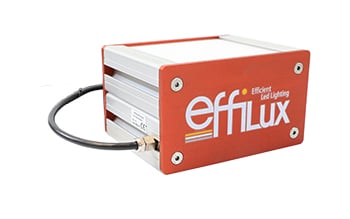

Backlight –

A complete range of Backlights according to the power you need:

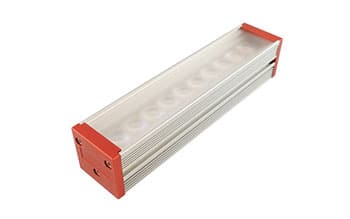

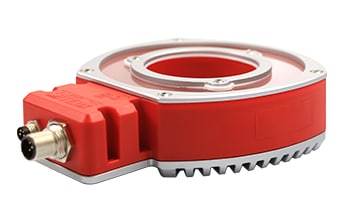

Direct Illumination –

Thanks to its great optical and electronic flexibility, our range of reflection lighting fits perfectly with the needs for Area and Linescan SWIR imaging, directive or very diffuse, mono or multispectral.



SWIR LED Light Source

Axiom Optics offer various SWIR LED light sources to meet your application needs. Backlights and direct ilumination options available

The SWIR is the spectral band typically defined between 1 and 2.5 μm. On the boundary between visible and thermal imaging, this light field has unique properties.

Indeed, its proximity to the visible range gives it all its imaging qualities in terms of contrast and resolution, and at the same time its infrared spectrum allows it to reveal phenomena and elements invisible to the naked eye:

• Control in transmission of opaque materials (plastics, silicon …)
• Reveal elements like water, lipids, collagen …
• See through smoke, fog and dust, day and night.

The SWIR range, specially designed for industrial and scientific applications, leads the way to new applications

Backlight SWIR LED Light

A complete range of Backlights according to the power you need:

Direct Illumination SWIR LED Light

Thanks to its great optical and electronic flexibility, our range of reflection lighting fits perfectly with the needs for Area and Linescan SWIR imaging, directive or very diffuse, mono or multispectral.
