Downloads| 18-108 mm with manual zoom, focus and iris, SWIR 2/3″ format lens |
SWIR Zoom Lens| 18-108 mm, 2/3″ format, C-mount
EFL range
18 - 108 mm
Lens mount
C-mount
Sensor format
2/3"
Adjustments
Manual zoom, focus, iris
Iris range
F/2.5-Close
Focus range
0.13 m to infinity

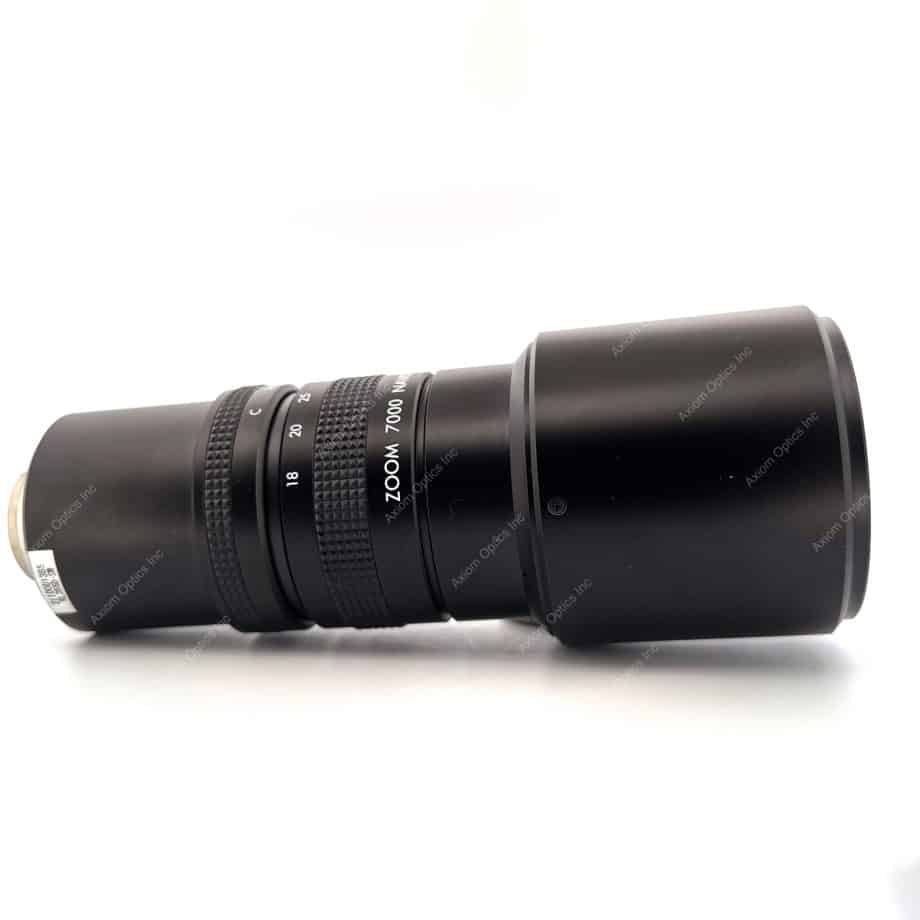

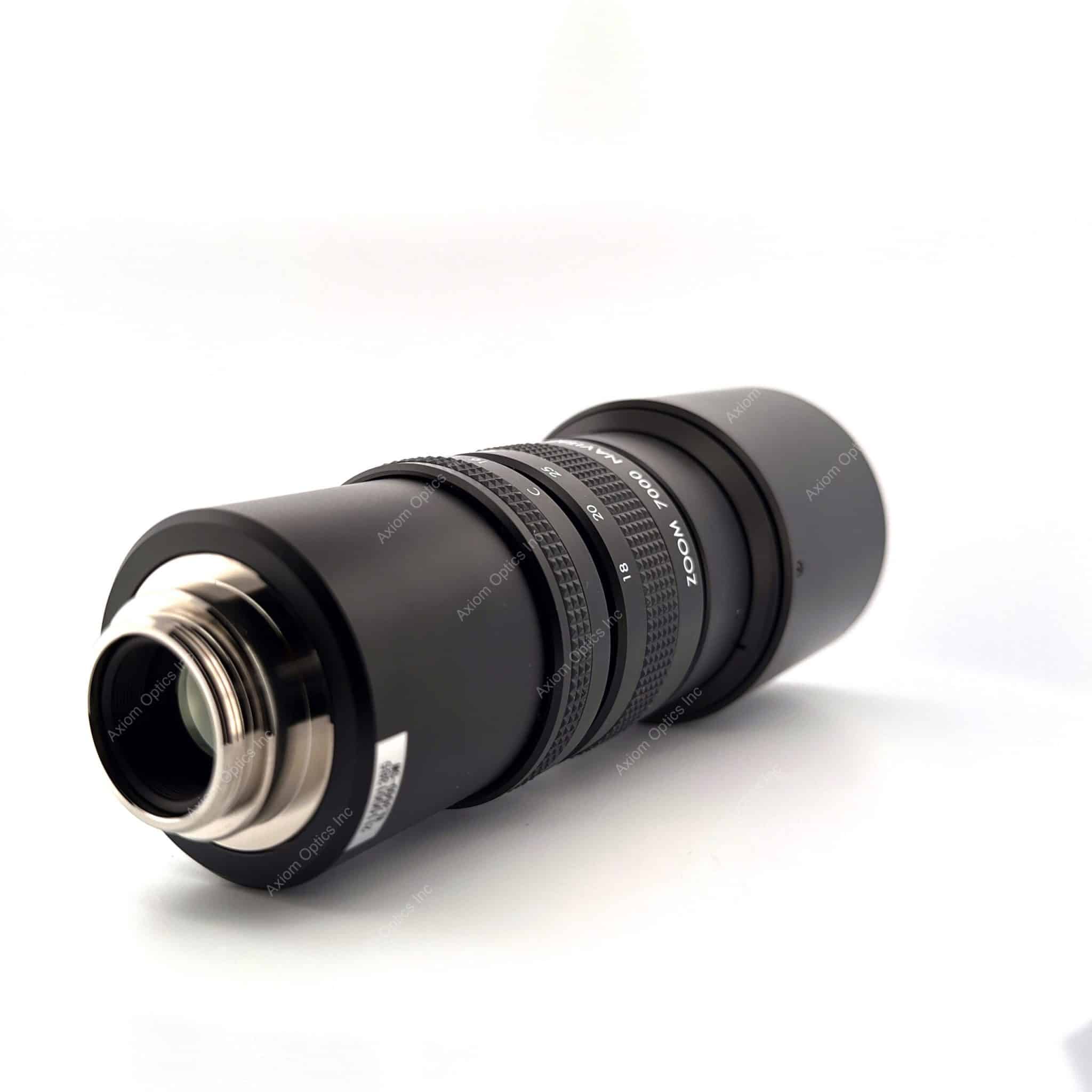

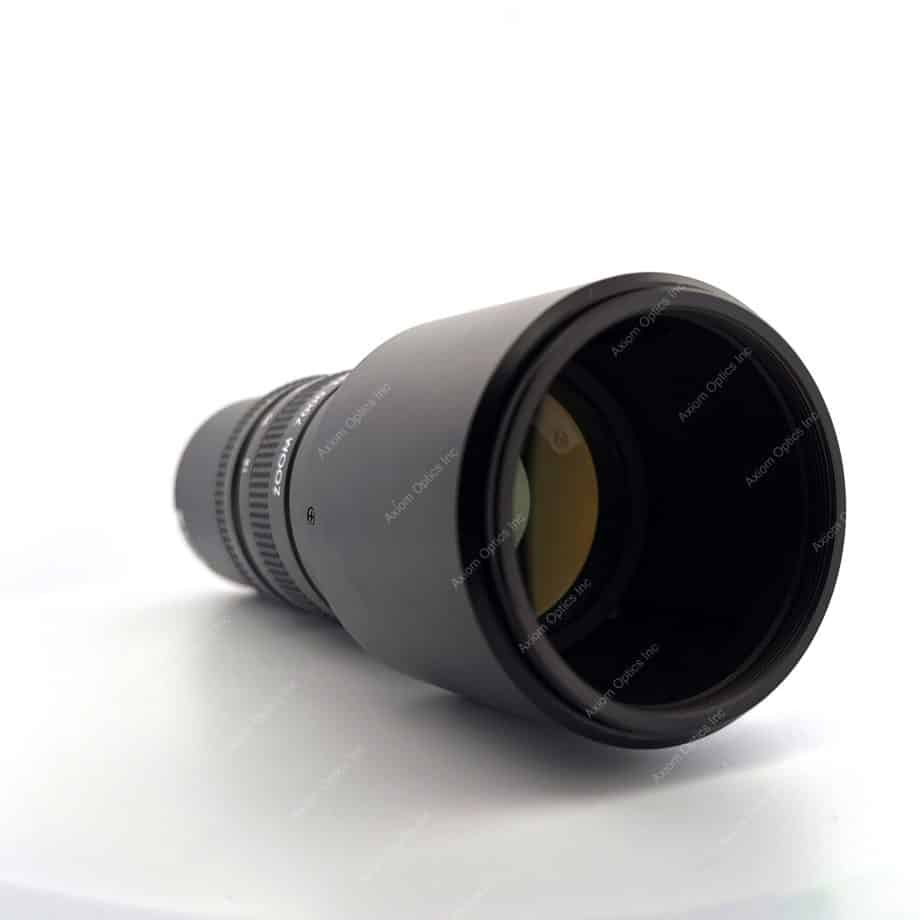

This 18-108 mm zoom lens with manual zoom, focus and iris 2/3″ format lens has high transmission in the SWIR wavelengths (>70% from 1 – 1.6 µm). Its C-mount lens mount makes it compatible with all our SWIR cameras.
Transmission curve
| Text1 | 18 – 108 mm EFL range |
|---|---|
| Text2 | > 70% transmission 1-1.6µm |
| Text3 | 2/3" format |
| Text4 | C-mount |
| Text5 | Manual zoom, focus, iris |
