BeamPro | Small Pixel Laser Beam Profiler

Smallest pixel pitch

1.45 µm

Largest active area

12.3 x 12.3 mm

Bit depth

12/16-bit (with HDR option)

Interface

USB3.1

Software

STAR software + Web API

Options

UV, trigger, windowless, vacuum compatible

Tag: LBD: CMOS Brand: Femtoeasy

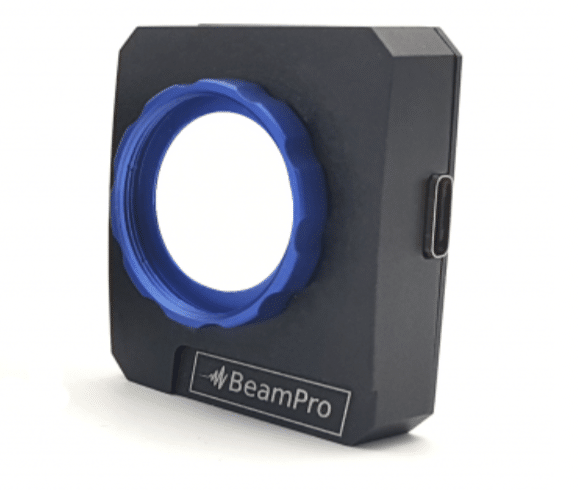

Laser Beam Profiler: BeamPro Small Pixel

The Femto Easy Beam Pro laser beam profiler offers pixel sizes ranging from 1.45 µm to 3.5 µm. With the smallest pixel size available, the BeamPro ensures highly accurate measurements of focused laser beams, even down to 10 µm or less.

The user-friendly software, combined with the Femto Easy BeamPro, provides comprehensive analysis and statistical data for your laser beam. The software utilizes standard communication protocols, making it easily integrable into various complex environments. Multiple BeamPro devices can be controlled remotely from a single screen via network. They support wavelengths from 190 to 1100 nm, and sensor sizes of up to 25 mm. Additionally, there are high-resolution models available with pixels as small as 1.45 μm for precise measurements of focused beams.

To select the right beam profiler for your application, visit our application page.

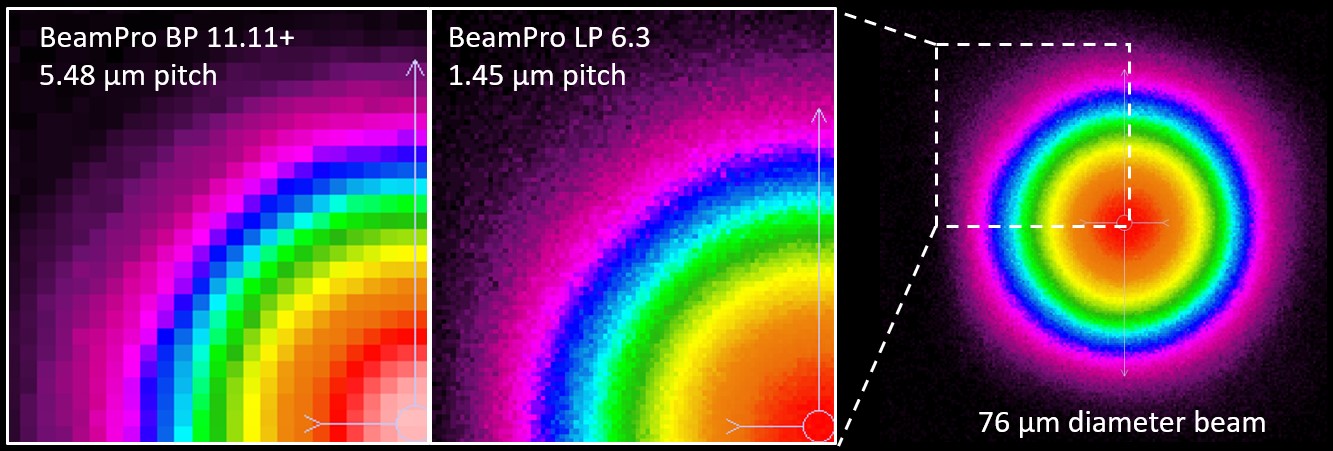

BeamPro small pixel beam profiler

BeamPro model	μ-BP7.5+	LP6.3+	BP7.6+	BP13.9+	BP6.5	BP11.10	μ-BP6.4	μ-BP7.4	BP8.7
Pixel size (μm)	1.40	1.45	1.85	2.40	2.50	2.50	3.00	3.45	3.45
Spectral Range	375 – 1100 190 – 1100 with UV option	375 – 1100 190 – 1100 with UV option	375 – 1100 190 – 1100 with UV option	375 – 1100 190 – 1100 with UV option	375 – 1100 190 – 1100 with UV option	375 – 1100 190 – 1100 with UV option	375 – 1100 190 – 1100 with UV option	375 – 1100 190 – 1100 with UV option	375 – 1100 190 – 1100 with UV option
Sensor Size (mm)	7.2 x 5.4	5.6 x 3.1	7.4 x 5.5	13.1 x 8.7	6.5 x 5.4	11.3 x 10.2	5.8 x 3.6	6.6 x 4.2	8.5 x 7.1
Sensor format	(M) 1/1.8”	(S) 1/3”	(M) 1/1.7"	(L) 1"	(M) 1/2"	(M) 1"	(S) 1/3"	(M) 1/2.3”	(L) 2/3”
Resolution	5136 x 3856 19.8 Mpx	3864 x 2176 8.4 Mpx	4000 x 3000 12 Mpx	5472 x 3648 20 Mpx	2600 x 2160 5.6 Mpx	4508 x 4096 18.4 Mpx	1920 x 1200 2.3 Mpx	1920 x 1200 2.3 Mpx	2456 x 2054 5.0 Mpx
Shutter type	Rolling	Rolling	Rolling	Rolling	Global	Global	Global	Global	Global
Minimum beam diameter (Φ FWHM, μm)	6	7	9	12	12	12	15	17	17
Maximum acquisition frame rate (fps) 2	15	24	31	18	64	20	102	160	36
Exposure time min (μs) max (s)	35^3 (1)	31^3 (1)	10^3 (1)	67^3 (1)	200 (1)	500 (1)	12 (1)	17 (1)	27 (1)
Dynamic (dB)	58	70	70	72	71	64	58	71	73
Sensor type	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Bit depth*	12/16-bit (with HDR option)	12/16-bit (with HDR option)	12/16-bit (with HDR option)	12/16-bit (with HDR option)	12/16-bit (with HDR option)	12/16-bit (with HDR option)	12/16-bit (with HDR option)	12/16-bit (with HDR option)	12/16-bit (with HDR option)
PC Interface	USB 3.1	USB 3.1	USB 3.1	USB 3.1	USB 3.1	USB 3.1	USB 3.1	USB 3.1	USB 3.1
Synchronization	Yes (with the Trigger option)	Yes (with the Trigger option)	Yes (with the Trigger option)	Yes (with the Trigger option)	Yes (with the Trigger option)	Yes (with the Trigger option)	Yes (with the Trigger option)	Yes (with the Trigger option)	Yes (with the Trigger option)
Dimensions (mm)	33 x 29 x 10	40 x 45 x 12	36 x 39 x 46	36 x 39 x 46	36 x 39 x 46	36 x 39 x 46	33 x 29 x 10	33 x 29 x 10	36 x 39 x 46

Footnotes:

* Software mode to increase the dynamic of the BeamPro signal acquisition from 14 to 16 bits. Not compatible with pure single-shot measurement as 2 images are necessary to build one beam profile image.

**Removal of the BeamPro sensor window to avoid potential interferences

Data Sheet and Brochures

BeamPro Data Sheet

STAR BeamPro software

Live extraction of beam properties, even with resolutions larger than 20 Mpx
Several parameters and methods supported (ISO calculation included)
Enhanced background & hot pixels treatment for optimum dynamic and signal-to-noise ratio
Client / Server interface, allowing remote control through network
Advanced logging and permanent access to the 10 previous acquisitions
Live comparison with up to 10 different reference measurements
1-click installation, completely configurable, export assistant

Options

Windowless
- Removal of the BeamPro sensor window to avoid potential interferences
UV Extension
- Increases the BeamPro wavelength range to the UV region, down to 190 nm
Additional ND Filters
- The default BeamPro configuration includes one ND filter. Additional ones with different specifications can be ordered
Custom Version on Request
- BeamPro based on different type of camera (resolution, pixel size, sensor material) can be developed on request
High Dynamic Range
- Software mode to increase the dynamic of the BeamPro signal acquisition from 12 to 16 bits. Not compatible with pure single-shot measurement as 2 images are necessary to build one beam profile image
Trigger
- Synchronization of the BeamPro detection to an external signal for accurate laser single pulse measurement
Vacuum Compatible
- Possibility to place the BeamPro and perform measurements directly inside a UHV vacuum chamber (not available for all models, please contact us for details.

Laser Beam Profiler: BeamPro Small Pixel

The Femto Easy Beam Pro small pixel laser beam profiler offers pixel sizes ranging from 1.45 µm to 3.5 µm. With the smallest pixel size available, the BeamPro beam profiler ensure highly accurate measurements of focused laser beams, even down to 10 µm or less.

To select the right beam profiler for your application, visit our application page.

BeamPro Data Sheet

STAR BeamPro software

Live extraction of beam properties, even with resolutions larger than 20 Mpx
Several parameters and methods supported (ISO calculation included)
Enhanced background & hot pixels treatment for optimum dynamic and signal-to-noise ratio
Client / Server interface, allowing remote control through network
Advanced logging and permanent access to the 10 previous acquisitions
Live comparison with up to 10 different reference measurements
1-click installation, completely configurable, export assistant

Options

Windowless
- Removal of the BeamPro sensor window to avoid potential interferences
UV Extension
- Increases the BeamPro small pixel beam profiler’s wavelength range to the UV region, down to 190 nm
Additional ND Filters
- The default BeamPro configuration includes one ND filter. Additional ones with different specifications can be ordered
Custom Version on Request
- BeamPro based on different type of camera (resolution, pixel size, sensor material) can be developed on request
High Dynamic Range
- Software mode to increase the dynamic of the BeamPro signal acquisition from 12 to 16 bits. Not compatible with pure single-shot measurement as 2 images are necessary to build one beam profile image
Trigger
- Synchronization of the BeamPro detection to an external signal for accurate laser single pulse measurement
Vacuum Compatible
- Possibility to place the BeamPro and perform measurements directly inside a UHV vacuum chamber (not available for all models, please contact us for details.

1	Smallest pixel pitch of 1.45µm
2	Spectral range: 375-1100nm (190nm with UV option)
3	CW and pulsed lasers
4	USB3.1 interface
5	Free STAR software
