deformable mirror for high power lasers

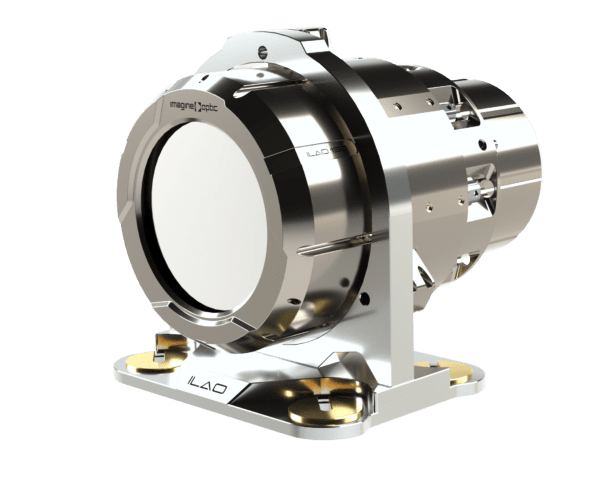

ILAO Star I High power deformable mirror

Optical Quality and Dynamic Range

Enabling Strehl Ratio > 0.9

Number of actuators

19 to 52

Hysteresis

(Less than 0.5%) / No backlash compensation needed

Beam Diameter Correction

From 16-170mm and more / AOI 10< to 45

Maintenance

Simplified procedures for actuator or substrate replacement

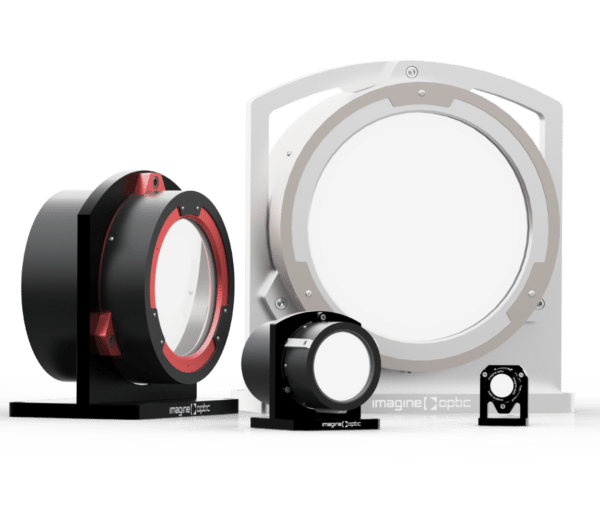

ILAO STAR – High power deformable mirror

ILAO STAR is the first mechanical deformable mirror that was developed for applications in Ultra High Intensity Lasers. Based on a patented actuation technology, ILAO operates using mechanical actuators with astatic floating heads that perform wavefront shaping with nanometric precision, extremely high repeatability and perfect linearity.

This high power deformable mirror provides extremely low residual errors on its full dynamic range and allows performing correction without high spatial frequency phase modulations to prevent damages on downstream optics. It is compatible with most available metallic and dielectric coatings and can be customized to match with integration at 45 degree and square beams.



ILAO STAR - high power deformable mirror - Frascatti INFN
ILAO STAR – Frascatti INFN – Credits: Imagine Optic

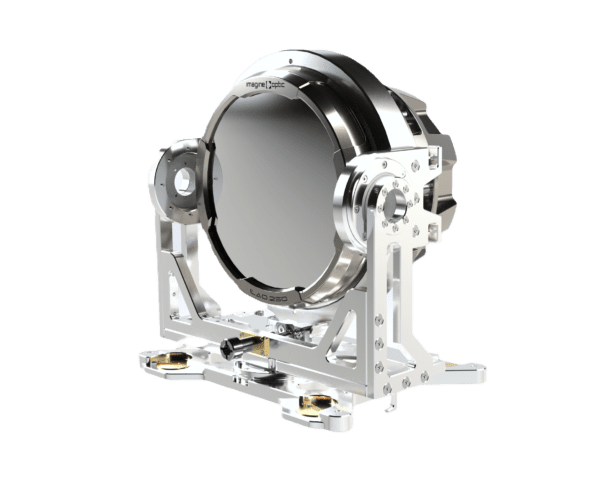

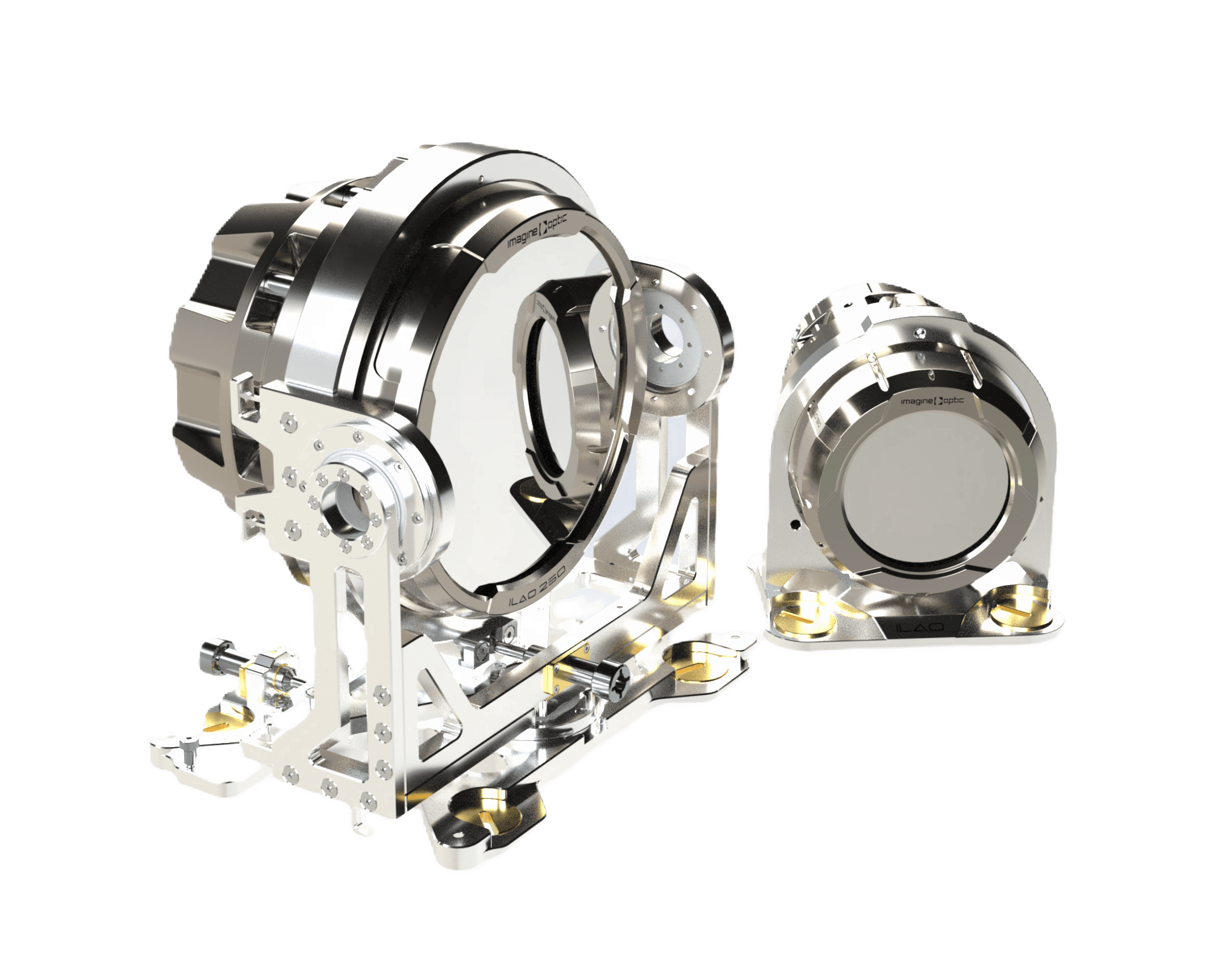

Custom DM for sub-15fs ultrashort pulse accompanying its custom gimbal mount - 200mm - Alok Kumar Panday - Imagine Optic
Custom ILAO STAR 200mm  for sub-15fs ultrashort pulse accompanying its custom gimbal mount – Credits: Alok Kumar Panday – Imagine Optic

Key specifications

– Optical quality enabling Strehl Ratio > 0,9
– Closed-loop processing frequency ≥ 10Hz
– Very low hysteresis (less than 0.5%)
– Very high correction capability
– No backlash compensation needed
– Completely customized to laser’s parameters
– Easy maintenance for actuator or substrate replacement
– Any angle of incidence ≤ 45°

Key features

– Mirror shape maintained even without electrical power
– Excellent optical quality with active flat better than 10 nm rms and minimal print-through effect
– Perfectly adapted to a beam diameters ranging from 20 to 500 mm
– Dielectric, metallic, or hybrid coating available
– Compatible with WaveTune software and every HASO wavefront sensors
– Optional SDK in C, Python, Labview

Moreover, its integration in the Laser before or after the compressor allows providing a corrected wavefront before the beam transportation. For the correction of the beam transportation, Imagine Optic has developed PHARAO, a software using the focal spot itself to determine the non-common path aberrations and perform ultimate correction for diffraction limited focusing on target.

The amount of energy, beam diameters and safety standards have largely increased to meet new scientific challenges in inertial confinement fusion, plasma acceleration and particle physics experiments.  The level of performance and maintenance features offered by ILAO STAR deformable mirror perfectly meets the highest requirements of actual laser installations.

Visit the manufacturer’s website here.

For more deformable mirrors, visit our deformable mirror page here.

ILAO STAR – High power deformable mirrorILAO STAR is the first mechanical deformable mirror that was developed for applications in Ultra High Intensity Lasers. Based on a patented actuation technology, ILAO operates using mechanical actuators with astatic floating heads that perform wavefront shaping with nanometric precision, extremely high repeatability and perfect linearity.

This high power deformable mirror provides extremely low residual errors on its full dynamic range and allows performing correction without high spatial frequency phase modulations to prevent damages on downstream optics. It is compatible with most available metallic and dielectric coatings and can be customized to match with integration at 45 degree and square beams.

ILAO STAR - high power deformable mirror - Frascatti INFN
  ILAO STAR – Frascatti INFN – Credits: Imagine Optic
Custom DM for sub-15fs ultrashort pulse accompanying its custom gimbal mount - 200mm - Alok Kumar Panday - Imagine Optic
Custom ILAO STAR 200mm  for sub-15fs ultrashort pulse accompanying its custom gimbal mount – Credits: Alok Kumar Panday – Imagine Optic

Applications – deformable mirror for Ultra High Intensity Laser

As a High power deformable mirror, ILAO STAR can be used to:

– Correcting aberrations in full-power mode
– Focal spot correction
– Wavefront precompensation
– Particle acceleration
– High harmonic generation

Key specifications

– Optical quality enabling Strehl Ratio > 0,9
– Closed-loop processing frequency ≥ 10Hz
– Very low hysteresis (less than 0.5%)
– Very high correction capability
– No backlash compensation needed
– Completely customized to laser’s parameters
– Easy maintenance for actuator or substrate replacement
– Any angle of incidence ≤ 45°

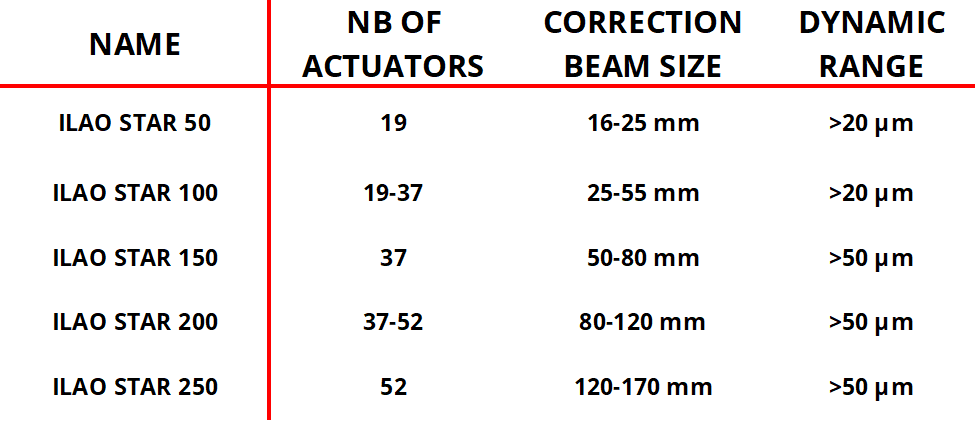

Model Numbers of actuatorsBeam size ØDynamic range  ILAO STAR 501916-25 mm>20µm  ILAO STAR 1001925-50 mm >20µm  ILAO STAR 1503750-85 mm >50µm  ILAO STAR 20037-5290-120 mm >50µm  ILAO STAR 25052120-170 mm>50µm

Key features

– Mirror shape maintained even without electrical power
– Excellent optical quality with active flat better than 10 nm rms and minimal print-through effect
– Perfectly adapted to a beam diameters ranging from 20 to 500 mm
– Dielectric, metallic, or hybrid coating available
– Compatible with WaveTune software and every HASO wavefront sensors
– Optional SDK in C, Python, Labview

Moreover, its integration in the Laser before or after the compressor allows providing a corrected wavefront before the beam transportation. For the correction of the beam transportation, Imagine Optic has developed PHARAO, a software using the focal spot itself to determine the non-common path aberrations and perform ultimate correction for diffraction limited focusing on target.

The amount of energy, beam diameters and safety standards have largely increased to meet new scientific challenges in inertial confinement fusion, plasma acceleration and particle physics experiments.  The level of performance and maintenance features offered by ILAO STAR deformable mirror perfectly meets the highest requirements of actual laser installations.

Visit the manufacturer’s website here.

For more deformable mirrors, visit our deformable mirror page here.

Number of Actuators

19, 37, 52
