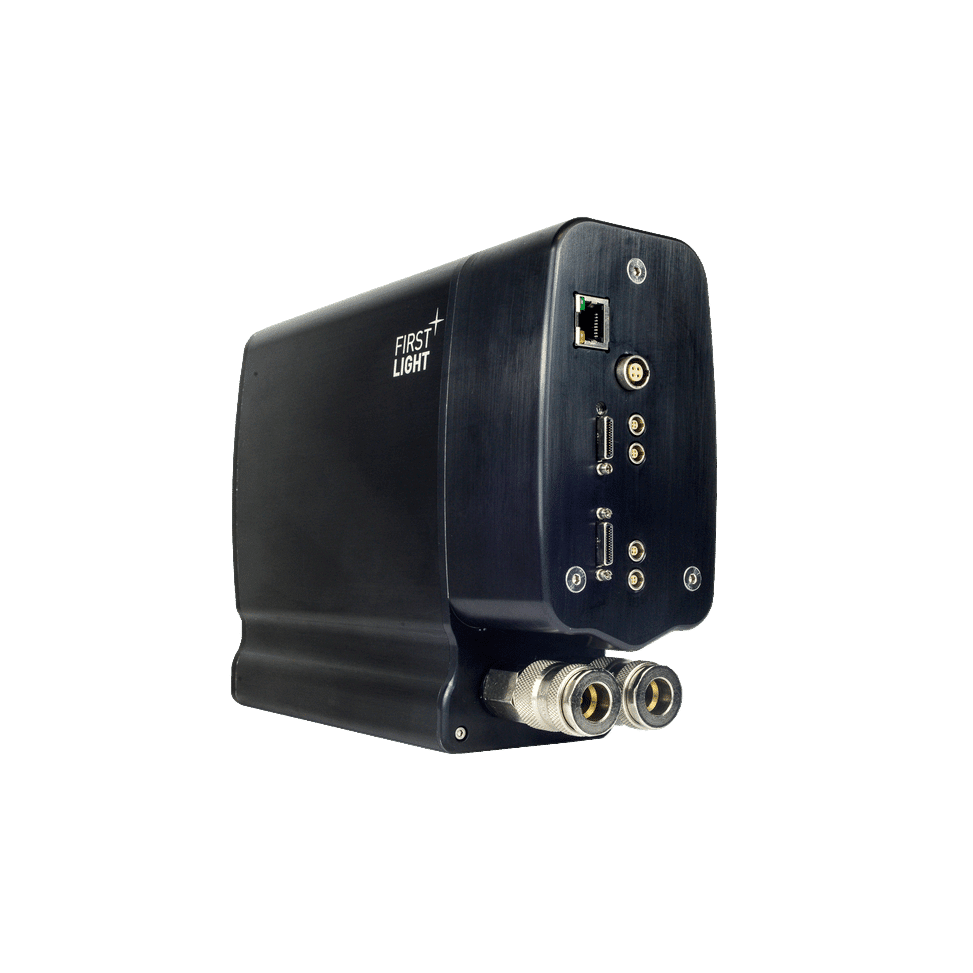

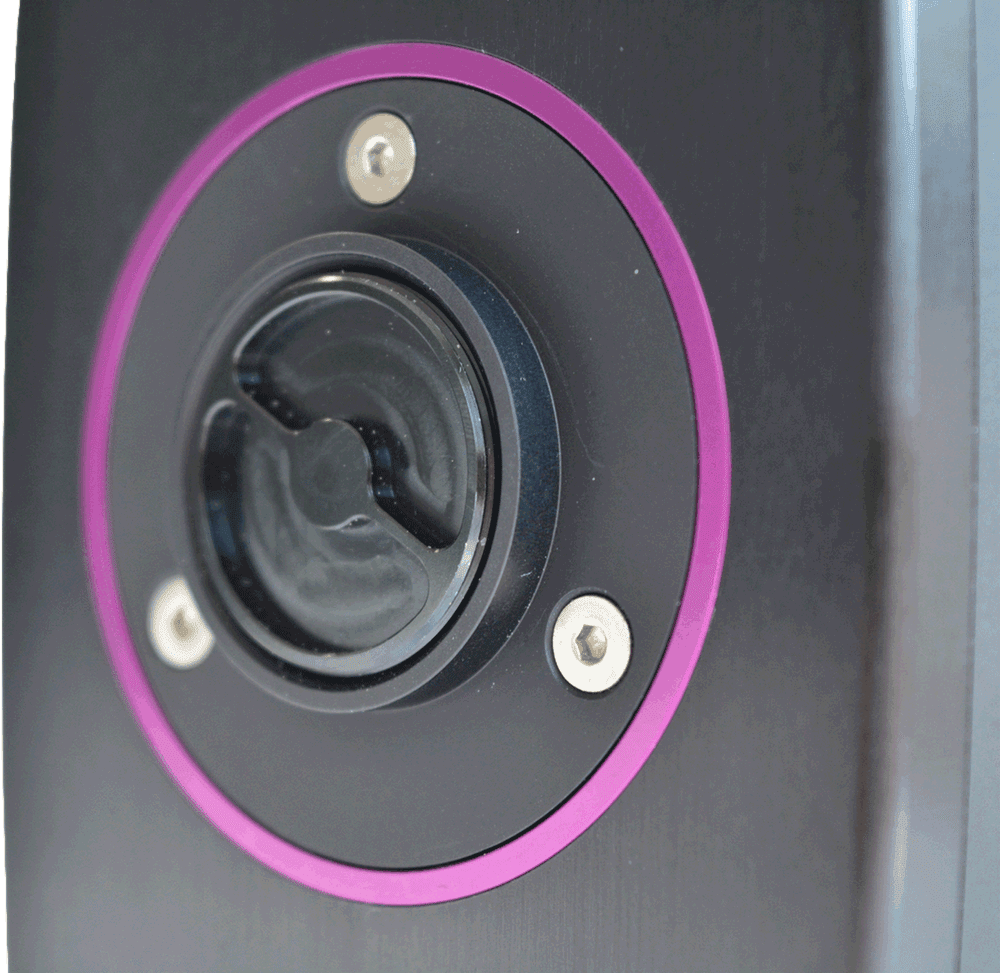

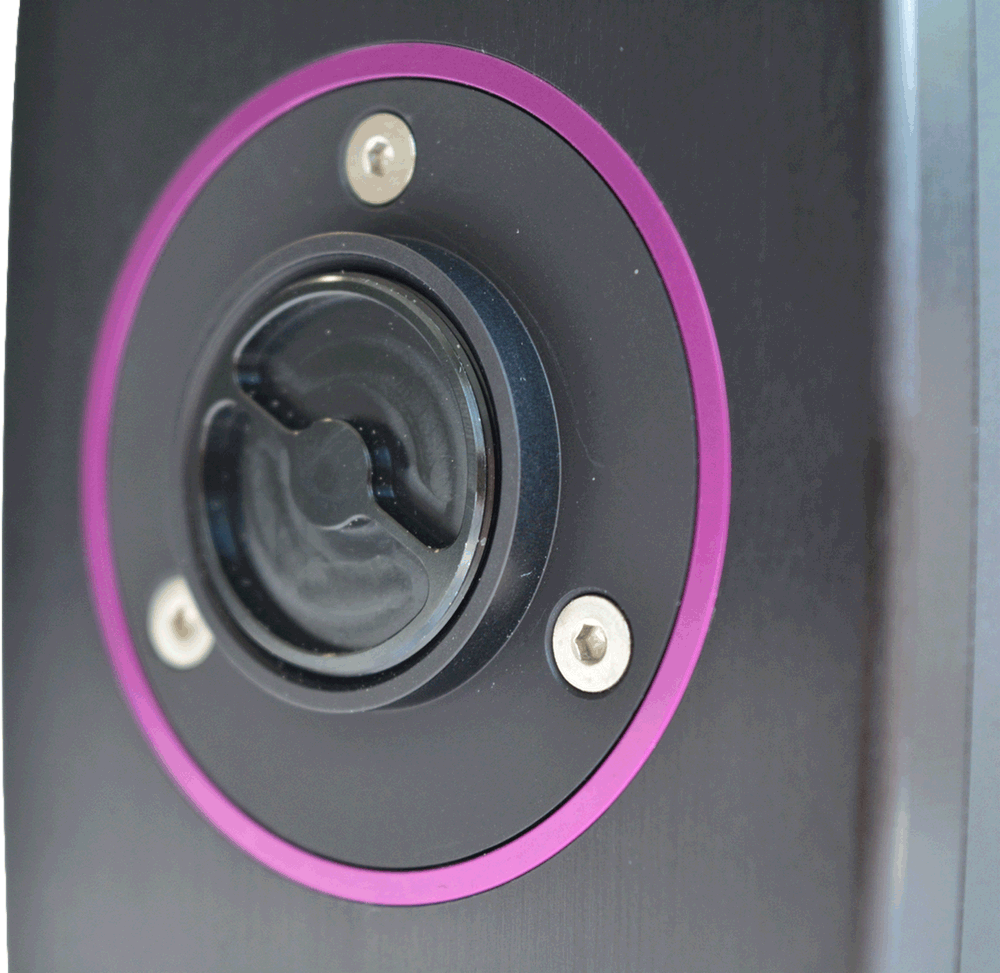

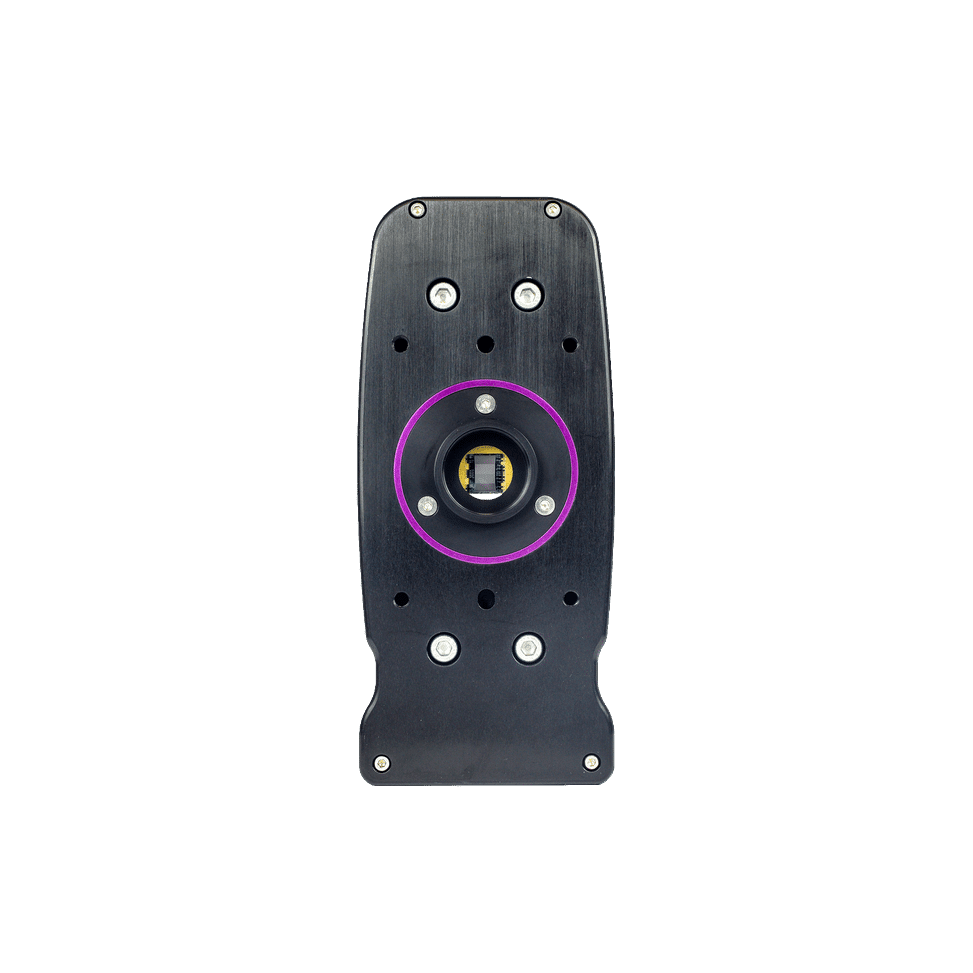

OCAM2S is a high speed- low noise camera with an integrated electronic shutter, able to run at 2067 fps with sub- electron readout noise. The shutter delivers an arbitrary number of integration pulses that can be shorter than 1μs with a precision better than 50ns. To achieve this performance, it uses the E2V CCD 219 EMCCD, an 8 output split frame transfer CCD. The CCD219 high speed metal buttressed clock lines are driven by OCAM2S at a speed as high as 7 Mlines/s, transferring each frame in the store section in only 12 microseconds, to minimize smearing.
The Embedded Electronic Shutter in OCAM²S is able to deliver an arbitrary number of integration pulses that can be shorter than 1 µs with a precision better than 50ns.
OCAM²S also offers an extremely low latency : 43μs between exposure and first pixel availability.
| Test Measurement | Result |
|---|---|
| Minimum Pulse Width | < 1μs |
| Extinction ratio | > 1000 |
| Shutter Resolution | < 0.05μs |

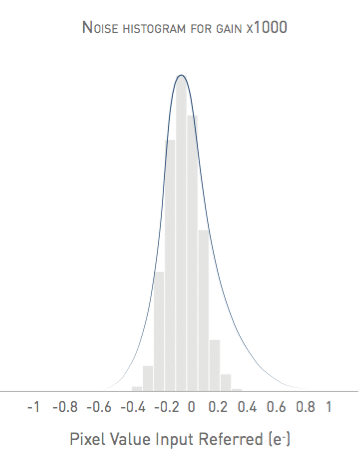

| Mean readout noise @ 2067fps | 0.3 e- |
| Quantization | 14 bits |
| Detector Operating temperature | -45°C |
| Dark Signal at 2067fps & -45°C | < 0.01e- pixel-1 frame-1 |
| Peak Quantum Efficiency at 650nm | 95% |
| Linearity at gain x1000 from 10e- to 150e- | < 3% |
| Linearity at gain x1 from 15,000e- to 150,000e- | < 3% |
| Image full well capacity at gain x1, 2067fps | 100,000e- |
| Parallel CE at gain x1, 2067fps | > 0.99995 |
| Serial CTE at gain x1, 2067fps | > 0.99994 |
