CICADA | High Resolution SWIR Multispectral Camera
Sensor type
InGaAs
Raw image resolution - pixel pitch
1296 x 1032 px - 5 µm
Spectral image resolution
436 x 334 px
Number of bands
9 (3 x 3 Bayer-like filter)
Typical Spectral Range
1100 to 1600 nm
Bandwidth (FWHM avg)
30 nm

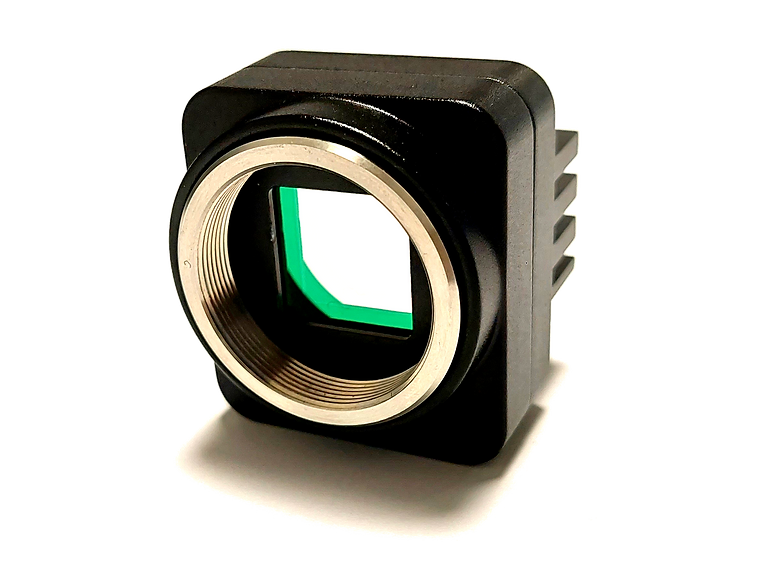

CICADA High Resolution SWIR Multispectral Camera
The CICADA Multispectral camera is specially designed to facilitate seamless integration of SWIR multispectral systems into various industries. This compact and lightweight camera, weighing only 70g and boasting a minimal footprint of 34x38x35mm, divides the image into nine distinct spectral bands within the SWIR range (1100-1700nm). Constructed through the hybridization of a bespoke Bayer-like mosaic filter onto a standard 1.3MP InGaAs Sensor, it enables precise extraction of the spectrum at each point of the image with exceptional spatial resolution.

To view more multispectral & hyperspectral cameras, click HERE.
| General specifications | |
|---|---|
| Sensor type | InGaAs FPA |
| Raw Image Resolution | 1296 1032 pixels |
| Pixel Size | 5 µm x 5 µm |
| Max FPS (raw image mode) | 68 fps |
| Exposure Time Range | 33 µs to 10 s |
| Lens Mount | CS-mount (native) or C-mount |
| Spectral specifications | |
|---|---|
| Number of Bands | 9 |
| Spectral Image Resolution | 436 (H) x 334 (V) px |
| Typical Spectral Range | 1100 to 1600 nm |
| Bandwidth (FWHM avg) | 30 nm |
| Mechanical and electrical specs | |
|---|---|
| Dimension (W x H x L) | 35 x 38 x 35 mm |
| Weight | 70 g |
| Camera interface | USB3.0 |

CICADA SWIR Multispectral Camera Applications
-
New Space
- Earth observation
-
Autonomous Vehicle
- Segmentation
-
Precision Farming
- Drone Field Mapping
-
Cosmetics
- Personalized skin care and makeup
-
Medical & Bio
- Endoscopy, microscopy, etc…
Axiom Optics Blogs
COLOR SHADES® LAB is the SDK for the SILIOS multispectral cameras (CMS, CMS4, TOUCAN and ANT).

Main features:
1) displaying the raw images, false color images, gray scale images or overlaid images with different indexation methods (such as “spectrum recognition”),
2) normalizing the spectral channels,
3) applying multispectral image corrections such as the crosstalk correction,
4) extracting the hypercubes.
COLOR SHADES® LAB runs with real time acquisition, but can also run with recorded single image or series of images (“replay mode”).
COLOR SHADES® LAB supports any of the SILIOS cameras and recognizes each plugged one via its S/N number. The specific spectral data of the corresponding multispectral sensor are then used for spectral corrections and treatments.
