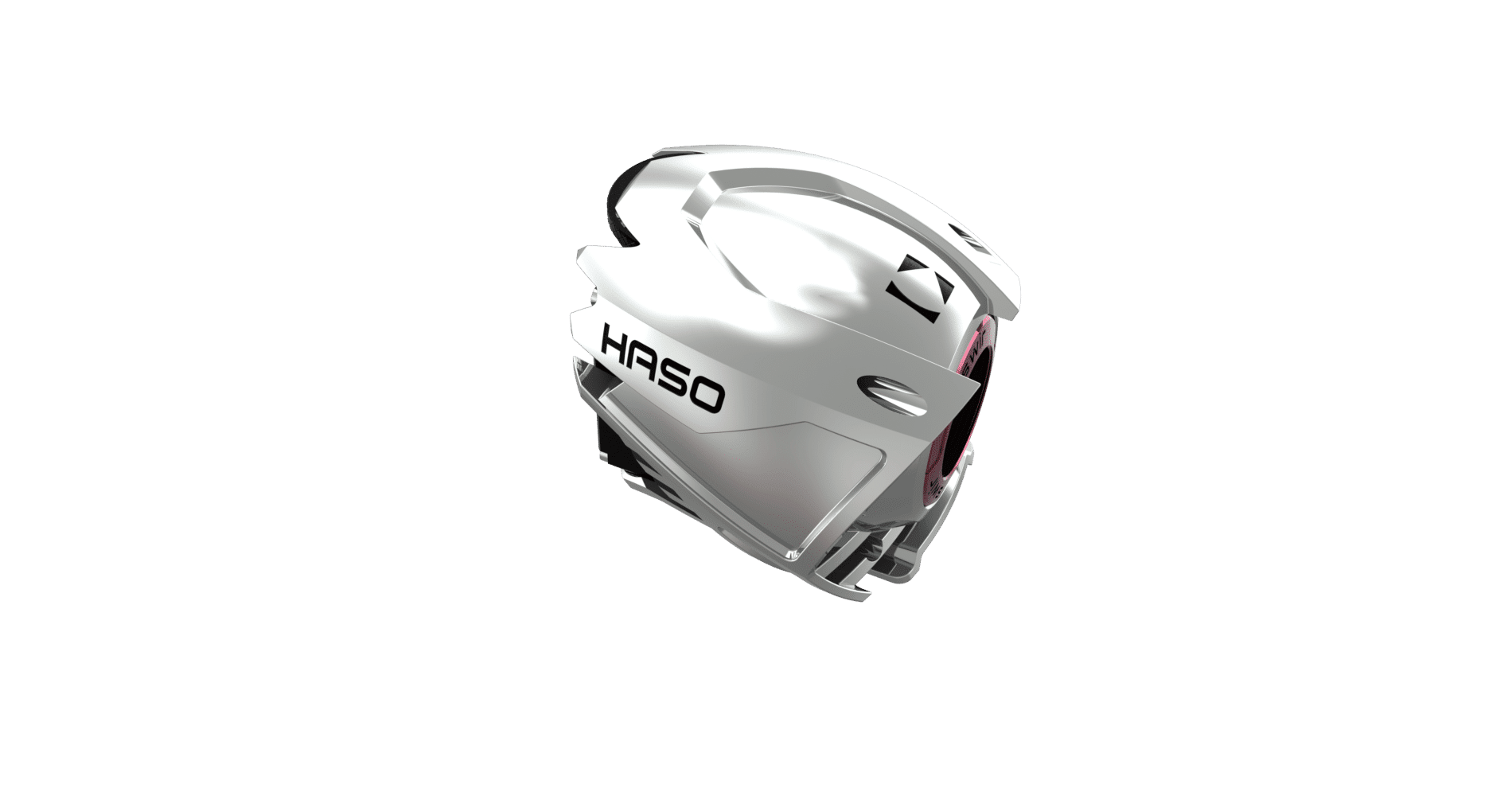

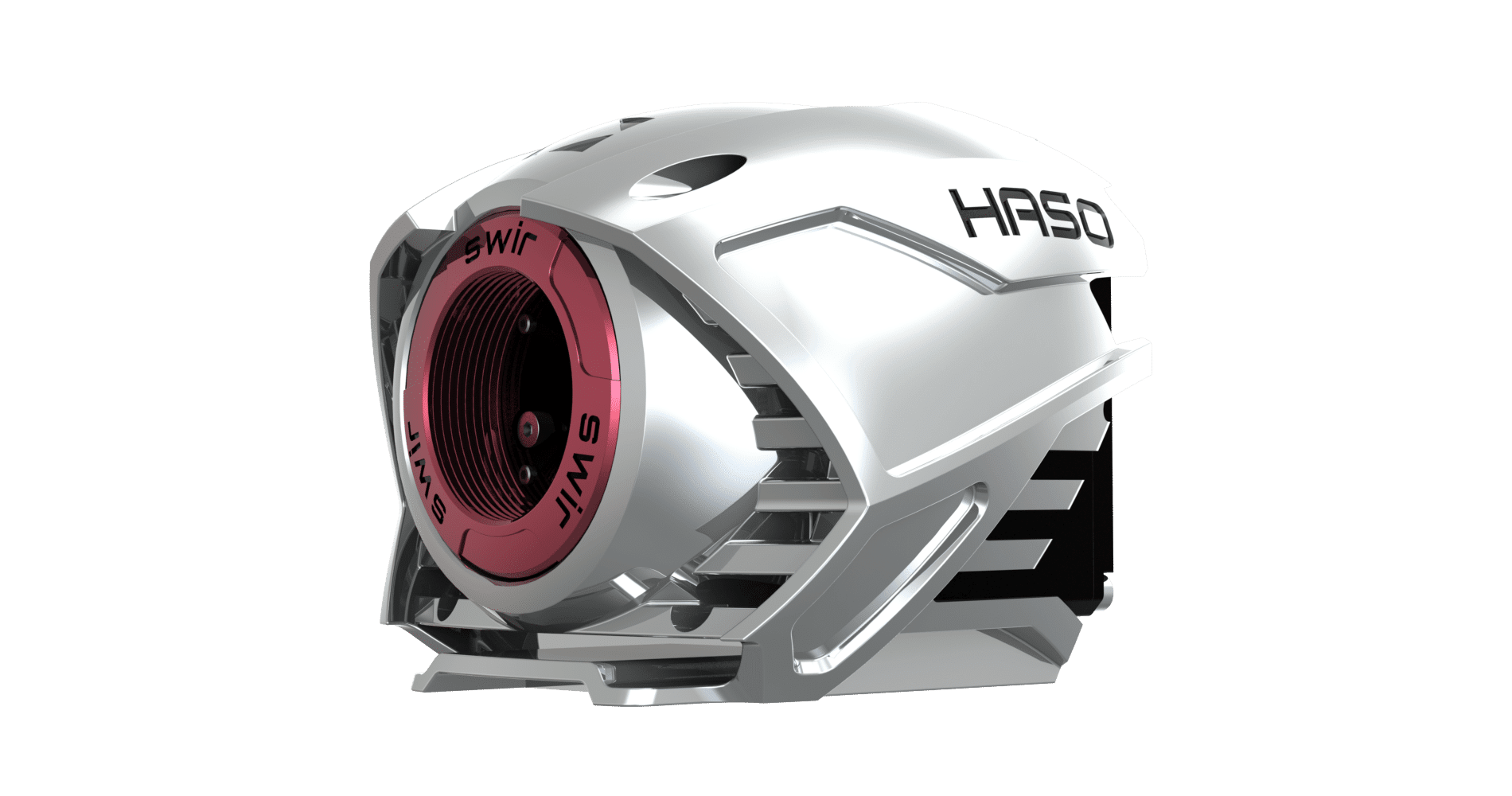

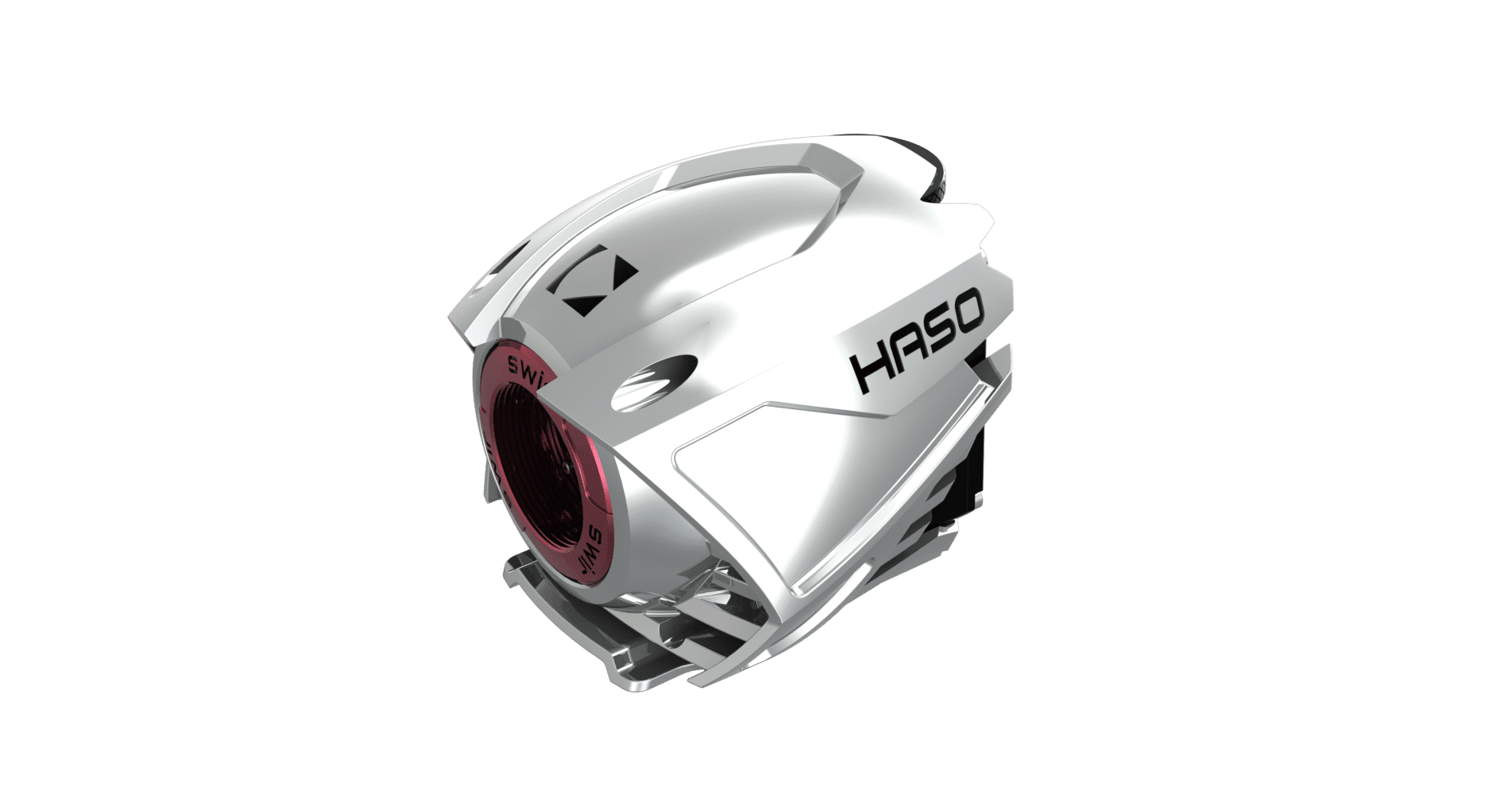

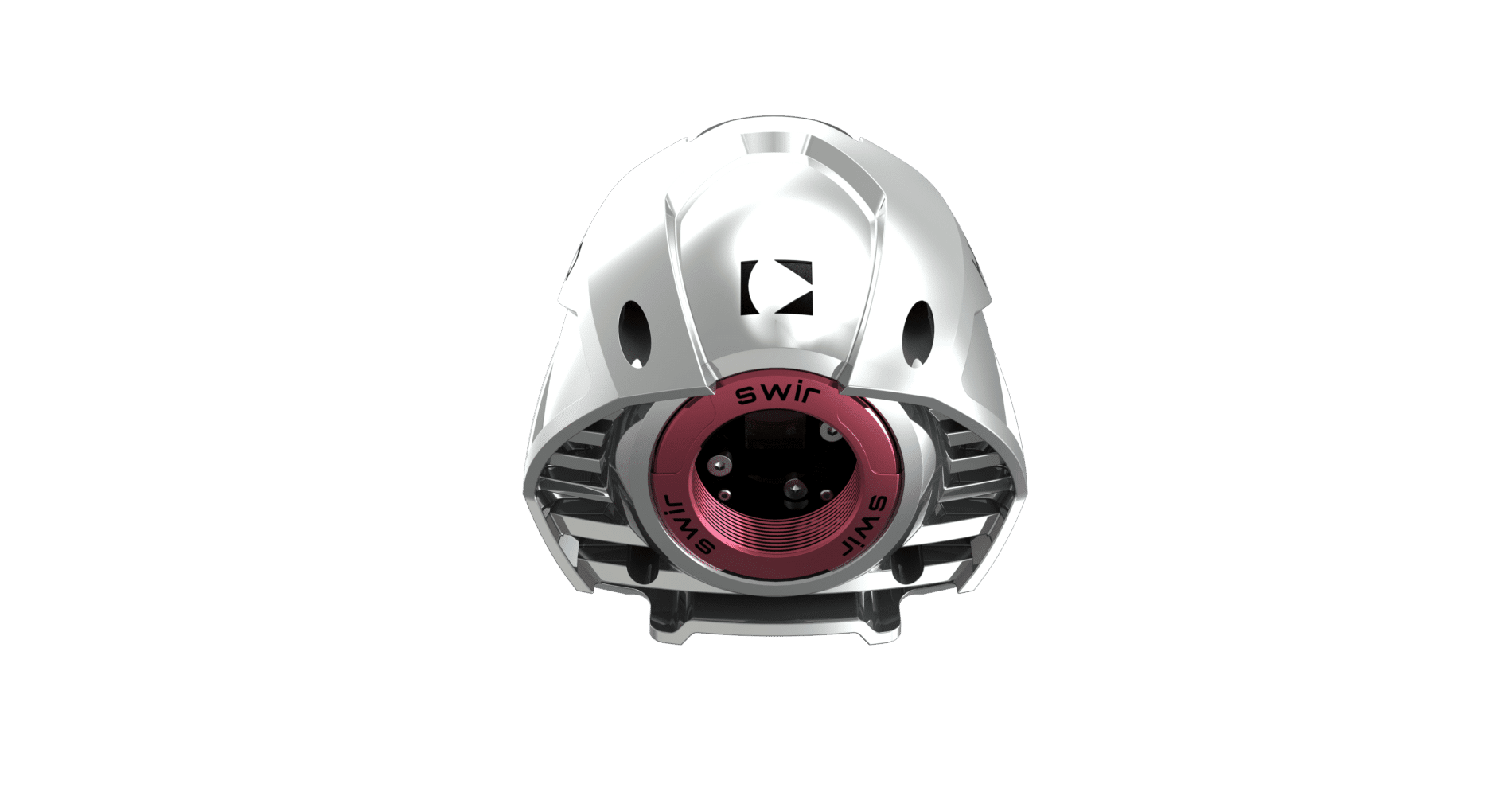

HASO SWIR LIFT 160 | High resolution SWIR wavefront sensor

Absolute Accuracy (RMS)

λ/100

Repeatability (RMS)

λ/200

Phase Sampling

160 x 128

Pupil Size (mm2)

7,44 x 9,30

Max Frame Rate (Hz)

150

Wavelength (nm)

1050 - 1700

Interface

USB 3.0

The HASO SWIR LIFT 160 provides the highest SWIR resolution and is a practical choice for the most challenging optical metrology applications. Moreover, this high resolution SWIR wavefront sensor comes with advanced features like SpotTracker for alignment, and instantly works with any other instrument and accessory in Optical Engineer Companion range.

Learn more about the LIFT revolution here.

Applications

Here are the HASO SWIR LIFT 160 applications:

– Optical manufacturing metrology
–  Complex optics Characterization
– Middle frequencies mirror surface characterization
– Optical quality control, metrology
– (LIDAR, free space communication, Automotive, Space and defense)
– Prediction of an optical system performance in terms of focalization capability or imaging quality
– Pilot a wavefront corrector to control system’s aberrations
– Quantification of the effects of temperature and gravity on the performance of an optical system



WAVEVIEW 4.3 Metrology Software

The HASO SWIR LIFT 160 comes with WaveView4, the most advanced wavefront measurement and analysis software. It offers more than 150 features and tools and is optimized for a wide range of extremely demanding applications.

+ Extensions for PSF, MTF and M2
+ Optional SDK in C/C++, LabVIEW and Python
+ Windows10, 64bits compatible


WAVETUNE 4.3 Adaptive Optics Software
WaveTune is a unique application that seamlessly combines wavefront measurement and correction features with extensive instrument diagnostics. It is perfectly adapted to Imagine Optic’s HASO wavefront sensors, ILAO Star, and MIRAO deformable mirrors, as well as to a wide range of active components. Indeed, it is compatible with the HASO SWIR LIFT 160 high resolution swir wavefront sensor.

+ Compatibility with many deformable mirrors
+ Optional SDK in C/C++, LabVIEW and Python



All our wavefront sensors here.



The HASO SWIR LIFT 160 provides the highest SWIR resolution and is a practical choice for the most challenging optical metrology applications. Moreover, this high resolution SWIR wavefront sensor comes with advanced features like SpotTracker for alignment, and instantly works with any other instrument and accessory in Optical Engineer Companion range.

Learn more about the LIFT revolution here.

Applications

Here are the HASO SWIR LIFT 160 applications:

– Optical manufacturing metrology
–  Complex optics Characterization
– Middle frequencies mirror surface characterization
– Optical quality control, metrology
– (LIDAR, free space communication, Automotive, Space and defense)
– Prediction of an optical system performance in terms of focalization capability or imaging quality
– Pilot a wavefront corrector to control system’s aberrations
– Quantification of the effects of temperature and gravity on the performance of an optical system



WAVEVIEW 4.3 Metrology Software

The HASO SWIR LIFT 160 comes with WaveView4, the most advanced wavefront measurement and analysis software. It offers more than 150 features and tools and is optimized for a wide range of extremely demanding applications.

+ Extensions for PSF, MTF and M2
+ Optional SDK in C/C++, LabVIEW and Python
+ Windows10, 64bits compatible


WAVETUNE 4.3 Adaptive Optics Software
WaveTune is a unique application that seamlessly combines wavefront measurement and correction features with extensive instrument diagnostics. It is perfectly adapted to Imagine Optic’s HASO wavefront sensors, ILAO Star, and MIRAO deformable mirrors, as well as to a wide range of active components. Indeed, it is compatible with the HASO SWIR LIFT 160 high resolution swir wavefront sensor.

+ Compatibility with many deformable mirrors
+ Optional SDK in C/C++, LabVIEW and Python



All our wavefront sensors here.





Calibration Bandwidth (nm)

1050-1700

Aperature Size (mm²)

7.44 x 9.30 mm²

Resolution (Phase Sampling Points)

20480 or 160×128

Speed

150 Hz
