The Optical Engineer Companion

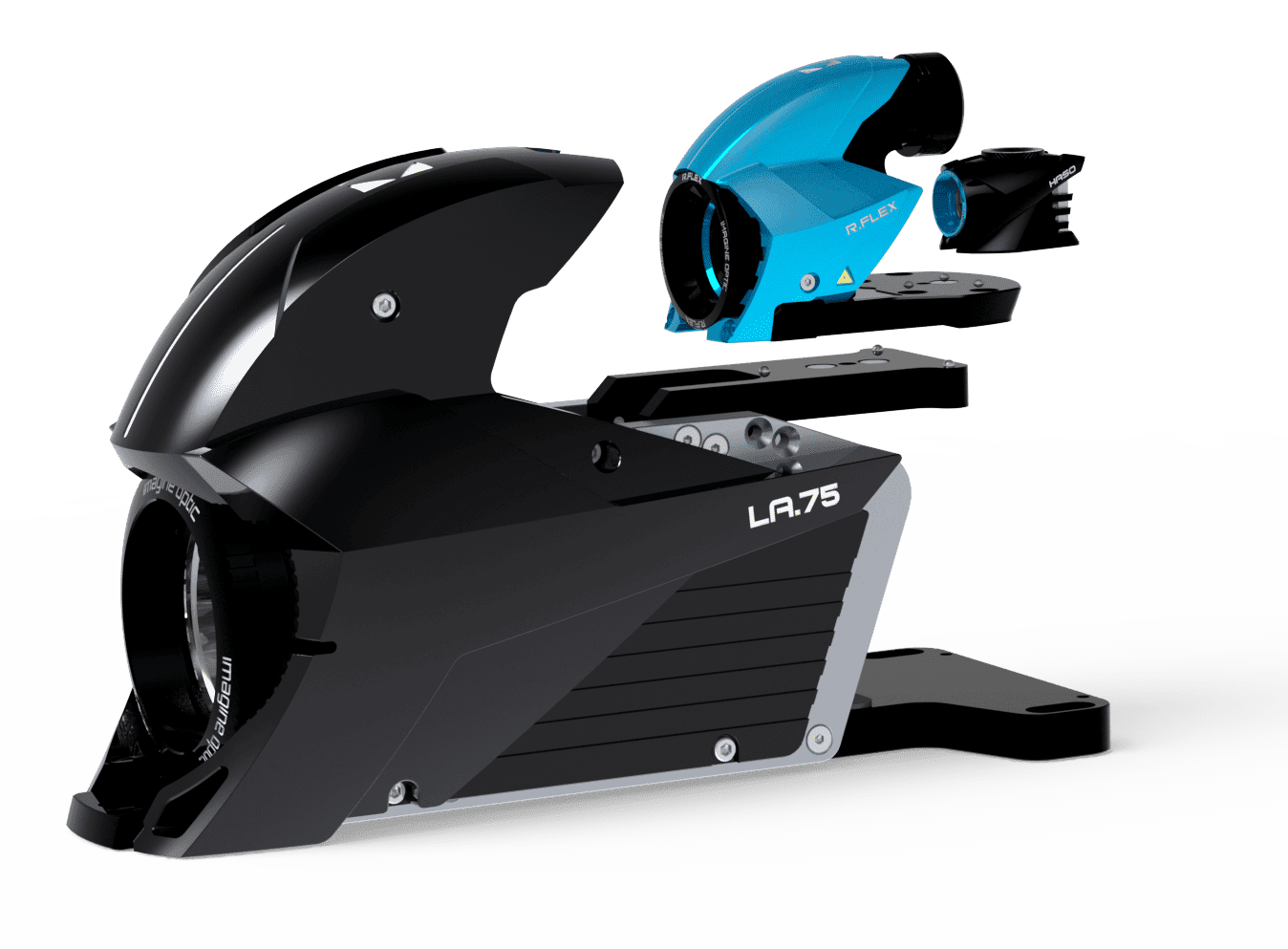

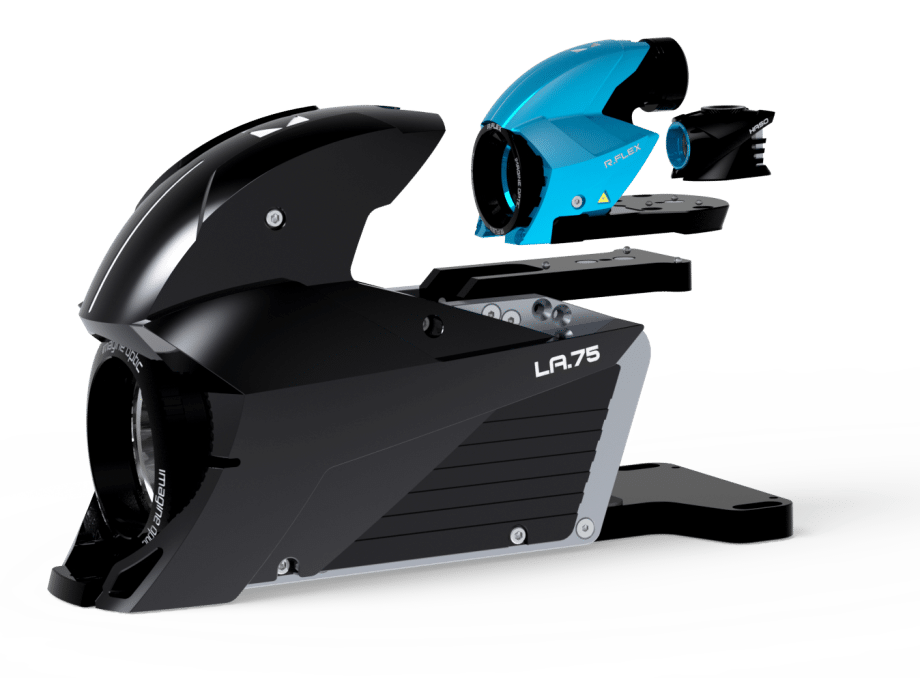

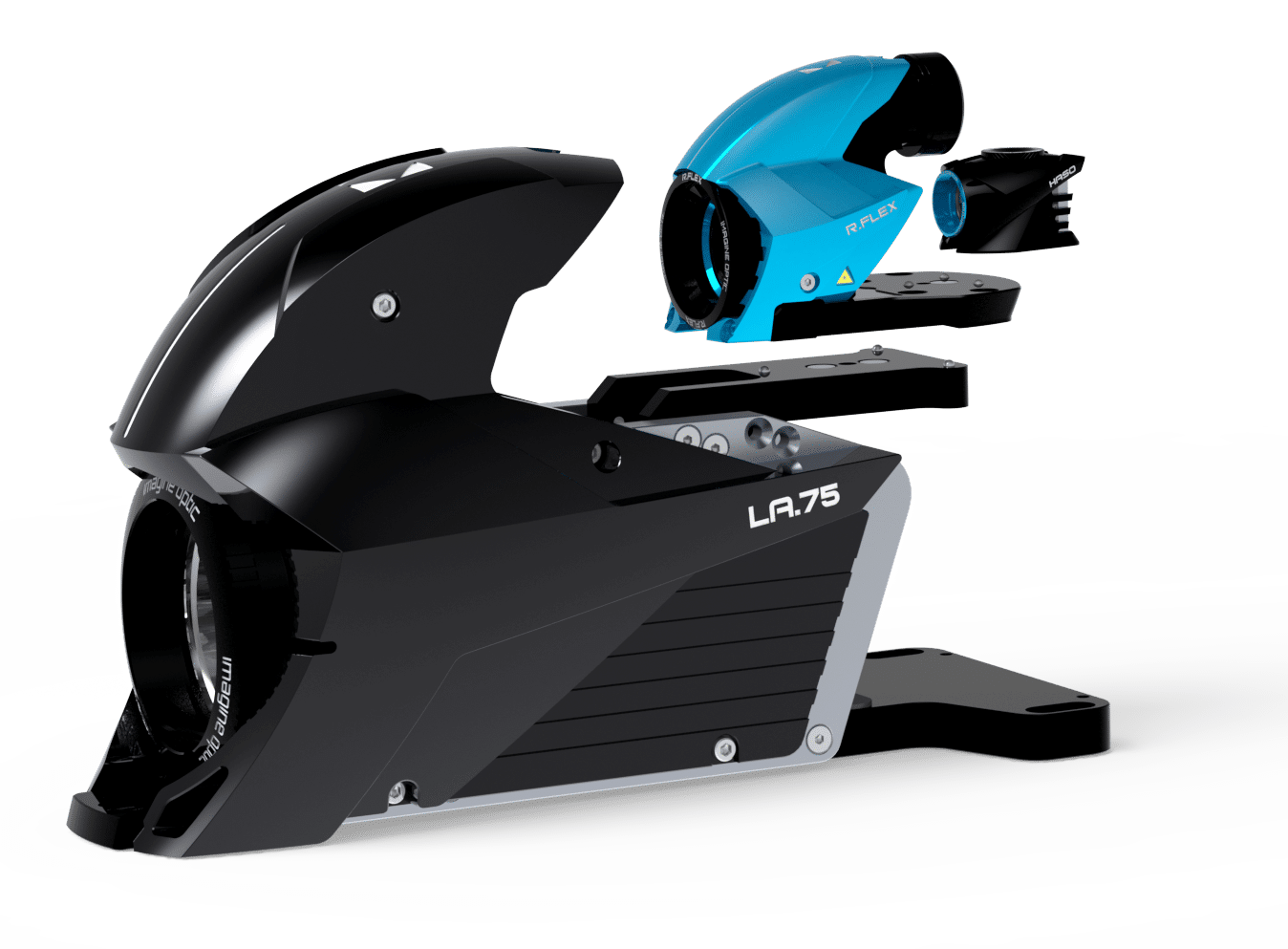

With over 800 possible combinations, the Optical Engineer Companion (OEC) is the ultimate wavefront/optical metrology tool. This fully customizable system incorporates multiple products from Imagine Optic’s portfolio of industry-leading optical metrology technology, offering complete versatility with no need for alignment, post-processing or an optical table. The OEC can be used for dozens of setups in the VIS-NIR or SWIR and is great for the alignment of optical systems, and characterization of optical surfaces, sources and systems.

Build Your Own

OEC Steps

Step 1: Pick an R-FLEX

Instantly combine any of the nine compatible HASO wavefront sensors in the 400-1100 nm or in the 1000-1700 nm range, with a collimator and a light source.

Choose from the R-FLEX2 or the RFLEX2 SWIR


Step 2: Choose a HASO

Select one of Imagine Optic’s nine wavefront sensors:

HASO LIFT Series: HASO LIFT 272, HASO LIFT 680

HASO4 Series: HASO4 First, HASO4 Fast, HASO4 Broadband, HASO4 126, HASO4 1550

HASO SWIR Series: HASO SWIR, HASO LIFT SWIR (coming soon!)


Step 3: Select Sources & Modules

Choose from:

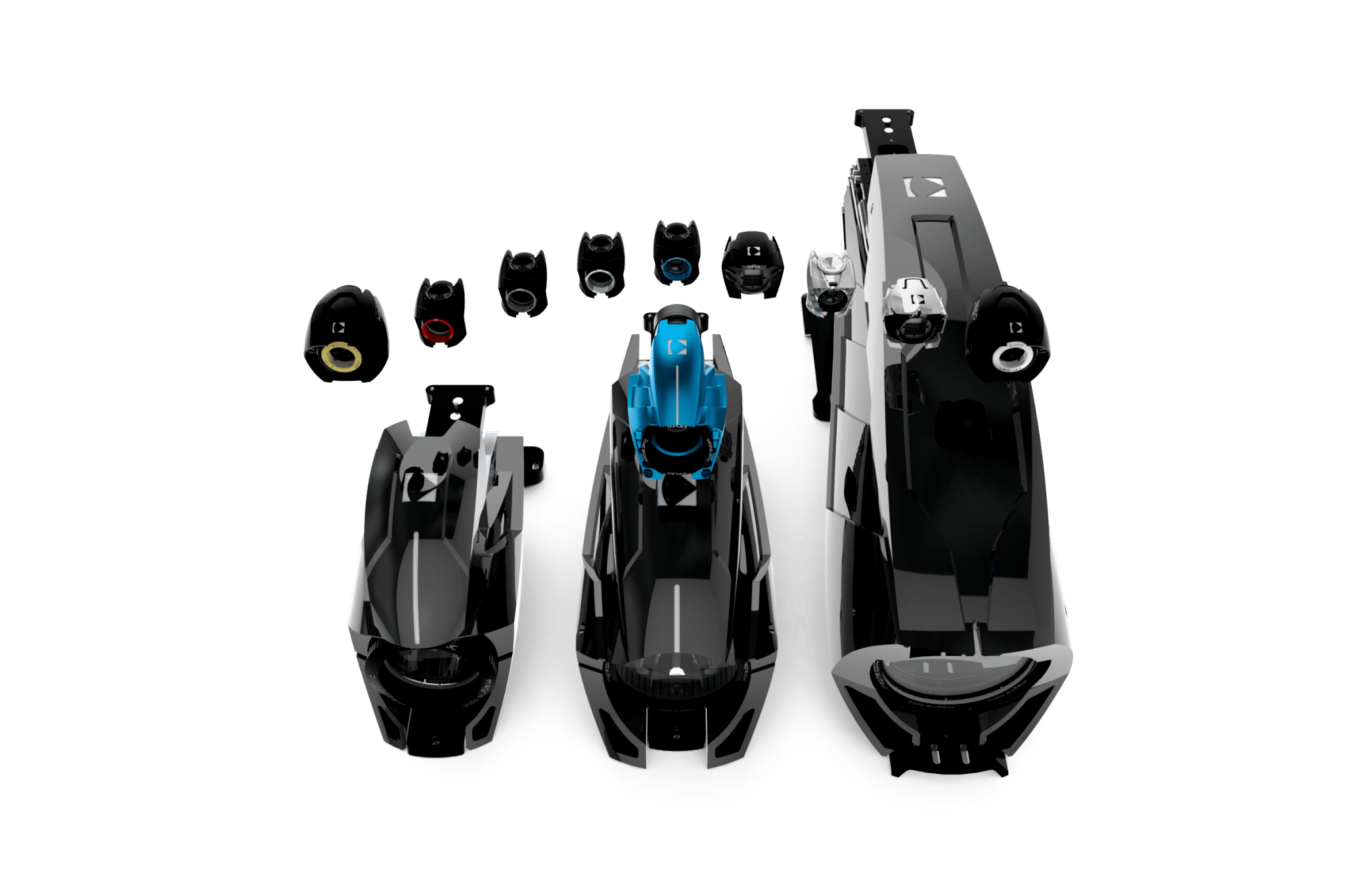

Step 4: Select an LA

VIS-NIR

  • R-FLEX LA 75
  • R-FLEX LA 100
  • R-FLEX LA 150

SWIR

  • R-FLEX LA SWIR 75
  • R-FLEX LA SWIR 100
  • R-FLEX LA SWIR 150

*Custom dimensions available by request

Learn more about the R-FLEX LA here.
