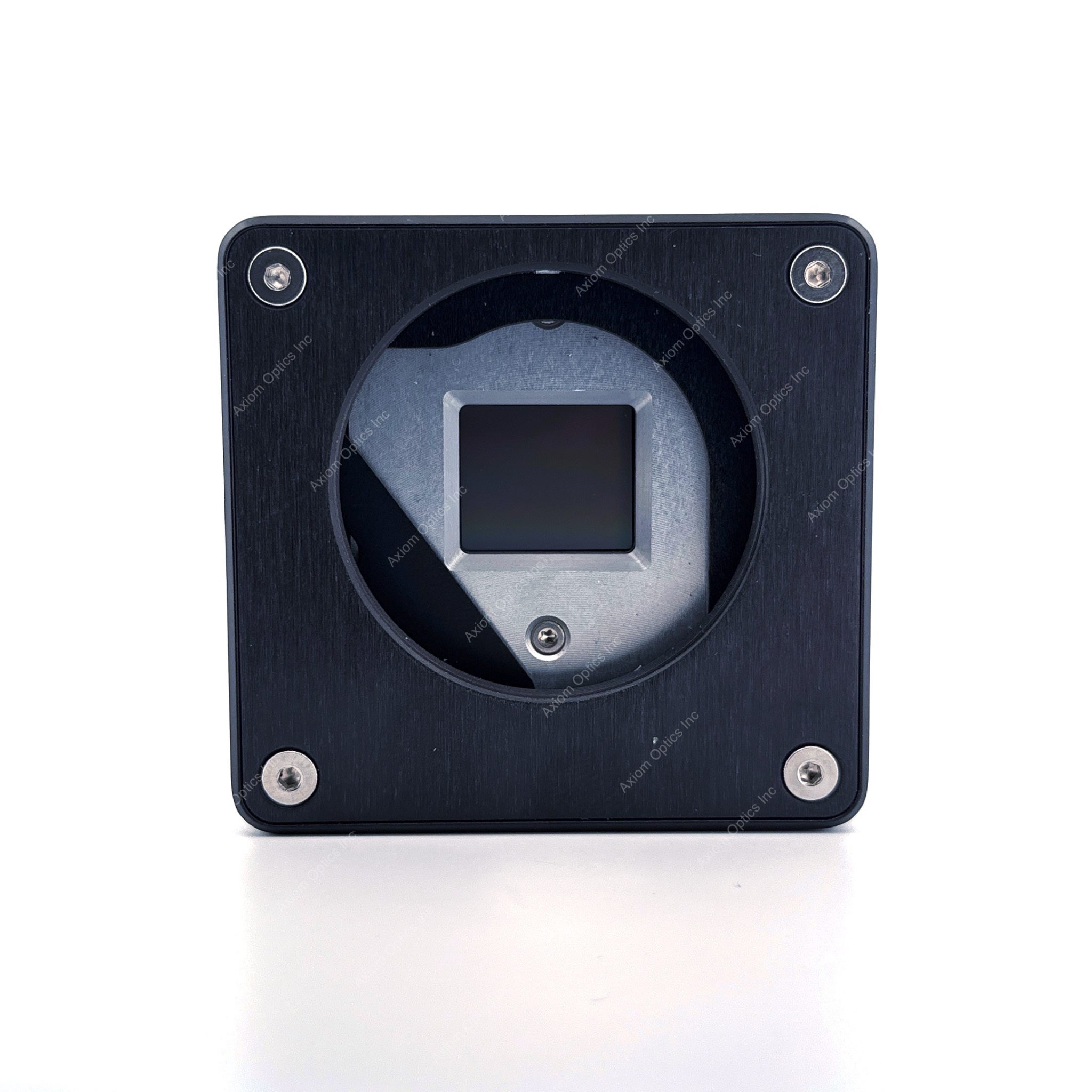

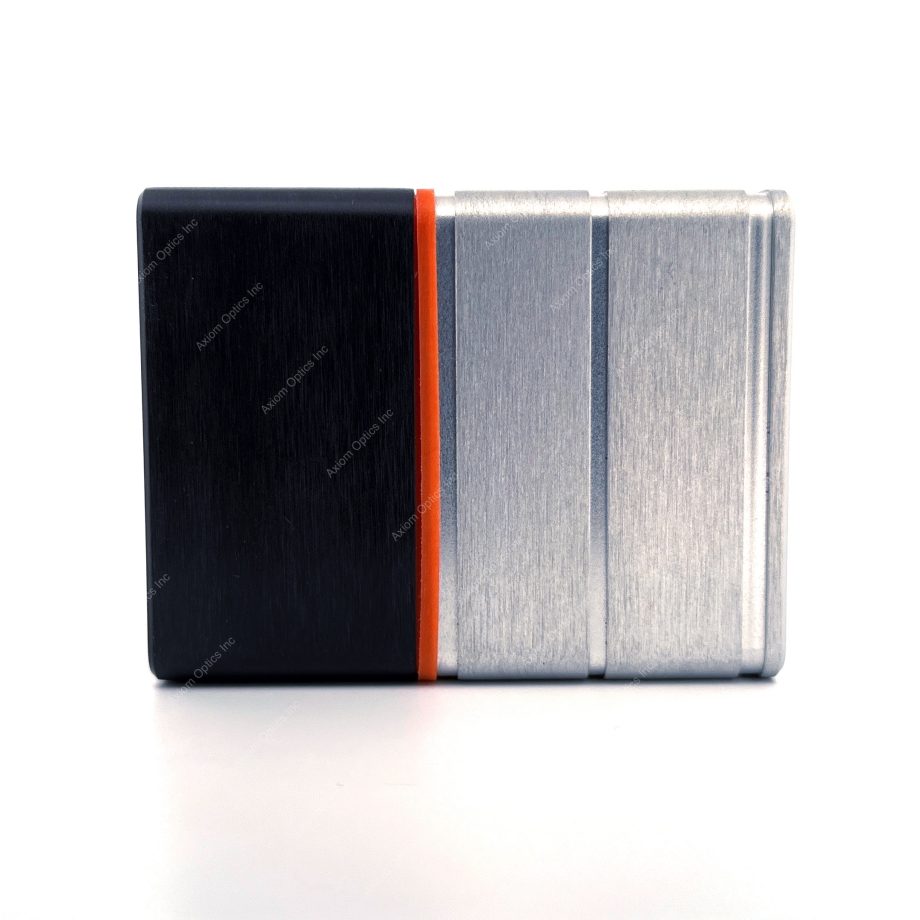

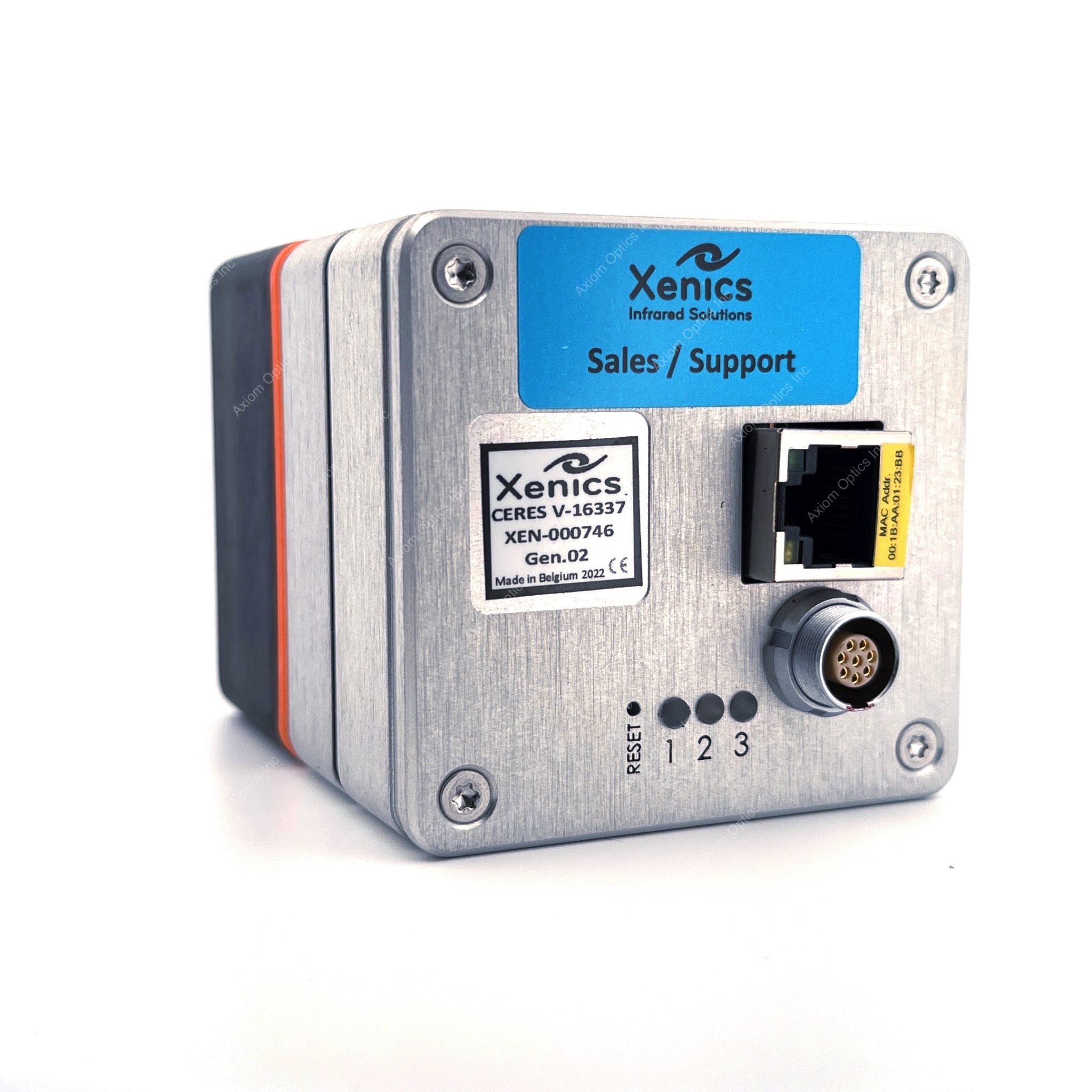

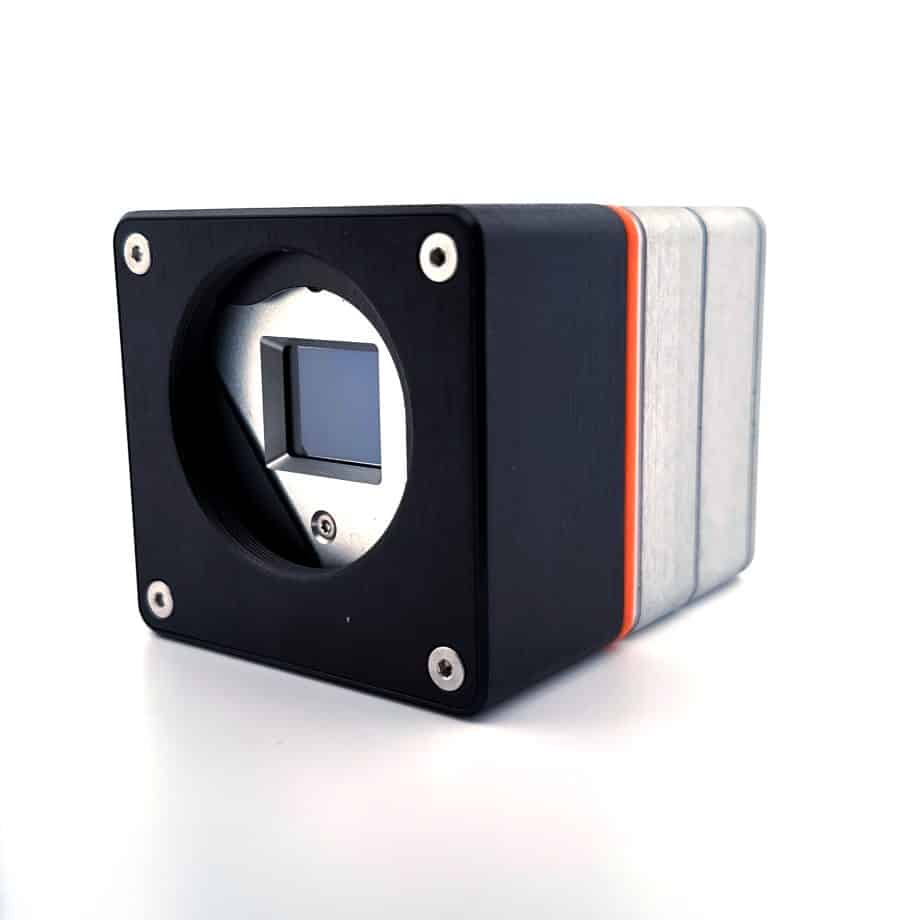

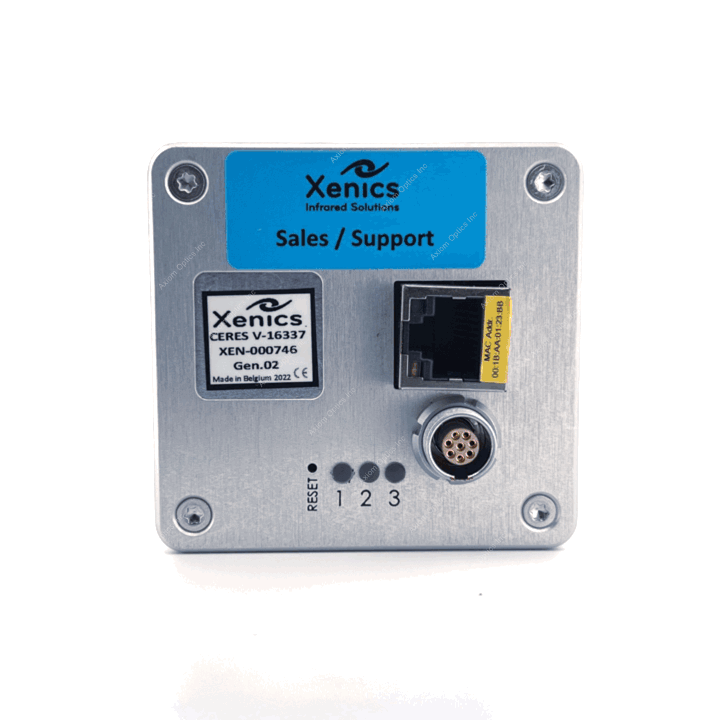

Ceres V 1280 | LWIR Thermal Industrial Camera

Sensor Type

Microbolometer

Resolution - pixel pitch

1280 x 1024 - 12 µm

Sensitivity

8 - 14 µm

Shutter Mode

Rolling shutter

Lens interface

M34x0.5 & M45x0.75

Interface

CameraLink, GigE Vision

The Ceres V 1280 is based upon the Dione 1280 OEM thermal imaging core with 1280×1024 pixels and 12 μm pixel pitch. The camera offers superior thermal imaging capabilities thanks to the state-of-the-art high-resolution microbolometer detector and on-board image processing.

The Ceres V 1280 camera outputs full frame images at 60 Hz via either a CameraLink or GigE Vision interface – all GenICam compliant.

The compact size, excellent image quality and GenICam compliant interfacing allow for easy integration in demanding industrial, scientific and security thermal imaging applications.

The camera comes either in a no-lens configuration (camera only with M34x0.5 and M45x0.75 optical mount), or with four different HFOV (Horizontal Field-Of-View) options: 12, 16, 25, 48 or 71 degrees

The high-resolution Ceres V 1280 series find application in industrial machine vision, scientific research, medical and security systems where a GenICam compliant interface is a strong requirement.

• Compact and high-resolution
• Superior on-board image processing performance (optimized image quality)
• GenICam compliant
• Uncooled operation
• Flexible optical mount and lens options

The Ceres V 1280 is based upon the Dione 1280 OEM thermal imaging core with 1280×1024 pixels and 12 μm pixel pitch. The camera offers superior thermal imaging capabilities thanks to the state-of-the-art high-resolution microbolometer detector and on-board image processing.

The Ceres V 1280 camera outputs full frame images at 60 Hz via either a CameraLink or GigE Vision interface – all GenICam compliant.

The compact size, excellent image quality and GenICam compliant interfacing allow for easy integration in demanding industrial, scientific and security thermal imaging applications.

The camera comes either in a no-lens configuration (camera only with M34x0.5 and M45x0.75 optical mount), or with four different HFOV (Horizontal Field-Of-View) options: 12, 16, 25, 48 or 71 degrees

The high-resolution Ceres V 1280 series find application in industrial machine vision, scientific research, medical and security systems where a GenICam compliant interface is a strong requirement.

• Compact and high-resolution
• Superior on-board image processing performance (optimized image quality)
• GenICam compliant
• Uncooled operation
• Flexible optical mount and lens options

Sensitivity

8 – 14 µm

Material

VOx

Resolution

1280 x 1024 (1.3 MP)

Frame Rate

10 – 100 fps

Pixel Pitch

12 µm x 12 µm

Cooling

Uncooled / TEC-less

Interface

GigE, Camera Link

Type

Camera

Array Type

2D array / areascan
