ELSE-i | Deep Cooling CCD Camera for UV, VIS & NIR Imaging
Sensor technology
CCD
Resolution
1024 x 1024 / 2048 x 2048 / 4096 x 4096
Pixel pitch
13 µm x 13 µm - 15 µm x 15 µm
Sensor mode / Frame rate
Global shutter / 0.2 - 2.9 fps
Readout noise
2.5 - 17 e- rms
Interface
Gigabit Ethernet or USB 3.0
Description
Specifications
QE Curve
Applications
Pictures
DownloadsFor Imaging Applications in the UV, VIS, and NIR Range
The ELSE-i CCD camera by greateyes integrates revolutionary low-noise electronics and ultra-deep cooling technology in a compact camera design. Multiple readout speeds can be selected, supporting pixel rates from 50 kHz up to 5 MHz. Exploit the full dynamic range of the CCD sensor with true 18-bit AD for best performance and SNR. A wide range of sensors are available, allowing you to find the best match for your requirements. ELSE-i is ideally suited for detection of very weak signal intensities where a low-noise floor is of greatest importance.
ELSE-i low noise CCD cameras are available for UV, VIS and NIR applications. ELSE can be used for deep depletion applications.
To visit the manufacturer’s website, click HERE.Â
To view more greateyes cameras, click HERE.Â
ELSE-i Series for imaging applications
| Spec | ELSE-i Series |
| Pixel readout frequency | 50 kHz, 250kHz, 1 MHz, 3 MHz (5 MHz for visualization mode up to 6 speeds) |
| AD converter resolution | 18-bit |
| Linearity | Better than 99% |
| Window material | MgF2 or UVFS for UV sensitive models, otherwise BK7 |
| Distance flange – focal plane | 10.0 mm (1k1k, 2k2k plus & 4k4k cameras); 9mm (2k2k camera) |
| CCD sensor cooling | -100°C to 20°C, forced air or liquid cooling |
| Temperature monitoring | Two thermistors at CCD sensor and thermoelectric cooler (hot side) |
| Data link | Gigabit Ethernet, USB 3.0 |
| Software | greateyes Vision software for Windows 7 / 10 |
| SDK and drivers | DLL for Windows; LabVIEW, EPICS, Linux driver, Python & Tango Driver (optional) |
| TTL interface signals | Exposure out, shutter out, 2 external trigger in |
| Operating conditions | Temperature: 0°C to 35°C ambient, relative humidity <80% (non-condensing) |
| Power supply | 1k1k & 2k2k: 80-264 VAC (typ. 115/230), 47-63 Hz (typ. 50/60), max. 1.1 A (230 V) / 1.9 A (115 V)
2k2k plus & 4k4k: 85-264 VAC (typ. 115/230), 47-63 Hz (typ. 50/60), max. 1.9 A (230 V) / 3.8 A (115 V) |
| Certification | CE |
| Dimensions | 8.3 cm (3.27ʺ) × 10.0 cm (3.94ʺ) × 13.1 cm (5.16ʺ) (W × H × L, 1k1k & 2k2k camera body)
13.7 cm (5.39ʺ) × 13.7 cm (5.39ʺ) × 17.1 cm (6.71ʺ) (W × H × L, 2k2k plus & 4k4k camera body) |
| Weight | 2.2 kg (1k1k & 2k2k),
5.4 kg (2k2k plus & 4k4k) |

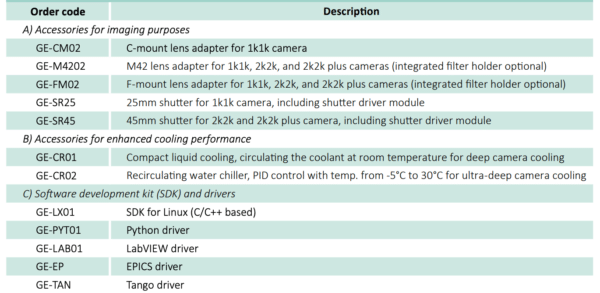

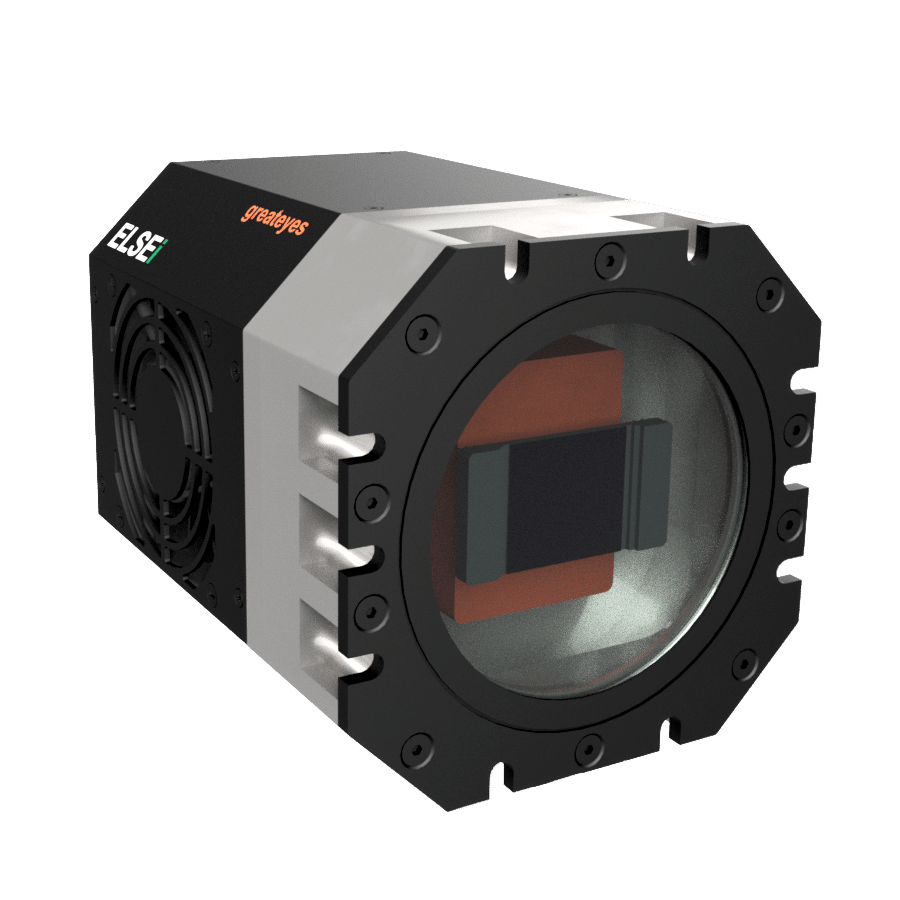

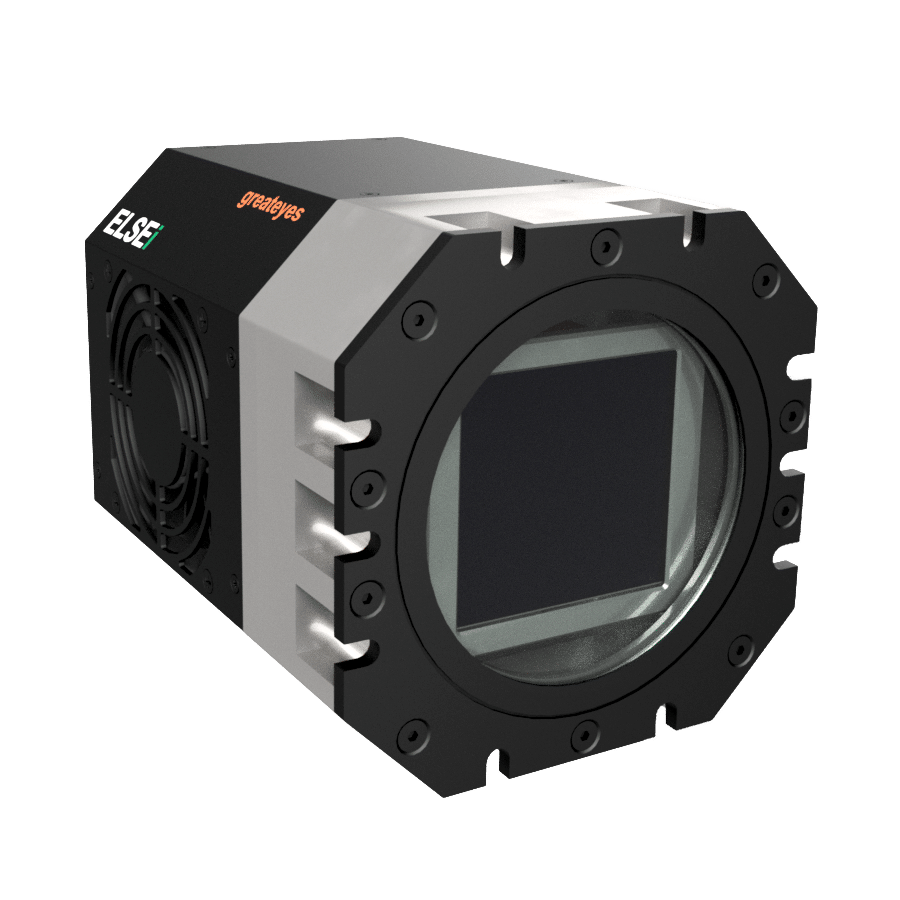

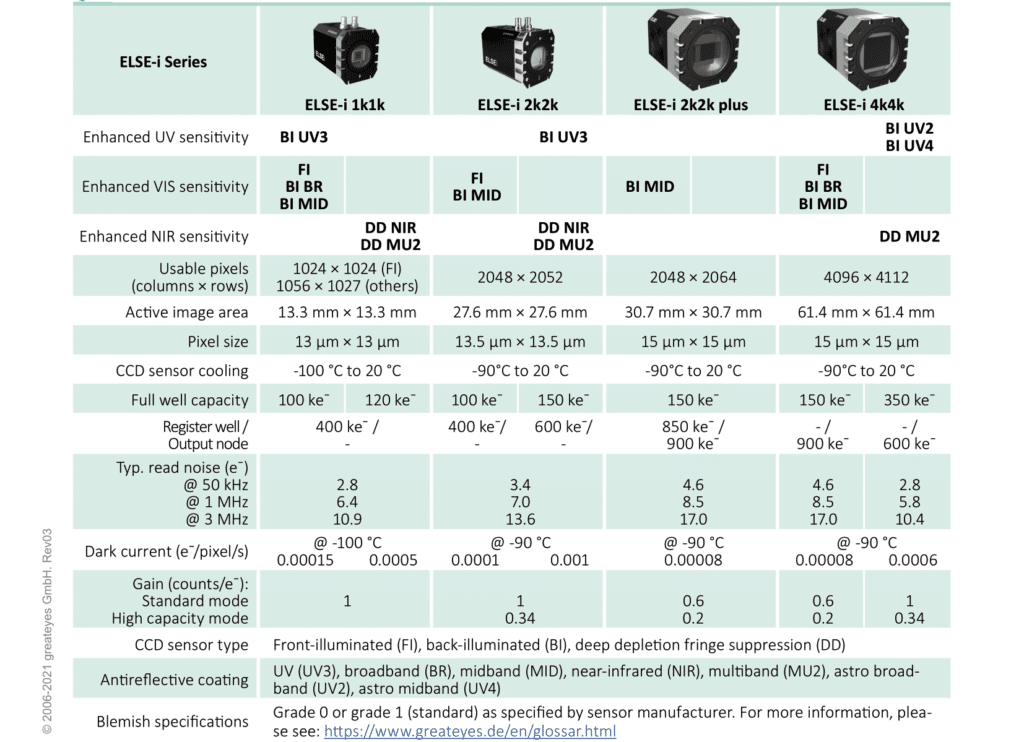

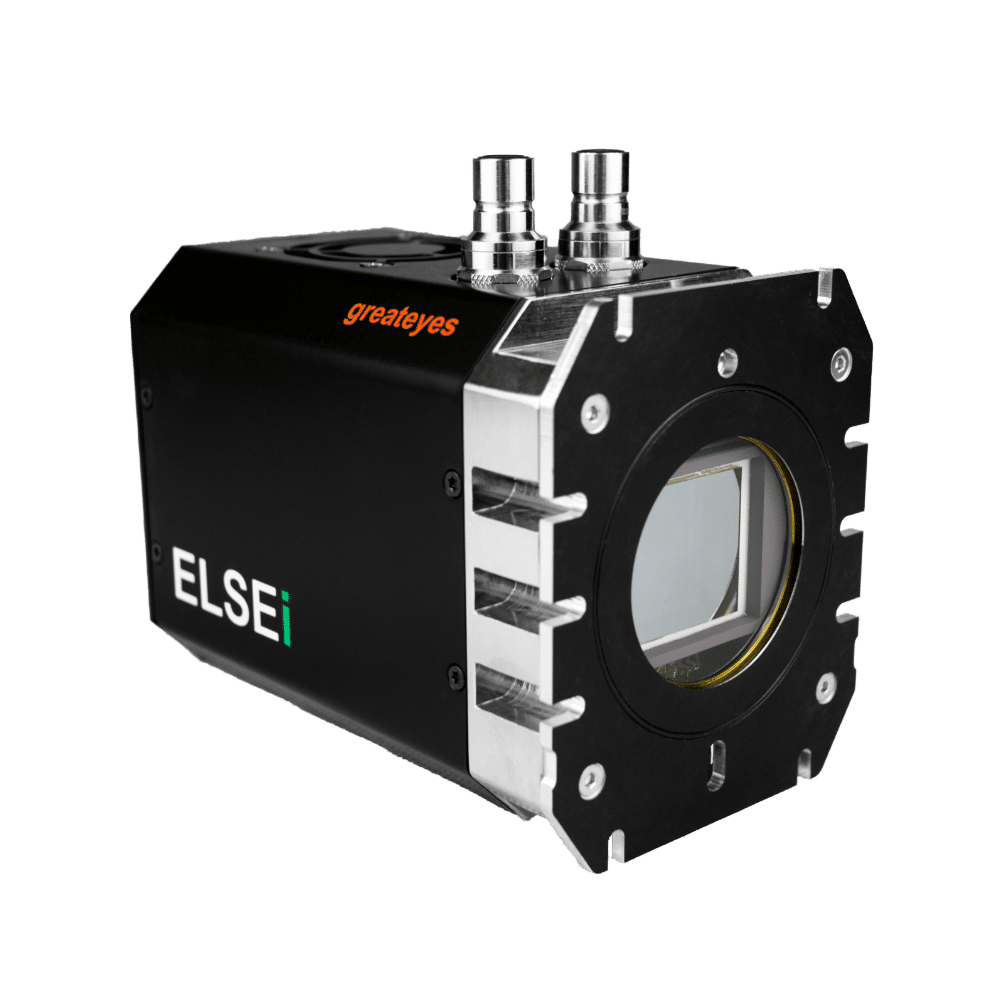

Camera Models & Specs
ELSE-I Series QE Curve
-
ELSE-i 1K1K
-
ELSE-i 2K2K
-
ELSE-i 2K2K Plus
-
ELSE-i 4k4k Plus
greateyes Vision Software
The greateyes Vision software suite provides access to all camera functionalities. It includes comprehensive visualization, analysis and storage options and supports important features such as wavelength and geometric calibration, crop and burst modes and various file formats. The software runs on 32/64-bit Windows systems. For integration into other systems, a software development kit and drivers are available.
Features
- Supports crop and burst readout modes for higher frame rates and precise time resolution
- Supports flexible horizontal and vertical binning
- Wavelength and geometric calibration
- Various file formats: JPG, BMP, TXT, TIFF (16-bit), DAT raw data
- Language support in English and German
- Comprehensive visualization and image manipulation routines
- Runs on 32/64-bit Windows systems
