Laser Beam Quality / M2 Measurement

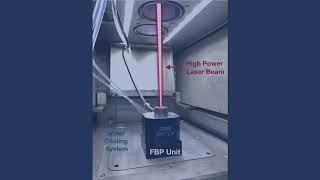

These tools are dedicated to provide M2 measurement accurately and instantly and characterize the full beam caustic of a focused or raw beam. According to ISO 11146-1/2, CinSquare , Cam Squared & FBP systems measure the complete beam caustic and determines M², waist position, divergence, etc., related to the reference plane.  The Focus Beam Profiler is dedicated for high power lasers such as those used in additive manufacturing processes (SLM, SLS). Cam Squared offers instantaneous M2 measurement thanks to a new method based on wavefront sensing. CinSquare are the ideal tools for lab characterization of lasers from the UV to SWIR but can also be implemented in production thanks to a robust design resulting in high accuracy and high repeatability.

Laser Beam Quality / M2 Measurement

These tools are dedicated to provide M2 measurement accurately and instantly and characterize the full beam caustic of a focused or raw beam. According to ISO 11146-1/2, CinSquare , Cam Squared & FBP systems measure the complete beam caustic and determines M², waist position, divergence, etc., related to the reference plane.  The Focus Beam Profiler is dedicated for high power lasers such as those used in additive manufacturing processes (SLM, SLS). Cam Squared offers instantaneous M2 measurement thanks to a new method based on wavefront sensing. CinSquare are the ideal tools for lab characterization of lasers from the UV to SWIR but can also be implemented in production thanks to a robust design resulting in high accuracy and high repeatability.
