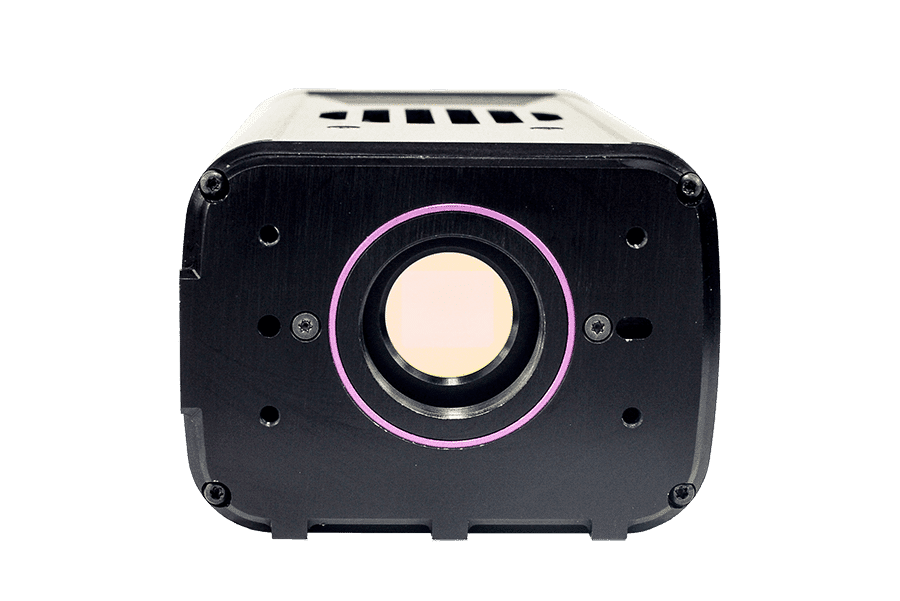

SWIR cooled scientific camera

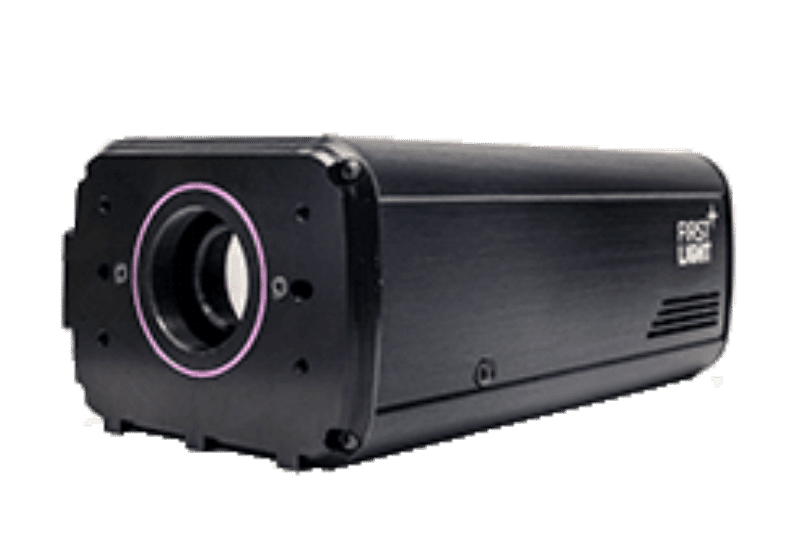

C-RED 2_2

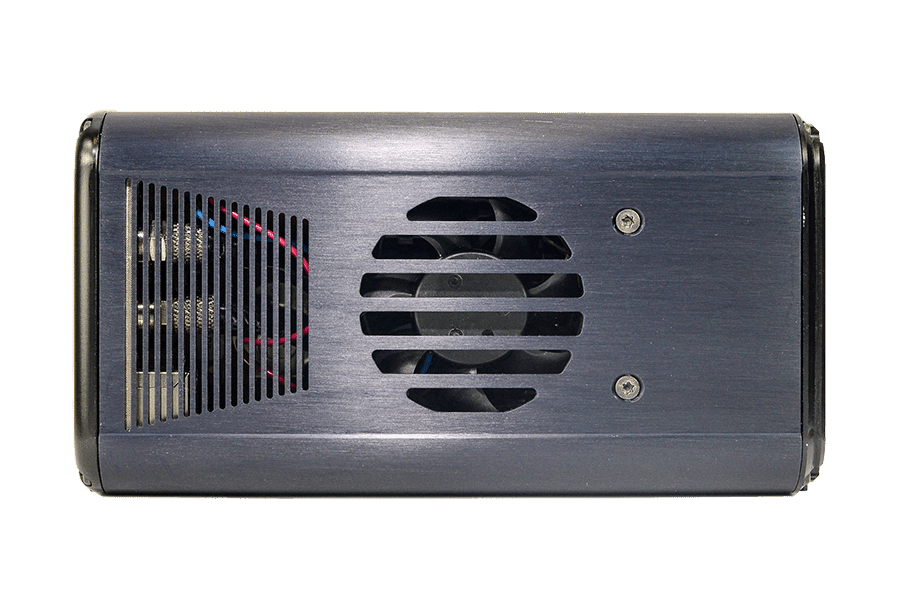

C-RED 2_3

C-RED2 ER 1.9 | High-Speed SWIR extended ingaas camera

Sensor Type

InGaAs (extended range)

Resolution

640 x 512 px, 0.33 MP

Pixel pitch

15 µm

Shutter Mode - Frame rate full frame

Global - 602 Hz

Noise figures

< 50 e- (high gain, 50µs)

Interface

USB 3.1 and CameraLink (full)

C-RED2 ER 1.9 – High-Speed SWIR extended ingaas camera

C-RED 2 ER is high-speed eSWIR (extended shortwave infrared) InGaAs scientific camera with extended spectral range allowing:

  • fast framing (600Hz full frame) with high sensitivity (<60 e- of readout noise)
  • Imaging with high QE from. 1.1 to 1.9µm

Key features:

• Extended SWIR range. C-RED 2 ER is sensitive in the spectral range of 1100 to 1900 nm, which constitutes a shift compared to standard InGaAs based detectors. This enables C-RED 2 ER to target new applications!

• Specific factory-built correction map. The defects on the sensor, specific to extended range detectors, are corrected on-the-fly, offering very high image quality. The correction file is built by First Light Imaging.

• On-the-fly corrections. In addition to the factory-built correction map, bad pixel correction and a two-point NonUniformity Correction (bias and gain) can be applied in real-time.

• Easy integration. The camera can be easily integrated in a system thanks to the mechanical interfaces on each side, and has a C-mount optical interface. C-RED 2 ER is supported by our software First Light Vision. Additionally, thanks to a versatile SDK, the camera can be interfaced with MatLab, LabView etc.

CL or USB 3?

C-RED 2 uses the Camera Link® Full interface. This protocol requires 2 data cables.
The camera has been developed and tested with specific grabbers for which a full SDK + GUI are provided:

  • Matrox Radient (ev-CL)
  • Teledyne Dalsa (Xcelera-CL + PX8 Full)
  • ETD (VisionLink F4)

C-RED 2 can also work with USB 3.1 Gen 1 interface(USB-C connector). In this configuration, C-RED 2 is detected as a composite USB device (control + acquisition interface).

Readout Modes and Integration Times:

The acquisition speed can be set from 0.01 to 600 fps, the integration time can be set from 20μs to ~1/fps.

Different available Readout Modes:

  • Single Read: The entire frame is read before a reset period (with CDS)
  • Integrated Multiple Readout (IMRO): he user must specify a number of multiple non-destructive reads which corresponds to a number of frames that are read and delivered at a selected speed. It’s a burst mode.

Cropping and Windowing:It is possible to select one region of interest and acquire datas from this ROI only, column granularity is 32 and rows granularity is 4. Speed increases with read array reduction.

On-the-fly image optimization

First Light Imaging has developed a specific on-the-fly correction process to compensate the lattice mismatch artefacts of the extended range detector. The process corrects the image in real-time and can be applied to all gains and a large range of integration times. Importantly, the user has access to the image at all the steps of the process, including the initial raw image. Electronic board illuminated with ambient light. Before and after applying the full correction process.

  • With the corrections applied, C-RED 2 ER has a very high experimental operability (> 98% at 600 FPS).
  • The corrections are applied with no degradation of the image spatial resolution.
  • All corrections are based on physical models. The corrected image yields full physical meaning and can be used for quantitative measurements.
  • The entire correction process is applied on-the-fly without any loss of speed or restriction on framerate.

C-RED2 ER 1.9 – High-Speed SWIR extended ingaas camera

C-RED2 ER is high-speed eSWIR (extended shortwave infrared) InGaAs scientific camera with extended spectral range allowing:

  • fast framing (600Hz full frame) with high sensitivity (<60 e- of readout noise)
  • Imaging with high QE from. 1.1 to 1.9µm

Key features:

• Extended SWIR range. C-RED2 ER is sensitive in the spectral range of 1100 to 1900 nm, which constitutes a shift compared to standard InGaAs based detectors. This enables C-RED 2 ER to target new applications!

• Specific factory-built correction map. The defects on the sensor, specific to extended range detectors, are corrected on-the-fly, offering very high image quality. The correction file is built by First Light Imaging.

• On-the-fly corrections. In addition to the factory-built correction map, bad pixel correction and a two-point NonUniformity Correction (bias and gain) can be applied in real-time.

• Easy integration. The camera can be easily integrated in a system thanks to the mechanical interfaces on each side, and has a C-mount optical interface. C-RED 2 ER is supported by our software First Light Vision. Additionally, thanks to a versatile SDK, the camera can be interfaced with MatLab, LabView etc.

CL or USB 3?

C-RED 2 uses the Camera Link® Full interface. This protocol requires 2 data cables.
The camera has been developed and tested with specific grabbers for which a full SDK + GUI are provided:

  • Matrox Radient (ev-CL)
  • Teledyne Dalsa (Xcelera-CL + PX8 Full)
  • ETD (VisionLink F4)

C-RED 2 can also work with USB 3.1 Gen 1 interface(USB-C connector). In this configuration, C-RED 2 is detected as a composite USB device (control + acquisition interface).

Readout Modes and Integration Times:

The acquisition speed can be set from 0.01 to 600 fps, the integration time can be set from 20μs to ~1/fps.

Different available Readout Modes:

  • Single Read: The entire frame is read before a reset period (with CDS)
  • Integrated Multiple Readout (IMRO): he user must specify a number of multiple non-destructive reads which corresponds to a number of frames that are read and delivered at a selected speed. It’s a burst mode.

Cropping and Windowing:It is possible to select one region of interest and acquire datas from this ROI only, column granularity is 32 and rows granularity is 4. Speed increases with read array reduction.

On-the-fly image optimization

First Light Imaging has developed a specific on-the-fly correction process to compensate the lattice mismatch artefacts of the extended range detector. The process corrects the image in real-time and can be applied to all gains and a large range of integration times. Importantly, the user has access to the image at all the steps of the process, including the initial raw image. Electronic board illuminated with ambient light. Before and after applying the full correction process.

  • With the corrections applied, C-RED 2 ER extended ingaas camera has a very high experimental operability (> 98% at 600 FPS).
  • The corrections are applied with no degradation of the image spatial resolution.
  • All corrections are based on physical models. The corrected image yields full physical meaning and can be used for quantitative measurements.
  • The entire correction process is applied on-the-fly without any loss of speed or restriction on framerate.

Applications

ASTRONOMY:
Adaptive Optics
Astronomical Observations
Hyper-spectral Imaging
Laser Communications

INDUSTRY:
Multispectral Imaging
Quality/Production control
Laser
Sorting

LIFE SCIENCES:
OCT Imaging
Bio Imaging
Spectroscopy
Fluorescence Microscopy



Learn more about SWIR applications

C-RED2 ER SWIR InGaAs camera - extended ingaas

Also see C-RED 2 ER 1.9µm with high QE between 1.1 µm to 1.9µm

Sensitivity

1100 – 1900 nm (XSWIR)

Material

InGaAs

Resolution

640 x 512 (VGA)

Frame Rate

500 – 1,000 fps

Pixel Pitch

15 µm x 15 µm

Cooling

TEC-cooled

Type

Camera

Interface

USB, Camera Link

Array Type

2D array / areascan
