SWIR lenses - Fixed focus, Zoom & Telecentric

Quick navigation

VSWIR 400 - 1700 nm

ViSWIR Lite | 2/3″ format ViSWR C-mount lenses

Computar swir lenses- viswir series - lite

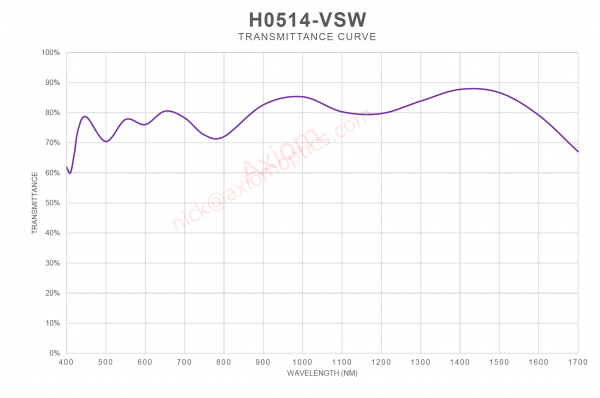

The ViSWIR Lite Series achieves a clear and precise image visible to the SWIR range by applying a multilayer coating to absorb the specific light.
The broadband anti-reflection coating is applied on all ViSWIR lens elements, allowing high and stable transmission at a super-wide wavelength range: 400nm to 1,700nm.
The ViSWIR series delivers a high-quality image using the latest Visible + SWIR sensors. This high-performance lens is designed for non-visible range imaging allowing diverse applications into multiple markets, including Agriculture, Medical, Remote Sensing, etc

Note: recommended for IMX990 & IMX991 only

ViSWIR Hyper-APO | 5MP High Resolution ViSWR C-mount lenses

Learn about focus shift

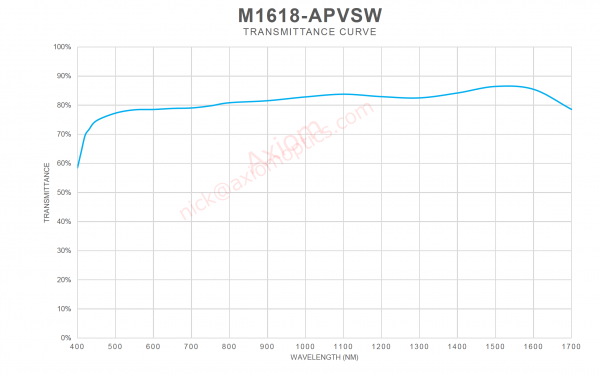

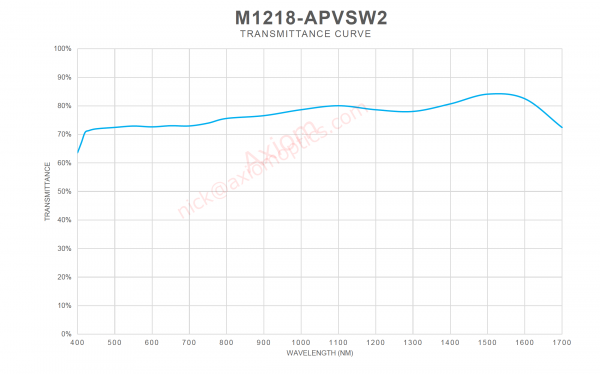

With ViSWIR HYPER-APO, it is unnecessary to adjust focus for different wavelengths or to keep the resolution high from short to long working distances. By adopting an APO floating design, the focus shift is reduced at any wavelength and any working distance. This function makes the series ideal for multiple applications, including machine vision, UAV, and remote sensing.

VISWIR Hyper-APO lens avoid focus shift

Computar - ViSWIR swir lens series - Hyper APO

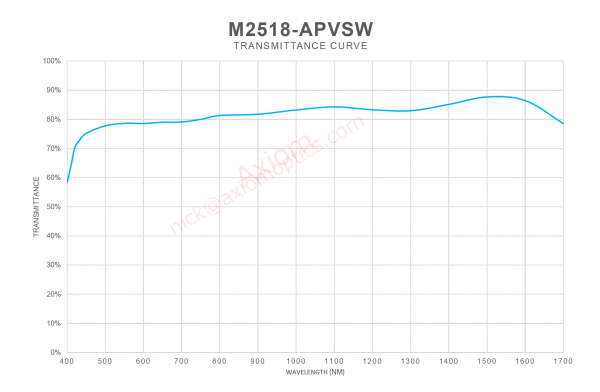

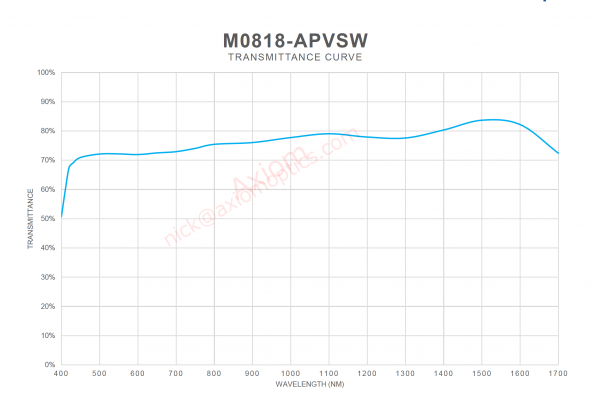

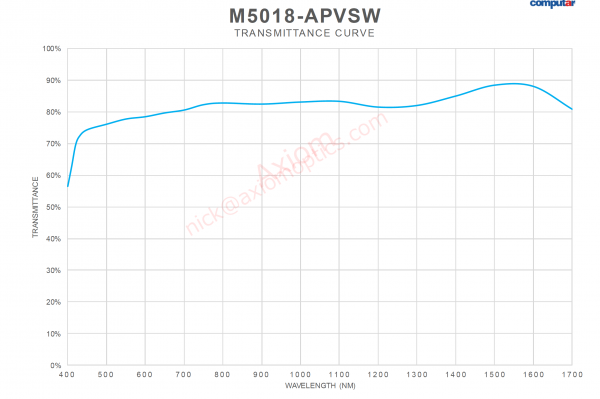

Hyper Apochromatic with fully corrected focus shift in visible and SWIR range (400nm-1,700nm): by using ultra-low dispersion glass and low partial dispersion glass paired with superior design technology developed from Computar’s extensive optics experience, the focus shift is minimized within a few micron mm at a super wide range of wavelengths.

Note: recommended for IMX992, IMX993, IMX990 and IMX991

VIS-SWIR | 1″ format VIS-SWR C-mount lenses

KOWA SWIR Lense

Kowa LM-HC-VIS-SWIR lenses with a high transmission from 450 nm to 2000 nm. The lenses are suitable for a large number of applications with VIS-SWIR and hyperspectral cameras to precisely analyse the reflection properties of materials over a wide range of wavelengths.

Transmission Curve

KOWA SWIR lens transmission curve

SWIR 900 - 1700 nm

SWIR | Fixed Focal 1-1.1″ format SWIR lenses

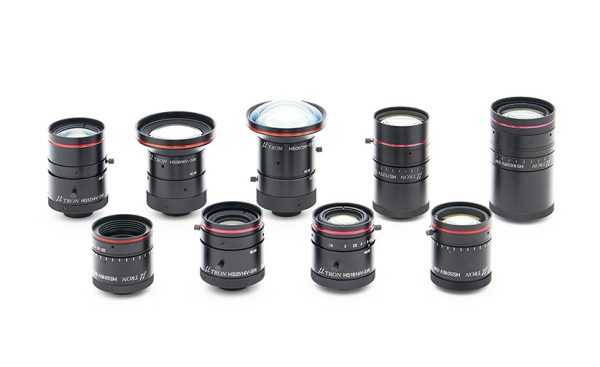

Myutron fixed focal swir lenses

Designed for SWIR wavelengths (950 - 1800 nm), the Myutron C-mount lenses come with a large choice of fixed focal lengths including rare large focals such as 75 mm and even 100 mm.

SWIR | Telecentric SWIR lenses with C-mount

telecentric swir lenses

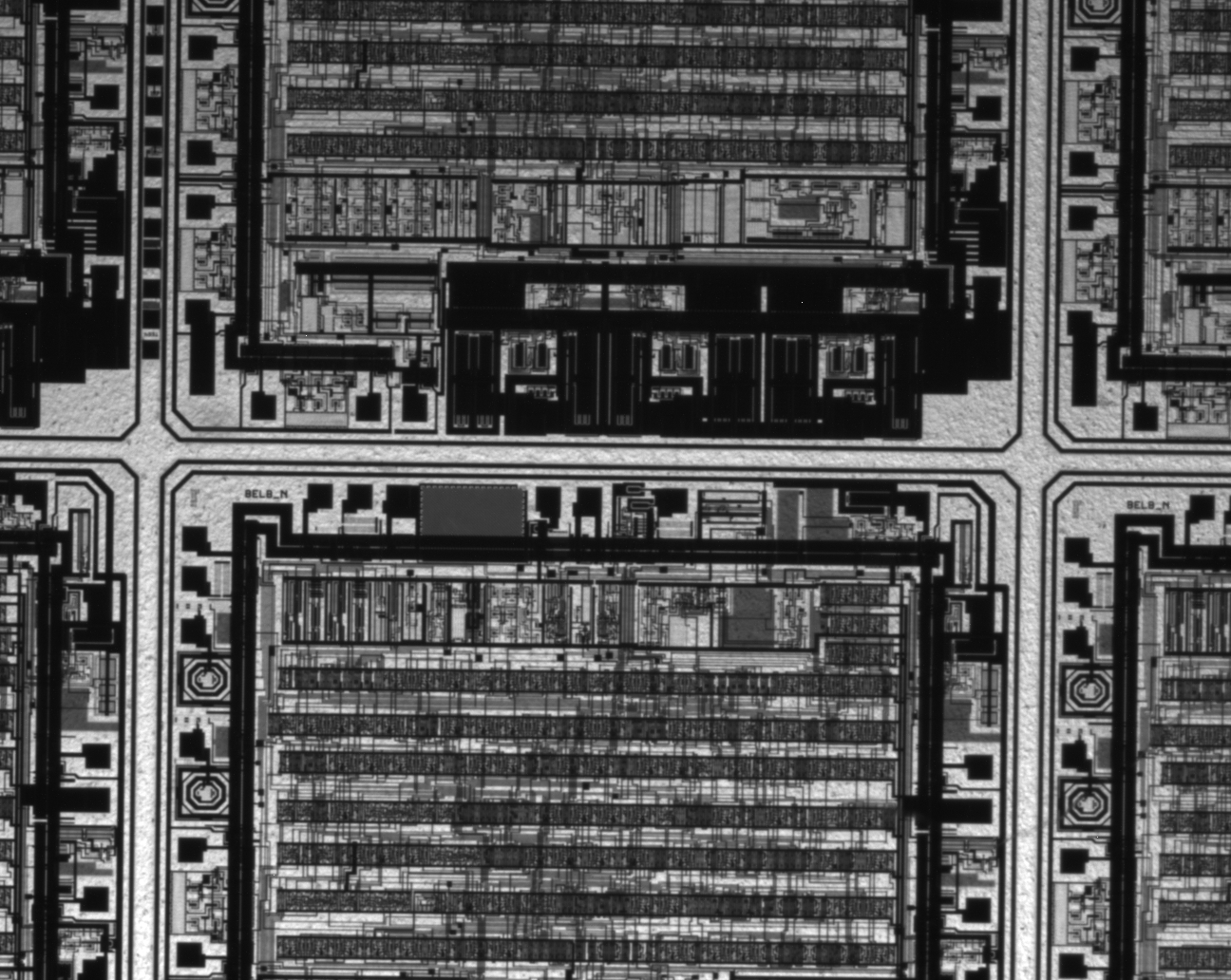

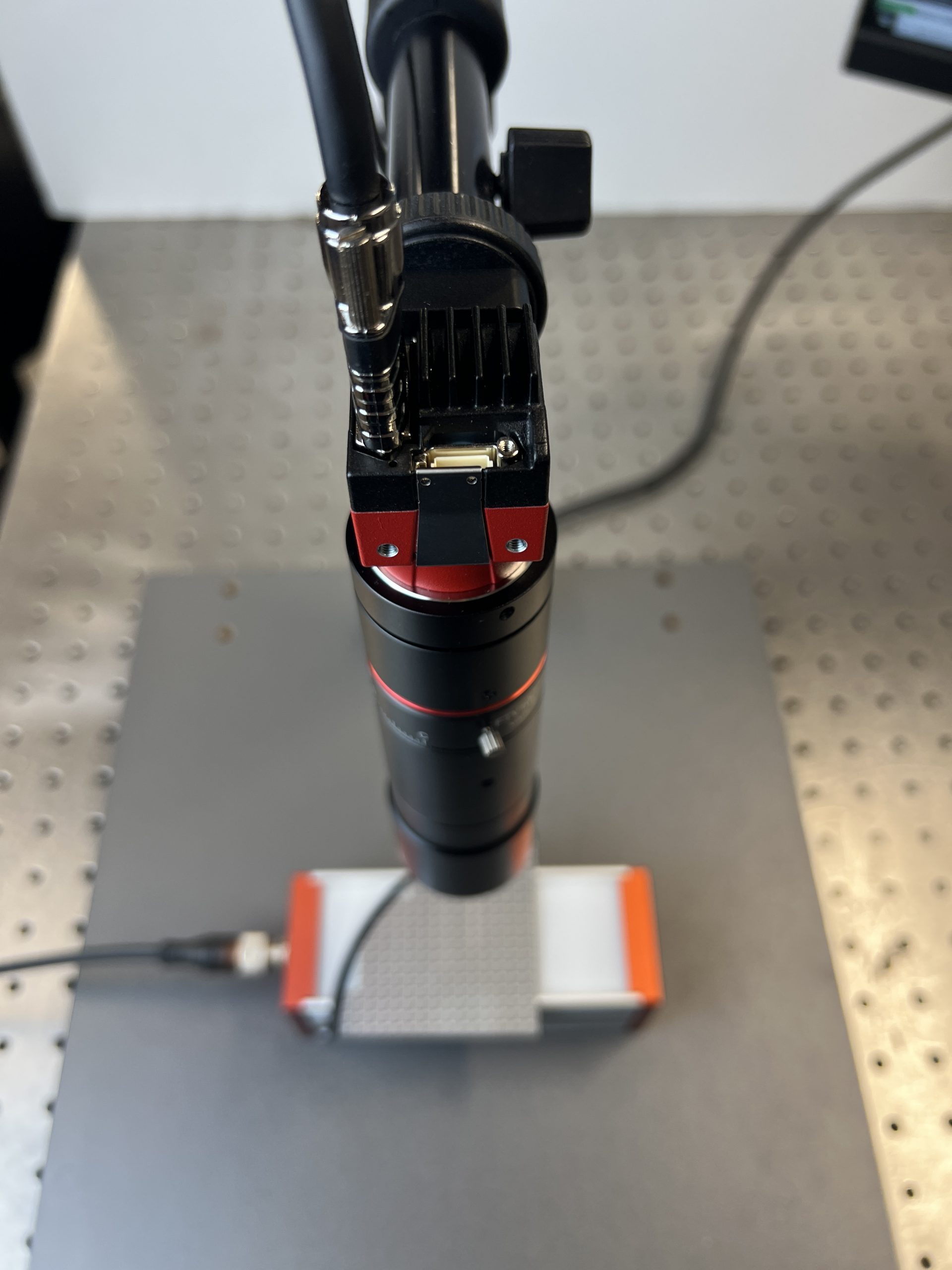

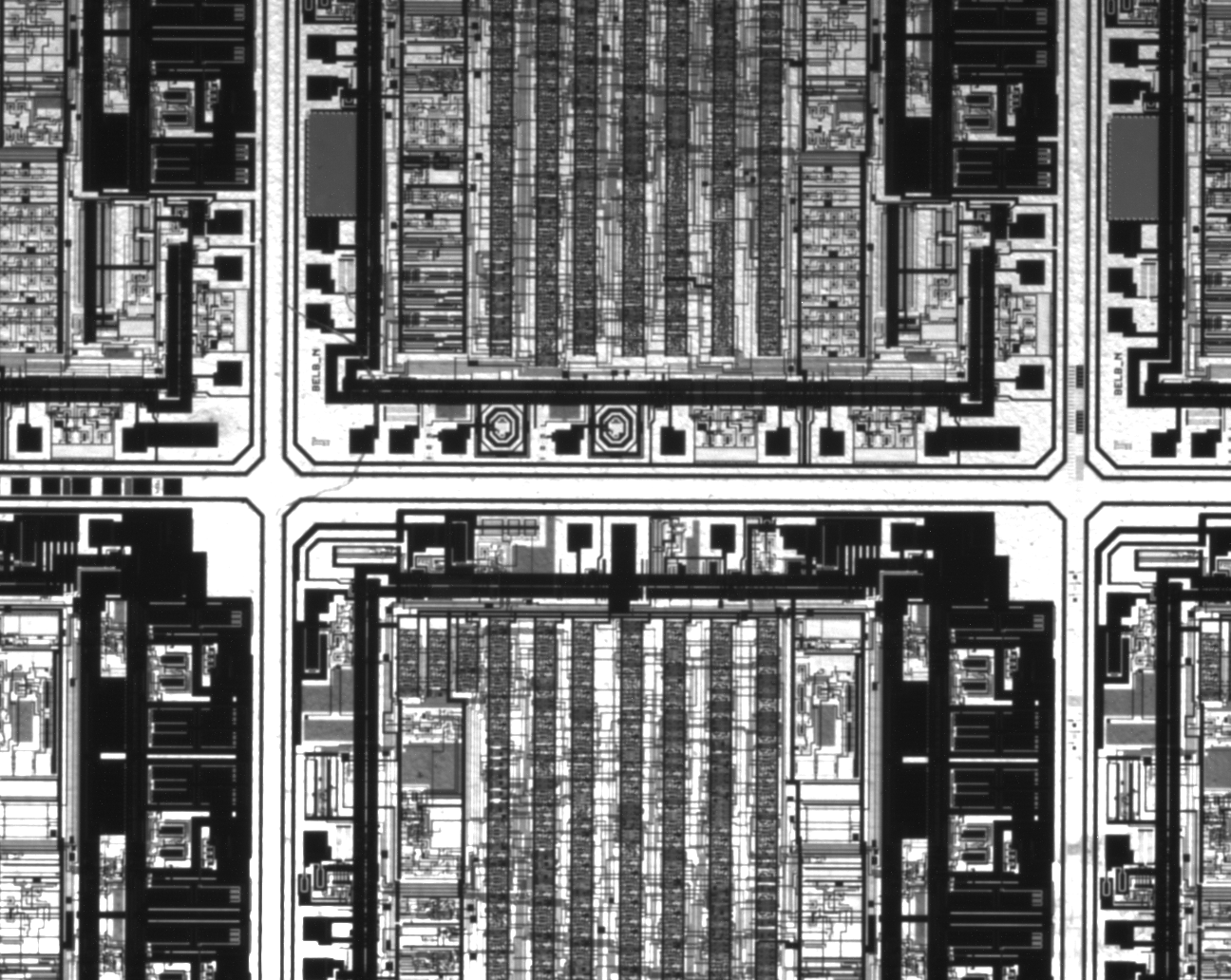

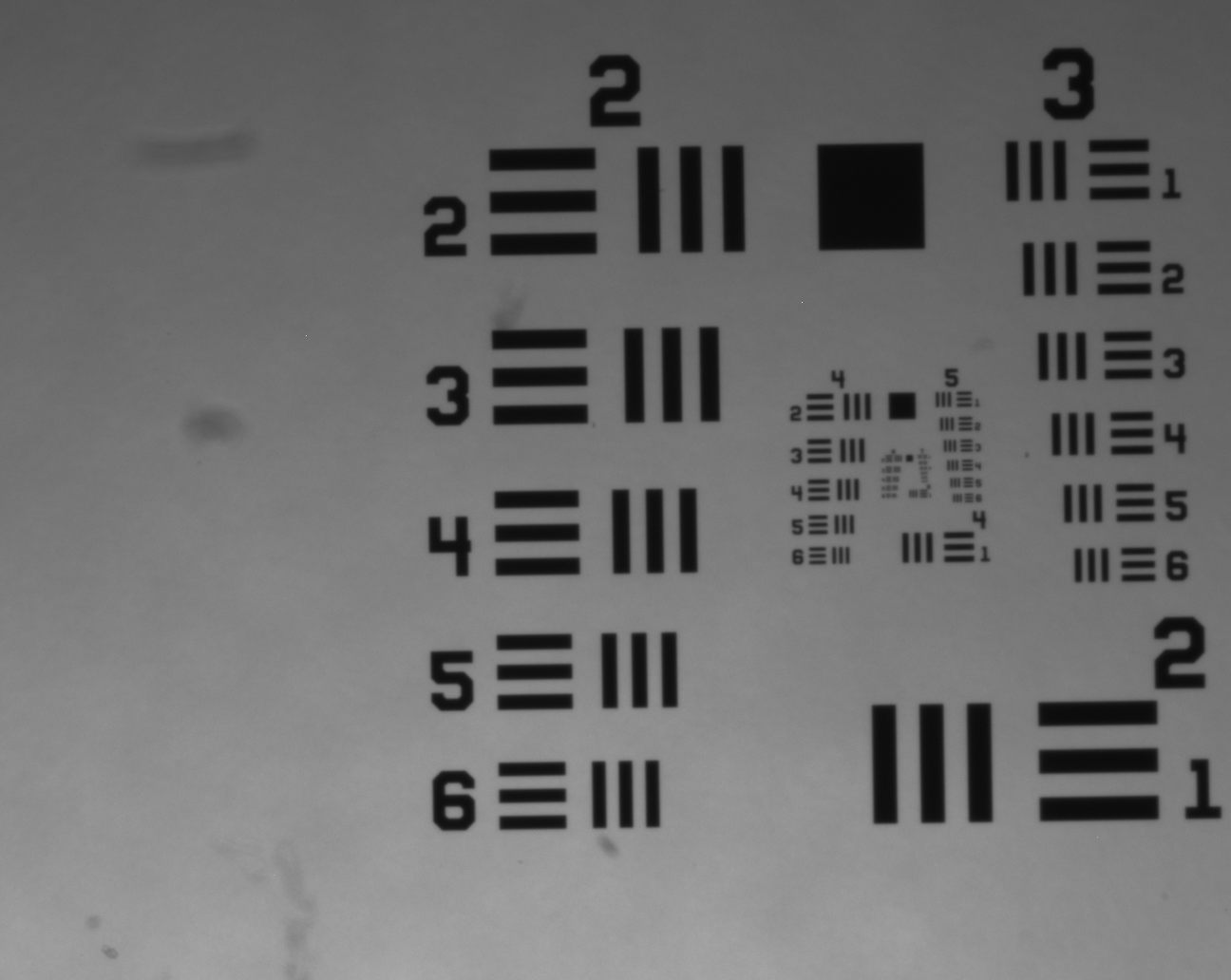

Designed for SWIR wavelengths (950 - 1800 nm), the Myutron telecentric SWIR lenses allow easy inspection with very low distortion. Coaxial illumination available on most models for broad spectrum light input (halogen) or single-wavelength LED light (1050 nm, 1100 nm, 1450 nm, 1550 nm).

Coaxial Illumination for telecentic lenses

150W Halogen lamp (covering a spectral range of 400 - 1700 nm with a peak wavelength of 1000 nm). Optional heat resistant bandpass filters also available (800 nm, 900 nm, 1000 nm, 1100 nm, 1200 nm, 1300 nm, 1400 nm).

Single wavelength LED spotlight with high brightness and uniformity. Available wavelengths: 1050 nm, 1100 nm, 1450 nm, 1550 nm.

SWIR | 1″ format SWIR C-mount lenses

KOWA SWIR Lenses

Incorporating Kowa's special technology, the 1" format HC-SW Series maintains high transmission from 800nm to 1900nm. Designed for Near Infrared (NIR) and Short Wavelength Infrared (SWIR) applications. IR-Corrected lens is designed to produce crisp and bright images, no matter how dark or bright the surrounding environment may be.

SWIR Machine Vision Lens Series | 2/3 " C-mount

SWIR lenses by computar

Specifically designed for Machine Vision applications in NIR and SWIR. Unique coating technology delivers high transmission from 800nm-1,700nm High-resolution, low-distortion design offers Megapixel clarity in hyperspectral application Designed around the popular φ12.3mm image circle format The industry’s most compact form factor. Fits in most applications

Transmission Curve

transmission curve

SWIR Zoom Lens | 18-108 mm, 2/3″ format, C-mount

swir zoom lens

This SWIR zoom lens is a close-focusing macro video lens which is versatile and specifically designed to be used in applications where objects over 1" in diameter must be imaged. It offers unsurpassed clarity and parfocal zoom capabilities and is compatible with cameras 2/3" or smaller. Adjustable zoom, focus and iris with lock screws.

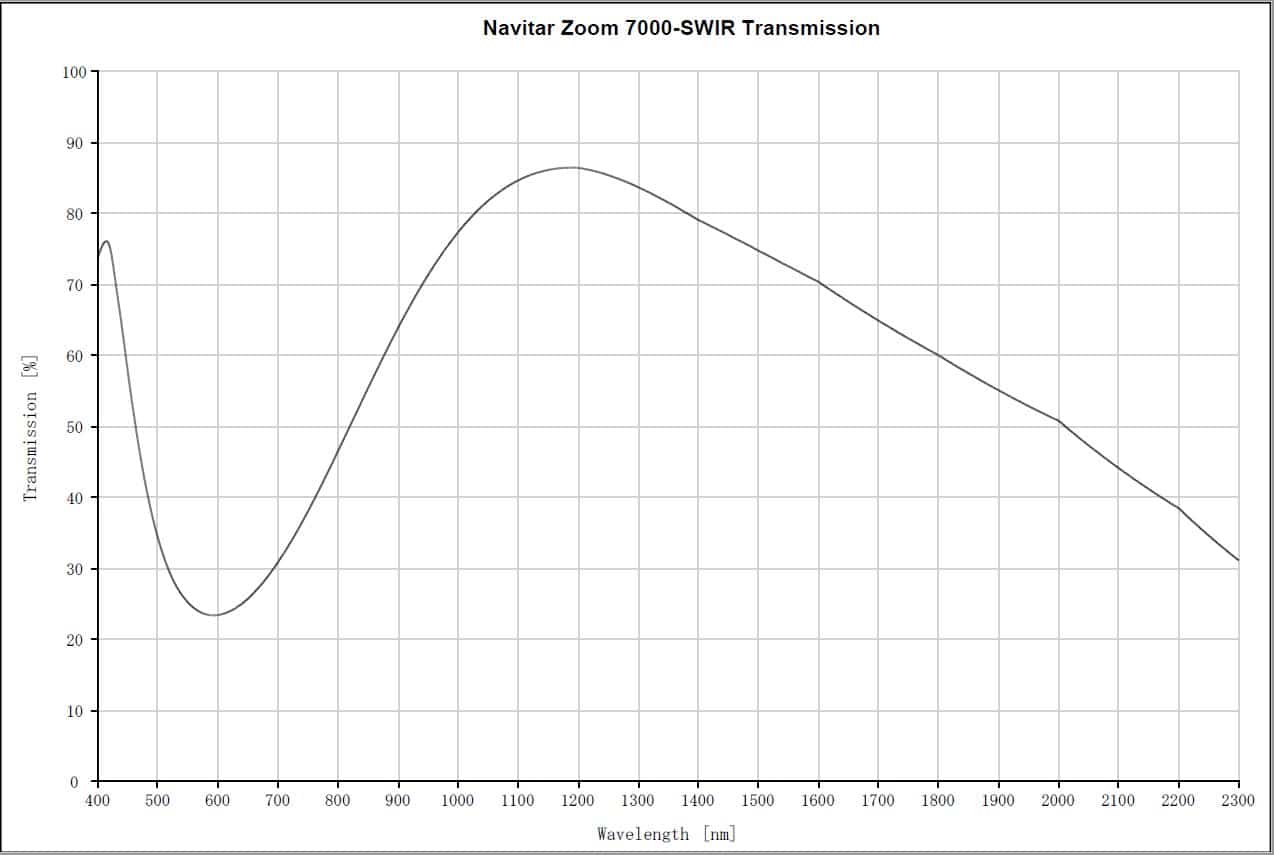

Transmission Curve

swir zoom lens transmission

Motorized Zoom SWIR lenses | Iris, zoom and focus control

motorized swir zoom lens

Incorporating Kowa’s special coating technology to maximize transmission at the 1,000 to 1,800nm range. • Designed for Near Infrared (NIR) and Short Wavelength Infrared (SWIR) applications. • Produces ultra-high resolution at mid to long range working distances. • Featuring Kowa’s 3-Cam design to increase durability, reliability, and product life. • DC auto-iris, 3 motor, and custom options available.

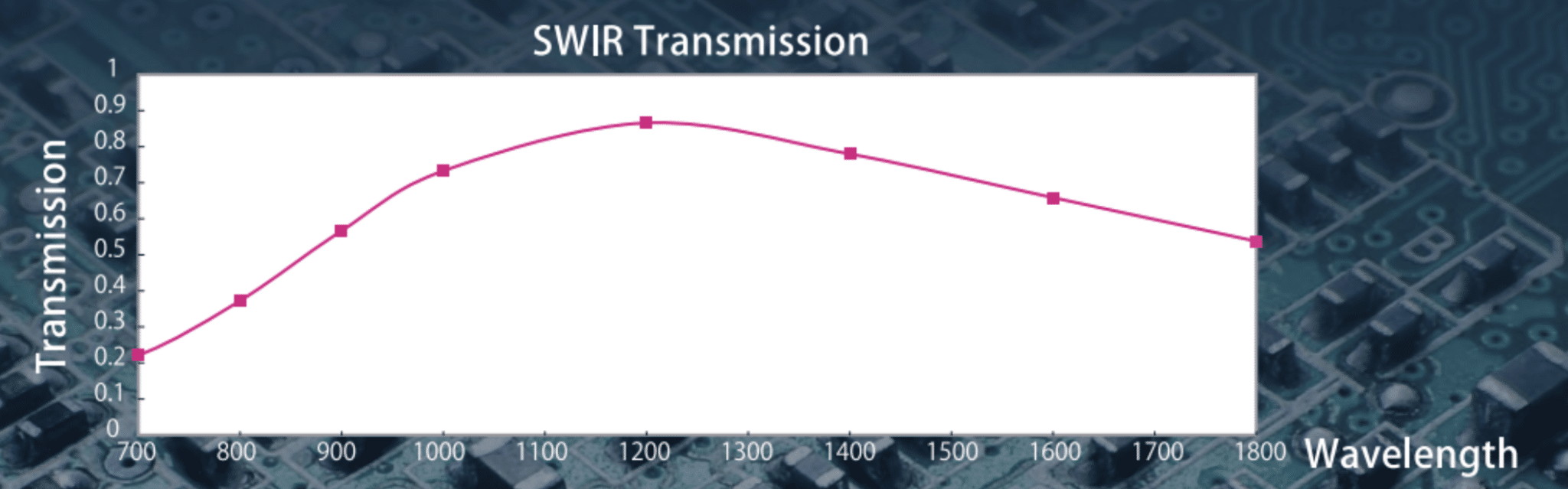

Transmission Curve

XSWIR up to 2200 nm

XSWIR | 1″ format for SWIR up to 2.2 µm

KOWA SWIR Lense

Kowa LM-HC-VIS-SWIR lenses with a high transmission of 450-2000 nm cover the range from visible to SWIR with the advantage of a reduced focus shift. The lenses are suitable for a large number of applications with VIS-SWIR and hyperspectral cameras to precisely analyze the reflection properties of materials over a wide range of wavelengths.

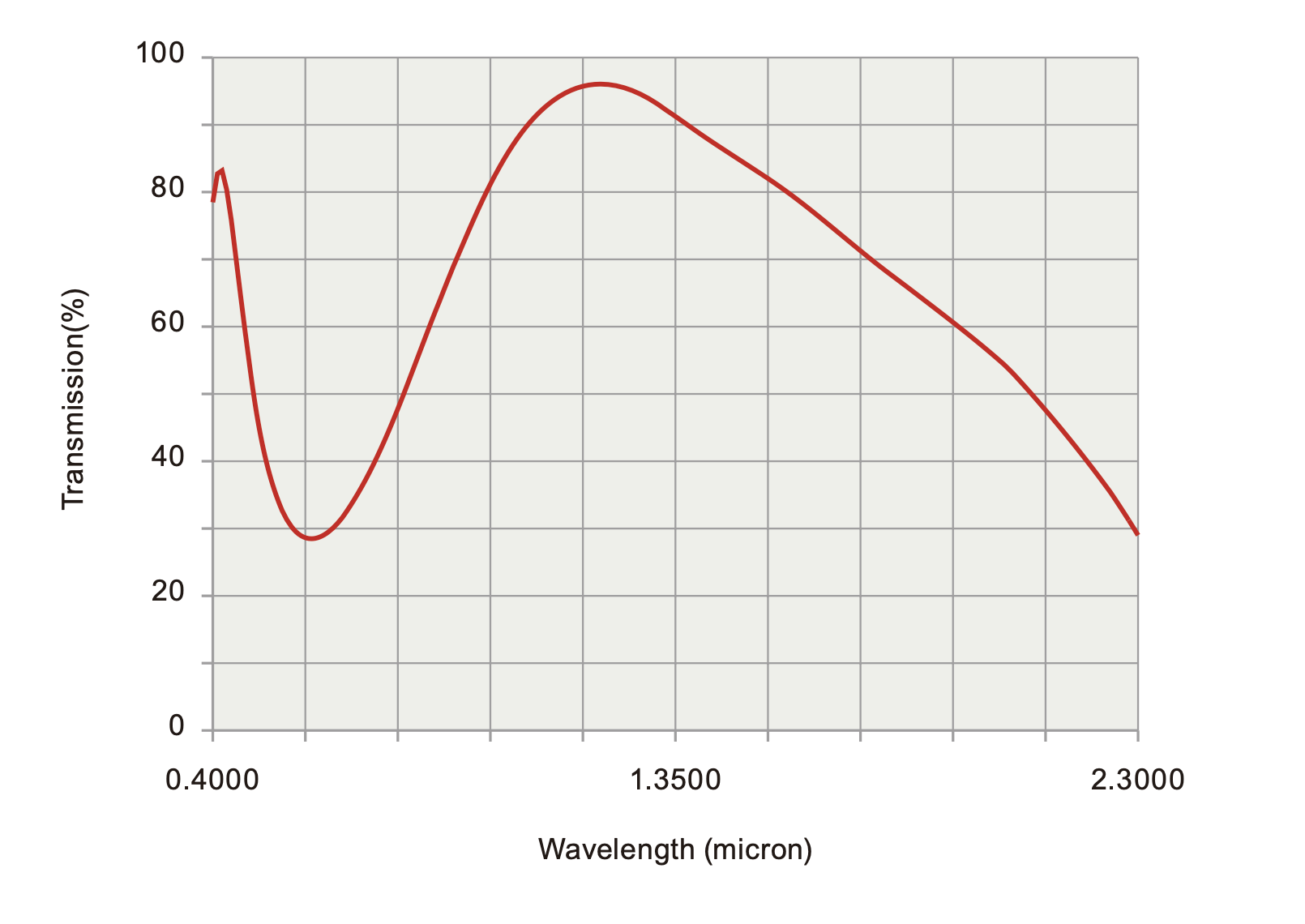

Transmission Curve

KOWA swir lens transmission rate

Filters

Swir lens filters

We offer longpass and bandpass filters that are compatible with our SWIR cameras and lenses. Each filter is available in a front-lens threaded version and a convenient C-mount threaded version for applications with space constraints or lenses that do not have a filter thread.

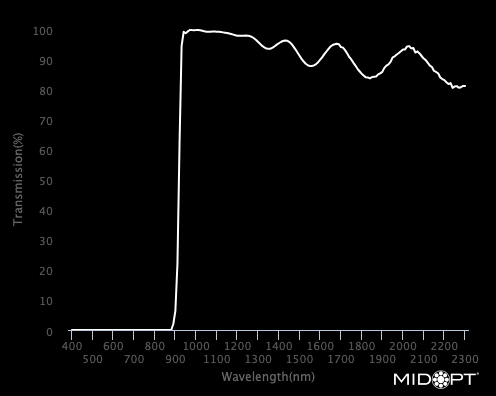

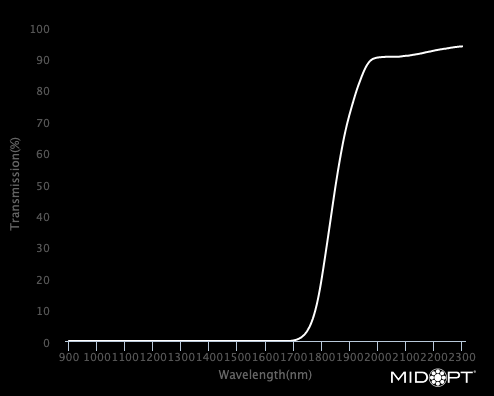

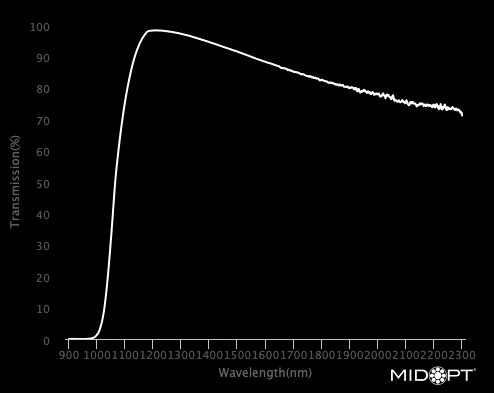

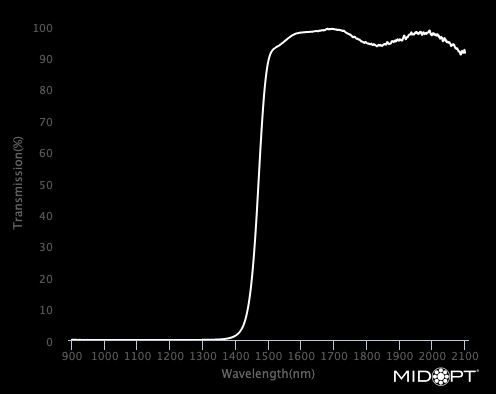

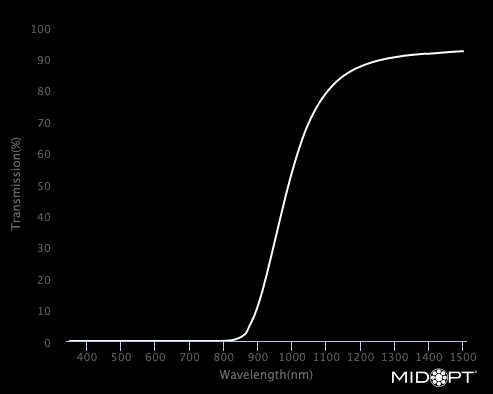

Longpass

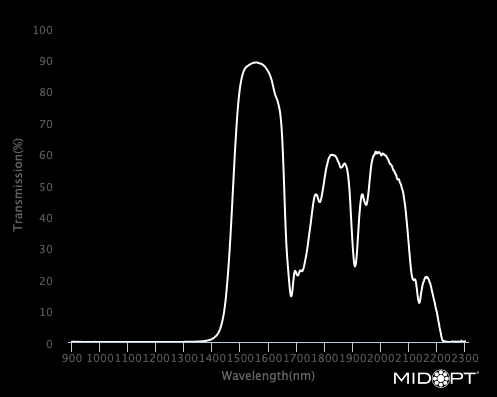

Transmission Curves

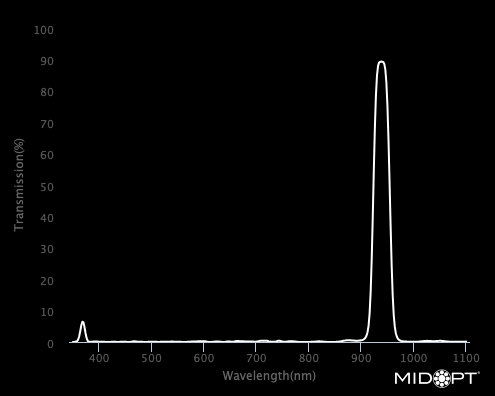

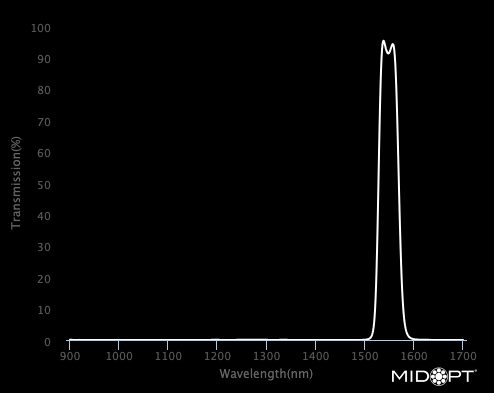

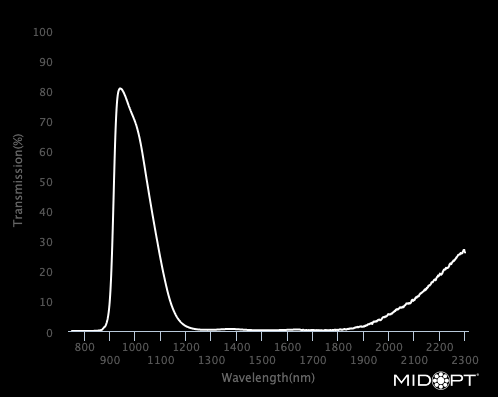

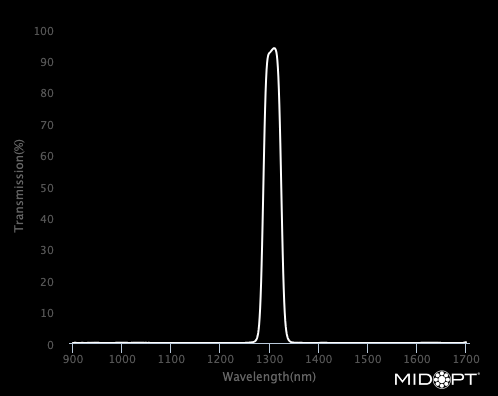

Bandpass

Transmission Curves
