Laser Beam Diagnostics & Spectroscopy

Laser Beam Diagnostics & Spectroscopy

- Measures pulses from 5 fs to 10 ps
- Ultra compact and alignment free
- No moving parts and insensitive to vibrations
- Single-pulse extraction up to 100 kHz
- USB powered
- User-friendly software
ROC | Compact Autocorrelator for Ultrafast Laser Pulse Measurement
- Only 30 mm x 40 mm x 45 mm
- Spectral range: 700-900 nm or 1020 - 1080 nm
- Single-shot up to 100 kHz
- Virtually no alignment, no moving parts
- USB powered
µROC | World’ Smallest Single-Shot Autocorrelator
- No calibration and no tweaking necessary
- Measures Spatio-Temporal couplings (Spatial Chirp, Pulse Front Tilt)
- Versatile: instant-swap of spectrometer for different wavelength ranges
- Broad available spectral range (480 – 2100 nm)
- Sub-5 fs can be measured
- Suitable for any repetition rate
FROG Systems | Ultrafast Laser Characterization
- Smallest pixel pitch of 1.45µm
- Spectral range: 375-1100nm (190nm with UV option)
- CW and pulsed lasers
- USB3.1 interface
- Free STAR software

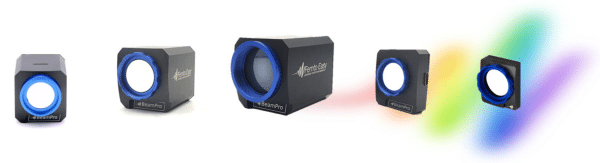

BeamPro | Small Pixel Laser Beam Profiler
- Sensor size from 7mm up to 25mm
- Spectral range: 375-1100nm (190nm with UV option)
- CW and pulsed lasers
- USB3.1 interface
- Free STAR software
BeamPro | Large Area Laser Beam Profiler
- Sensor size up to 12.3mm
- Spectral range: 375-1100nm (190nm with UV option)
- CW and pulsed lasers
- USB3.1 interface
- Free STAR software
BeamPro | Square Format Laser Beam Profiler
- Less than 15mm thickness
- Sensor size from 3.1mm up to 7.7mm
- Spectral range: 375-1100nm (190nm with UV option)
- CW and pulsed lasers
- USB3.1 interface
- Free STAR software
BeamPro | Compact Footprint Laser Beam Profiler
- Spectral range: UV, VIS, NIR & SWIR
- Accuracy: 2-3% typical (M2, BPP)
- Software: RayCi Pro included
- Customization: custom systems based on laser specs
- Measurement time: ~2 min or 30s (fast scan)
CinSquare M² Tool | Beam Quality Measurement System
- Max. input power: 1000W@single-mode; 1200W@multi-mode
- Spectral response: 400-1100nm
- Min. beam size: 30µm
- Waist position accuracy: +/-100µm
- M2 accuracy: 2-4%
- Interface: USB3.0
FBP | Focus Beam Profiler for Laser Additive Manufacturing
- Spatial chirp measurement: horizontal & vertical
- Input: open beam or fiber
- Wavelength: UV, VIS, and NIR options
- Single-shot up to 75 kHz
- Interface: USB3.1
MISS Laser Beam 2D Imaging Spectrometer
- Laser wavelength: 532 or 785nm
- Resolution: 9-12cm<sup>1</sup>
- Integration time: 1ms-30s
- Sample holder
- Connectivity: USB-C and Bluetooth
- Sensor: 8.42 Mpx SONY IMX CMOS
IndiGo Raman | Handheld Raman Spectrometer
- Wavelength Range: 380-780nm
- Resolution: <1.5nm FWHM
- Integration time: 10ms - 24s
- S/N ratio : 400 at full signal
- Connectivity: USB-C and Bluetooth
- Detector: CMOS, 5.4µm pixel size

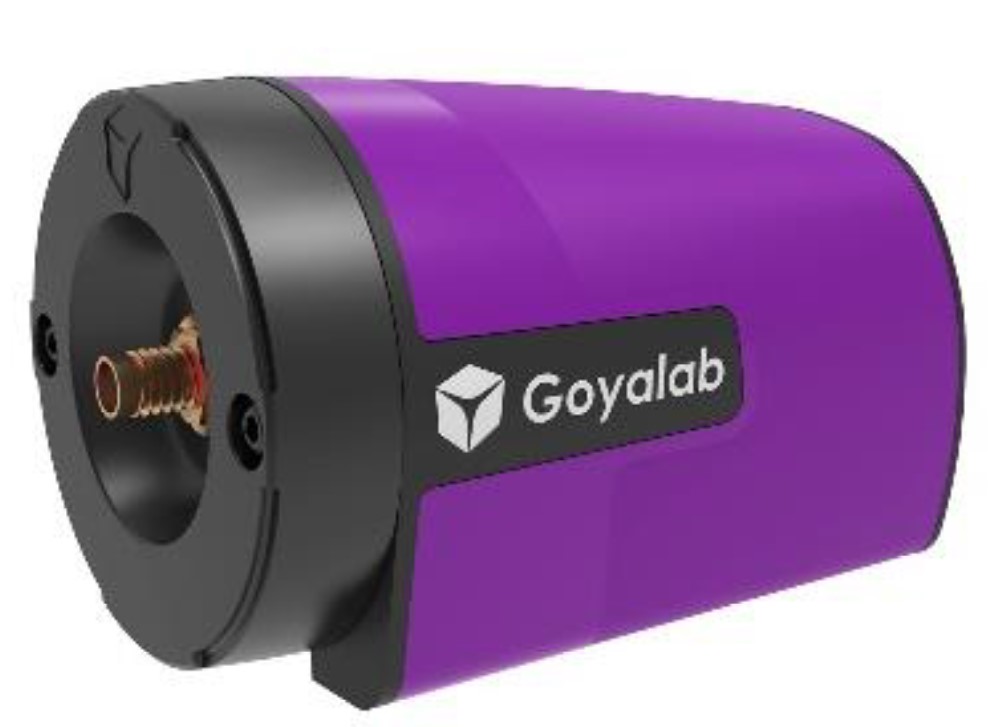

IndiGo | VIS Handheld Spectrometer
