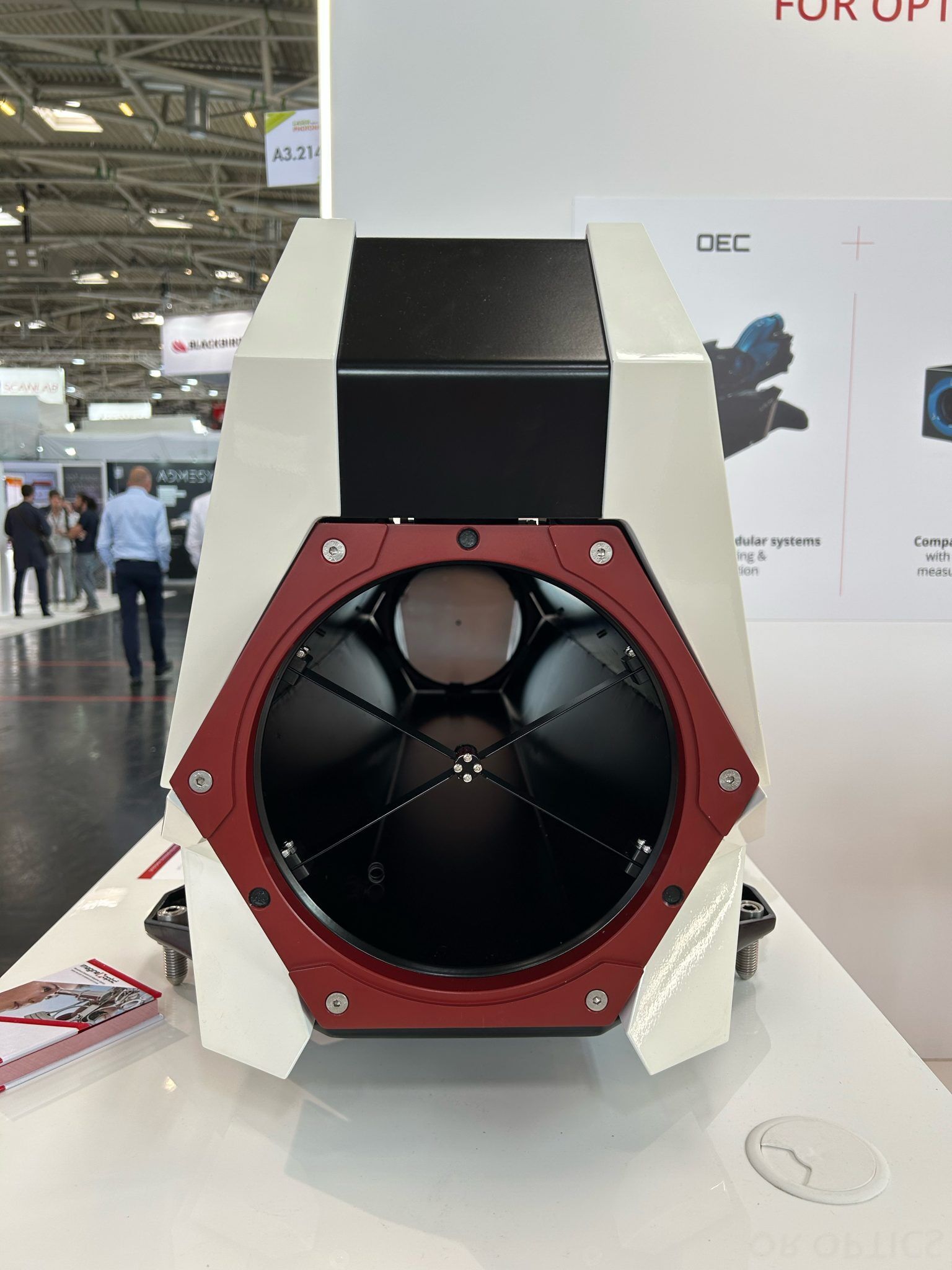

RFLEX LA SWIR 200 inside

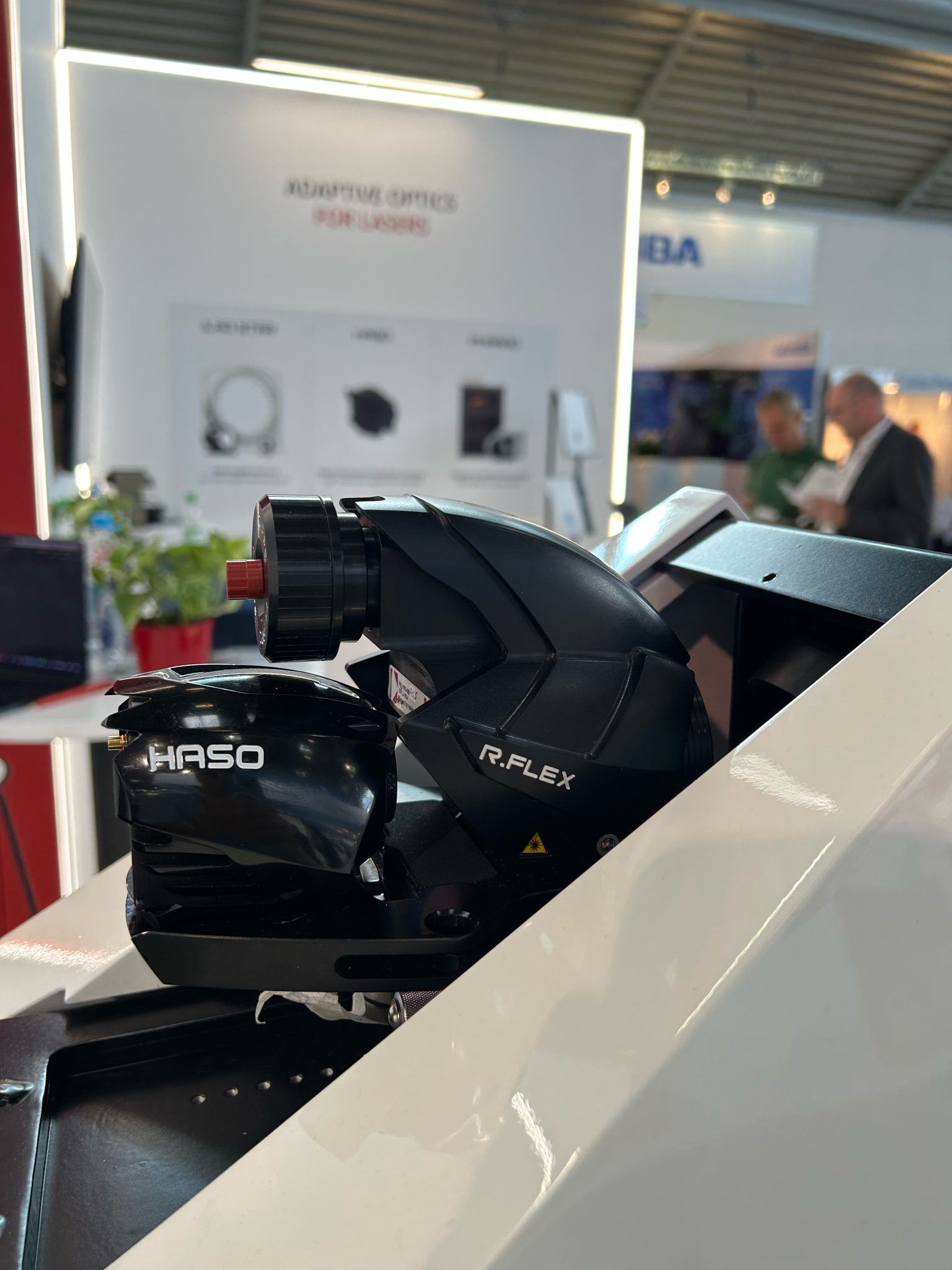

RFLEX LA SWIR 200 haso

R-FLEX LA I self illuminated wavefront sensor with beam expander up to 150mm

Spectral Bandwidth

400-1100 nm or 900-1700 nm

Apertures

30-50-75-100-150

Sampling points

Up to 21,000

Accuracy

λ/200

Acquisition frequency

Up to 1kHz

R-Flex LA and R-Flex LA SWIR are the collimator platforms that extend the capabilities of HASO R-Flex 2 and HASO R-Flex 2 SWIR for analyzing even large optical surface or optics. The output collimated beam size can be chosen up to 150mm in diameter.

R-Flex Large Aperture is a combination of a light source, HASO4 R-Flex 2, and a beam expander that offers several advantages as follows.

* Insensitive to vibration
* Compact
* Detachable HASO4 R-Flex50 for use with various objective modules MOD50
* Switchable beam expanders
* Switchable light sources within two spectrum bands; VIS: 400-700nm and NIR: 650-1100nm

R-Flex Large Aperture SWIR has all the capabilities of the R-Flex LA, but operates at a wavelength of 900-1,700 nm.

Watch the latest webinar recording on optical characterization and alignment using R-FLEX here

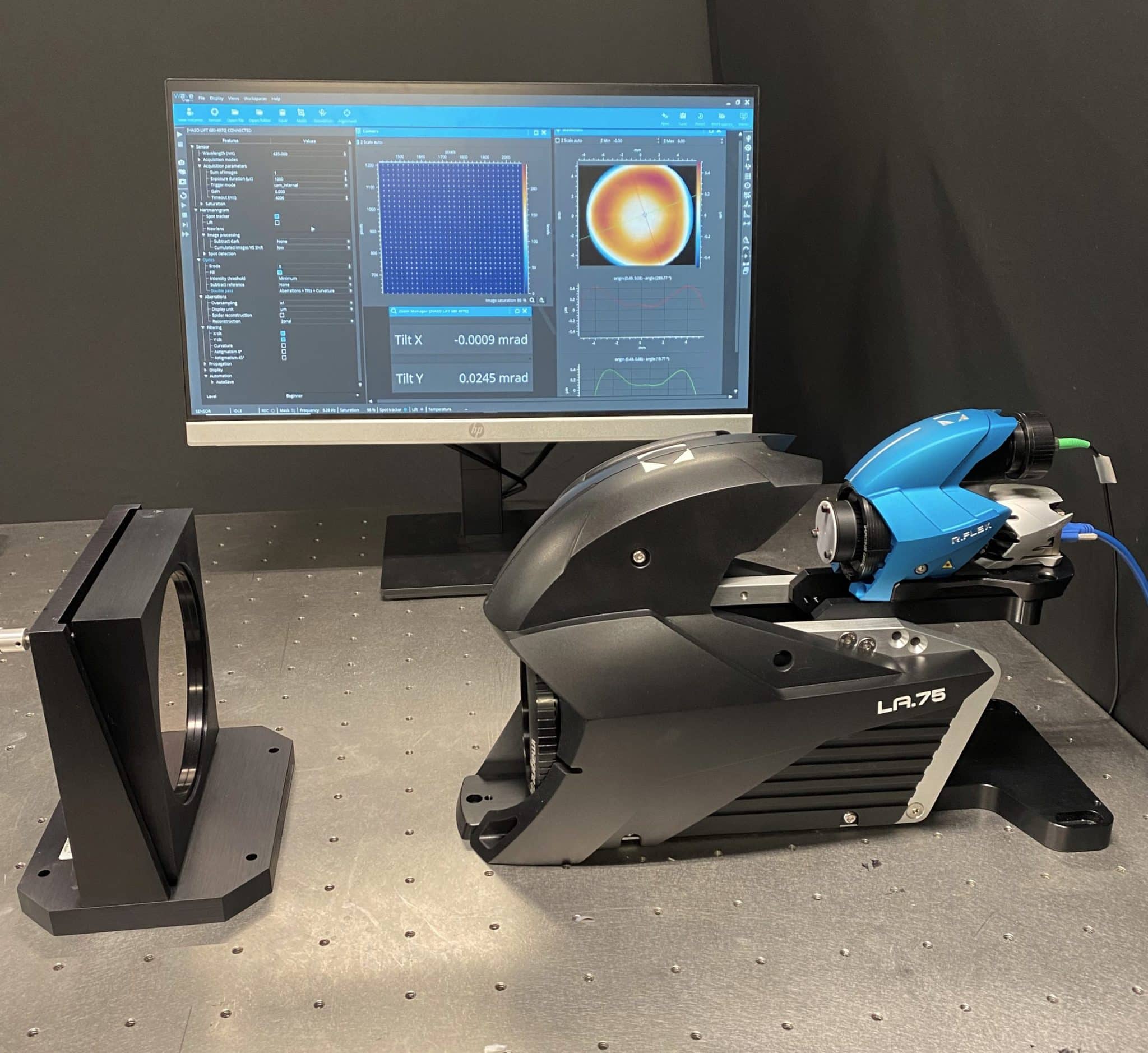

R-Flex LA is an optical flatness measurement tool for visible and near infrared wavelengths with an output beam diameter up to 150 mm

The R-Flex Large aperture Wavefront metrology system is the collimator platform extending the capabilities of R-Flex 2 for analyzing even large optical surface or optics. The output collimated beam size can be chosen up to 150mm in diameter.

Extends the capabilities of HASO RFLEX for analyzing large optics and optical surfaces such as filters, dichroic beam splitters, head-up displays, eyewear, optical windows, flat mirrors, polarization scramblers.

R-Flex Large aperture Wavefront metrology system is a combination of a light source, R-Flex 2, and a beam expander that offers several advantages as follows.

* Insensitive to vibration
* Compact
* Switchable beam expanders
* Switchable light sources within two spectrum bands; VIS: 400-700nm and NIR: 650-1100nm

A unique set of advantages:

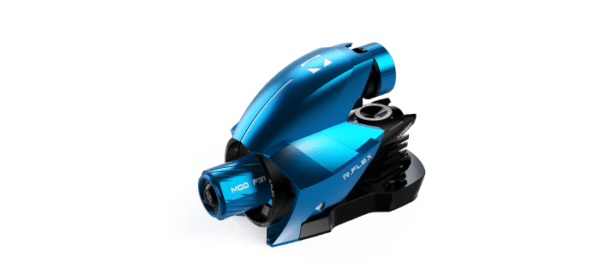

  • HASO R-FLEX2 with a compact beam expander
  • Customizable output beam size up to 150 mm
  • Detachable HASO R-FLEX2 for using with another beam expander or R-FLEX2 focusing modules
  • Suitable for fibre light sources in the 400-1100nm wavelength range
  • Bundled with WaveView, the industry’s most advanced metrology software and WaveKit (Software Development Kit) in C, MATLAB, and LabVIEW

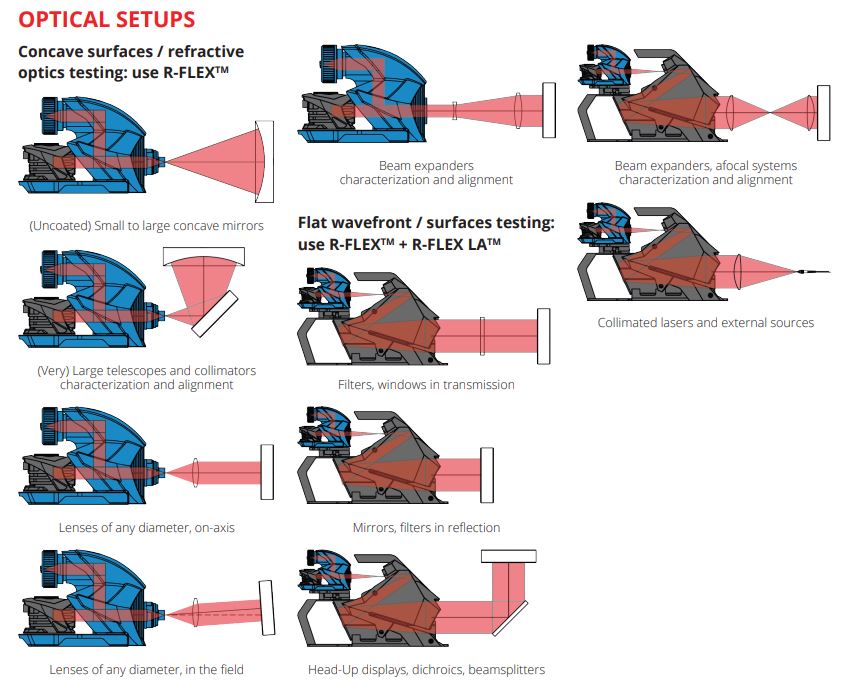

Applications:

Wavefront inspection of:

  • filters
  • dichroic beam splitters
  • head up displays
  • eyewear
  • flat mirrors
  • optical windows
  • polarization scramblers
