IndiGo Raman Handheld Spectrometer

IndiGo Raman | Handheld Raman Spectrometer

Laser Wavelength

532nm or 785nm

Laser Linewidth

0.1nm (FWHM)

Resolution

9-12cm<sup>-1</sup>

Grating

600 Lines/mm

Integration Time

1ms - 30s (averaging is possible)

Signal to Noise

10,000:1

Tag: Brand:

IndiGo Handheld Raman Spectrometer: An Affordable and Modular Instrument

The IndiGo Handheld Raman spectrometer is the latest model of the line of IndiGo spectrometers developed by french manufacturer GoyaLab. It is is a high-resolution spectrometer dedicated to Raman spectroscopy that allows the analysis of solids, powders, or liquids thanks to its retractable sample holder.

The IndiGo Raman spectrometer is a portable instrument fitted with a laser excitation module at 532 nm or 785 nm. The IndiGo handheld Raman spectrometer is modular, lightweight, fits in the palm of your hand, and can be controlled either via Bluetooth on a smartphone or tablet, or on a Windows PC using the powerful SpectroLab software. This spectrometer is the ideal tool for bench top or field applications.

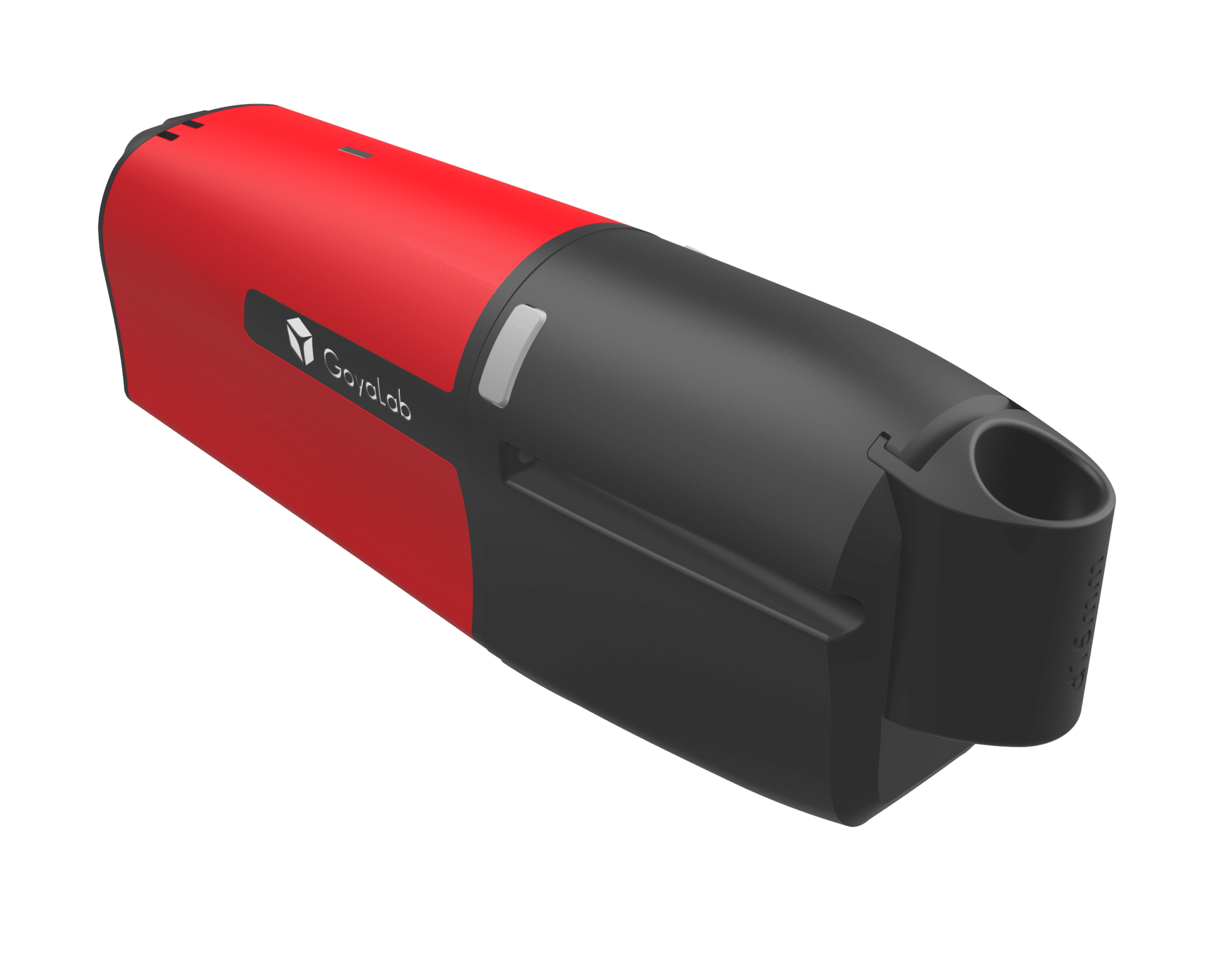

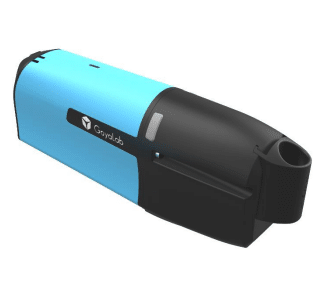

The IndiGo Raman spectrometer is composed of a high resolution visible or NIR spectrometer and a Raman head integrating a laser excitation module at 532nm or 785nm. By simply pressing the push button on the module, it triggers a laser shot and allows the Raman spectrum to be measured with a spectral resolution of 9 – 12cm-1.

Here you can learn about all the portable spectroscopy solutions developed by GoyaLab.

IndiGo Handheld Raman Spectrometer: An Affordable and Modular Instrument

The IndiGo Handheld Raman spectrometer is the latest model of the line of IndiGo spectrometers developed by french manufacturer GoyaLab. It is is a high-resolution spectrometer dedicated to Raman spectroscopy that allows the analysis of solids, powders, or liquids thanks to its retractable sample holder.

The IndiGo Raman spectrometer is a portable instrument fitted with a laser excitation module at 532nm or 785 nm. The IndiGo handheld Raman spectrometer is modular, lightweight, fits in the palm of your hand, and can be controlled either via Bluetooth on a smartphone or tablet, or on a Windows PC using the powerful SpectroLab software. This spectrometer is the ideal tool for benchtop or field applications.

The IndiGo handheld Raman spectrometer is composed of a high resolution visible or NIR spectrometer and a Raman head integrating a laser excitation module at 532 nm or 785nm. By simply pressing the push button on the module, it triggers a laser shot and allows the Raman spectrum to be measured with a spectral resolution of 9 – 12cm-1.

Here you can learn about all the portable spectroscopy solutions developed by GoyaLab.

IndiGo Applications:

  • Industrial Chemical Compound Authentication
  • Food Industry
  • Gem authentication

Spectrolab Software

IndiGo Handheld Raman Spectrometer is delivered with the SpectroLab application

  • SpectroLab PC: A PC application for Windows to acquire and analyze spectra (USB-C connection)
  • SpectroLab Android: An Android application for smartphone and tablet to acquire and analyze spectra (Bluetooth connection)

Goyalab spectrometers come factory calibrated. SpectroLab also offers the possibility to re-calibrate on-site using an Hg/Ar lamp or a fluorescent lamp.



1

Laser wavelength: 532 or 785nm
2

Resolution: 9-12cm<sup>1</sup>
3

Integration time: 1ms-30s
4

Sample holder
5

Connectivity: USB-C and Bluetooth
6

Sensor: 8.42 Mpx SONY IMX CMOS
