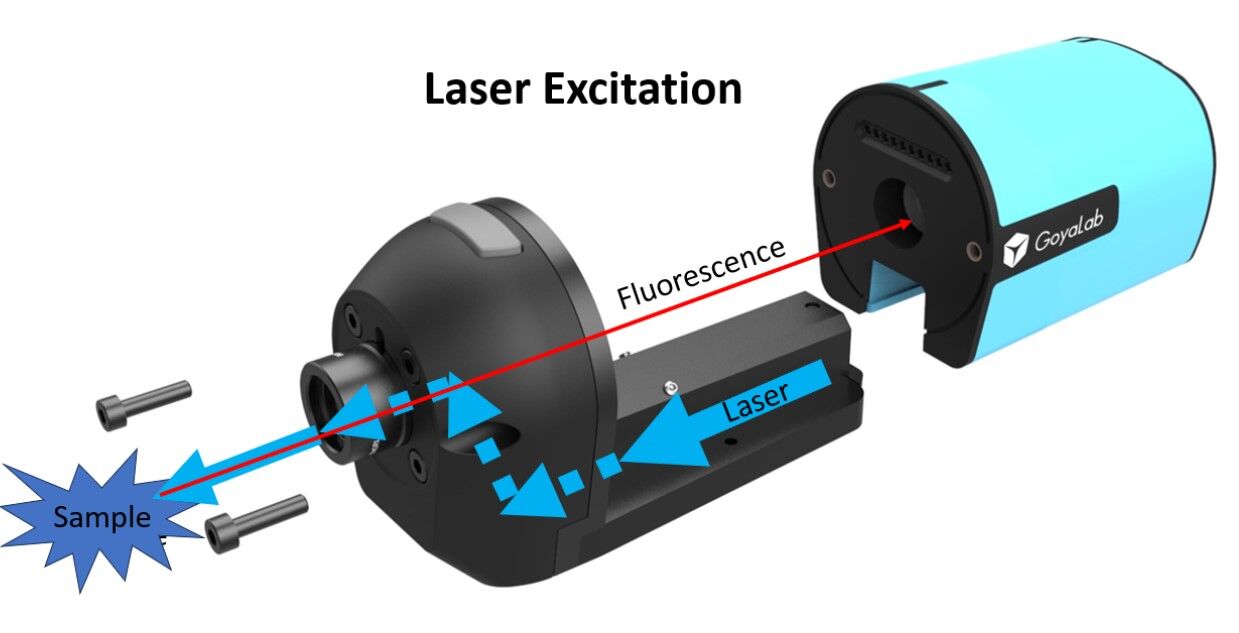

20230810_FluorescenceSpectrometerLaser_RSG

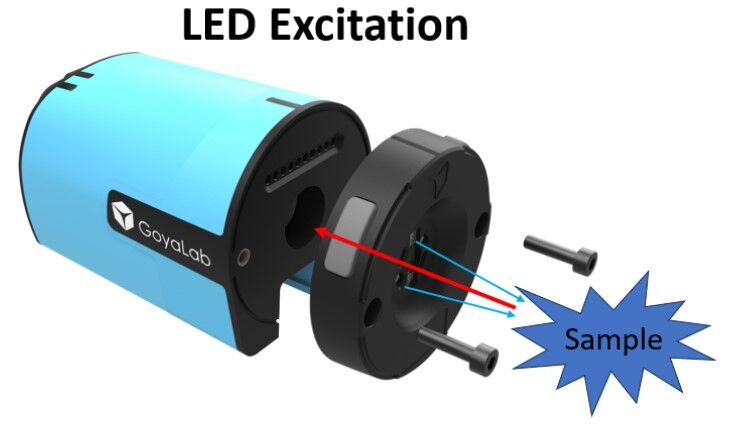

20230810_FluorescenceSpectrometerLED_RSG

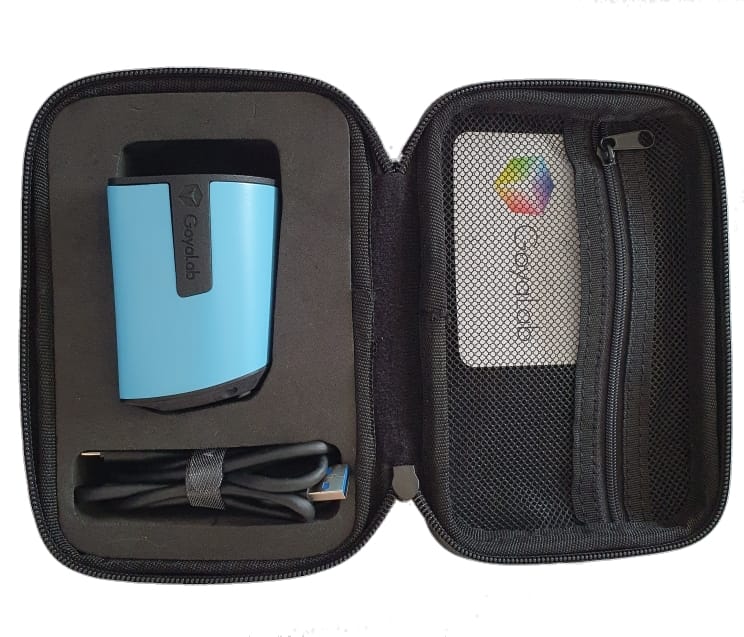

IndiGo handheld spectrometer in its open packaging

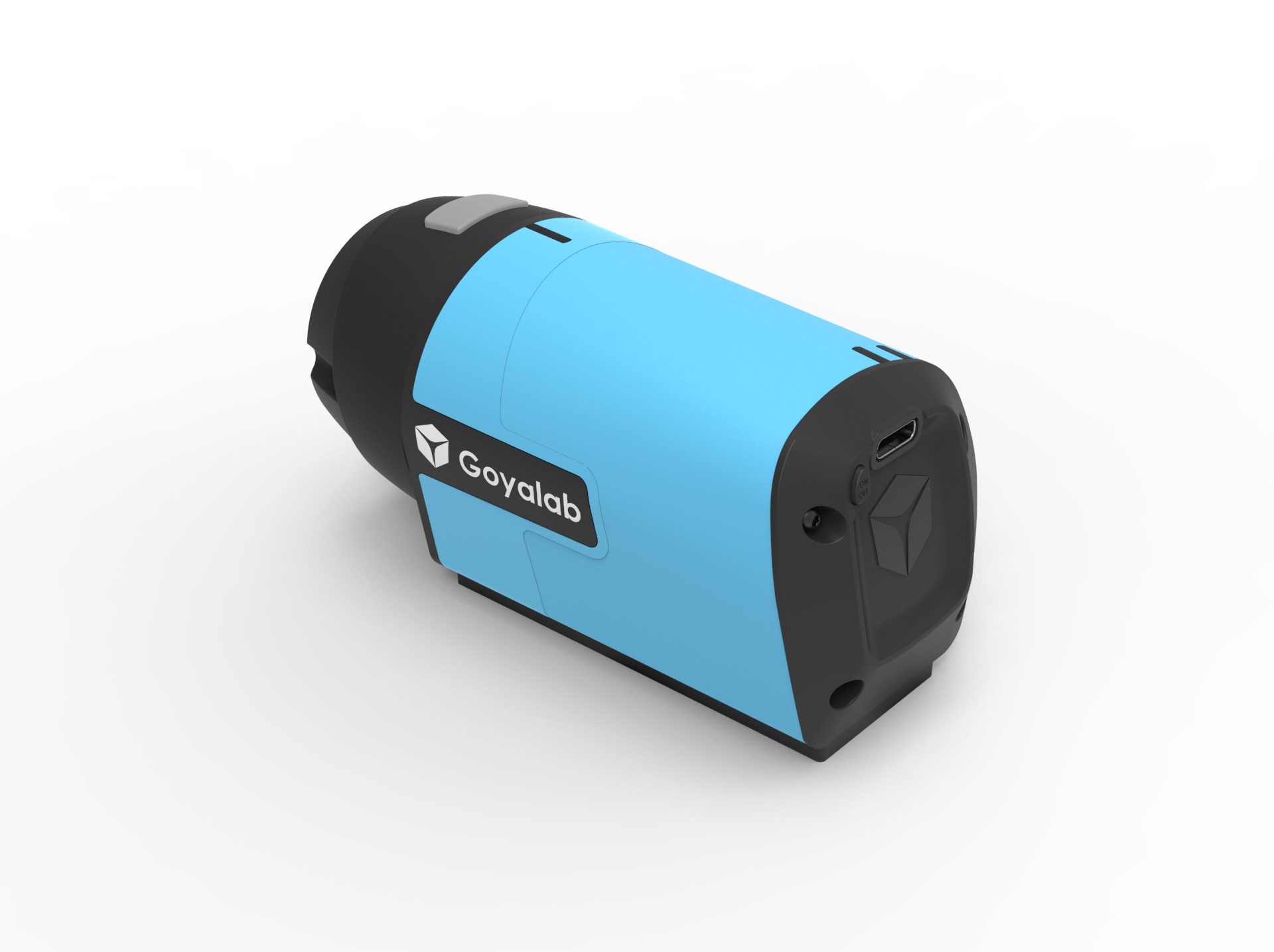

indiGo fluorescent spectrometer with laser excitation source - back view

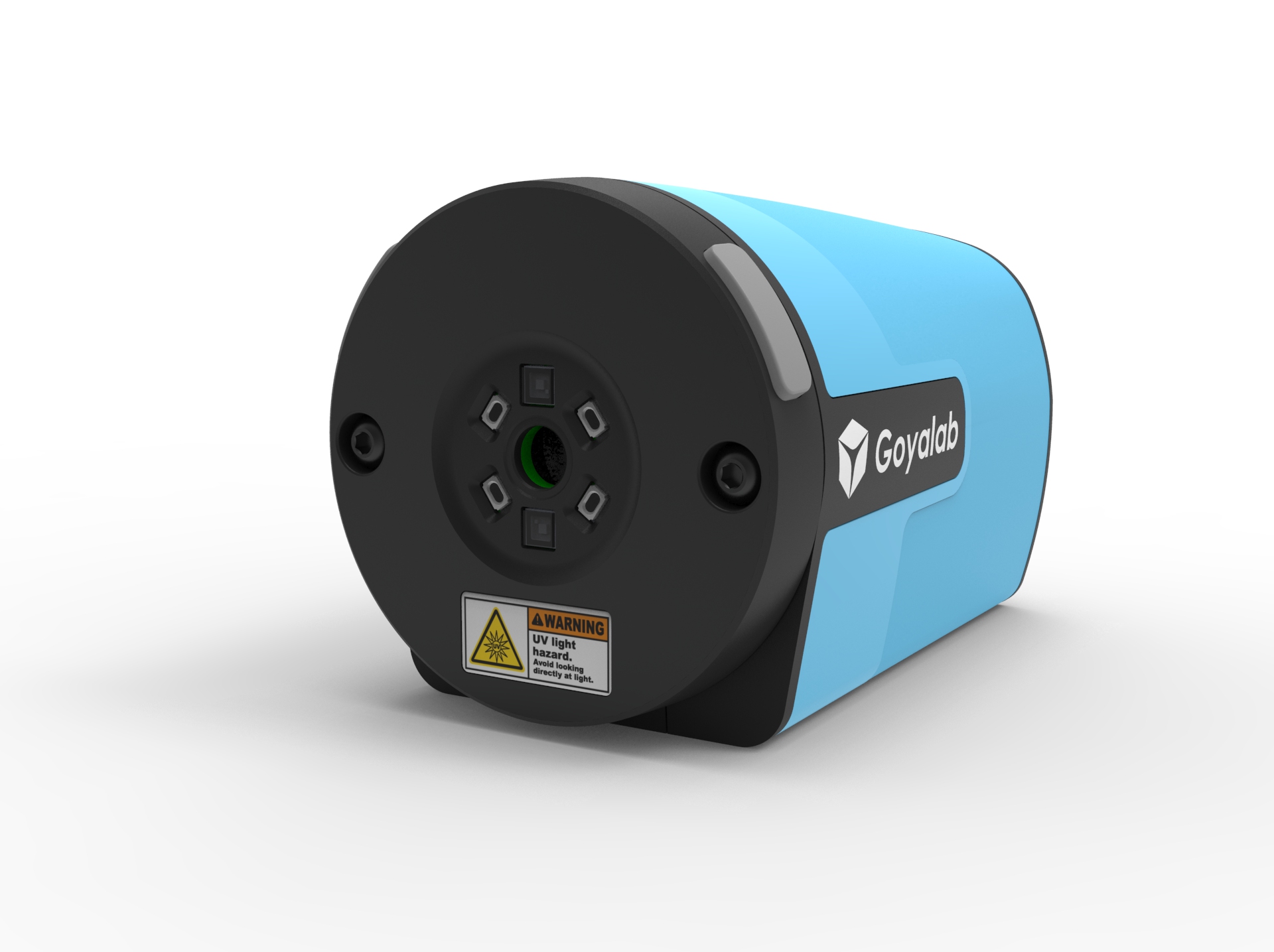

IndiGo fluo fluorescent spectrometer with UVA excitation
IndiGo Fluo fluorescence spectrometer
IndiGo fluo fluorescent spectrometer with UVA excitation
IndiGo Fluo fluorescence spectrometer
IndiGo fluo fluorescent spectrometer with UVA excitation

IndiGo Fluo | Portable Fluorescence Spectrometer

Wavelength Range

380 nm - 780 nm (others on request)

Resolution

1.5 nm (FWHM) - 7 nm (depending on slit size)

Grating

600 Lines/mm, 500 nm Blaze

Integration Time

1 ms - 24 s (averaging is possible)

S/N Ratio

≤ 400:1 or ≤ 20,000:1 for HSS models

Dimensions

103 mm x 48 mm x 55 mm

IndiGo Fluo: The Power of Fluorescence Spectroscopy at Your Fingertips

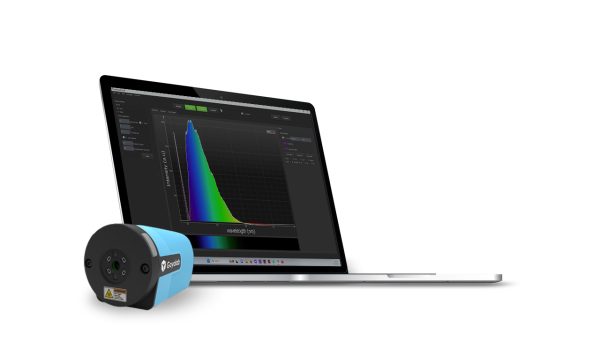

Goyalab spectrometer and software

IndiGo Fluo is a compact, portable turn-key solution for fluorescence spectroscopy that is composed of an IndiGo spectrometer core module and an integrated excitation module at a wavelength of 405 nm, 488 nm, or 532 nm (or any other on request!). Depending on the application needs, the IndiGo fluorescence spectrometer can be equipped with an LED or a laser excitation source. Excitation modules are interchangeable for maximum versatility.

Every IndiGo Fluo comes with a powerful PC desktop application, but it is also compatible with Android tablets and smartphones equipped with a Bluetooth 5.0 connection. This eliminates the need of USB connection in the most demanding applications that require ultimate mobility.

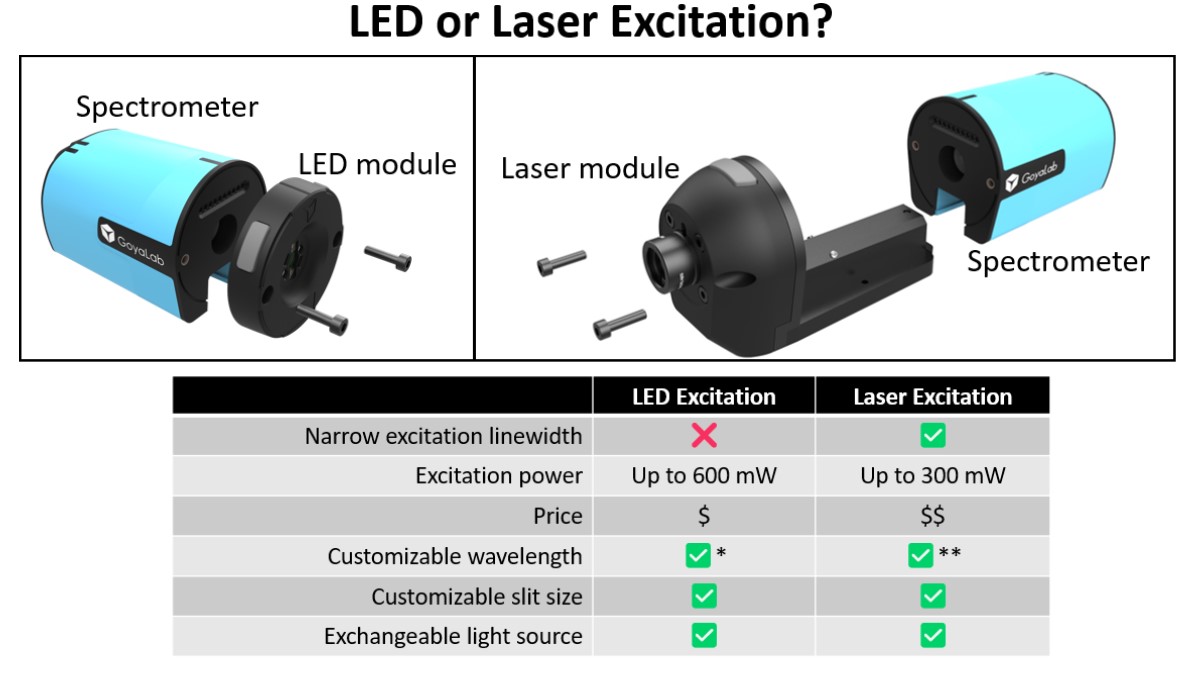

IndiGo Fluo excitation source

*Wavelengths from 365 nm

**Wavelengths starting from 385 nm

IndiGo Fluorescence Spectrometer Features

Tonic water measurement with IndiGo Fluo

  • Turn-key solution featuring an integrated excitation/spectrometer unit and powerful software for maximum portability (no optical fiber bundles).
  • With dimensions of 103 mm x 48 mm x 55 mm and a weight of only 272 g, it is the smallest and most powerful fluorescence spectrometer in its class.
  • LED or laser excitation source depending on the needs of each application.
  • Super-compact integrated excitation source with emission wavelength of choice: 405nm, 488nm, or 532nm (others available on request).
  • Included rechargeable battery, requiring no constant connection to power
  • Completely wireless when using Bluetooth connection and mobile software in Android devices
  • USB-C connection when using with PC powerful SpectroLab software

Low-Noise, Highly Sensitive Portable Fluorescence Measurements

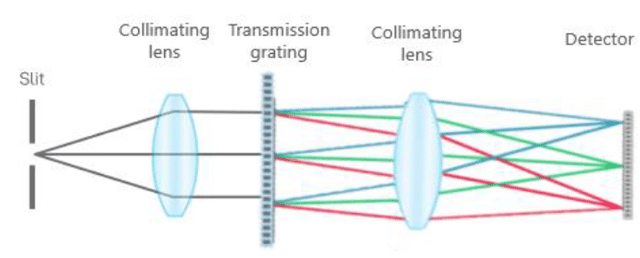

IndiGo Spectrometer transmission grating

The IndiGo Fluo is equipped with an OnSemi MT9M001 CMOS sensor, featuring ON Semiconductor’s breakthrough low-noise CMOS imaging technology designed for high signal-to-noise and low light sensitivity. The use of this sensor is combined with a simple design involving an axial transmission configuration. The use of a 2D CMOS sensor allows measurements based on vertical binning, inherently leading to higher signal-to-noise levels when compared to using a 1D detector array as other spectrometers in the market.

Affordable and Easy to Use Fluorescence Spectrometer

portable fluorescence spectrometer



Because of its smart design using a transmission grating and a low-noise CMOS sensor, IndiGo Fluo reaches a level of affordability and ease of use that allows it to be used in many new applications where the instrument can be brought to the sample and not the sample to the instrument.

By simply pressing the push button, the IndiGo Fluo triggers the excitation source and measures a fluorescence spectrum from 370 nm to 810 nm with a standard spectral resolution of 5 nm (FWHM). Other resolutions are available upon request for no additional cost.

All GoyaLab spectrometers, including the IndiGo Fluo, come factory calibrated. The SpectroLab PC software also offers the possibility to re-calibrate on-site using an Hg/Ar lamp or a fluorescent lamp.

For the full collection of portable spectroscopy products offered by Axiom Optics, click here.

Buy online now...

IndiGo Fluo: The Power of Spectroscopy at Your Fingertips



Goyalab Indigo Fluo spectrometer and spectrolab software

IndiGo Fluo is a compact, portable turn-key solution for fluorescence spectroscopy that is composed of an IndiGo spectrometer core module and an integrated excitation module at a wavelength of 405 nm, 488 nm, or 532 nm (or any other on request!). Depending on the application needs, the IndiGo fluorescence spectrometer can be equipped with an LED or a laser excitation source. Excitation modules are interchangeable for maximum  versatility.

Every IndiGo Fluo comes with a powerful PC desktop application, but it is also compatible with Android tablets and smartphones equipped with a Bluetooth 5.0 connection. This eliminates the need of USB connection in the most demanding applications that require ultimate mobility.



IndiGo Fluo excitation source

*Wavelengths from 365 nm

**Wavelengths starting from 385 nm

IndiGo Fluorescence Spectrometer Features

Tonic water measurement with IndiGo Fluo

  • Turn-key solution featuring an integrated excitation/spectrometer unit and powerful software for maximum portability (no optical fiber bundles).
  • With dimensions of 103 mm x 48 mm x 55 mm and a weight of only 272 g, it is the smallest and most powerful fluorescence spectrometer in its class.
  • LED or laser excitation source depending on the needs of each application.
  • Super-compact integrated excitation source with emission wavelength of choice: 405nm, 488nm, or 532nm (others available on request).
  • Included rechargeable battery, requiring no constant connection to power
  • Completely wireless when using Bluetooth connection and mobile software in Android devices
  • USB-C connection when using with PC powerful SpectroLab software

Low-Noise, Highly Sensitive Portable Fluorescence Measurements

IndiGo Spectrometer transmission grating

The IndiGo Fluo fluorescence spectrometer is equipped with an OnSemi MT9M001 CMOS sensor, featuring ON Semiconductor’s breakthrough low-noise CMOS imaging technology designed for high signal-to-noise and low light sensitivity. The use of this sensor is combined with a simple design involving an axial transmission configuration. The use of a 2D CMOS sensor allows measurements based on vertical binning, inherently leading to higher signal-to-noise levels when compared to using a 1D detector array as other spectrometers in the market.

Affordable and Easy to Use Fluorescence Spectrometer

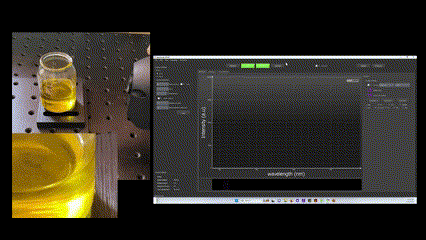

Olive oil fluorescence spectrum measurement



Because of its smart design using a transmission grating and a low-noise CMOS sensor, IndiGo Fluo reaches a level of affordability and ease of use that allows it to be used in many new applications where the instrument can be brought to the sample and not the sample to the instrument.

By simply pressing the push button, the IndiGo Fluo fluorescence spectrometer triggers the excitation source and measures a fluorescence spectrum from 370 nm to 810 nm with a standard spectral resolution of 5 nm (FWHM). Other resolutions are available upon request for no additional cost.

All GoyaLab spectrometers, including the IndiGo Fluo, come factory calibrated. The SpectroLab PC software also offers the possibility to re-calibrate on-site using an Hg/Ar lamp or a fluorescent lamp.

For the full collection of portable spectroscopy products offered by Axiom Optics, click here.

To visit the manufacturer’s website, click here.



Applications of Portable Fluorescence Spectrometers

  • Fluorescence Spectroscopic Analysis With Excitation at 405 nm, 488 nm, or 532 nm (other wavelengths on request)
  • Education and Research
  • Plant Analysis
  • Gemology and Jewelry
  • Traceability and Authentication
  • And many more…

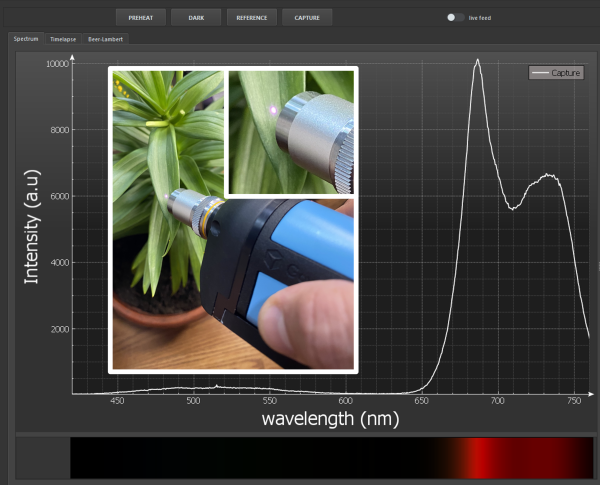

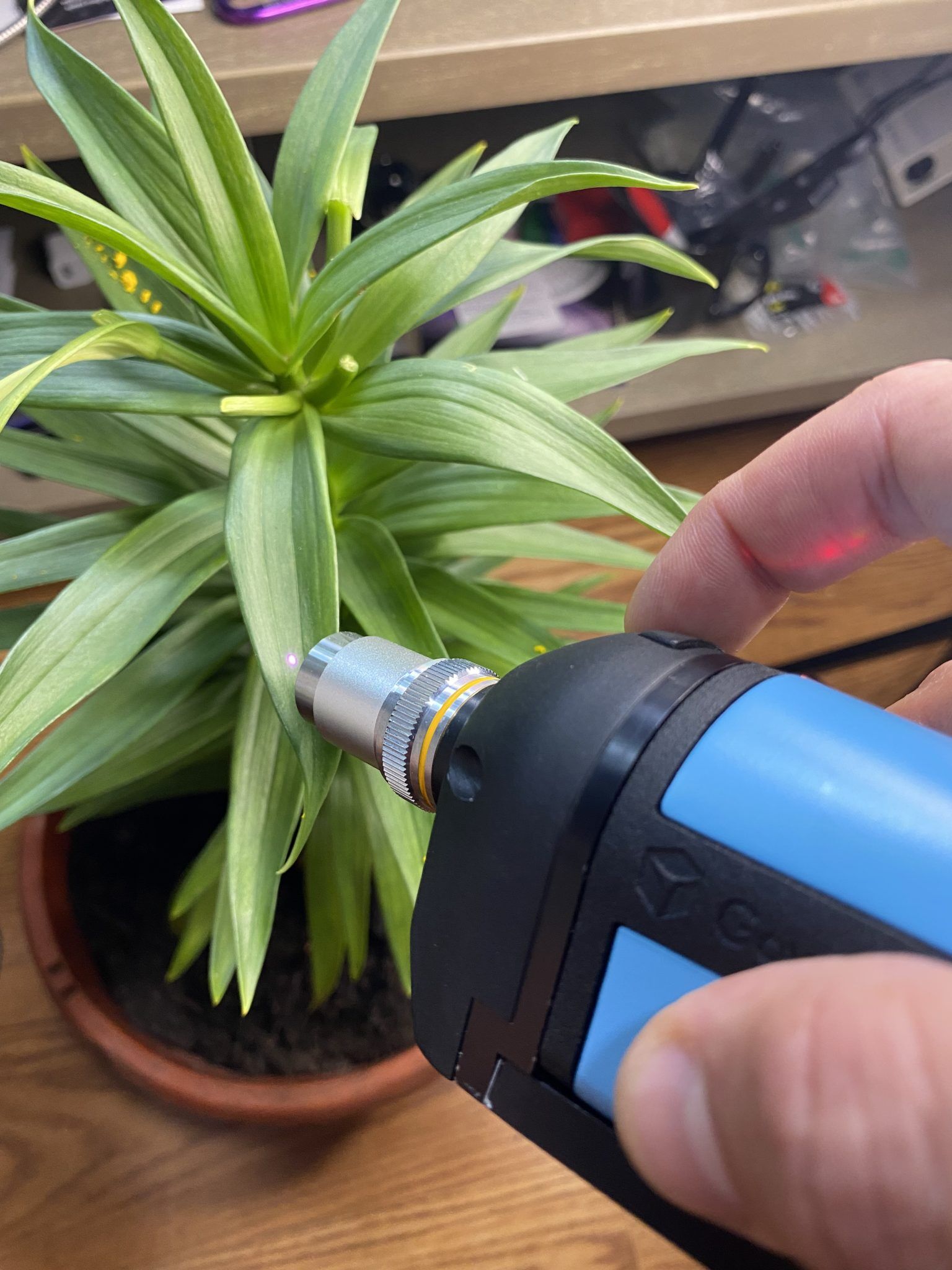

Portable Fluorescence Spectroscopy for Non-Destructive In-Vivo Measurements on Plants

fluorescence spectroscopy of plants
Check out our portable spectroscopy blog post, where we show how in-vivo non-destructive measurements of chlorophyll can be performed using a handheld spectrometer equipped with a laser-induced fluorescence module.

Field Optical Measurements

Fluorescence measurement of tonic water with Indigo Fluo
Being a highly portable instrument, the IndiGo Fluo handheld spectrometer is the ideal tool for field measurements involving in-situ characterization of fluorescence of samples such as food products. In this example, the fluorescence measurement of tonic water is obtained using the laser module attached to the IndiGo spectrometer without removing the sample from its original container.
1

Wavelength Range: 380-780nm
2

Resolution: <1.5nm FWHM – 7nm
3

Integration time: 1ms – 24s
4

Laser wavelength: 405nm, 488nm, or 532nm
5

Connectivity: USB-C and Bluetooth
6

Detector: CMOS, 5.4µm pixel size
