IRC800 Cooled MWIR Scientific Camera

Mid Wave IRC800 series | LN2 cooled MWIR InSb & nBn Scientific Cameras

Sensor Type

Indium Antimonide (InSb)

Resolution

SXGA (1280 x 1024) or VGA (640 x 512)

Spectral Response

0.9 - 5.3 µm (InSb) or 1 - 5.1 µm (nBn)

Shutter Mode - Frame rate full frame

Global - 119 Hz or 475 Hz (High-Speed)

Cooling - hold time

LN2 pour-filled Dewar - > 8 hours typical

Interface

Simultaneous Camera Link & GigE Ethernet

Tag: Brand:

The perfect MWIR camera for the lab

Up to 9h of hold-time while in use

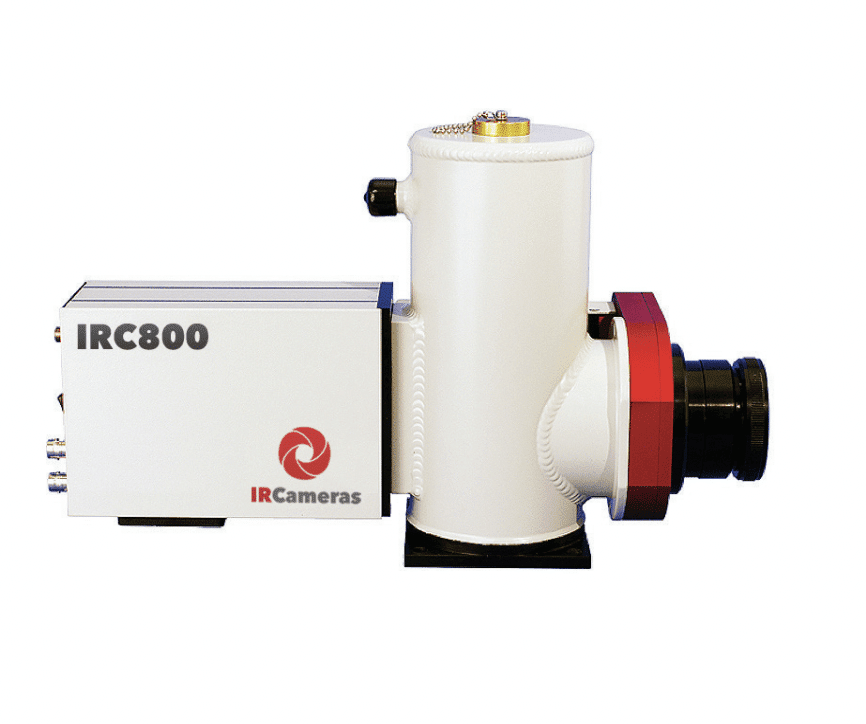

Utilizing the most advanced Indium Antimonide (InSb) focal plane array technology available, the LN2 cooled IRC800 Mid Wave Series features unmatched sensitivity, ultra-low noise, no blooming and no crosstalk. The IRC800 Series cameras offer the ultimate in flexibility for researchers and scientists. Camera operators can vary integration time, frame rate and window size.

A 1/3-liter LN2 pour-filled Dewar assembly maintains temperature for up to 20 hours unpowered and 9 hours powered which makes the IRC800 Series perfect for Scientific Imaging, Process Analysis and Quality Assurance.

Replaceable cold filter

Cold filters can be changed making the camera ideal for spectrally dependent applications. The IRC800 is the perfect instrument for prototyping system development or where application requirements may change. Simultaneous Camera Link, GigE and HDMI outputs are standard.

Optional 4-position cold filter wheel

As an option, a motorized four position cold filter wheel can be added (25.4mm diameter x 1.0mm thick filters), thus allowing various applications. The filters can easily be replaced by the user.

Super-framing allows the cameras to switch among different integration times on a frame by frame basis to capture rapidly changing scenes over a wide dynamic range.

Software options include our WinIRC application and a software developers kit to allow the user to acquire, display and analyze data from the IRC806 high definition camera.

Main features

  • Choice of LN2 cooled InSb or nBn sensors
  • <1 μm to >5 μm spectral response
  • 14-bit digital output
  • SuperFraming for extended dynamic range
  • Motorized four position filter wheel option
  • High frame rates & windowing

IRC800: The perfect MWIR camera for the lab



Up to 9h of hold-time while in use

Utilizing the most advanced Indium Antimonide (InSb) focal plane array technology available, the LN2 cooled IRC800 Mid Wave Camera Series features unmatched sensitivity, ultra-low noise, no blooming and no crosstalk. The IRC800 Series cameras offer the ultimate in flexibility for researchers and scientists. Camera operators can vary integration time, frame rate and window size.

A 1/3-liter LN2 pour-filled Dewar assembly maintains temperature for up to 20 hours unpowered and 9 hours powered which makes the IRC800 Series perfect for Scientific Imaging, Process Analysis and Quality Assurance.

Replaceable cold filter

Cold filters can be changed making the camera ideal for spectrally dependent applications. The IRC800 is the perfect instrument for prototyping system development or where application requirements may change. Simultaneous Camera Link, GigE and HDMI outputs are standard.

Optional 4-position cold filter wheel

As an option, a motorized four position cold filter wheel can be added (25.4mm diameter x 1.0mm thick filters), thus allowing various applications. The filters can easily be replaced by the user.

Super-framing allows the cameras to switch among different integration times on a frame by frame basis to capture rapidly changing scenes over a wide dynamic range.

Software options include our WinIRC application and a software developers kit to allow the user to acquire, display and analyze data from the IRC806 high definition camera.

Main features

  • Choice of LN2 cooled InSb or nBn sensors
  • <1 μm to >5 μm spectral response
  • 14-bit digital output
  • SuperFraming for extended dynamic range
  • Motorized four position filter wheel option
  • High frame rates & windowing

IRC800 Datasheet

IRCameras WinIRC Software Application

WinIRC software is included with new camera purchases.  This software is export controlled so please select the inquire button above and fill out the form and one of our sales members will get in touch with you for further assistance.

Real-time Camera Setup via Video Oscilloscope:

  • Frame rate control
  • Integration time control
  • Global offset adjustment
  • Global gain adjustment

Image Display:

  • Auto or manual brightness and contrast control with linear output lookup table
  • Auto histogram equalization image adjustment with user-defined gain
  • Viewing palettes updated at user-defined intervals when in auto mode
  • 16 color palettes
  • Inverse palettes (for a total of 32 palettes)
  • Zoom factors from 1 to 16
  • Reverse rows and/or columns to accommodate lens formats

Data Recording:

  • Stream data to RAM
  • Stream data to hard drive
  • Ring buffer data acquisition with arbitrary stop point
  • Camera head sync/gen. lock (less than 1 microsecond delay with less than 100 nanosecond jitter)
  • Frame grabber trigger for complex data set acquisitions (Specify number of acquisitions and number of frames in each acquisition)
  • Keyboard trigger for data acquisition
  • Frame averaging at 16-bit or 32-bit levels
  • Remote computer control of grab sequences

Image Storage Formats:

  • 16-bits/pixel
  • BMP
  • AVI movie
  • TIFF

Image Replay:

  • Video playback control window
  • User-selectable playback rates
  • Single step replay Forwards or Backwards

Image Analysis:

  • Follow up to 50 simultaneous drawing objects (points, lines, rectangles, or ellipses) with statistics (average, max, min, histogram)
  • Plot drawing object averages as a function of time
  • Save results to spreadsheet-readable text files
  • Perform image math on sets of images: SetOut = A x SetIn1 + B x SetIn2
  • Perform image math on a set of images and a single image: SetOut = A x SetIn1 + B x Image
  • Live on-the-fly Image Averaging
  • Image averaging on a set of stored images. (Version 3.6 and above)
  • Live on-the-fly image subtraction. (Version 3.6 and above)
  • Image subtraction. Subtract a single image from another image or an entire set of images
  • All image analysis tools available for both live & playback images

Non-Uniformity Correction (NUC) Generation & Pixel Replacement:

  • 2-Point NUC
  • 1-Point NUC
  • NUC storage and recall
  • Bad-pixel detection based on noise, gain, & offset parameters
  • Intelligent bad-pixel correction
  • Remove NUC from an image or image set (Version 3.6 and above)
  • Apply a new NUC to an image or image set
  • View bad pixel, gain, and offset correction maps

Windowing:

  • Supports dynamically changing window size and position

FPA Performance Measurement:

  • Noise Equivalent Temperature Difference (NETD) measurement
  • Noise Equivalent Counts (NEC) measurement
  • Responsively measurement
  • Offset measurement

3rd Party Software Support:

  • Full MatLab import/export support

To view the manufacturer’s website, click here.

Sensitivity

1 – 5 µm

Material

InSb, nBn

Resolution

1280 x 1024 (SXGA – 1.3 MP), 640 x 512 (VGA)

Frame Rate

100 – 250 fps, 250 – 500 fps

Pixel Pitch

12 µm x 12 µm, 20 µm x 20 µm

Cooling

LN2

Type

Camera

Interface

GigE, Camera Link

Array Type

2D array / areascan

Shop related products…
