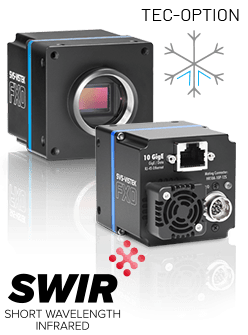

FXO Sony SenSWIR series | High-speed, High-Res TE-Cooled cameras

Resolution

5.3 MP (IMX992), 3.2 MP (IMX993)

Spectral range

400 - 1700 nm

Pixel size

3.45 µm x 3.45 µm

Frame rate

5.3 MP @ 133 Hz - 3.2 MP @ 173 Hz

Interface

10GigE or CXP-12 (1 link)

Cooling

TE-Cooled (TEC-less available)

Brand:

High Performance, High Resolution SWIR Imaging

The FXO Sony SenSWIR series are high-resolution InGaAs SWIR cameras with high frame rates and TE-cooling with an industrial camera design for scientific and industrial applications, Key features include:

  • High frame rates thanks to 10GigE and CoaxPress interfaces (up to 133 Hz @ 5.3 MP)
  • Smallest InGaAs pixel size of 3.45 µm (learn our blog post to learn more about the IMX992 sensor)
  • Switchable Active Cooling: Enhances thermal management for better image quality.
  • Integrated 4-Channel LED Strobe Controller: Supports complex illumination scenarios.
  • GenICam 3.0 and GenTL Compatibility: Ensures easy integration into various imaging systems.
  • Multiple Trigger Modes: Includes internal, software, and external options.
  • I/O Interface: Offers 2 inputs, 4 outputs, and RS-232 communication for versatile connectivity.

The camera’s dimensions are 50 x 50 x 82.1 mm, and it weighs 240 grams. It operates within a temperature range of -10 to 60 °C and has a power consumption of 13 W. The housing is rated at IP30, ensuring adequate protection for industrial environments.

High Performance, High Resolution SWIR Imaging

The FXO Sony SenSWIR series are high-resolution InGaAs SWIR cameras with high frame rates and TE-cooling with an industrial camera design for scientific and industrial applications, Key features include:

  • High frame rates thanks to 10GigE and CoaxPress interfaces (up to 133 Hz @ 5.3 MP)
  • Smallest InGaAs pixel size of 3.45 µm (learn our blog post to learn more about the IMX992 sensor)
  • Switchable Active Cooling: Enhances thermal management for better image quality.
  • Integrated 4-Channel LED Strobe Controller: Supports complex illumination scenarios.
  • GenICam 3.0 and GenTL Compatibility: Ensures easy integration into various imaging systems.
  • Multiple Trigger Modes: Includes internal, software, and external options.
  • I/O Interface: Offers 2 inputs, 4 outputs, and RS-232 communication for versatile connectivity.

The FXO Sony SenSWIR high-resolution SWIR camera’s dimensions are 50 x 50 x 82.1 mm, and it weighs 240 grams. It operates within a temperature range of -10 to 60 °C and has a power consumption of 13 W. The housing is rated at IP30, ensuring adequate protection for industrial environments.



SVCamKit (SVCapture + SDK)

Versions for:

  • Windows (x64, x86)
  • Linux (AMD64, ARM, Ubuntu x84-64)
  • MacOS

FXO Sony Senswir high resolution swir camera technical drawing

Click picture below to select your lens:

To view the manufacturer’s website, click here.

Sensitivity

400-1700 nm (VSWIR)
Sony Sensor

IMX990, IMX992, IMX993
Material

InGaAs
Resolution

2592 × 2056 (5.3 MP), 2080 × 1544 (3.2 MP)
Frame Rate

100 – 250 fps
Pixel Pitch

3.45 µm x 3.45 µm
Cooling

TEC-cooled, Uncooled / TEC-less
Interface

10 GigE, CoaXPress
