High-resolution VIS & SWIR laser beam profiling made easy

CinCam InGaAs-HR is a plug-and-play solution for laser beam profiling of CW and pulsed lasers in both the visible and SWIR, thus covering an impressive spectral range from 400 to 1700 nm. Using a machine-vision grade InGaAs camera and a dedicated laser beam profiling software (RayCi),  the CinCam InGaAs-HR allows simple and accurate laser beam analysis according to ISO standards with high accuracy thanks to the smallest pixel pitch of the industry of 5 µm.

The camera is cooled with a  thermo-electric cooling (TEC1), thus ensuring stable, repeatable and quantitative measurements in any environment (laboratory or industrial).

Includes one of the following models:

    • CinCam InGaAs-HR 636-5: Entry level with an active area of 9.60 x 7.68 mm  and a 5 µm pixel pitch
  • or
    • CinCam InGaAs-HR 1280-5: Intermediate level with an active area of 9.54 x 7.62 mm  and a 15 µm pixel pitch

+  CinCam InGaAs kit:

    • 1 RayCi software license (Standard or Pro) with USB dongle*
    • 1 C-mount to SM1 adapter
    • 1 mounted absorptive ND filter, OD3.0, AR coated: 1050-1700nm
    • 1 SM1 end cap
    • 1 power supply + US power cable
    • 1 ethernet cable
    • 1 pelican case

Options:

External triggering
  • option 1: cable with open leads (DC power and TTL signal must be wired)

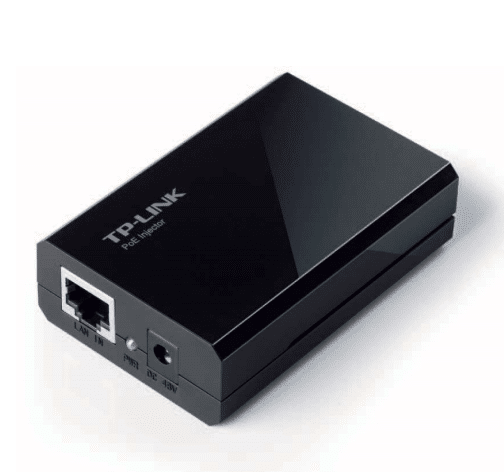

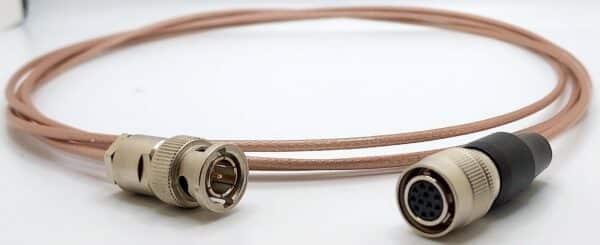

  •  option 2: cable with BNC connector (TTL input signal) and PoE injector
Coverglass removal
  • On select models only (please inquire)

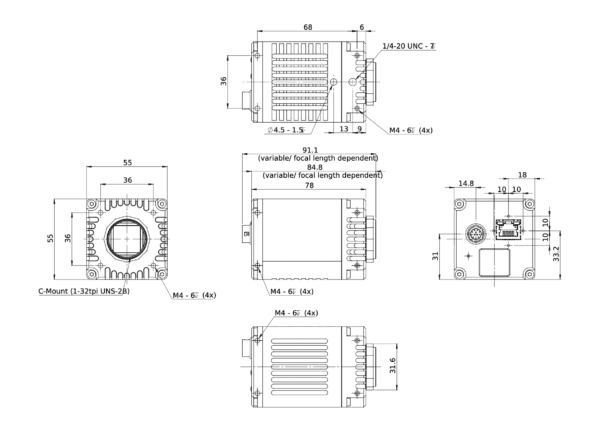

Dimensions and sensor position:

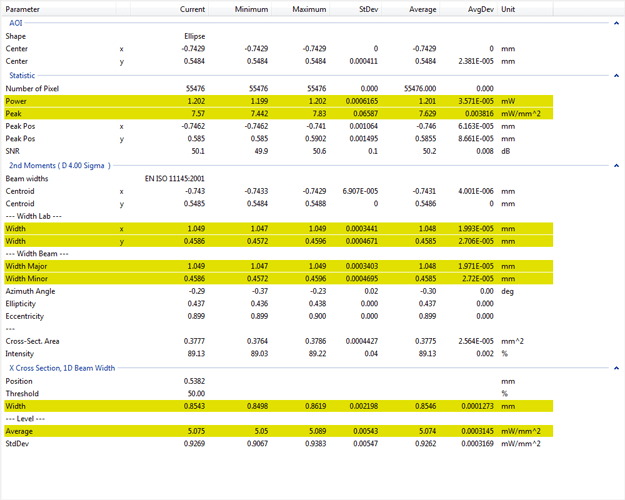

Example of measurement

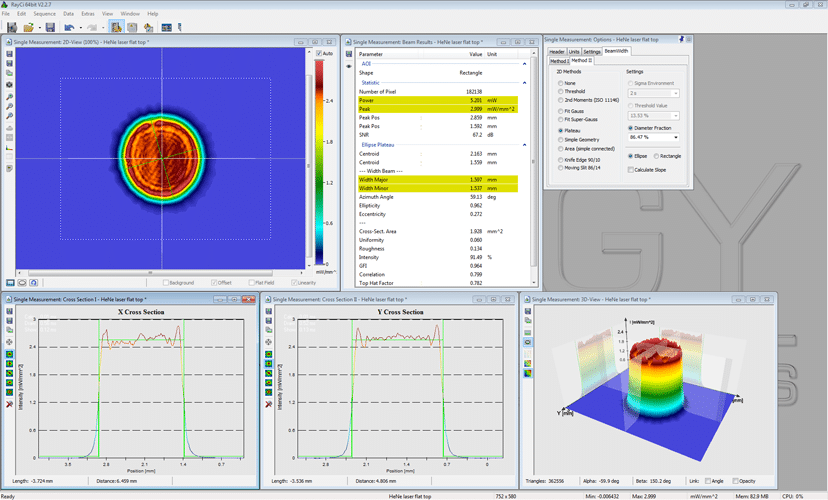

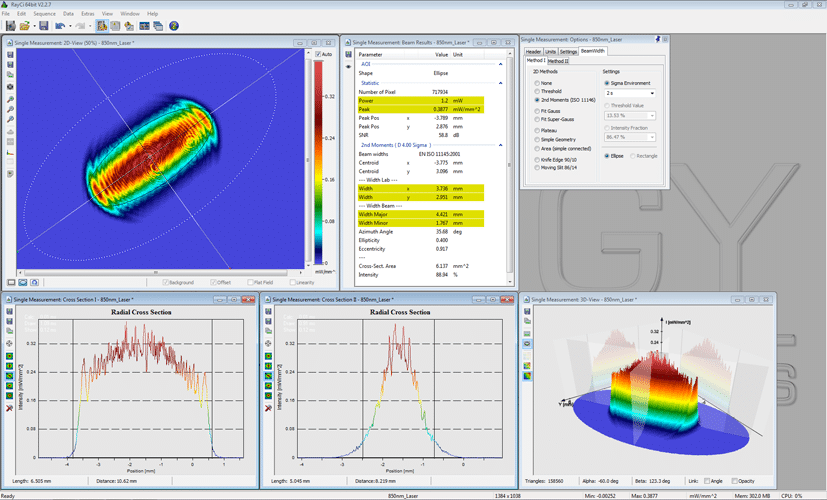

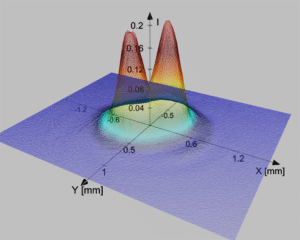

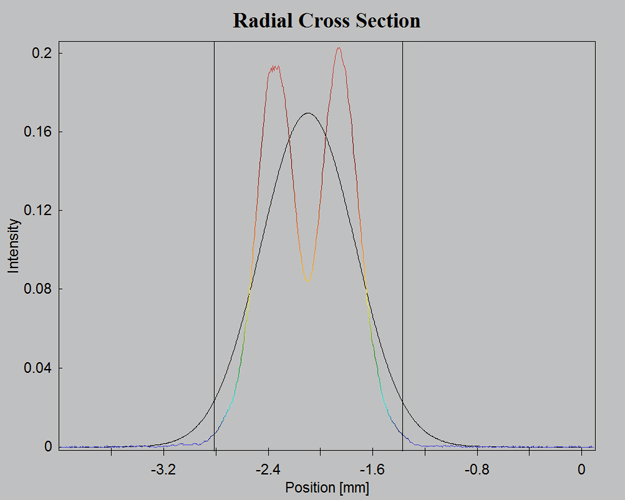

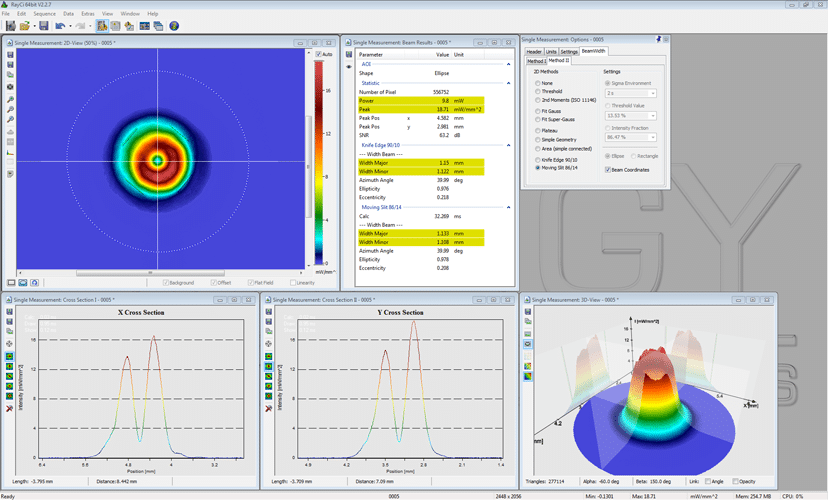

Example of measurement with CinCam InGaAs SWIR beam profiler

High-resolution VIS & SWIR laser beam profiling made easy

CinCam InGaAs-HR is a plug-and-play solution for laser beam profiling of CW and pulsed lasers in both the visible and SWIR, thus covering an impressive spectral range from 400 to 1700 nm. Using a machine-vision grade InGaAs camera and a dedicated laser beam profiling software (RayCi),  the CinCam InGaAs-HR allows simple and accurate laser beam analysis according to ISO standards with high accuracy thanks to the smallest pixel pitch of the industry of 5 µm.

The camera is cooled with a  thermo-electric cooling (TEC1), thus ensuring stable, repeatable and quantitative measurements in any environment (laboratory or industrial).

Includes one of the following models:

    • CinCam InGaAs-HR 636-5: Entry level with an active area of 9.60 x 7.68 mm  and a 5 µm pixel pitch
    • CinCam InGaAs-HR 1280-5: Intermediate level with an active area of 9.54 x 7.62 mm  and a 15 µm pixel pitch

+  CinCam InGaAs kit:

    • 1 RayCi software license (Standard or Pro) with USB dongle*
    • 1 C-mount to SM1 adapter
    • 1 mounted absorptive ND filter, OD3.0, AR coated: 1050-1700nm
    • 1 SM1 end cap
    • 1 power supply + US power cable
    • 1 ethernet cable
    • 1 pelican case

Options:

  • Triggering option 1: cable with open leads (DC power and TTL signal must be wired)
  • Triggering option 2: cable with BNC connector (TTL input signal) and PoE injector
  • Coverglass removal on select models only (see specification table)
Example of measurement

Example of measurement with CinCam InGaAs SWIR beam profiler

Text1

Plug-and-play solution (camera + software)

Text2

Spectral range: 400 – 1700 nm

Text3

5µm pixel pitch

Text5

Resolution: 1280 x 1024, 656 x 520 px

Text4

GigE Ethernet interface or USB3.0
