TOUCAN | VIS+NIR Multispectral Camera

Sensor type

CMOS

Raw image resolution - pixel pitch

2048 x 2048 px - 5.5 µm

Spectral image resolution

512 (H) x 512 (V)

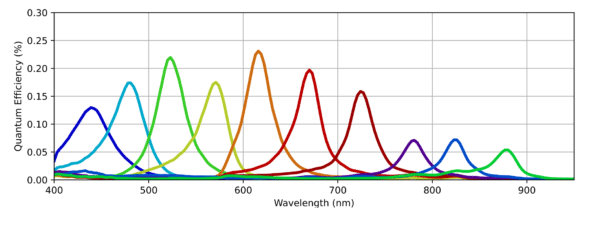

Number of bands

10

Typical Spectral Range

400 to 900 nm

Bandwidth (FWHM avg)

30-50 nm

Very Compact Multispectral Cameras

The TOUCAN Multispectral camera is specially designed to allow high integration of VIS+NIR multispectral systems. This lightweight (less than 180g) and very small footprint (52 x 63 x 40 mm) camera splits the image into 10 spectral bands on a very large range (400-900nm). Made by hybridization of a custom Bayer-like mosaic filter on a commercial 4.2 MPixel CMOS Sensor, it allows extracting the spectrum on each point of the image.

Very Compact NIR Multispectral Cameras

The TOUCAN Multispectral camera is specially designed to allow high integration of VIS+NIR multispectral systems. This lightweight (less than 180g) and very small footprint (52 x 63 x 40 mm) camera splits the image into 10 spectral bands on a very large range (400-900nm). Made by hybridization of a custom Bayer-like mosaic filter on a commercial 4.2 MPixel CMOS Sensor, it allows extracting the spectrum on each point of the image.

  • Precision Farming

    • Drone Field Mapping

  • Cosmetics

    • Personalized skin-care and mapping

  • New Space

    • Earth observation

  • Medical &. Bio

    • Endoscopy, microscopy…

  • Autonomous Driving

    • Segmentation

COLOR SHADES® LAB

The SDK for the SILIOS multispectral cameras (CMS, CMS4, TOUCAN and ANT). It allows :

  1. Displaying the raw images, false color images, gray scale images or overlaid images with different indexation methods (such as “spectrum recognition”),
  2. Normalizing the spectral channels,
  3. Applying multispectral image corrections such as the crosstalk correction,
  4. Extracting the hypercubes.

COLOR SHADES® LAB runs with real time acquisition, but can also run with recorded single image or series of images (“replay mode”).

For more information, visit the manufacturer’s website: www.silios.com

Check out our other multispectral cameras: CMS Series | 1 Mpx Multispectral Cameras, CMS4 Series | 4.2 Mpx Multispectral Cameras

Applications

Industrial
Manufacturer

SILIOS Technologies
Sensor Technology

CMOS
Spectral Range

VIS (400 – 750 nm), NIR (750 – 1000 nm)
Resolution

2048 x 2048 (4.2 MP)
Pixel Pitch

5.5 µm x 5.5 µm
Frame Rate

10 – 100 fps
Interface

USB
