BORA | Compact High Precision Hexapod

Payload (vertical / Horizontal )

10kg vertical / 5kg horizontal

Linear travel range

± 20 mm

Angular travel range

± 15 °

Linear/angular resolution

0.1 µm / 2 µrad

Height middle position

145 mm

Vacuum / Cryo / Cleanroom

HV (10-6) / -40 C / ISO 5

COMPACT HEXAPOD FOR HIGH ACCURACY POSITIONING

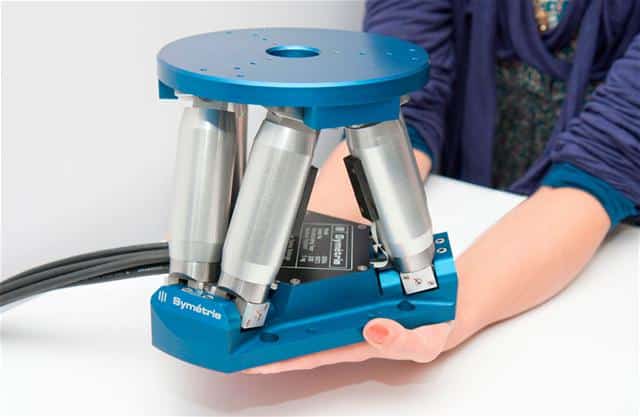

BORA hexapod is a compact 6DOF parallel kinematics system for the positioning and adjustment of precision elements with a resolution of 0.1 µm.

BORA hexapod meets the most demanding criteria of the optics and nanotechnologies in terms of resolution, accuracy, stability and size.
Its dimensions allows an integration in a small environment, for instance at the tip of a goniometer for an application on synchrotron beamline, or on an optical ground support equipment to align and calibrate space optics.

BORA hexapod can be used in any orientation: vertical, horizontal, upside down…

OPTIONS

High vacuum compatibility down to 10^-6 mbar
Clean room ISO5 (class 100)

A HIGH-PERFORMANCE CONTROL CENTER

Controlling a parallel kinematics mechanism such as a hexapod requires fast and numerous calculations to transform the position instructions into motor current set points while permanently securing the motions.

For this, all our hexapods come with a high-performance control rack interacting with either our Graphical User Interface (GUI) or optionally directly with your software environment through an Application Programming Interface (API).

A COMPLETE AND FLEXIBLE SOLUTION

Our racks are made with:

■ a powerful multi-axis Delta Tau industrial controller
■ drivers sized to meet the needs of each application
■ input-output modules allowing various interactions with the hexapod environment.

Our robust and flexible controller solutions can be adapted to different types of motors (DC, brushless, stepper) coupled to various encoder technologies (absolute, incremental, linear, rotary).

Our controllers are compatible with our hand-held control unit in option.

CHOOSING THE RIGHT HEXAPOD FOR YOU

Symetrie offers a free software, HexaSym, that makes it very easy for you to check the possible travels and load capacities of each hexapod in their range. HexaSym will allow you to select the most suitable product for your application and to test a variety of possible configurations with it.

Click HERE to download HexaSym

Want to learn more about Hexapods? Visit our application page HERE.

Motion & Positioning
Travel range Tx, Ty (mm)	± 20
Travel range Tz (mm)	± 10
Travel range Rx, Ry (deg)	± 10
Travel range Rz (deg)	± 15
Resolution Tx, Ty, Tz (µm)	0.1
Resolution Rx, Ry, Rz (µrad)	2
Repeatability Tx, Ty, Tz (µm)	± 0.4
Repeatability Rx, Ry, Rz (µrad)	± 3.2
Speed Tx, Ty (mm/s)	2
Speed Tz (mm/s)	1
Speed Rx, Ry (deg/s)	1
Speed Rz (deg/s)	2

Miscellaneous
Operating temperature range (°C)	0 to + 50
Materials	Aluminum, steel, stainless steel
Mobile platform size (mm)	Ø 160
Mobile platform central aperture (mm)	Ø 43

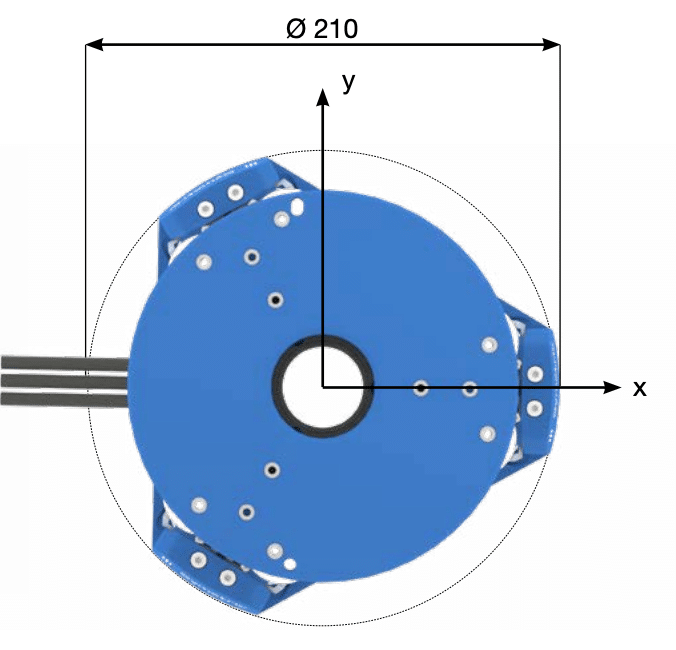

Fixed platform size (mm)	Ø 210
Fixed platform central aperture (mm)	Ø 36

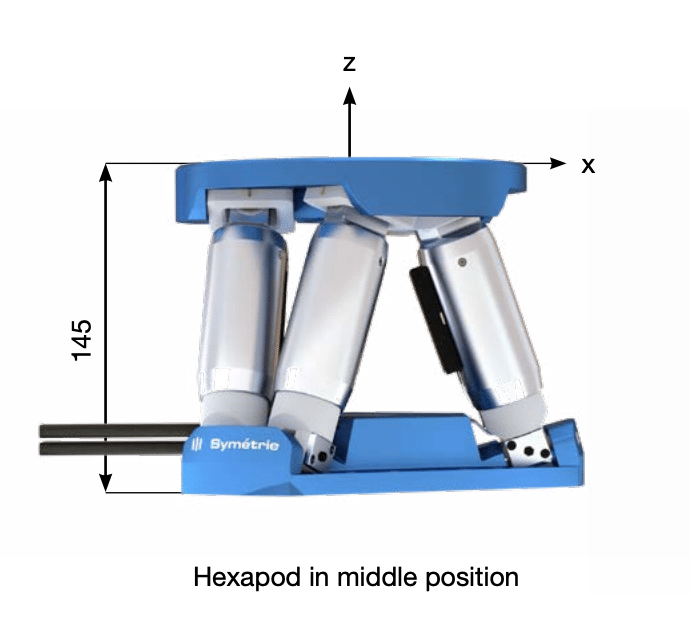

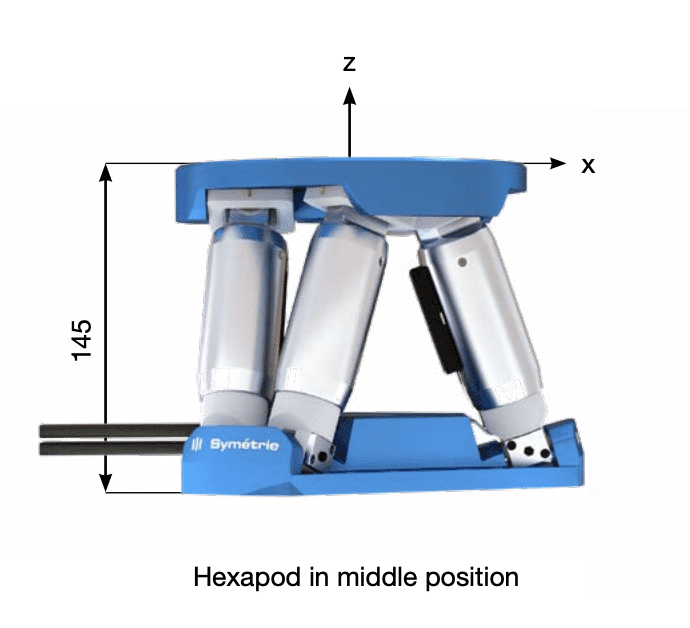

Height in middle position (mm)	145
Footprint (mm)	Ø 210
Mass (kg)	4.3
Cable Length (m)	3
Options	Clean room compatibility Low temperature compatibility down to -40°C Vacuum compatibility
Diameter	210 mm

Mechanical Properties
Stiffness X, Y (N/µm)	1
Stiffness Z (N/µm)	10
Payload capacity (kg) (vertical orientation / horizontal orientation)	10/5
Motor Type	DC motor, gearhead

Controller
Controller Type	NAOS or ALPHA+ if cable length > 10 m or temperature < 0°C
Interface	Ethernet
Power Supply	110-240 VAC / 50-60 Hz

Astronomy
Defense
Energy
Optics
Research & Engineering
Space

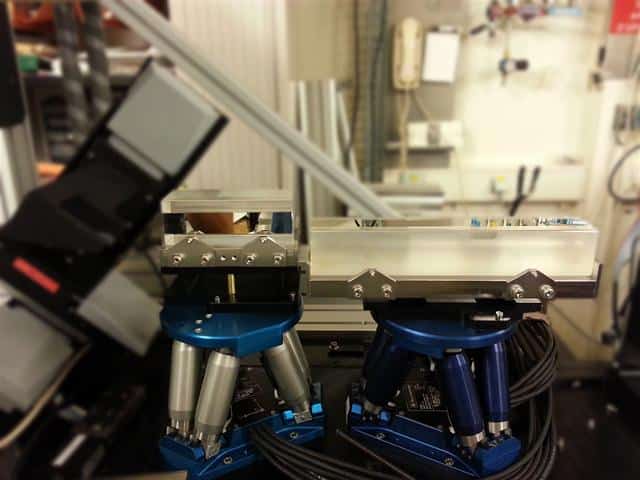

Synchrotron: sample and KB mirrors positioning

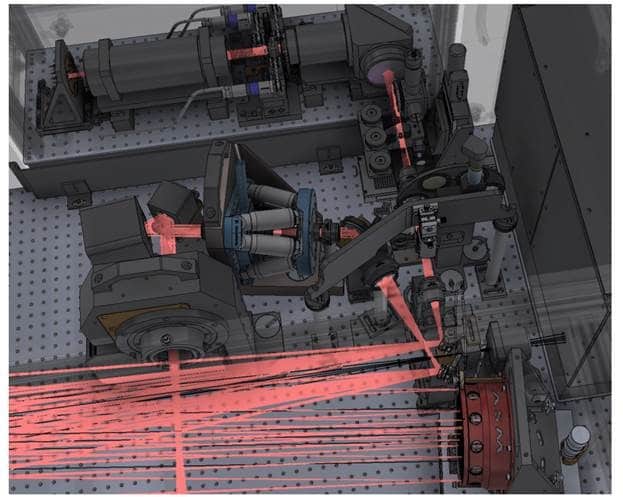

Using the BORA hexapod to set the M2 of the mini ELT in motion

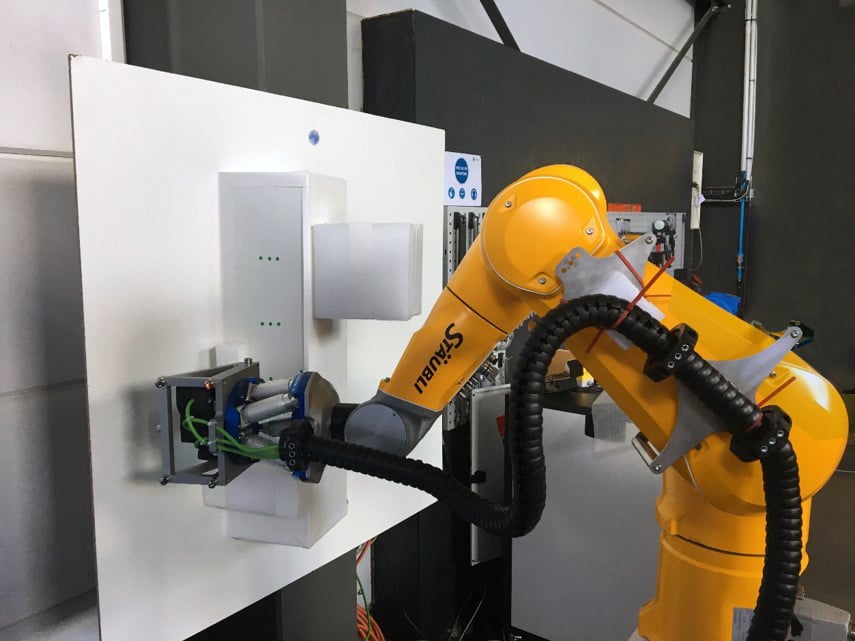

Combination of a robotic arm and a BORA hexapod to increase workspace

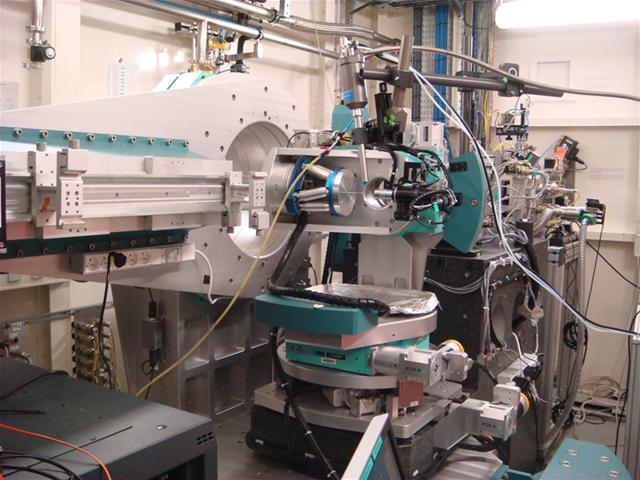

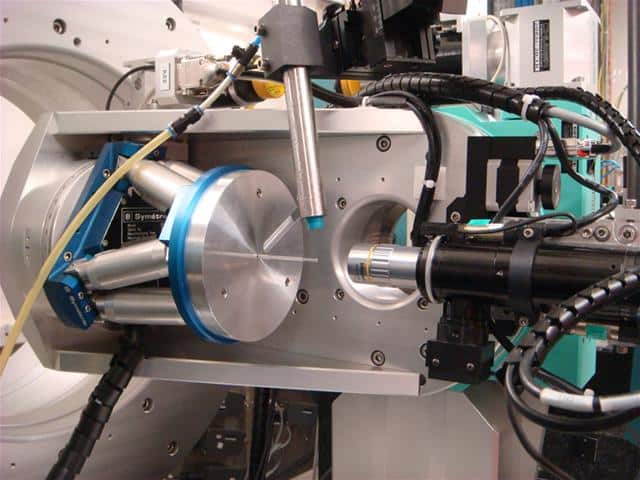

BORA Hexapod on a synchrotron beamline – Courtesy of ESRF
BORA Hexapod -ESRF
BORA hexapod

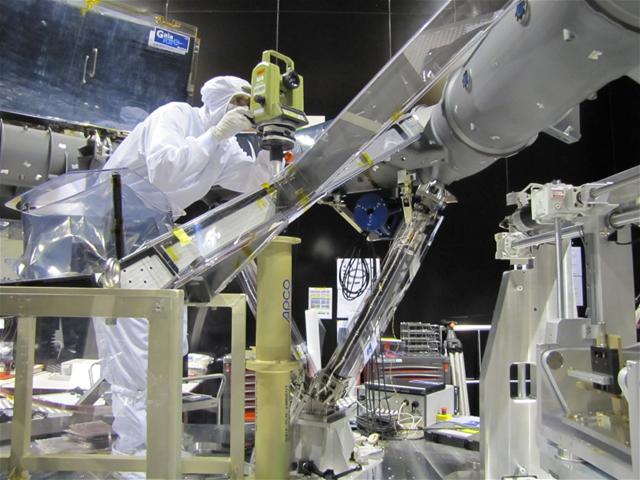

BORA Mirror positioning hexapod. Project: GAIA satellite – Courtesy of Airbus Defence and Space

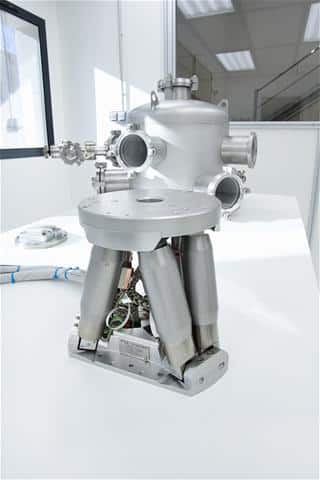

Bora vacuum hexapod in clean room

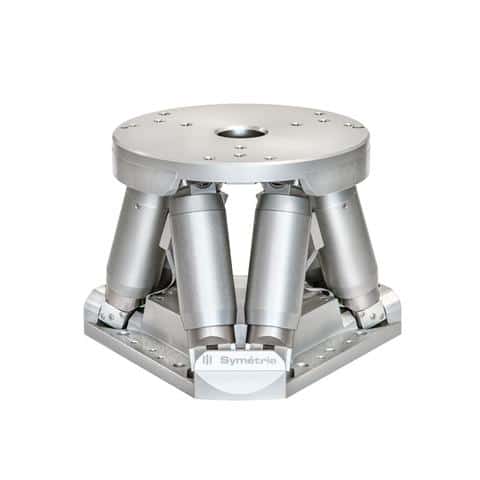

BORA vacuum Hexapod

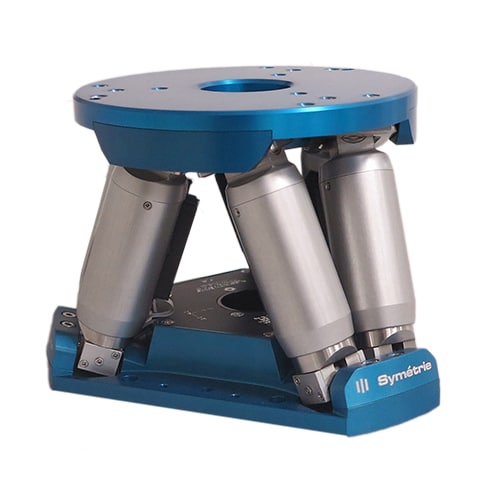

BORA Hexapod

Data Sheet and Brochures

BORA Data Sheet

Naos Controller Data Sheet

Positioning Hexapods Catalog

STEP

BORA 3D STEP File

HELP FOR HEXAPOD CONTROL

Thanks to an ergonomic Human Machine Interface (HMI), SYM_Positioning hexapod positioning and control software offers simple commands from the home screen, but also generations of movements using specific files. In addition, the center of rotation can be easily changed in the software.

SYM_POSITIONING ALLOWS:

■ Safe movement control
■ Position display in real time
■ Generate position sequences
■ The configuration of the center of rotation
■ Configure repositories (coordinate systems)
■ Configuration of limits (position, speed …)
■ API (Application Programming Interface)
■ To be interfaced in C, LabVIEW, EPICS, SPEC, TANGO, Python, Matlab …

CUSTOMIZATION

Symétrie has the knowledge and solid experience in software development, which means that we can tailor our software to your specific needs.

HEXASYM SIMULATOR

HOW TO CHOOSE YOUR HEXAPOD?

Thanks to this free simulation software, it will be very easy for you to check the possible travels and load capacities of each hexapod in our range. HexaSym will allow you to select the most suitable product for your application and to test a variety of possible configurations with it.

TESTING SEVERAL PARAMETERS

With HexaSym simulator, you can test cumulative travel ranges on several axes simultaneously, including the “worst cases” of your applications. It is also possible to change the center of rotation, to define different reference frames, to vary the orientation of the hexapod (vertical, horizontal, other) and the payload.
HexaSym also includes a 3D visualization that will enable you to see how the hexapod moves according to the commanded positions, as well as sliders allowing you to control movements more immediately.

AND FOR SPECIFIC HEXAPODS

It will also be possible to use HexaSym for our specific hexapods, for which we will provide you with a configuration file compatible with the simulator.

Click here for more information and download the software

Description
Additional information

COMPACT HEXAPOD FOR HIGH ACCURACY POSITIONING

BORA hexapod is a compact 6DOF parallel kinematics system for the positioning and adjustment of precision elements with a resolution of 0.1 µm.

BORA is a high accuracy compact hexapod meeting the most demanding criteria of optical and nanotechnology industries in terms of resolution, accuracy, stability and size.
Its small dimensions allow integration in restricted environments, for instance at the tip of a goniometer on synchrotron beam lines, or on optical ground support equipment to align and calibrate space optics.

BORA can be used in any orientation: vertical, horizontal, upside down…

SPECIFICATIONS

Travel range: ± 20 mm / ± 15 °
Resolution: 0.1 µm / 2 µrad
Repeatability: ± 0.4 µm / ± 3.2 µrad
Payload: 10 kg vertical / 5 kg horizontal

OPTIONS

► High vacuum compatibility down to 10^-6 mbar
► Clean room ISO5 (class 100)
