ALEX-i | Deep Cooling CCD Camera for VUV, EUV & X-Ray Imaging
Sensor technology
CCD
Resolution
1024 x 1024 - 4096 x 4112
Pixel pitch
13 µm x 13 µm - 15 µm x 15 µm
Sensor mode / Frame rate
Global shutter / 0.2 - 23 fps
Readout noise
2.8 - 17.0 e- rms
Interface
Gigabit Ethernet or USB 3.0
Description
Specifications
QE Curve
Applications
Pictures
DownloadsDeep Cooling CCD Camera for VUV, EUV & X-Ray Imaging
The ALEX-i series of highly sensitive, cooled cameras with vacuum flange come equipped with ultra-low noise 18-bit readout electronics, making them perfectly suited for imaging applications across the VUV, EUV and X-ray spectrum up to 20 keV. The CCD detectors deliver exceptional dynamic range for both spectra and images. greateyes offers a range of flange types and sensor technologies with QE up to 98%, ensuring the best solution for your application. In addition to the precise measurement of high energy radiation, the detectors exhibit high sensitivity in the ranges NIR, VIS and UV as well.
The greateyes ALEX-i cameras integrate scientific CCD sensors with advanced ultra-low noise electronics to enhance the detection of weak signals. Cooling of the full-frame CCD sensors is achieved through multi-stage Peltier elements. The ALEX-i cameras offer a diverse range of features, including flexible binning operation, multiple trigger and synchronization modes, software-switchable gain, and temperature monitoring of both the sensor and the Peltier hot side.
Want to learn more about why you should choose the ALEX? Click HERE.
Click HERE to see more in-vacuum ccd cameras.
To visit the manufacturer’s website, click HERE.Â
| Specs | ALEX-I |
| Pixel readout frequency | 50 kHz, 250kHz, 1 MHz, 3 MHz (5 MHz for visualization mode, up to 20 MHz with multi-output) |
| Readout Modes | 2 output nodes (1MP and 4 MP)
4 output modes (16 MP) |
| AD Converter Resolution | 18-bit |
| Linearity | Better than 99% |
| CCD epixial thickenss | Â 15 um standard40 um for deep depletion (DD) models |
| Flange Types | ISO-F DN-63, knife-edge sealed CF DN63, CF DN100, CF DN160 |
| Vacuum Compatibility | Â With CF flange: 10-10Â mbar (UHV capability) |
| Bakeout Temperature | Max +80°C |
| Flange – focal plane | 1K1K with CF DN63: 6mm
2K2K with CF DN63: 5mm 2K2K Plus & 4K4K with CF DN160: -27 mm can be customized |
| CCD sensor cooling | -100°C to 20°C, forced air or liquid cooling |
| Temperature monitoring | Two thermistors at CCD sensor and thermoelectric cooler (hot side) |
| Data link | Gigabit Ethernet, USB 3.0 |
| Software | greateyes Vision software for Windows 7 / 10 |
| SDK and drivers | Â DLL for Windows; LabVIEW, EPICS, Linux driver, Python, Tango Driver (optional) |
| TTL interface signals | Sync out, shutter out, external trigger in |
| Operating conditions | Temperature: 0°C to 35°C ambient, relative humidity <80% (non-condensing) |
| Power supply | 1K1K & 2K2K: 80-264 VAC (typ. 115/230), 47-63 Hz (typ. 50/60), max. 1.1 A (230 V) / 1.9 A (115 V)
2K2K Plus & 4K4K: 85-264 VAC (typ. 115/230), 47-63 Hz (typ. 50/60), max. 1.9 A (230 V) / 3.8 A (115 V) |
| Certification | CE |
| Dimensions | 8.3 cm (3.27ʺ) × 10.0 cm (3.94ʺ) × 10.9 cm (4.29ʺ) (W × H × L, 1k1k & 2k2k camera body)
13.7 cm (5.39ʺ) × 13.7 cm (5.39ʺ) × 13.3 cm (5.24ʺ) (W × H × L, 2k2k plus & 4k4k camera body) |
| Weight | 2.9 kg (1k1k & 2k2k, CF DN63)
4.3 kg (1k1k & 2k2k, CF DN 100) 12.5kg (4k4k, CF DN160) |
Cameras
Interface Vacuum Flange
We provide quick release, rotatable, and other flanges of various sizes. Please contact us for your requirements
ALEX CCD Camera for Imaging
-

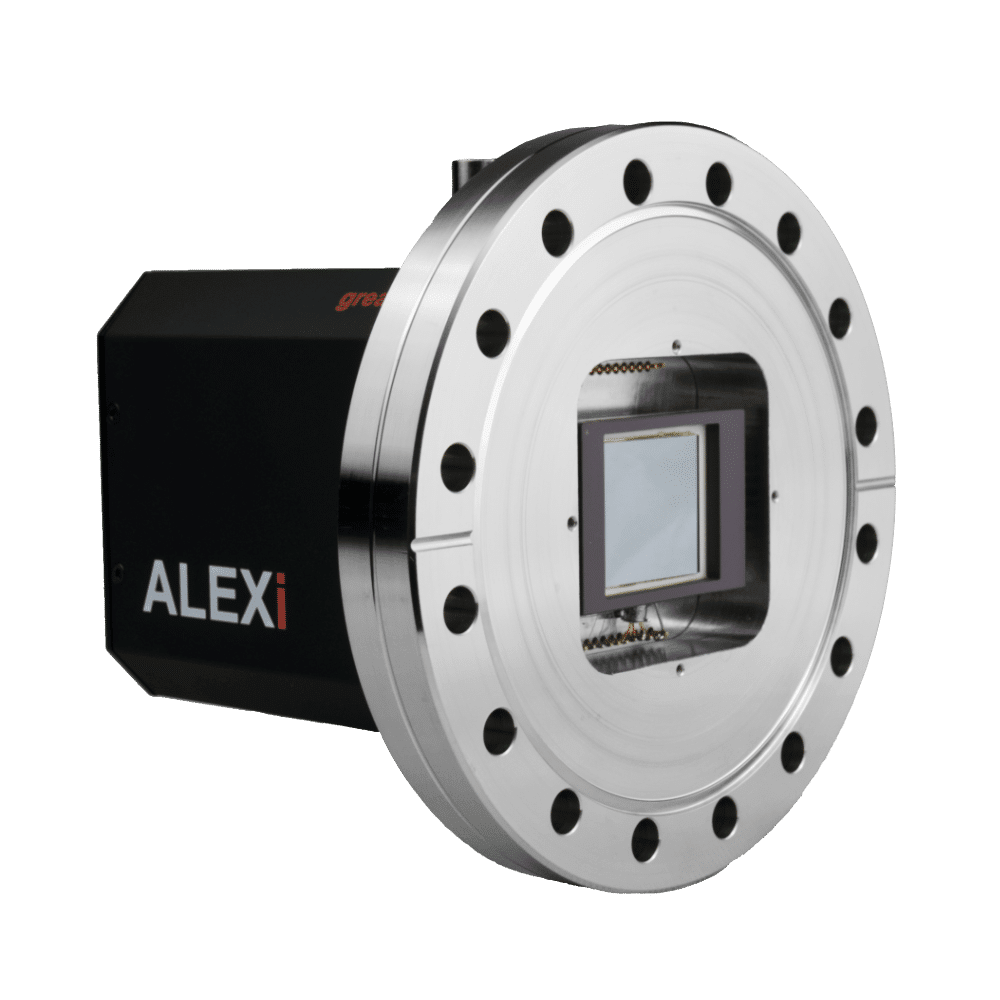

ALEX-i 1K1K
-
ALEX-i 2K2K
-
ALEX-i 2K2K Plus
-
ALEX-i 4K4K
greateyes Vision software
The greateyes Vision software suite provides access to all camera functionalities. It includes comprehensive visualization, analysis and storage options and supports important features such as wavelength and geometric calibration, crop and burst modes and various file formats. The software runs on 32/64-bit Windows systems. For integration into other systems, a software development kit and drivers are available.
Features
- Supports crop and burst readout modes for higher frame rates and precise time resolution
- Supports flexible horizontal and vertical binning
- Wavelength and geometric calibration
- Various file formats: JPG, BMP, TXT, TIFF (16-bit), DAT raw data
- Language support in English and German
- Comprehensive visualization and image manipulation routines
- Runs on 32/64-bit Windows systems
Items included with your ALEX-i camera
-
-
-
-
-
- GE-VI01 – greateyes Vision software suite for Windows
- GE-SDK01 – SDK for Windows (based on C/C++)
- GE-USB3m3 – 3m USB 3.0 cable type A to type
- GE-GigE10m – 10m ethernet cable
- GE-StoB2m- 2m SMB to BNC connection cable
- GE-POW01 – Camera power supply with cabling
- GE-ManCam – Camera instructions manual
-
-
-
-
