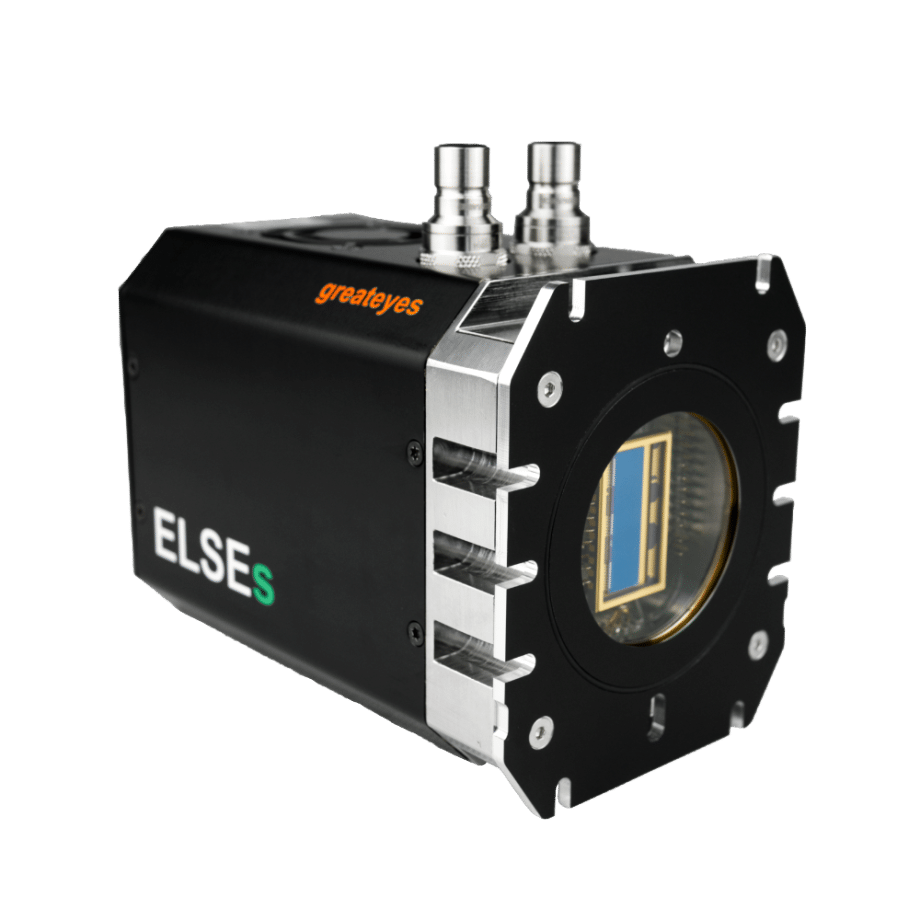

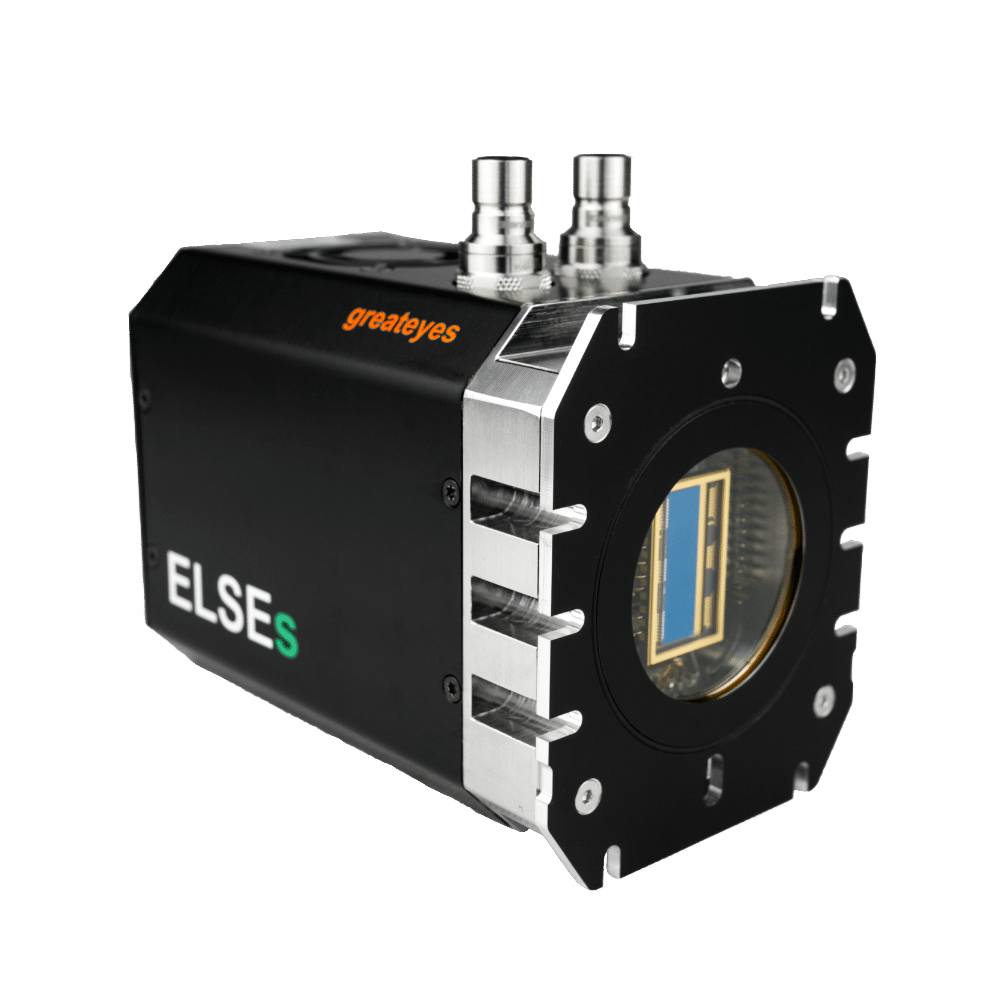

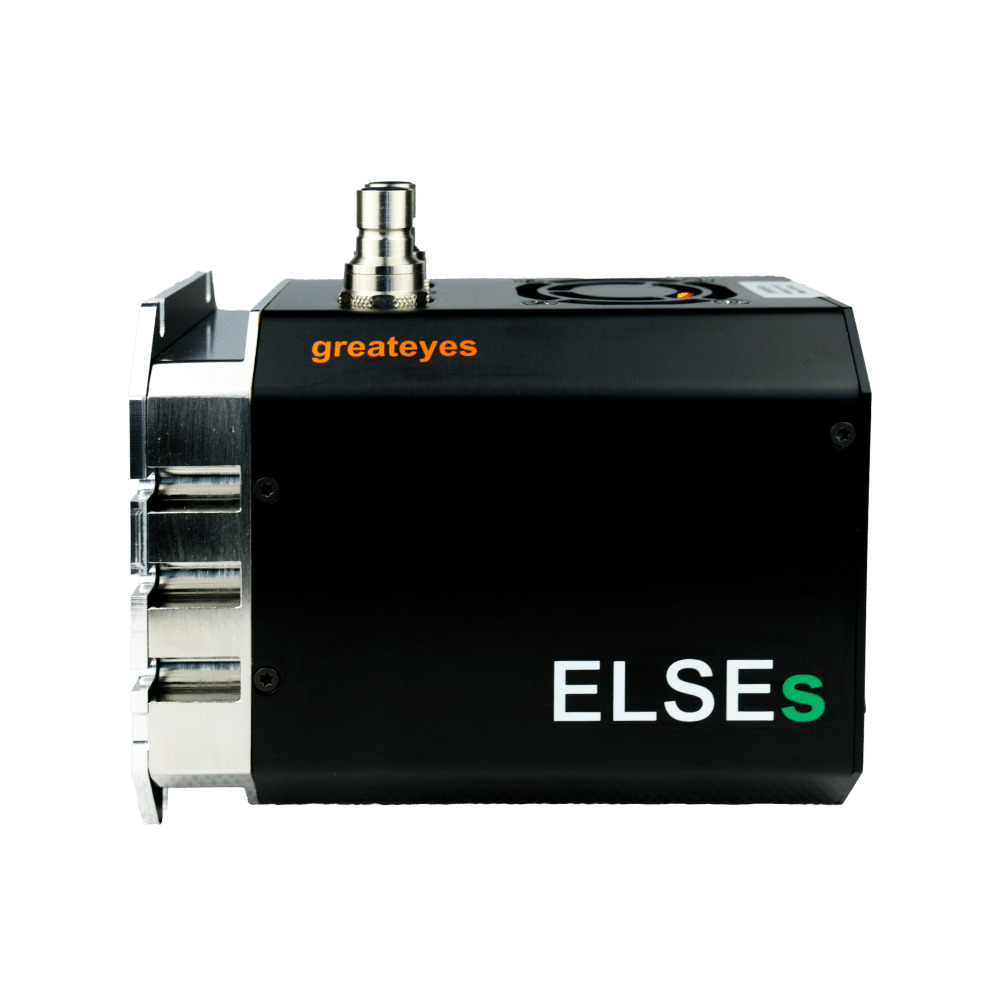

ELSE-s Camera Side view

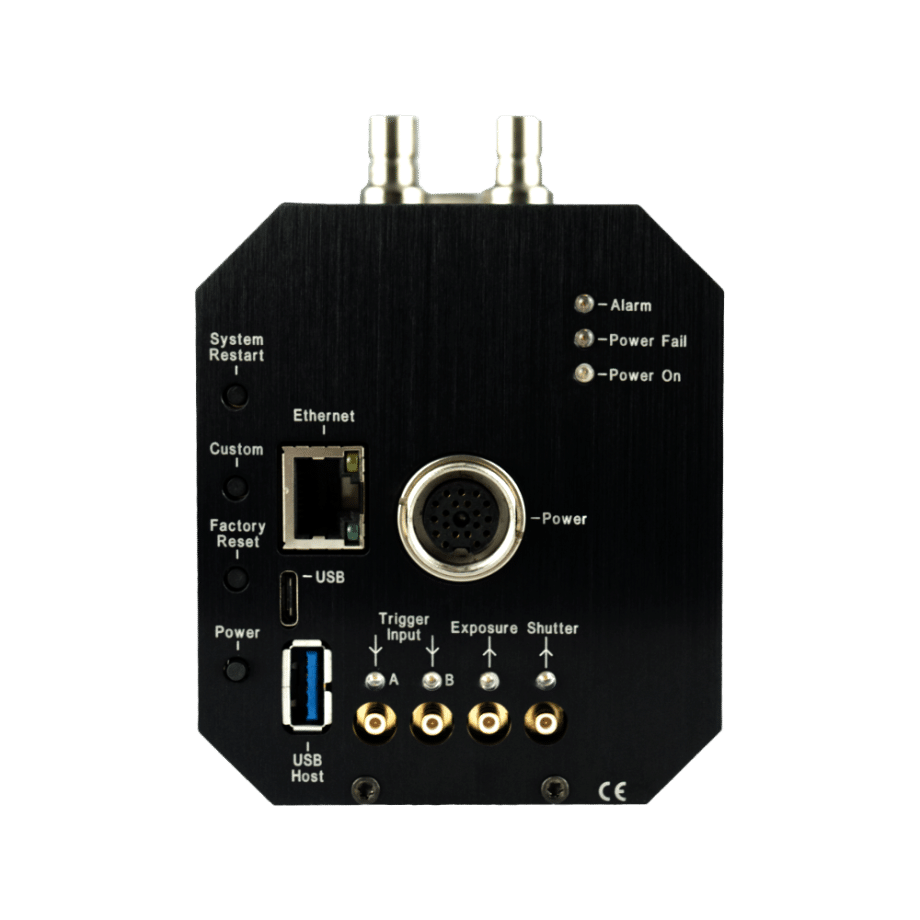

ELSE-S camera rear
elses-tech-draw-600x225 (1)
Else-S CCD Camera for Spectroscopy
ELSE-s Camera Side view
ELSE-S camera rear
Else-S CCD Camera for Spectroscopy
ELSE-s Camera Side view
ELSE-S camera rear

ELSE-s | Deep Cooling CCD Camera for UV, VIS & NIR Spectroscopy

Wavelength Range

160 nm -1100 nm

Resolution

1024 x 128 - 4096 x 4096

Pixel pitch

13 µm x 13 µm - 26 µm x 26 µm

Sensor mode / Frame rate

Global shutter / 0.2 - 23 fps

Readout noise

2.5 - 6.0 e- rms

Camera Dimensions

8.3 cm (3.27ʺ) × 10.0 cm (3.94ʺ) × 13.1 cm (5.16ʺ) (W × H × L)

Deep Cooled CCD for Spectroscopy Applications in the UV-VIS-NIR Range

Introducing the ELSE-s Spectroscopy Camera, greateyes’ new platform for your applications in the UV-VIS-NIR range. ELSE-s is a compact system, integrating cutting-edge low-noise electronics and ultra-deep cooling technology. Multiple readout speeds can be selected supporting pixel rates from 50 kHz up to 5 MHz. Get the highest performance and SNR with true 18-bit AD conversion, allowing you to exploit the full dynamic range of the CCD sensor. Choose from a wide range of sensors to find the best match with your requirements. ELSE-s is ideally suited for detection of very weak signal intensities where a low-noise floor is necessary. ELSE-s offers unprecedented possibilities for your measurements of tomorrow.

ELSE-s low noise CCD cameras are available for UV, VIS and NIR applications. Low noise UV, NIR, VIS range CCD camera. ELSE can be used for deep depletion applications.

To visit the manufacturer’s website, click HERE.

To view similar cameras, click HERE.

Deep Cooled CCD for Spectroscopy Applications in the UV-VIS-NIR Range

Introducing the ELSE-s Spectroscopy Camera, greateyes’ new platform for your applications in the UV-VIS-NIR range. ELSE-s is a compact system, integrating cutting-edge low-noise electronics and ultra-deep cooling technology. Multiple readout speeds can be selected supporting pixel rates from 50 kHz up to 5 MHz. Get the highest performance and SNR with true 18-bit AD conversion, allowing you to exploit the full dynamic range of the CCD sensor. Choose from a wide range of sensors to find the best match with your requirements. ELSE-s is ideally suited for detection of very weak signal intensities where a low-noise floor is necessary. ELSE-s offers unprecedented possibilities for your measurements of tomorrow.

ELSE-s low noise CCD cameras are available for UV, VIS and NIR applications. Low noise UV, NIR, VIS range CCD camera. ELSE can be used for deep depletion applications.

To visit the manufacturer’s website, click HERE.

To view similar cameras, click HERE.

ELSE-S Series for spectroscopy applications

Spec ELSE-S
Pixel readout frequency 50 kHz, 250kHz, 1 MHz, 3 MHz (5 MHz for visualization mode up to 6 speeds)
AD converter resolution 18-bit
Linearity Better than 99%
Window material MgF2 or UVFS for UV sensitive models, otherwise BK7
Distance flange – focal plane 10.0 mm
CCD sensor cooling -100°C to 20°C, forced air or liquid cooling
Temperature monitoring Two thermistors at CCD sensor and thermoelectric cooler (hot side)
Data link Gigabit Ethernet, USB 3.0
Software greateyes Vision software for Windows 7 / 10
SDK and drivers DLL for Windows; LabVIEW, EPICS, Linux driver (optional)
TTL interface signals Exposure out, shutter out, external trigger in
Operating conditions Temperature: 0°C to 35°C ambient, relative humidity <80% (non-condensing)
Power supply 80-264 VAC (115/230 VAC typical), 47-63 Hz (50/60 Hz typical),
max. 1.1 A (230 VAC), 1.9 A (115 VAC)
Certification CE
Dimensions 8.3 cm (3.27ʺ) × 10.0 cm (3.94ʺ) × 13.1 cm (5.16ʺ) (W × H × L)
Weight 1 800 g



Spectroscopy Camera Models and Specs

ELSE-s Spectroscopy Camera models

 QE Curve

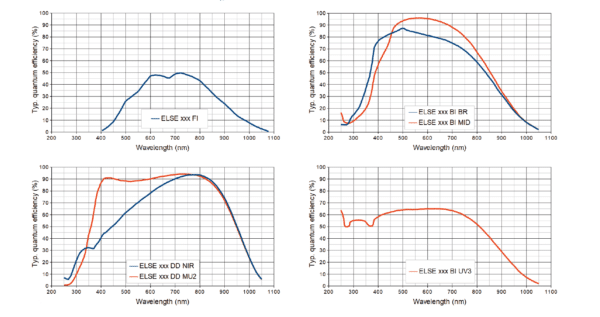

ELSE-s Spectroscopy Camera QE Curve

Applications

  • Raman Spectroscopy
  • NIR Spectroscopy
  • Fluorescence Spectroscopy
  • Absorption, Transmission
  • Reflectance Spectroscopy

ELSE-s Datasheet

[ao_add_request_quote_btn]
Spectral Range

UV (200 – 400 nm), VIS (400 – 750 nm), NIR (750 – 1000 nm)
Resolution

4096 x 4096 (16.8 MP), 2048 x 2048 (4.2 MP), 1024 x 1024 (1.0 MP)
Applications

Physics
Manufacturer

Greateyes
Sensor Technology

CCD
Pixel Pitch

13 µm x 13 µm, 13.5 µm x 13.5 µm, 15 µm x 15 µm
Frame Rate

< 10 fps
Readout Noise

2 – 10 e-
Interface

USB, GigE
