SoftwareBeamPro Compact Laser Beam Profiler

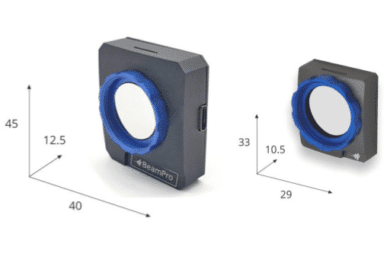

The BeamPro Compact beam profiler from FemtoEasy has a thickness of less than 15 mm, offering the most compact footprint for laser beam measurements in small spaces.
The Femto Easy BeamPro Compact takes advantage of our user-friendly software, and provides thorough analysis and statistics of your laser beam. Because the BeamPro software uses standard communication protocols, it is easily integrable in most complex environments. Several BeamPro’s can be controlled from a remote screen through network. They are suitable for wavelength from 190 to 1100 nm and sensor size is up to 25 mm. There are also high resolution models with pixels as small as 1.45 μm for focused beam measurements.
Axiom Optics offers additional models of the BeamPro which can be found here.
You can also visit the manufacturer’s website: www.femtoeasy.eu
STAR Beam Profiler Software
The BeamPro comes with a powerful and user friendly software, especially designed for touch screens, in order to give you the best user experience.
- Live extraction of beam properties, even with resolutions larger than 20 Mpx
- Several parameters and methods supported (ISO calculation included)
- Enhanced background & hot pixels treatment for optimum dynamic and signal-to-noise ratio
- Client / Server interface, allowing remote control through network
- Advanced logging and permanent access to the 10 previous acquisitions
- Live comparison with up to 10 different reference measurements
- 1-click installation, completely configurable, export assistant
BeamPro Options:
Windowless
-
- Removal of the BeamPro sensor window to avoid potential interferences
UV Extension
-
- Increases the BeamPro wavelength range to the UV region, down to 190 nm
Additional ND Filters
-
- The default BeamPro configuration includes one ND filter. Additional ones with different specifications can be ordered
Custom Version on Request
-
- BeamPro based on different type of camera (resolution, pixel size, sensor material) can be developed on request
High Dynamic Range
-
- Software mode to increase the dynamic of the BeamPro signal acquisition from 12 to 16 bits. Not compatible with pure single-shot measurement as 2 images are necessary to build one beam profile image
Trigger
-
- Synchronization of the BeamPro detection to an external signal for accurate laser single pulse measurement
Vacuum Compatible
-
- Possibility to place the BeamPro and perform measurements directly inside a UHV vacuum chamber (not available for all models, please contact us for details.
