HASO Multispectral Wavefront Sensor

HASO Multispectral I spectrally resolved wavefront sensing VIS – NIR

Spectral Bandwidth

550-1000 nm

Aperture / Resolution / Spatial Sampling

7.0 x 5.2 mm² - 68x50 - 105 µm

Accuracy (rms) / Linearity

λ/100 / ??

Focus dynamic range

± 0.018 m to ± ∞ ??

Repeatability (rms)

< λ/70 ??

Maximum acquisition rate

20 Hz

HASO Multispectral – Multispectral wavefront sensor

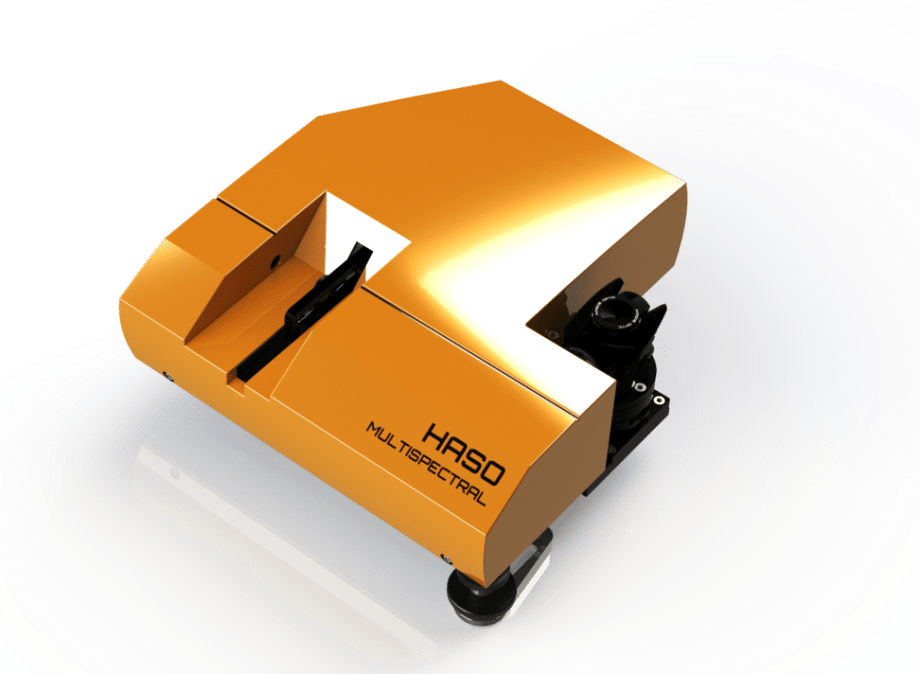

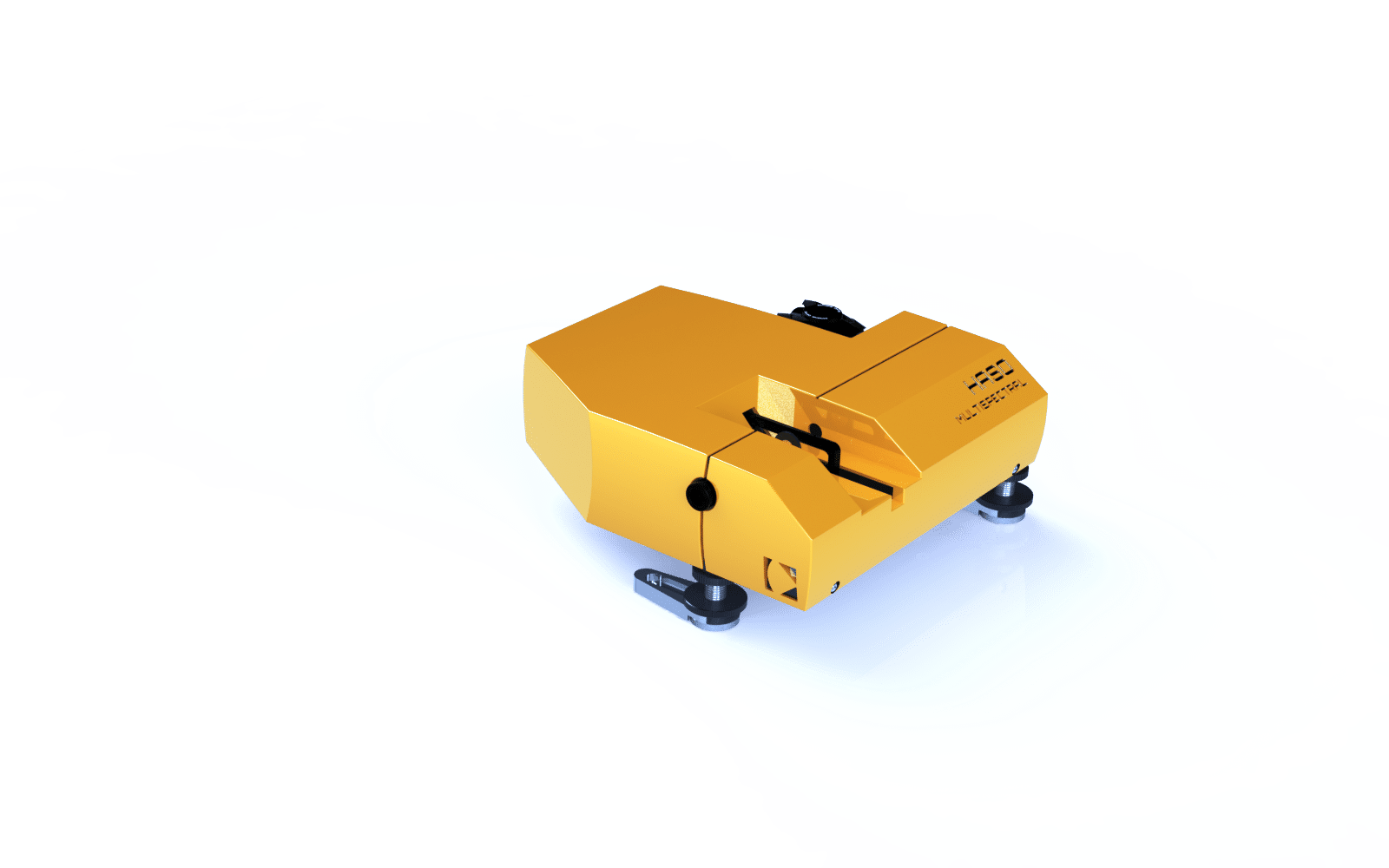

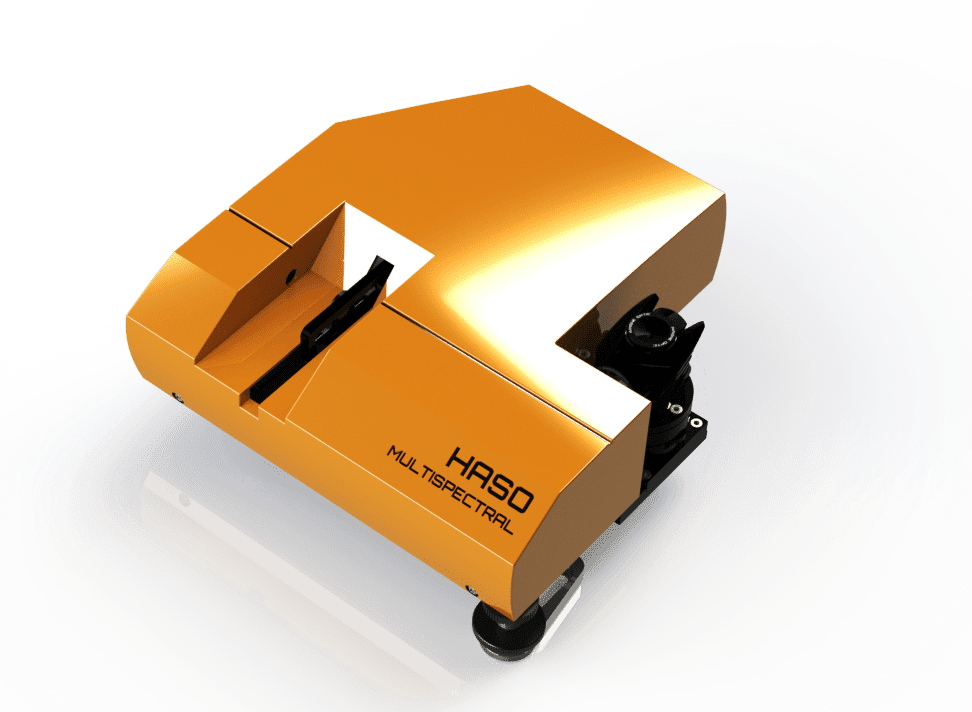

A very accurate, fast and versatile instrument, the HASO Multispectral is the first-ever spectrally-resolved wavefront sensor. Its wide spectral range (550-1000nm) coupled to the powerful HASO4-Broadband enables full characterization of TW/PW lasers’ performances, and optimization of the peak intensity on target.

This new device is perfectly suited for compressor alignment, characterization of compressed or stretched beams, complex broadband system alignment, and understanding of science of spatio-temporal couplings.

Top features:

  • Thousands of measurement points in the beam
  • Can accomodate near-field and far-field measurement
  • Spatio-spectral couplings measurements: angular dispersion, spectral focal shift, etc.
  • Lightweight laptop-friendly software
  • SpotTracker auto-align technology

HASO Multispectral – Applications

This multispectral wavefront sensor is best for:

  • Physicists, laserists, and laser systems designers
  • Compressors alignment
  • Spatio-spectral couplings understanding and control
  • Characterization of compressed beam down to 5fs
  • Broadband systems alignment

For all our wavefront sensors, click here.

For the manufacturer’s website, click here.

HASO Multispectral – Multispectral wavefront sensor

A very accurate, fast and versatile instrument, the HASO Multispectral is the first-ever spectrally-resolved wavefront sensor. Its wide spectral range (550-1000nm) coupled to the powerful HASO4-Broadband enables full characterization of TW/PW lasers’ performances, and optimization of the peak intensity on target.

This new device is perfectly suited for compressor alignment, characterization of compressed or stretched beams, complex broadband system alignment, and understanding of science of spatio-temporal couplings.

Top features:

  • Thousands of measurement points in the beam
  • Can accomodate near-field and far-field measurement
  • Spatio-spectral couplings measurements: angular dispersion, spectral focal shift, etc.
  • Lightweight laptop-friendly software
  • SpotTracker auto-align technology

HASO Multispectral – Applications

This multispectral wavefront sensor is best for:

  • Physicists, laserists, and laser systems designers
  • Compressors alignment
  • Spatio-spectral couplings understanding and control
  • Characterization of compressed beam down to 5fs
  • Broadband systems alignment

For all our wavefront sensors, click here.

For the manufacturer’s website, click here.

Optical Metrology

Laser

X-EUV

MultispectralView

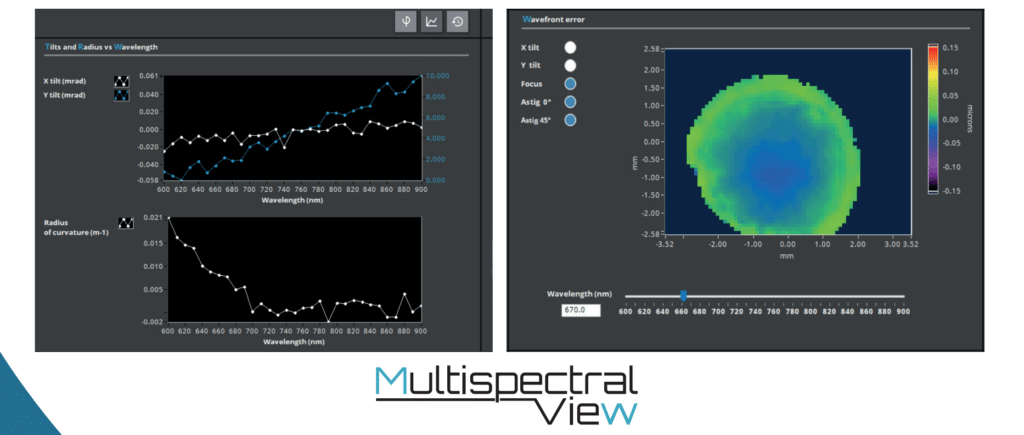

MultispectralView is HASO Multispectral dedicated software for Spatio-Temporal Couplings analysis.

It enables the alignment of the device and a complete and direct characterization of the beam.

Multispectral Software - HASO Multispectral
