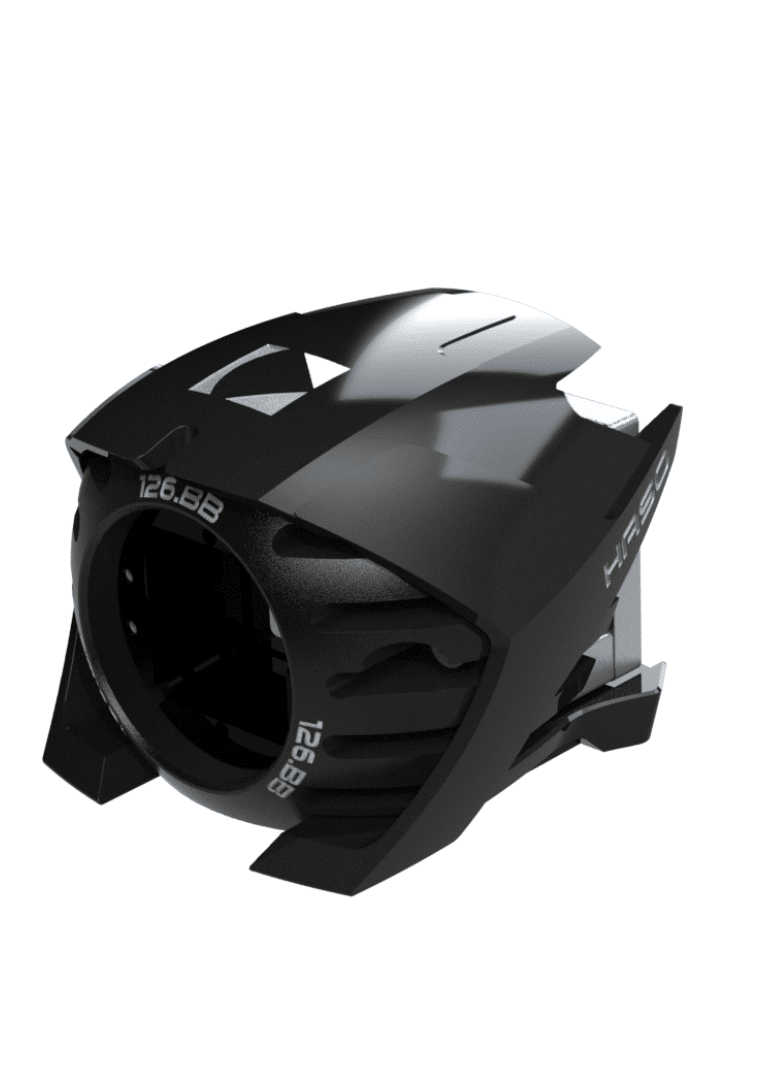

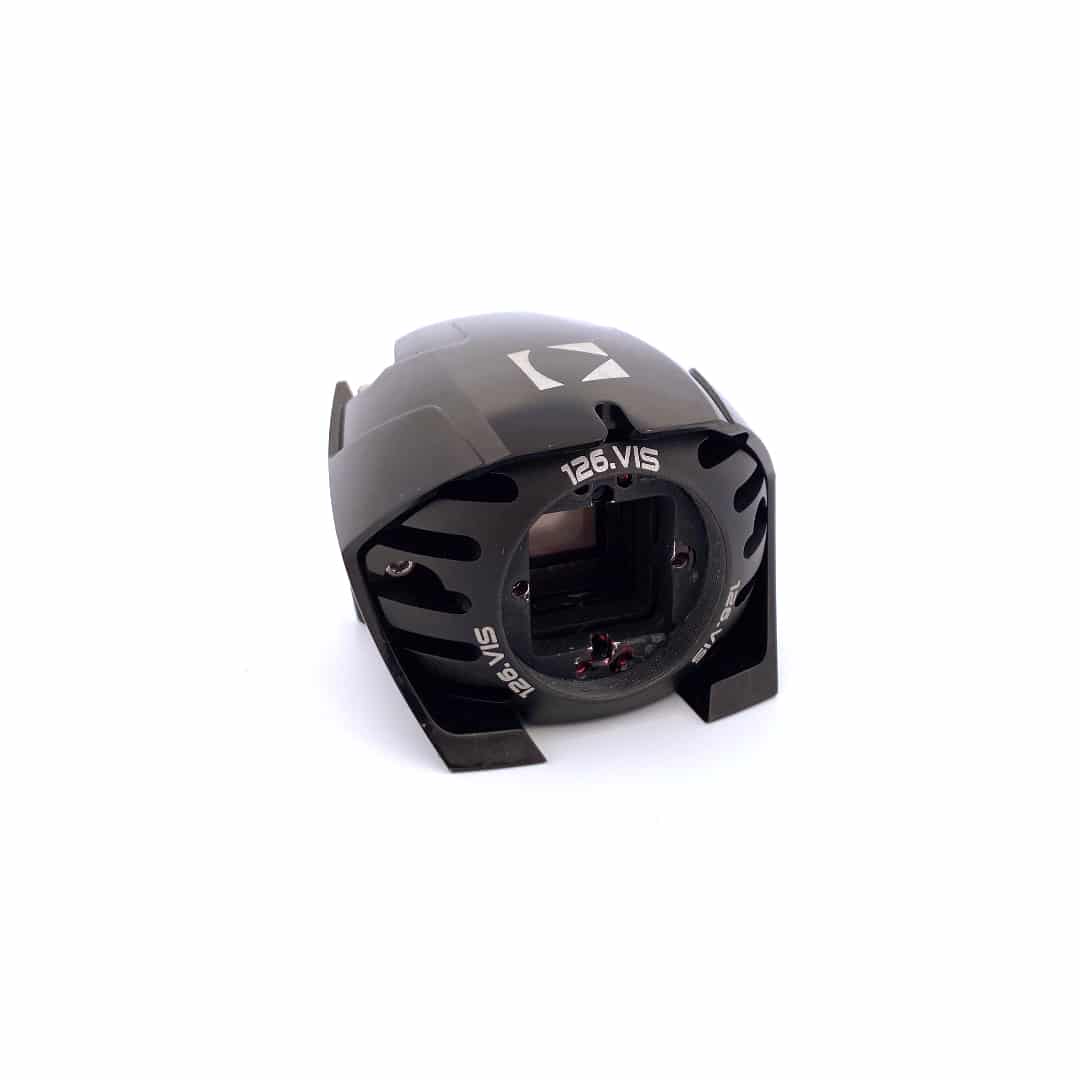

HASO4 126 I large aperture high resolution wavefront sensor – VIS and Broadband

Absolute Accuracy

λ/100 rms

Repeatability

λ/200 rms

Microlens Number

126 × 170

Aperture Dimension

10.21 × 13.78 mm²

Max. Frame Rate

30 Hz

Wavelength

350 - 1100 nm

Providing outstanding performance, the HASO wavefront sensor family is used worldwide in the most demanding applications in optical metrology, industrial control, microscopy and laser diagnostics. Imagine Optic offers a unique combination of expertise in high-quality microlens production, software development and accurate factory calibrations. This allows the HASO4 126 to provide high performance for applications requiring a high spatial frequency and very large dynamic range.

  • Acceptable tilts up to +/-3°, and NA up to 0.1
  • Large dynamic range (see the graph below)
  • Independent phase (wavefront) and intensity (amplitude) measurements
  • Easy hardware and software integration

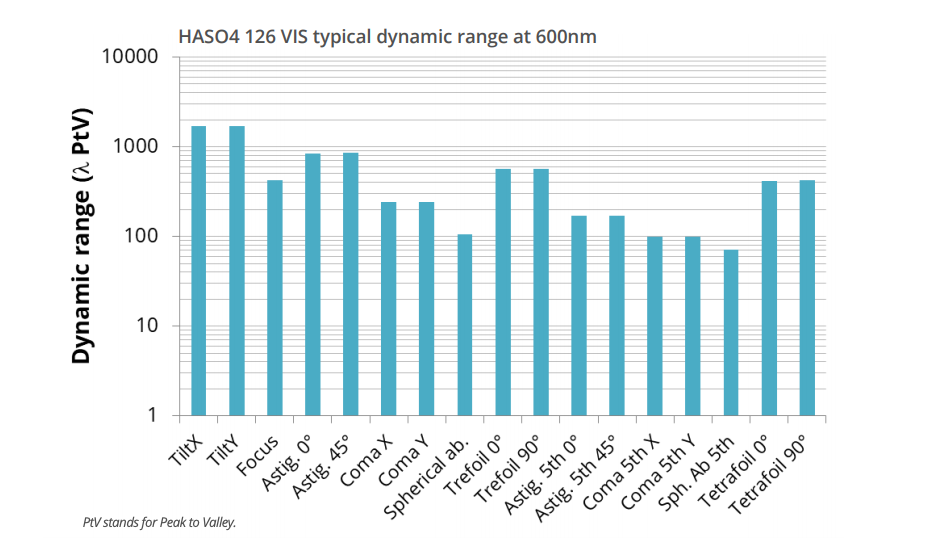

HASO4 126 VIS Dynamic Range

The HASO4 126 is the perfect wavefront sensor for applications that requires high sampling density or a very large dynamic range. It features the new SpotTracker system, providing absolute wavefront and tilt information and eliminating alignment requirement.

Wavefront

BEST FOR VERSATILITY
– High spacial sampling frequency
– Very large dynamic range
– Freeform optics characterization
– Parabolic mirrors characterization
– High spacial frequency aberrations


Transform your Wavefront Sensor into a full Metrology Solution with R-FLEX & R-FLEX LA

The R-FLEX2 is a versatile optical metrology system that instantly combines any of our HASO4 wavefront sensors in the with a collimator and a light source. R-FLEX2 is currently used for quality control of complex optical systems such as life science instrumentation, alignment of large telescopes and collimators, large concave mirrors, and lenses and complex optical systems in general.

RFLEX2

Learn more about the R-FLEX2


The R-FLEX LA is a collimating platform that extends the capabilities of the HASO R-FLEX2 to large optics and optical surfaces. The output collimated beam size ranges from 30 to 150 mm. Analyze large optics and optical surfaces such as filters, dichroic beam splitters, head-up displays, eyewear, optical windows, flat mirrors, polarization scramblers.

RFLEX LA

Learn more about the R-FLEX2 LA

Providing outstanding performance, the HASO wavefront sensor family is used worldwide in the most demanding applications in optical metrology, industrial control, microscopy and laser diagnostics. Imagine Optic offers a unique combination of expertise in high-quality microlens production, software development and accurate factory calibrations. This allows the HASO4 126 to provide high performance for applications requiring a high spatial frequency and very large dynamic range.

  • Acceptable tilts up to +/-3°, and NA up to 0.1
  • Large dynamic range (see the graph below)
  • Independent phase (wavefront) and intensity (amplitude) measurements
  • Easy hardware and software integration

HASO4 126 VIS Dynamic Range

The HASO4 126 is the perfect wavefront sensor for applications that requires high sampling density or a very large dynamic range. It features the new SpotTracker system, providing absolute wavefront and tilt information and eliminating alignment requirement.

Wavefront



BEST FOR VERSATILITY
– High spacial sampling frequency
– Very large dynamic range
– Freeform optics characterization
– Parabolic mirrors characterization
– High spacial frequency aberrations

The Most Advanced Wavefront Measurement and Analysis Software

WaveView4 offers more than 150 features and tools optimized for a wide range of highly demanding applications. WaveView4 development philosophy is based on tens of years of customer’s feedback, improving the user experience with each version. WaveView4 provides a function to analyze segmented wavefronts and allows autosave for sequence measurements. Modules dedicated to PSF, MTF, and M2 are available.

WaveKit is SDK in C/C++, LabVIEW and Python, providing the basic blocks on which one can build a fully customized software for specific HASO-based applications or WaveView4 data processing routines. WaveKit is available on request.

Waveview 4

Transform your Wavefront Sensor into a full Metrology Solution with R-FLEX & R-FLEX LA

The R-FLEX2 is a versatile optical metrology system that instantly combines any of our HASO4 wavefront sensors in the with a collimator and a light source. R-FLEX2 is currently used for quality control of complex optical systems such as life science instrumentation, alignment of large telescopes and collimators, large concave mirrors, and lenses and complex optical systems in general.

RFLEX2

Learn more about the R-FLEX2


The R-FLEX LA is a collimating platform that extends the capabilities of the HASO R-FLEX2 to large optics and optical surfaces. The output collimated beam size ranges from 30 to 150 mm. Analyze large optics and optical surfaces such as filters, dichroic beam splitters, head-up displays, eyewear, optical windows, flat mirrors, polarization scramblers.

RFLEX LA

Learn more about the R-FLEX2 LA

SOFTWARE
– WAVEVIEW metrology software with 150 functions included
Extensions for PSF, MTF and Strehl ratio
Optional SDK for interfacing
– WAVETUNE Adaptive Optics software
Extensions for AO applications
Optional SDK for interfacing with any custom system
– Windows10 compatible

WaveView is the most advanced wavefront measurement and analysis software. It offers more than 150 features and tools optimized for a wide range of highly demanding applications. WaveView development philosophy is based on tens of years of customer feedback, improving the user experience with each version. WaveView provides a function to analyze segmented wavefronts and allows autosave for sequence measurements. Modules dedicated to PSF and MTF are available.

WaveKit is the SDK in C/C++, LabVIEW and Python, providing the basic blocks on which one can build a fully customized software for specific HASO-based applications or WaveView data processing routines. WaveKit is available on request.
