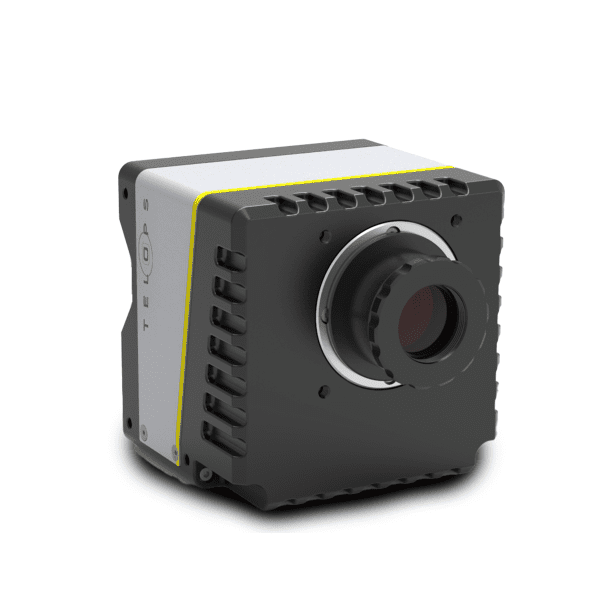

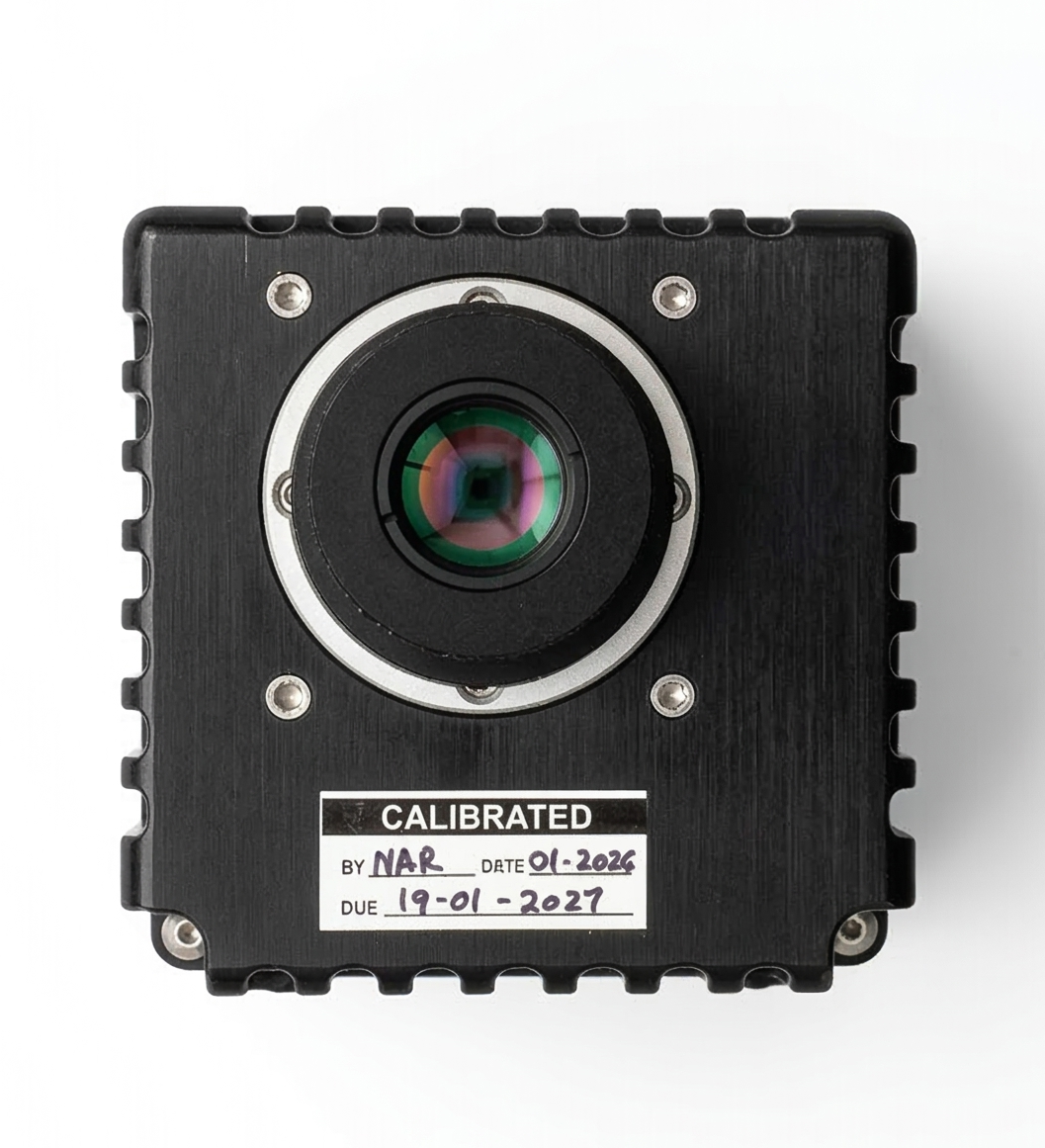

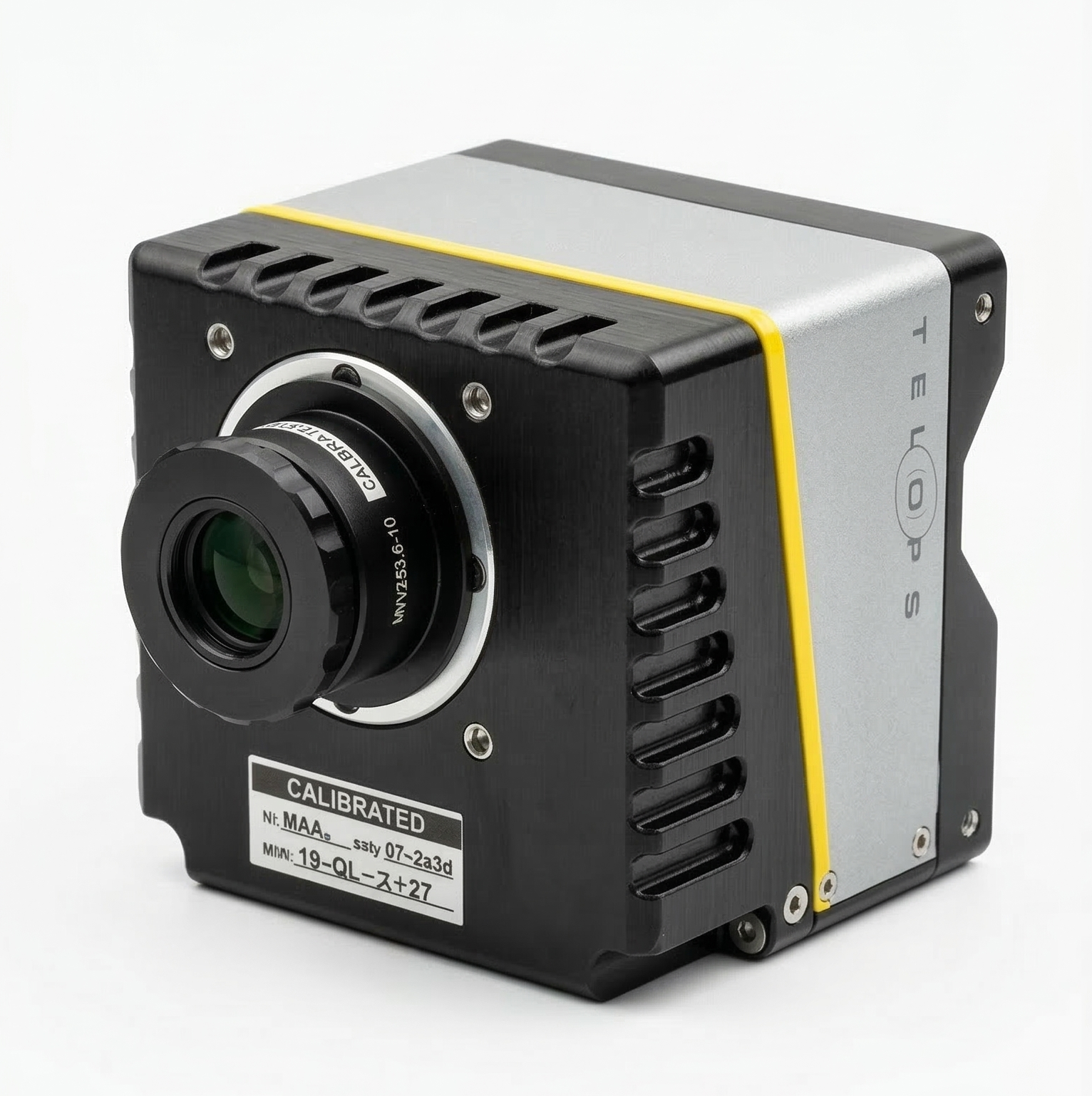

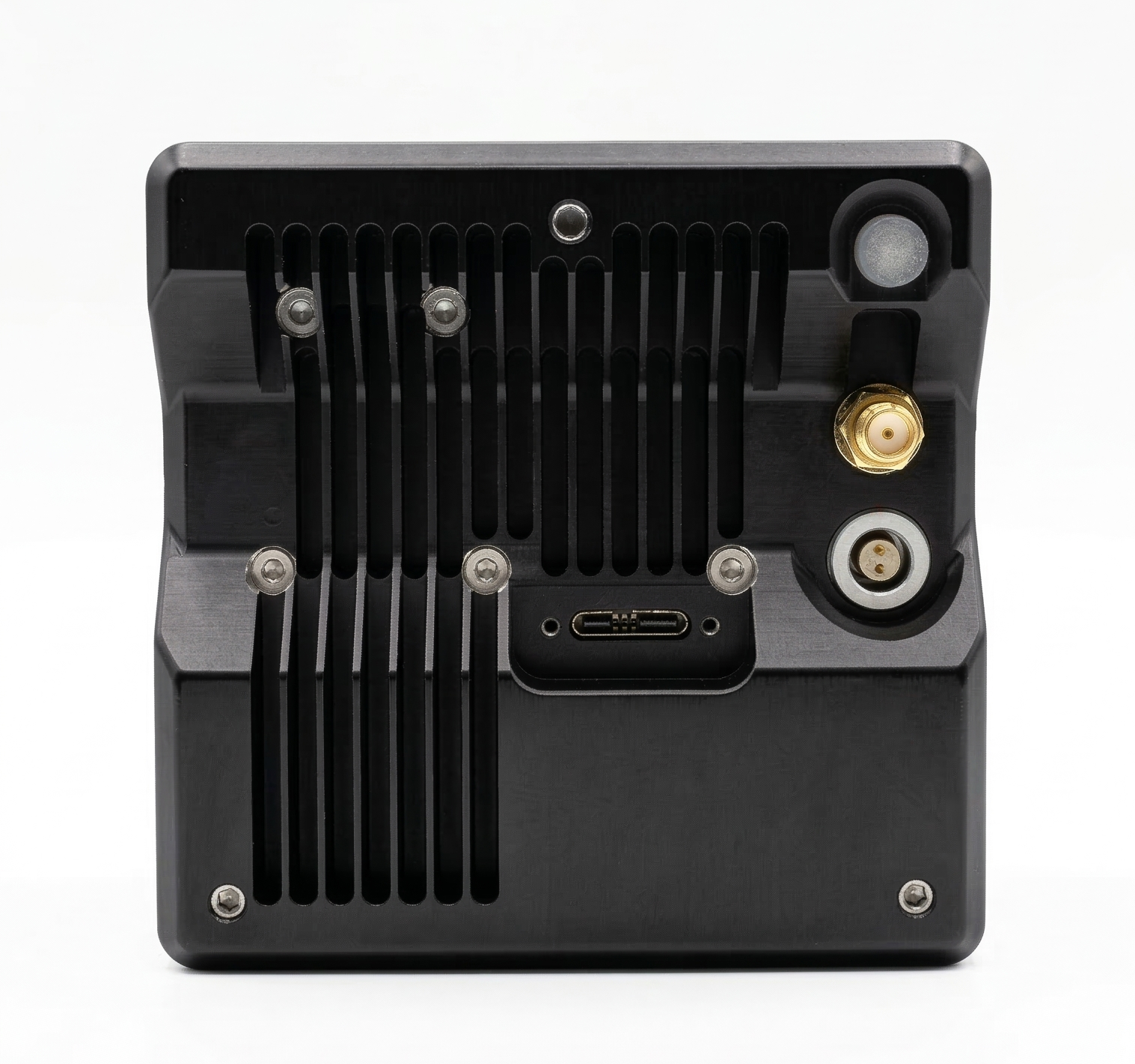

RADIA M100 | Cooled Thermal MWIR Camera

Detector Type

Cooled HOT MW SLS

Resolution - Pitch

640 x 512 pixels - 10 µm

Spectral Range

3.6 – 4.15 µm

NEdT

< 30mK

Max. Frame Rate (Full Window)

180 Hz

Calibration ranges

0ºC to 850ºC (standard), up to 1,500ºC or 2,500ºC (extended)

Tag: Brand:

High-Performance Cooled MWIR Thermographic Camera

The Radia M100 is a compact, cooled thermographic mid-wave infrared (MWIR) camera engineered to deliver superior imagery and consistent scientific data. This advanced thermographic camera utilizes a cooled detector to achieve high sensitivity and image clarity, making it ideal for demanding applications requiring precise thermal measurements. Its real-time image capture features are enhanced by Telops’ permanent factory radiometric calibration, enabling users to visualize the acquired data in temperature, radiance, or irradiance units—without requiring frequent blackbody recalibrations. This capability streamlines workflows and ensures accurate thermal analysis.

The Radia M100 is a versatile tool in the field of thermography. While Telops offers both cooled and uncooled scientific thermal imaging solutions, the Radia M100 specifically employs a cooled detector to provide enhanced performance in demanding applications. The cooled design allows for increased sensitivity and lower noise, crucial for capturing subtle temperature variations and achieving high-fidelity thermal images. This thermographic camera’s compact size and robust design make it suitable for various research, industrial, and scientific applications.

The camera’s radiometric calibration, performed at the Telops factory, ensures reliable measurements and eliminates the need for frequent on-site recalibrations. The Radia M100’s functionality is further augmented by its seamless compatibility with Telops’ RevealIR software, providing users with a comprehensive platform for camera control, data acquisition, processing, and analysis. Its USB 3.0 interface enables high-speed data transfer.

Key Features:

  • High-Performance Cooled Thermography: The Radia M100 is a cooled thermographic camera designed for superior image quality and accurate temperature measurements.
  • Cooled MWIR Detector: Employs a cooled MW SLS detector for high sensitivity and low noise.
  • Versatile Thermal Imaging Solutions: Telops provides scientific thermal imaging solutions in both cooled and uncooled configurations, with the Radia M100 being a cooled model.
  • Wide Selection of Interchangeable Lenses: Supports a comprehensive selection of user-swappable lenses, offering flexibility for various application needs and fields of view.
  • Permanent Radiometric Calibration: Factory-calibrated for reliable measurements without frequent recalibrations.
  • Seamless Software Compatibility: Integrates with Telops RevealIR software for full camera control and efficient data management.
  • High-Speed Data Transfer: Features a USB 3.0 interface for rapid data transfer.

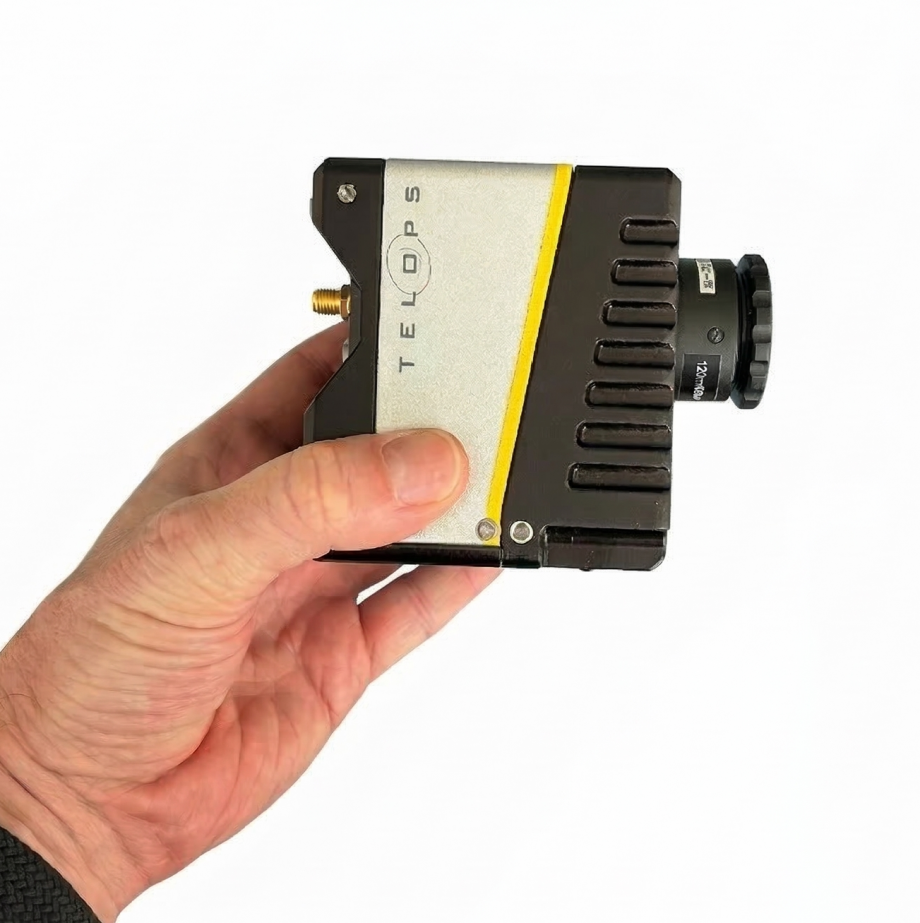

  • Compact and Robust Design: Small form factor and rugged construction make it suitable for diverse environments.
  • Wide Temperature Range Options: Offers standard calibration ranges up to and extended ranges up to .

High-Performance Cooled MWIR Thermographic Camera

The Radia M100 is a compact, cooled thermographic mid-wave infrared (MWIR) camera engineered to deliver superior imagery and consistent scientific data. This advanced thermographic camera utilizes a cooled detector to achieve high sensitivity and image clarity, making it ideal for demanding applications requiring precise thermal measurements. Its real-time image capture features are enhanced by Telops’ permanent factory radiometric calibration, enabling users to visualize the acquired data in temperature, radiance, or irradiance units—without requiring frequent blackbody recalibrations. This capability streamlines workflows and ensures accurate thermal analysis.

The Radia M100 is a versatile tool in the field of thermography. While Telops offers both cooled and uncooled scientific thermal imaging solutions, the Radia M100 specifically employs a cooled detector to provide enhanced performance in demanding applications. The cooled design allows for increased sensitivity and lower noise, crucial for capturing subtle temperature variations and achieving high-fidelity thermal images. This thermographic camera’s compact size and robust design make it suitable for various research, industrial, and scientific applications.

The camera’s radiometric calibration, performed at the Telops factory, ensures reliable measurements and eliminates the need for frequent on-site recalibrations. The Radia M100’s functionality is further augmented by its seamless compatibility with Telops’ RevealIR software, providing users with a comprehensive platform for camera control, data acquisition, processing, and analysis. Its USB 3.0 interface enables high-speed data transfer.

Key Features:

  • High-Performance Cooled Thermography: The Radia M100 is a cooled thermographic camera designed for superior image quality and accurate temperature measurements.
  • Cooled MWIR Detector: Employs a cooled MW SLS detector for high sensitivity and low noise.
  • Versatile Thermal Imaging Solutions: Telops provides scientific thermal imaging solutions in both cooled and uncooled configurations, with the Radia M100 being a cooled model.
  • Wide Selection of Interchangeable Lenses: Supports a comprehensive selection of user-swappable lenses, offering flexibility for various application needs and fields of view.
  • Permanent Radiometric Calibration: Factory-calibrated for reliable measurements without frequent recalibrations.
  • Seamless Software Compatibility: Integrates with Telops RevealIR software for full camera control and efficient data management.
  • High-Speed Data Transfer: Features a USB 3.0 interface for rapid data transfer.
  • Compact and Robust Design: Small form factor and rugged construction make it suitable for diverse environments.
  • Wide Temperature Range Options: Offers standard calibration ranges up to and extended ranges up to .

Applications of the Radia M100 Thermographic Camera:

The Radia M100 thermographic camera is a valuable tool for a range of applications where precise thermal imaging is essential:

  • Automotive R&D: Specifically used for automotive brake performance testing, contributing to the development of efficient and safe vehicles through thermal measurements for performance and safety analysis.
  • Train Inspection: Monitors mechanical and electrical components for heat anomalies, enabling proactive maintenance and ensuring the safety and reliability of railway systems.
  • Predictive Maintenance: Facilitates early detection of equipment faults in industrial settings to prevent downtime, optimize operations, and reduce maintenance costs.

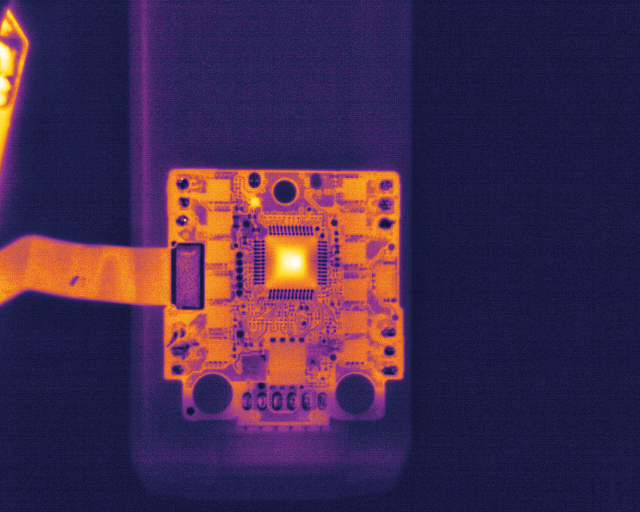

  • Quality Control: Ensures product consistency and identifies defects in manufacturing processes through detailed thermal imaging.
  • Fire Protection Engineering: Assists in assessing heat risks, analyzing fire dynamics, and improving fire safety strategies in various environments.

Reveal-IR Software

The Radia M100’s capabilities are significantly enhanced by its seamless compatibility with Telops RevealIR camera control software. This powerful software platform provides users with complete control over the thermographic camera’s functions. It enables efficient data acquisition, allowing users to collect thermal imagery and data in real-time. Beyond mere collection, RevealIR facilitates robust data processing and analysis, helping users to transform complex thermal data into actionable insights, regardless of their level of expertise.



Radia M100 Datasheet

Radia Family Brochure

Camera Catalog

Accessories

  • Filter holder
  • Filter (several standard options available, possible to provide your own filter to be used for calibration)

Click here to view the manufacturer’s website.

1

Cooled H.O.T SLS
2

640 x 512 px
3

10 µm pitch
4

180 Hz full frame
5

Temp. meas. up to 2,500ºC
6

3 lens options
7

Thermography software
