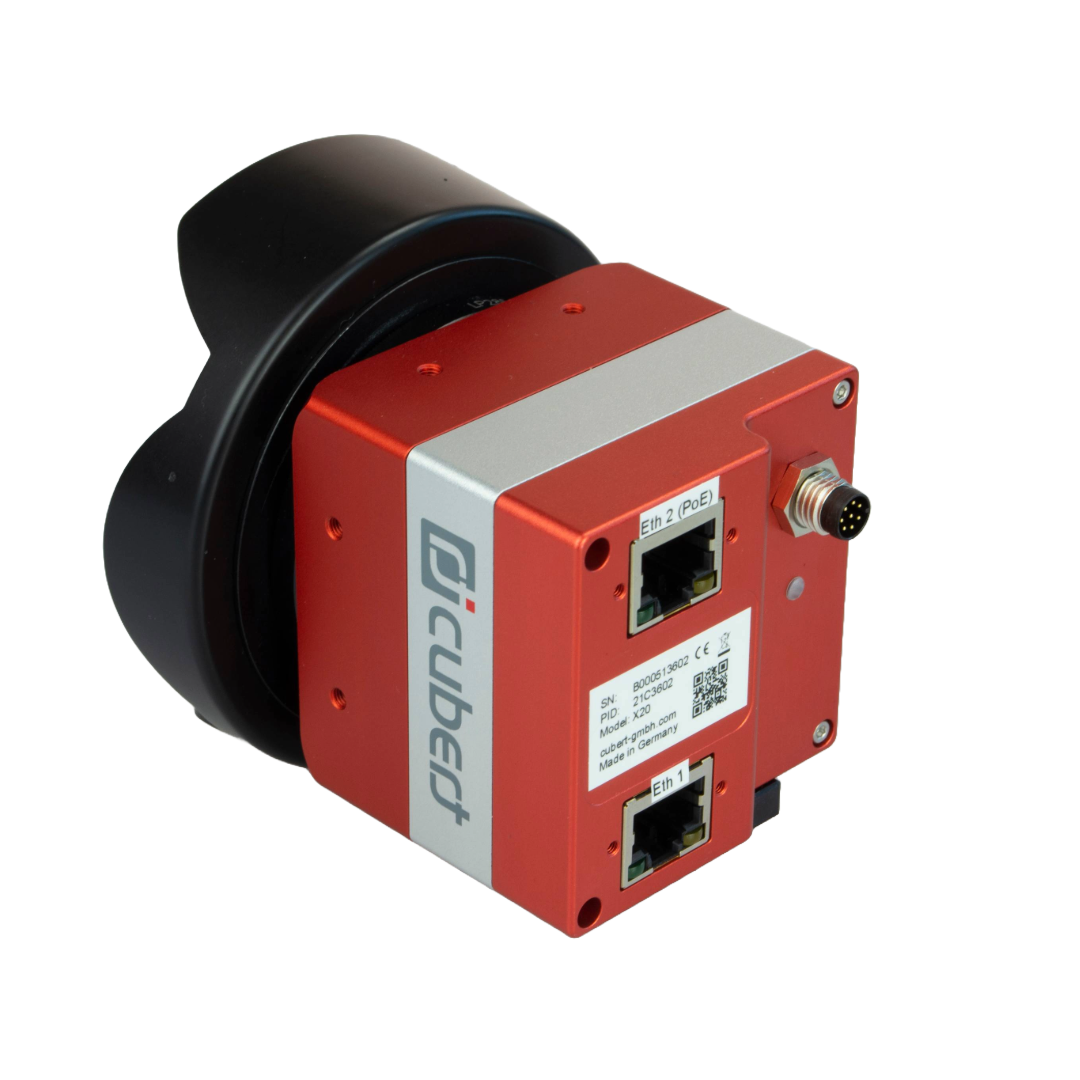

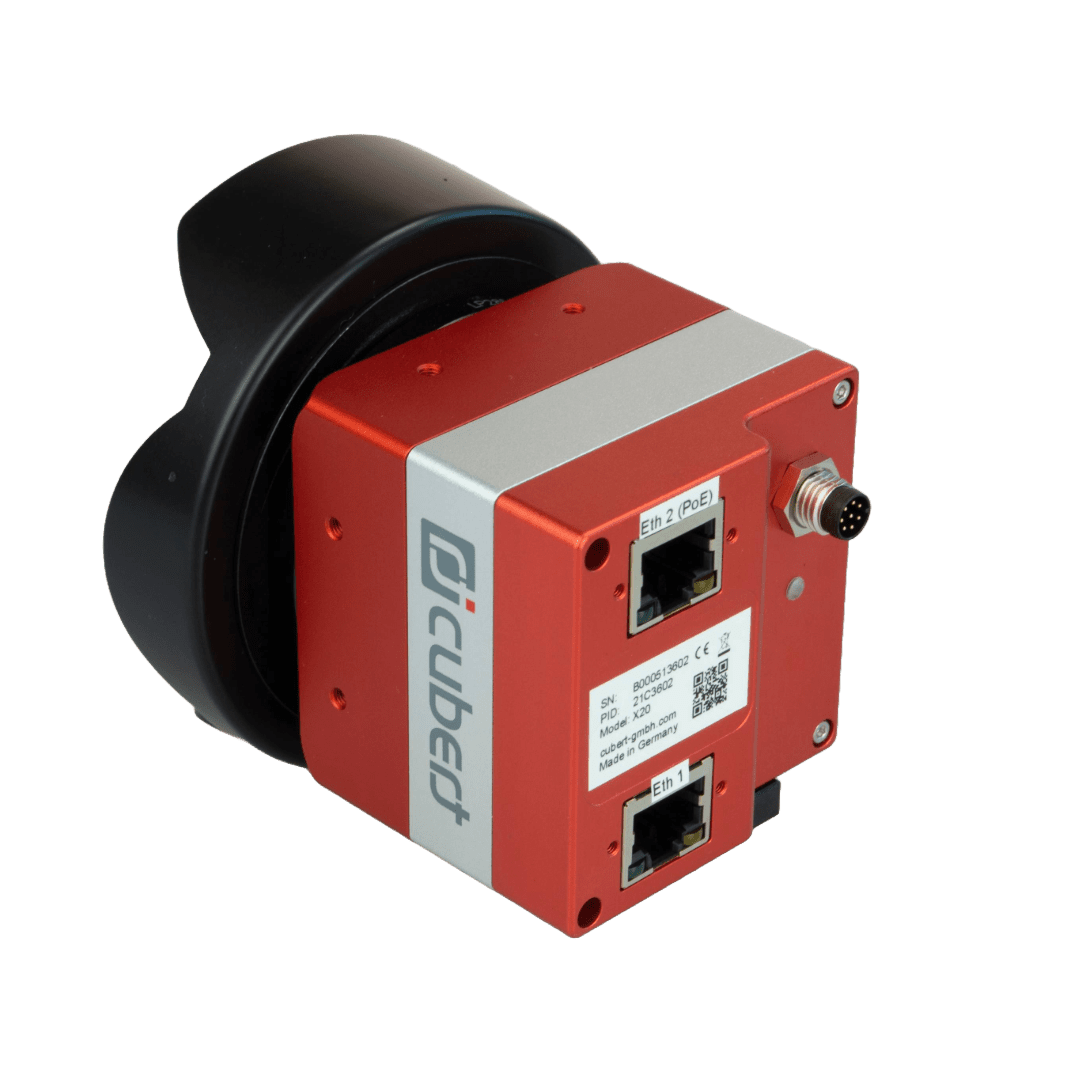

ULTRIS X20 | UV-VIS-NIR Hyperspectral Imaging Camera - Image 2

ULTRIS X20 | UV-VIS-NIR Hyperspectral Imaging Camera

Max Resolution

410 x 410 pixels

Wavelength Range

350 - 1000 nm

Number of Bands

164

Field of View

35°

Dimensions

60 x 60 x 57 mm

Weight

350 g

Tag: CAMERAS: Multi/Hyperspectral Brand: Cubert

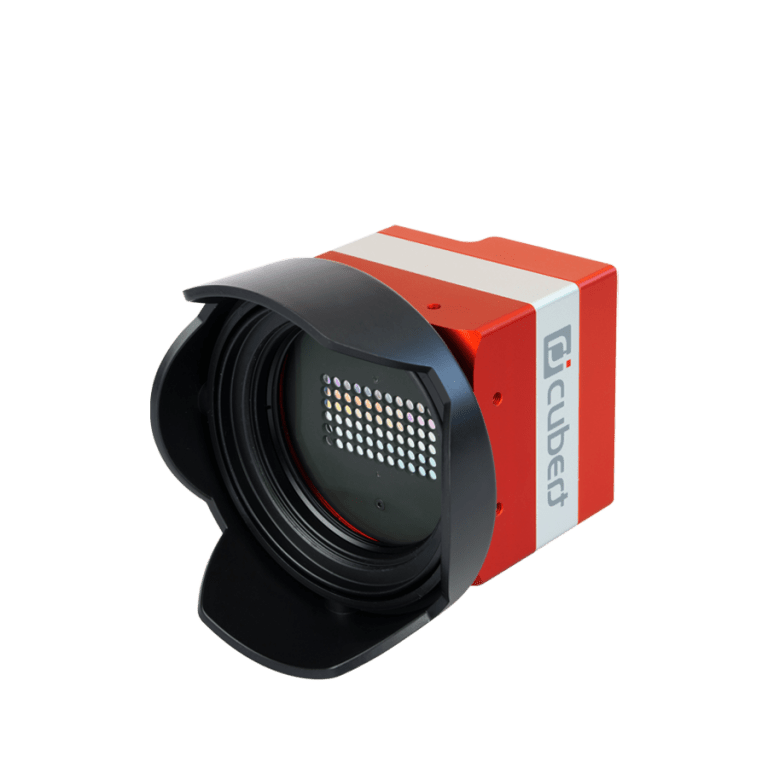

ULTRIS X20: Real-Time UV-VIS-NIR Hyperspectral Imaging Camera

Experience the next generation of spectral analysis with the ULTRIS X20, Cubert’s groundbreaking premium scientific-grade hyperspectral camera. As the world’s first UV-VIS-NIR hyperspectral video imager, the ULTRIS X20 captures pristine spectral data cubes instantly, eliminating the need for cumbersome post-shift scanning or image combination. Ideal for scientists and engineers, this flexible, user-friendly, and time-efficient powerhouse delivers unparalleled precision for diverse applications.

Key Features & Benefits:

Expansive Wavelength Range: Covers 350-1000 nm, providing comprehensive spectral insights.
High-Resolution Imaging: Boasts a native resolution of 410×410 spatial pixels with 164 spectral bands, generating an impressive 168,000 spectra per frame.
Real-Time Data Acquisition: Experience true snapshot capability with global shutter technology, producing clean hyperspectral images directly out of the box at a maximum frame rate of 8 Hz.
Exceptional Image Quality: Based on light field technology with optical bandpass filters, ensuring unequaled quality with >90% transmission and OD4 blocking to minimize noise and straylight.
Constant Spectral FWHM: Provides a constant 10 nm FWHM across the entire spectrum, enabling true equidistant and equally broad band settings.
Compact & Robust Design: Weighing only 350g and measuring 60x60x57mm, the ULTRIS X20 is highly portable. Optional IP66 industrial and IP68 underwater housings are available for versatile applications, including UAS-based mapping and underwater use.

Technical Specs
Technology	Light Field
Readout	Global Shutter
Spatial Resolution	410x410 pixels
Wavelength Range	350-1000 nm
Spectral Bands	164
Spectral Sampling	4 nm
FWHM	Constant 10 nm
Spectral Data Points	164 x 168,000 (24.5 M)
Bandpass Filter	Mosaic
Integration Time	0.1-1000 ms
FOV (Field of View)	35°
Data Depth	12 bit
Max Frame Rate	8 Hz
Data Link	GigE
Sensor	CMOSIS CMB20000
File Size Processed	<55 MB
Weight	350 g
Dimensions	60 x 60 x 57 mm
Options	Industrial Housing (IP66) / Underwater Housing (IP68)

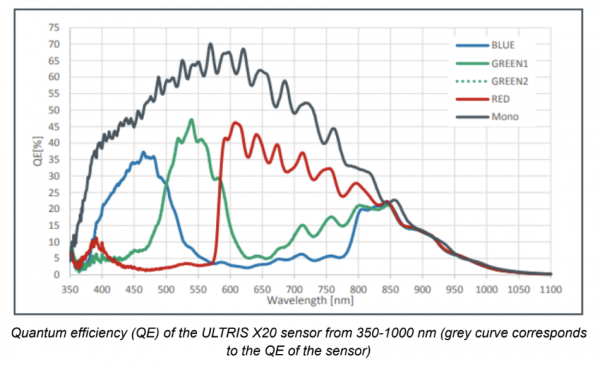

Ultris x20 QE curve

ULTRIS X20 Applications

- Aerial Mapping and Remote Sensing: Its lightweight design (under 350g) and snapshot capabilities make it ideal for UAS-based mapping and environmental monitoring, providing detailed insights into vegetation health, water quality, and land conditions. The ULTRIS X20 Plus, with its dual-sensor system, further enhances aerial mapping applications by enabling pansharpened imagery for higher spatial resolution.
- Biomedical Imaging: The camera supports physicians with advanced imaging information, allowing for new dimensions of image analysis, including real-time monitoring of blood oxygenation and blood flow. It is used in groundbreaking projects for medical diagnostics and research.
- Food Quality Analysis: Hyperspectral imaging enables contact-free analysis of food quality on processing lines, assisting in foreign object detection and ensuring product safety.
- Scientific Research: The ULTRIS X20 provides high spectral resolution in the UV-VIS-NIR range, making it suitable for a wide array of scientific investigations requiring precise and real-time data capture across disciplines like nature-focused sciences, engineering, and life sciences.
- Industrial Inspection and Machine Vision: It is used for non-destructive testing, quality control, and various other industrial applications, including identifying counterfeit currency or verifying authenticity.
- Cultural Heritage Preservation: The detailed spectral imaging capabilities can assist in the analysis and preservation of artworks and historical artifacts.
- Pharmaceuticals: Supports analysis and quality control of pharmaceutical products.
- Surveillance and Security: Enhances surveillance capabilities by detecting and monitoring unique spectral signatures for tracking items and verifying authenticity.

Datasheet

ULTRIS X20 Datasheet

STEP Files

ULTRIS X20 Standard Lightweight Housing IP40

ULTRIS X20 Industrial Housing IP65

ULTRIS X20 Waterproof Housing IP688

Catalogs

Cubert Product Catalog

Axiom Optics Camera Catalog

CUVIS Software

The ULTRIS X20 is seamlessly integrated with Cubert’s CUVIS Software, the foundational platform for Cubert’s hyperspectral imaging solutions. CUVIS combines advanced capabilities with exceptional ease of use, simplifying the complexities of hyperspectral imaging while providing powerful tools for real-time data acquisition and analysis. It offers a robust set of features, including customizable settings, white and dark current referencing, and multiple operating modes to ensure accurate and efficient imaging across various applications. CUVIS provides tools for advanced processing directly within its intuitive interface, allowing users to utilize plugins for specific imaging needs, calculate and display custom spectral indices, and efficiently record, process, and save raw data in formats like ENVI and TIFF. Tailored for both standalone use and incorporation into larger workflows, CUVIS is built to support AI integration and emerging technologies. For seamless integration into your established processes, a Software Development Kit (SDK) with wrappers for C++ and Python is also available.

Flexible Housing Options

Standard Housing: The base model of the ULTRIS X20 comes with its standard housing, which is compact and lightweight, with dimensions of $60 \times 60 \times 57 mm$ and a weight of 350g.
Industrial Housing (IP66): An optional housing provides IP66 protection. This means it is dust-tight and protected against powerful water jets, making it suitable for demanding industrial environments.

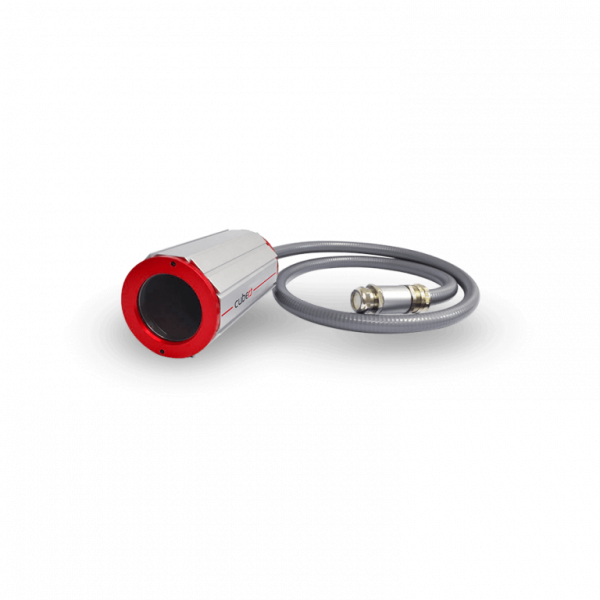

Underwater Housing (IP68): Another optional housing offers IP68 protection. This rating ensures the camera is dust-tight and can be continuously submerged in water, enabling versatile applications including underwater use.

Description
Additional information

ULTRIS X20: Real-Time UV-VIS-NIR Hyperspectral Imaging Camera

Experience the next generation of spectral analysis with the ULTRIS X20, Cubert’s groundbreaking premium scientific-grade hyperspectral imaging camera. As the world’s first UV-VIS-NIR hyperspectral video imager, the ULTRIS X20 captures pristine spectral data cubes instantly, eliminating the need for cumbersome post-shift scanning or image combination. Ideal for scientists and engineers, this flexible, user-friendly, and time-efficient powerhouse delivers unparalleled precision for diverse applications.

Key Features & Benefits:

Expansive Wavelength Range: Covers 350-1000 nm, providing comprehensive spectral insights.
High-Resolution Imaging: Boasts a native resolution of 410×410 spatial pixels with 164 spectral bands, generating an impressive 168,000 spectra per frame.
Real-Time Data Acquisition: Experience true snapshot capability with global shutter technology, producing clean hyperspectral images directly out of the box at a maximum frame rate of 8 Hz.
Exceptional Image Quality: Based on light field technology with optical bandpass filters, ensuring unequaled quality with >90% transmission and OD4 blocking to minimize noise and straylight.
Constant Spectral FWHM: Provides a constant 10 nm FWHM across the entire spectrum, enabling true equidistant and equally broad band settings.
Compact & Robust Design: Weighing only 350g and measuring 60x60x57mm, the ULTRIS X20 is highly portable. Optional IP66 industrial and IP68 underwater housings are available for versatile applications, including UAS-based mapping and underwater use.

Hyperspectral Imaging Camera Applications

- Aerial Mapping and Remote Sensing: Its lightweight design (under 350g) and snapshot capabilities make it ideal for UAS-based mapping and environmental monitoring, providing detailed insights into vegetation health, water quality, and land conditions. The ULTRIS X20 Plus, with its dual-sensor system, further enhances aerial mapping applications by enabling pansharpened imagery for higher spatial resolution.
- Biomedical Imaging: The camera supports physicians with advanced imaging information, allowing for new dimensions of image analysis, including real-time monitoring of blood oxygenation and blood flow. It is used in groundbreaking projects for medical diagnostics and research.
- Food Quality Analysis: Hyperspectral imaging enables contact-free analysis of food quality on processing lines, assisting in foreign object detection and ensuring product safety.
- Scientific Research: The ULTRIS X20 provides high spectral resolution in the UV-VIS-NIR range, making it suitable for a wide array of scientific investigations requiring precise and real-time data capture across disciplines like nature-focused sciences, engineering, and life sciences.
- Industrial Inspection and Machine Vision: It is used for non-destructive testing, quality control, and various other industrial applications, including identifying counterfeit currency or verifying authenticity.
- Cultural Heritage Preservation: The detailed spectral imaging capabilities can assist in the analysis and preservation of artworks and historical artifacts.
- Pharmaceuticals: Supports analysis and quality control of pharmaceutical products.
- Surveillance and Security: Enhances surveillance capabilities by detecting and monitoring unique spectral signatures for tracking items and verifying authenticity.

CUVIS Software

The ULTRIS X20 hyperspectral imaging camera is seamlessly integrated with Cubert’s CUVIS Software, the foundational platform for Cubert’s hyperspectral imaging solutions. CUVIS combines advanced capabilities with exceptional ease of use, simplifying the complexities of hyperspectral imaging while providing powerful tools for real-time data acquisition and analysis. It offers a robust set of features, including customizable settings, white and dark current referencing, and multiple operating modes to ensure accurate and efficient imaging across various applications. CUVIS provides tools for advanced processing directly within its intuitive interface, allowing users to utilize plugins for specific imaging needs, calculate and display custom spectral indices, and efficiently record, process, and save raw data in formats like ENVI and TIFF. Tailored for both standalone use and incorporation into larger workflows, CUVIS is built to support AI integration and emerging technologies. For seamless integration into your established processes, a Software Development Kit (SDK) with wrappers for C++ and Python is also available.

Flexible Housing Options

Standard Housing: The base model of the ULTRIS X20 comes with its standard housing, which is compact and lightweight, with dimensions of $60 \times 60 \times 57 mm$ and a weight of 350g.
Industrial Housing (IP66): An optional housing provides IP66 protection. This means it is dust-tight and protected against powerful water jets, making it suitable for demanding industrial environments.
Underwater Housing (IP68): Another optional housing offers IP68 protection. This rating ensures the camera is dust-tight and can be continuously submerged in water, enabling versatile applications including underwater use.
