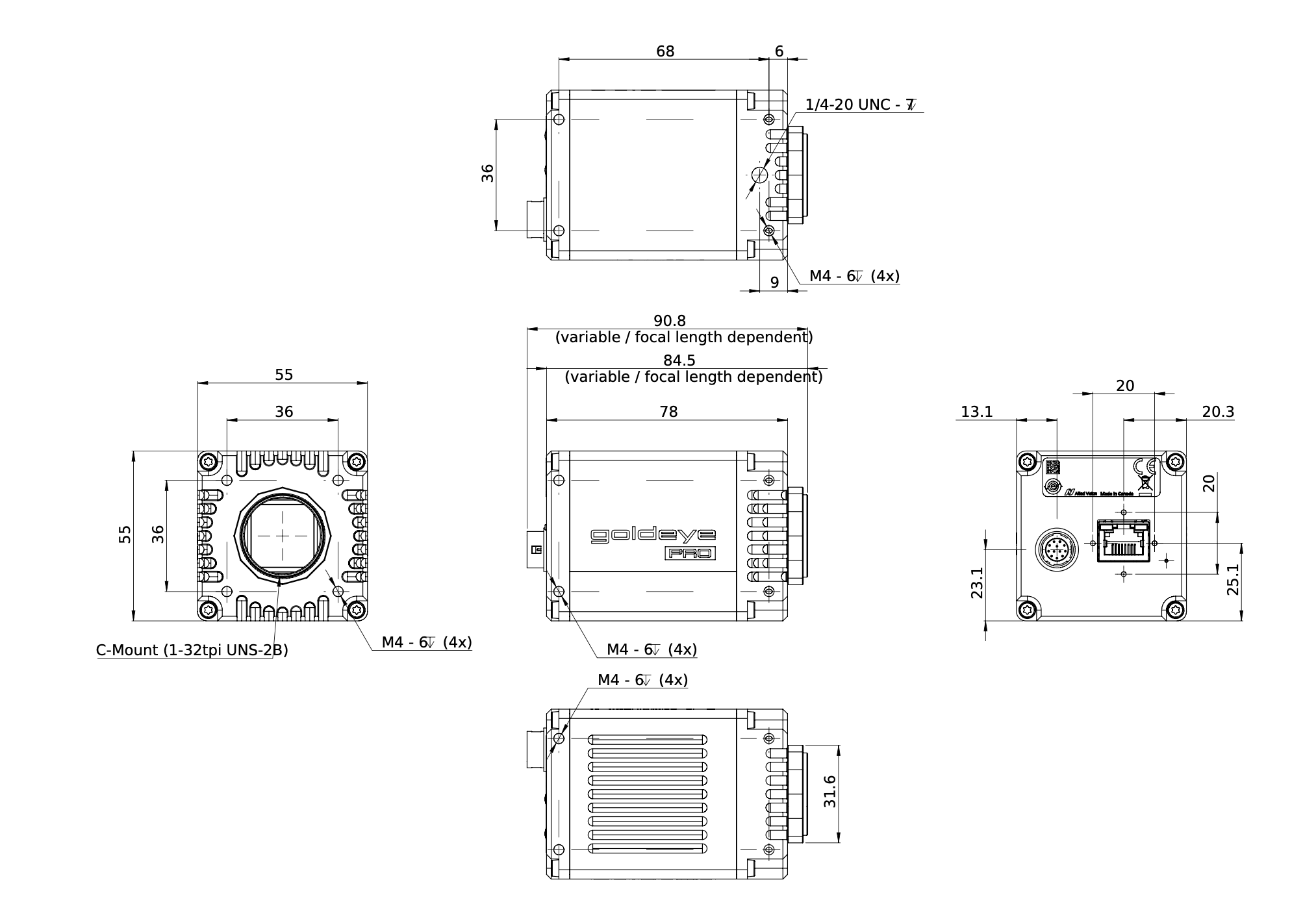

DrawingsThe new Goldeye Pro SWIR camera series is designed to elevate SWIR imaging systems to new heights in throughput, image quality, and performance. Featuring the TEC versions of Sony’s IMX992/993 SenSWIR™ sensors, the Goldeye Pro G5-530 TEC1 and G5-320 TEC1 deliver exceptional sensitivity across a spectral range of 400 nm to 1,700 nm. These cameras enable high-resolution SWIR imaging with unparalleled detail and high frame rates, setting a new benchmark in imaging performance. Equipped with a GigE Vision-compliant 5 Gbps interface, they provide optimal bandwidth for cutting-edge SWIR sensor solutions while ensuring efficient sensor temperature stabilization through a thermoelectric cooler (TEC).

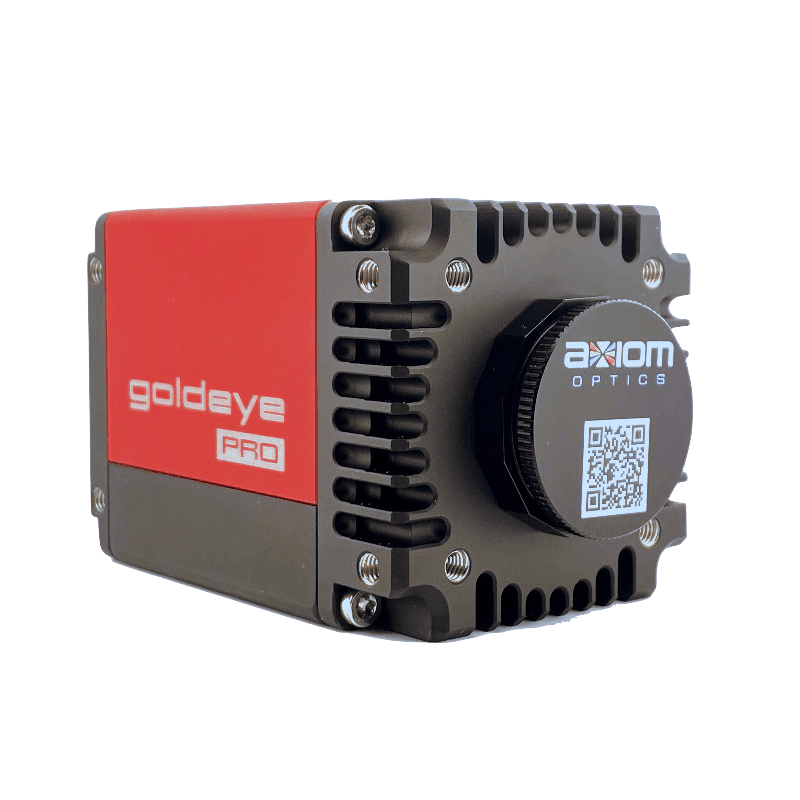

Goldeye Pro cameras | 5 GigE VSWIR w/ IMX992, IMX993
Compatibility
Backwards compatible with Goldeye design
Interface
5 GigE Ethernet
Sensor Type
Sony SenSWIR IMX992 & IMX993
Cooling
TEC1 (max. ΔT = 25 K)
Operating systems & API
Windows, Linux & Linux for ARM - APIs for C,C++,.NET & Python
Goldeye Pro 5 GigE VSWIR TEC1 Cameras
Product Highlights
- 5GigE Vision interface, GenICam-compliant feature control, and a free comprehensive GUI-viewer application provide a plug & play feeling when evaluating Goldeye Pro cameras, speeding up the integration into any system.
- Automatic on-board image correction and stabilized sensor cooling without a fan ensure best possible imaging results even when the camera configuration changes.
- Lockable connectors and an extended operating temperature range enable secure operation under harsh conditions.
- Power over Ethernet (PoE) and comprehensive, configurable I/O control options simplify the connection of Goldeye Pro cameras to your host system and the synchronization with other system components.
- Ability to update firmware in the field will simplify the systems’ maintenance.
Image Control Features
- Black level
- DPC (defect pixel correction)
- High Conversion Gain
- NUC (non-uniformity correction)
- ROI (regions of interest)
- Speed-to-noise priority (IntegrationMode)
Camera Control Features
- Acquisition frame rate
- Bandwidth control
- Firmware update in the field
- I/O and trigger control
- Readout modes (SensorBitDepth)
- User sets
Sensor temperature control
- Temperature monitoring
- Sensor temperature control (automatic or manual)
| Sensitivity | 400-1700 nm (VSWIR) |
|---|---|
| Sony Sensor | IMX992, IMX993 |
| Material | InGaAs |
| Resolution | 2592 × 2056 (5.3 MP), 2080 × 1544 (3.2 MP) |
| Frame Rate | 100 – 250 fps |
| Pixel Pitch | 3.45 µm x 3.45 µm |
| Cooling | TEC-cooled |
| Interface | 5 GigE |
