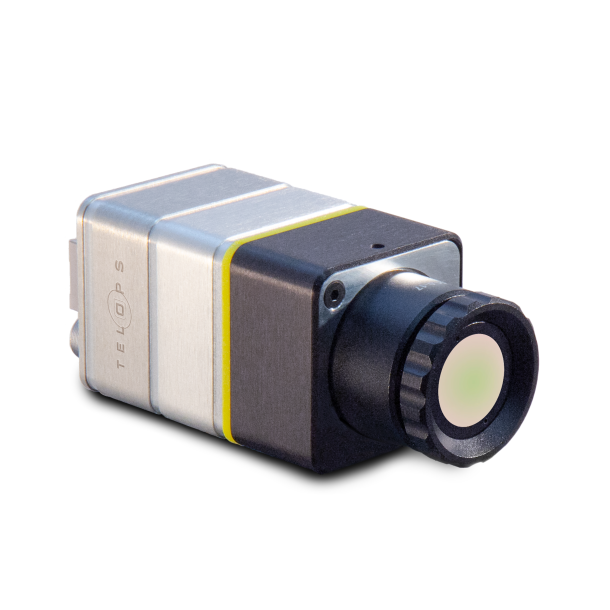

RADIA V60 | Uncooled LWIR Thermography Camera

Detector Type

Uncooled Microbolometer

Detector Format

640 x 480 pixels

Spectral Range

8.0 – 14.0 µm

Detector Pitch

12 μm

Optical Aperture

F/1

Frame Rate

60 Hz

Tag: Brand:

Advanced Industrial Thermal Camera for Precise Thermal Imaging

The Radia V60 is a compact, uncooled industrial thermal long-wave infrared (LWIR) camera meticulously engineered to deliver exceptional image quality and dependable scientific data. Designed with user-friendliness and simplicity at its core, the Radia V60 merges real-time image capture functionality with a permanent, science-grade radiometric calibration. This combination ensures that users, regardless of their experience level, can acquire and utilize accurate thermal information.

This industrial thermal camera is built to be a versatile tool. Its uncooled design contributes to its small form factor, low weight, and efficient power consumption, making it highly suitable for integration into portable systems and scenarios where space is limited. The Radia V60’s strength lies in its ability to provide not just thermal images, but calibrated radiometric data. This calibration is crucial for applications requiring precise temperature measurements, such as quality control in manufacturing, predictive maintenance to prevent equipment failure, and research and development activities.

Key Features:

  • Compact and Lightweight Design: The camera’s small form factor and low weight (250 grams) enable easy integration into portable systems and installations with limited space.

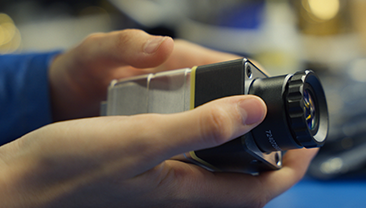

  • Wide Selection of Interchangeable Lenses: The Radia V60 supports a comprehensive selection of user-swappable lenses, offering versatility to adapt to different industrial application needs. Lens options include standard, wide-angle, and telephoto lenses to capture thermal data from various distances and fields of view.
  • Permanent Radiometric Calibration: Radiometric calibration is performed at the Telops factory, ensuring reliable and accurate temperature measurements throughout the camera’s operation. This calibration is essential for applications where precise temperature data is critical.
  • High Sensitivity: The Radia V60 boasts a typical NETD (Noise Equivalent Temperature Difference) of 45 mK, enabling the detection of subtle temperature variations.
  • Seamless Compatibility with RevealIR Software: The camera is designed for seamless compatibility with Telops RevealIR software, providing full camera control, data acquisition, processing, and analysis capabilities.
  • Wide Temperature Range Options: The Radia V60 offers various calibration ranges, including a high-temperature option up to 1100°C, making it suitable for diverse industrial applications.
  • GigE Data Transfer: High-speed GigE data transfer ensures efficient communication and integration with other systems.

Advanced Industrial Thermal Camera for Precise Thermal Imaging

The Radia V60 is a compact, uncooled industrial thermal long-wave infrared (LWIR) camera meticulously engineered to deliver exceptional image quality and dependable scientific data. Designed with user-friendliness and simplicity at its core, the Radia V60 merges real-time image capture functionality with a permanent, science-grade radiometric calibration. This combination ensures that users, regardless of their experience level, can acquire and utilize accurate thermal information.

This industrial thermal camera is built to be a versatile tool. Its uncooled design contributes to its small form factor, low weight, and efficient power consumption, making it highly suitable for integration into portable systems and scenarios where space is limited. The Radia V60’s strength lies in its ability to provide not just thermal images, but calibrated radiometric data. This calibration is crucial for applications requiring precise temperature measurements, such as quality control in manufacturing, predictive maintenance to prevent equipment failure, and research and development activities.

Key Features:

  • Compact and Lightweight Design: The camera’s small form factor and low weight (250 grams) enable easy integration into portable systems and installations with limited space.
  • Wide Selection of Interchangeable Lenses: The Radia V60 supports a comprehensive selection of user-swappable lenses, offering versatility to adapt to different industrial application needs. Lens options include standard, wide-angle, and telephoto lenses to capture thermal data from various distances and fields of view.
  • Permanent Radiometric Calibration: Radiometric calibration is performed at the Telops factory, ensuring reliable and accurate temperature measurements throughout the camera’s operation. This calibration is essential for applications where precise temperature data is critical.
  • High Sensitivity: The Radia V60 boasts a typical NETD (Noise Equivalent Temperature Difference) of 45 mK, enabling the detection of subtle temperature variations.
  • Seamless Compatibility with RevealIR Software: The camera is designed for seamless compatibility with Telops RevealIR software, providing full camera control, data acquisition, processing, and analysis capabilities.
  • Wide Temperature Range Options: The Radia V60 offers various calibration ranges, including a high-temperature option up to 1100°C, making it suitable for diverse industrial applications.
  • GigE Data Transfer: High-speed GigE data transfer ensures efficient communication and integration with other systems.

Applications of the Radia V60 Industrial Thermal Camera:

The Radia V60 industrial thermal camera is a valuable tool for a wide range of industrial applications, providing critical thermal insights for analysis and decision-making:

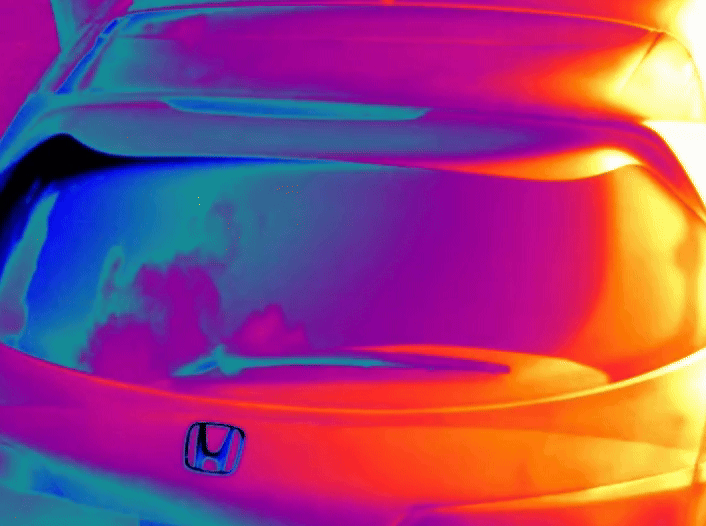

  • Automotive R&D: Thermal measurements for performance testing and safety analysis, ensuring the reliability and efficiency of automotive components and systems.
  • Train Inspection: Monitoring mechanical and electrical components for heat anomalies, enabling proactive maintenance and preventing potential failures in railway operations.

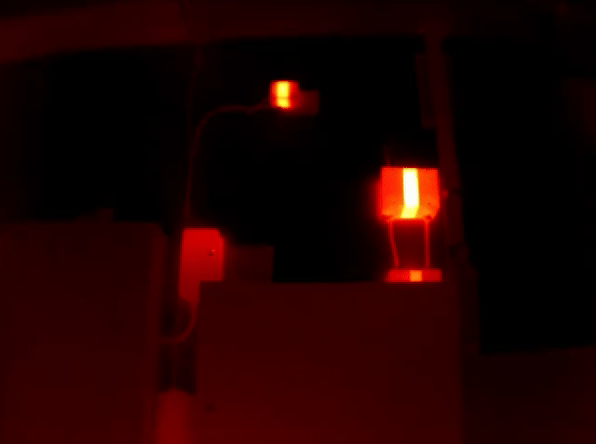

  • Predictive Maintenance: Early detection of equipment faults to prevent downtime in manufacturing and industrial settings, minimizing operational disruptions and costs.
  • Quality Control: Ensuring product consistency and identifying defects through thermal imaging, maintaining high standards in manufacturing processes.
  • Fire Protection Engineering: Assessing heat risks and improving fire safety strategies in buildings and industrial facilities, enhancing safety and preventing accidents.
  • High-sensitivity General Purpose Infrared Thermography: Versatile thermal imaging for various applications, including energy audits and condition monitoring.
  • Process Monitoring: Analyzing and optimizing thermal processes in manufacturing to improve efficiency and reduce waste.

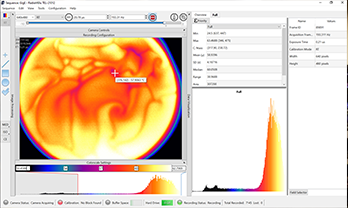

Telops RevealIR Software

When paired with Telops RevealIR camera control software, the Radia V60 becomes a powerful solution for thermal analysis. The RevealIR software provides users across all experience levels with the tools needed to acquire, process, and analyze calibrated thermal imagery effectively. This software enhances the camera’s capabilities, enabling users to extract meaningful insights from thermal data and make informed decisions. The GigE data transfer capability of the Radia V60 further facilitates its integration into industrial networks and control systems, ensuring seamless data flow for real-time monitoring and analysis.

Radia V60 Industrial Thermal Camera Datasheet

Radia Family Brochure

Camera Catalog

Accessories

  • Wide Angle Lens (7.5mm): For wide-field-of-view measurements
  • Standard Lens: For medium-field-of-view measurements
  • Telephoto Lens (25-mm): For narrow-field-of-view measurements
