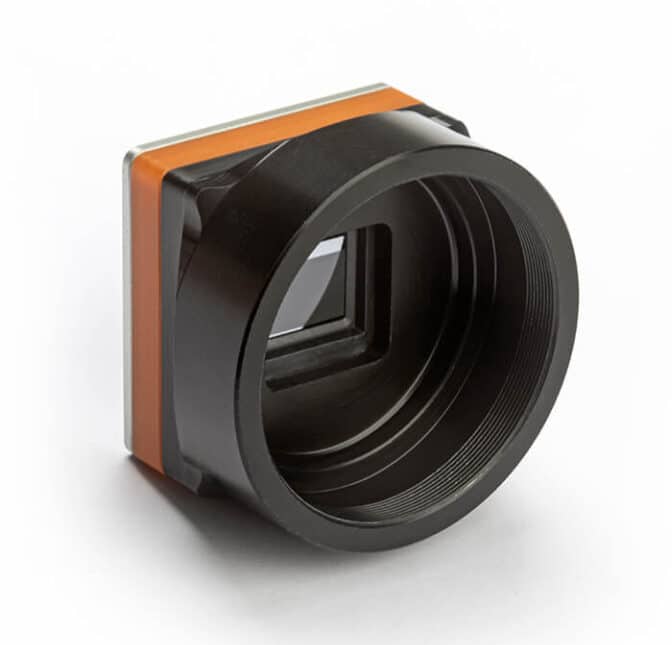

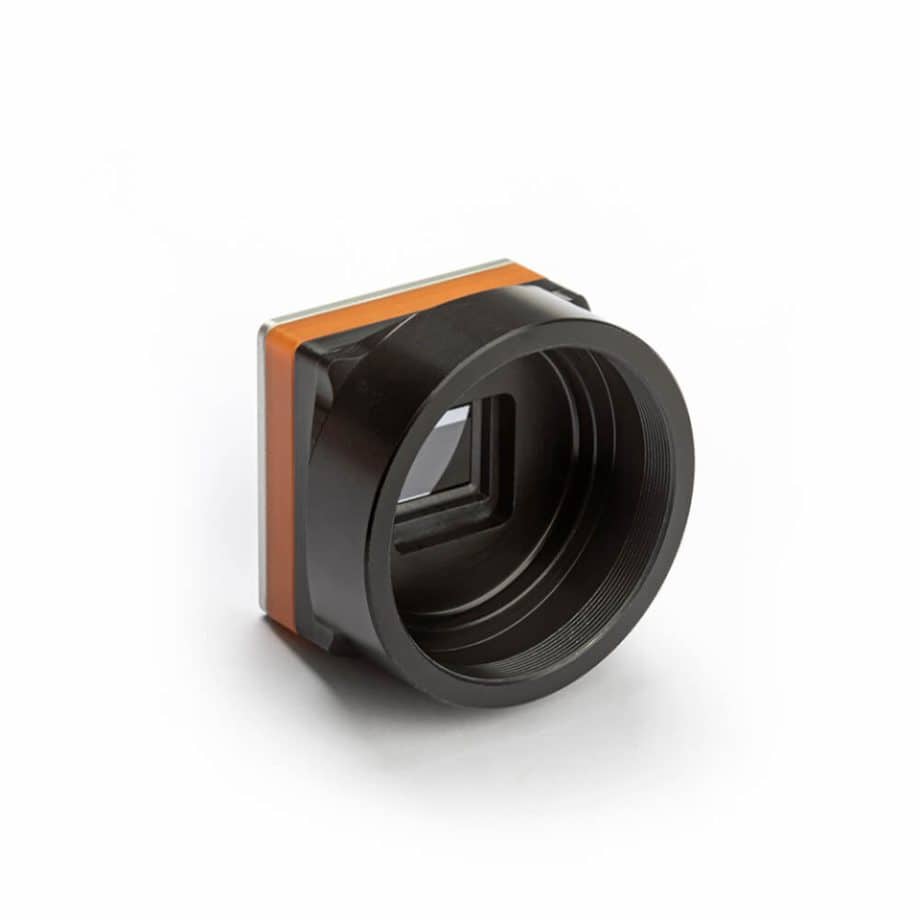

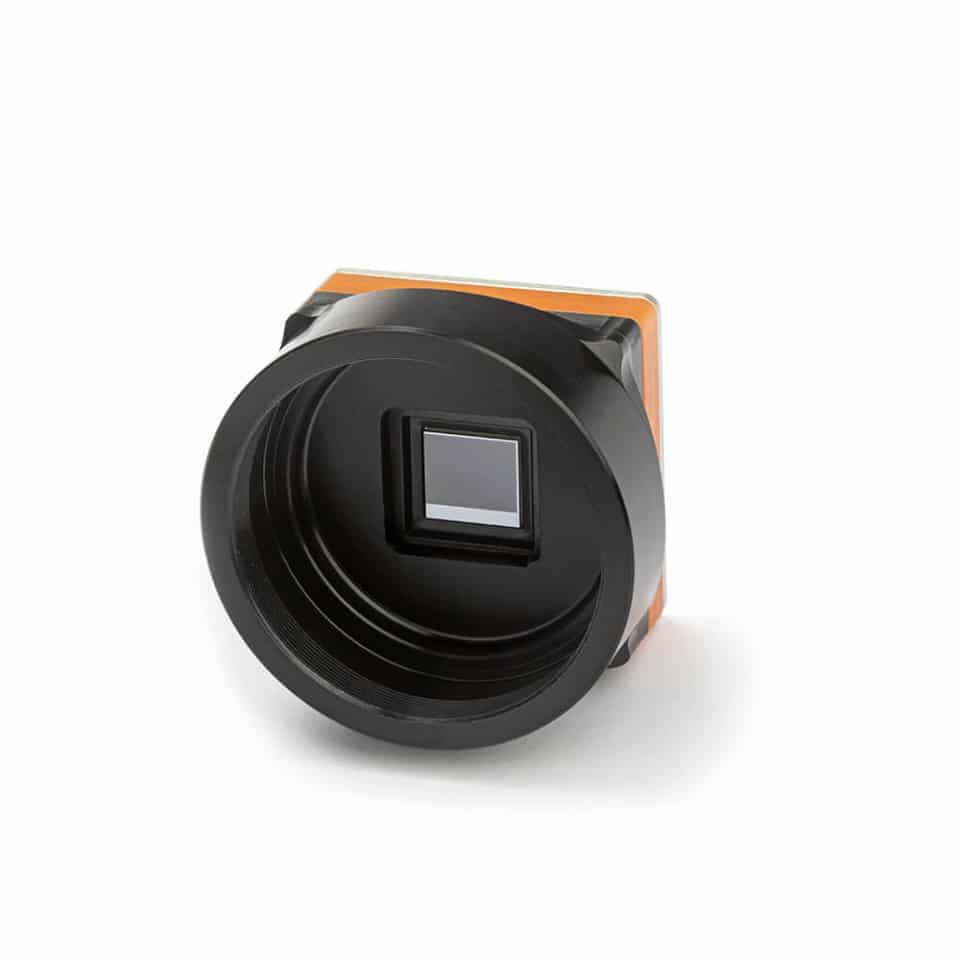

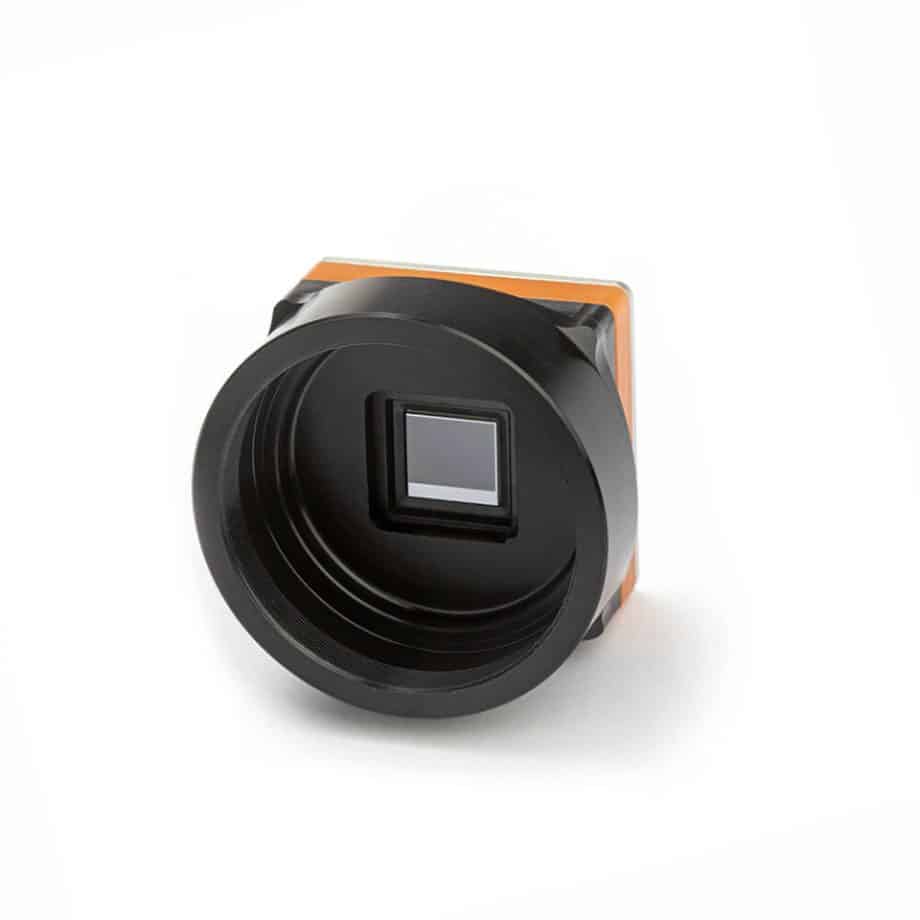

Dione 640 CAM | VGA Uncooled LWIR Camera

Sensor Type

Microbolometer

Resolution - pixel pitch

640 x 480 - 12 µm

Sensitivity

8 - 14 µm

Shutter Mode

Rolling shutter

NEDT

<50 [at 30 Hz, 300 K, F/1]

Interface

CameraLink, MIPI CSI-2, UVC

Ultra-compact, uncooled thermal imaging core

The Dione 640 CAM series is based on an uncooled 12 μm pitch microbolometer detector with a 640×480 resolution and NETD of less than 60 mK.

The camera cores are optimized for low SWaP (Size, Weight and Power). The Dione 640 CAM is both lightweight and small. It utilizes Xenics image enhancement for advanced image processing while keeping power consumption low.

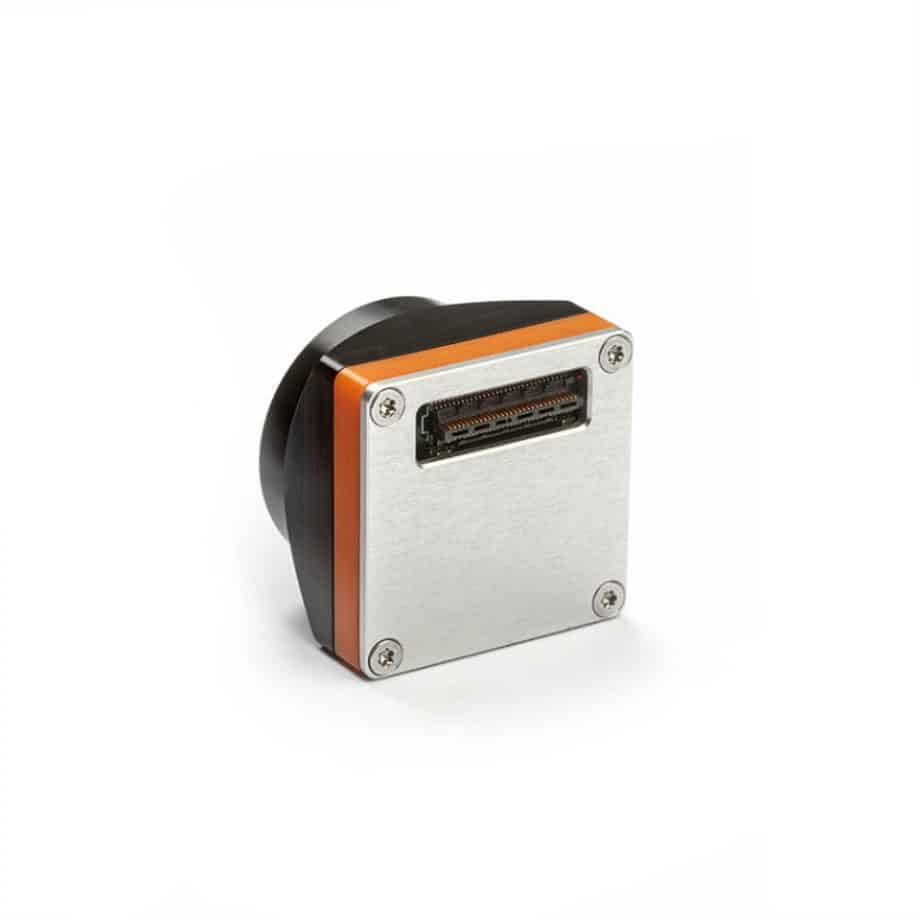

All Dione 640 versions have the same SAMTEC ST5 connector and are GenICam compliant. The Dione 640 CAM is available with multiple lens configurations, either M24 (Dione 640 CAM M24) or M34 (Dione 640 CAM M34).

The ultra-compact Dione 640 CAM series find application in safety and security systems, as well as in industrial thermal imaging systems.

Benefits & Features
• State-of-the-art 640×480 microbolometer detector with 12 μm pitch
• Low SWaP (Size, Weight and Power)
• GenICam compliant
• Shutterless and uncooled operation
• Availability of multiple lenses adds flexibility to integration programs

Ultra-compact, uncooled thermal imaging core

The Dione 640 CAM series is based on an uncooled 12 μm pitch microbolometer detector with a 640×480 resolution and NETD of less than 50 mK.

The camera cores are optimized for low SWaP (Size, Weight and Power). The Dione 640 CAM is both lightweight and small. It utilizes Xenics image enhancement for advanced image processing while keeping power consumption low.

All Dione 640 versions have the same SAMTEC ST5 connector and are GenICam compliant. The Dione 640 CAM is available with multiple lens configurations, either M24 (Dione 640 CAM M24) or M34 (Dione 640 CAM M34).

The ultra-compact Dione 640 CAM series find application in safety and security systems, as well as in industrial thermal imaging systems.

Benefits & Features
• State-of-the-art 640×480 microbolometer detector with 12 μm pitch
• Low SWaP (Size, Weight and Power)
• GenICam compliant
• Shutterless and uncooled operation
• Availability of multiple lenses adds flexibility to integration programs

Sensitivity

8 – 14 µm
Material

VOx
Resolution

640 x 480
Frame Rate

10 – 100 fps
Pixel Pitch

12 µm x 12 µm
Cooling

Uncooled / TEC-less
Type

Camera
Interface

USB, Camera Link, MIPI CSI-2
Array Type

2D array / areascan
