IRIS 9 sCMOS Camera

IRIS 9 | Low Noise sCMOS Camera

Sensor Technology

sCMOS

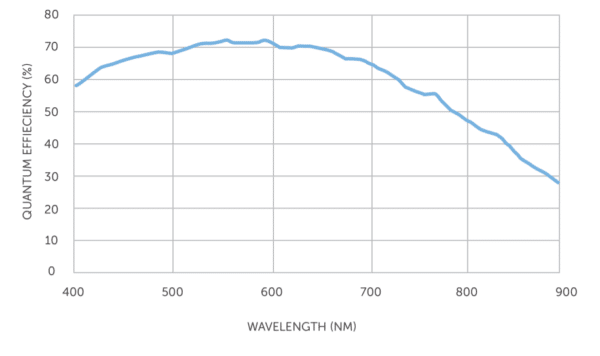

Quantum Efficiency

73%

Readout Noise

1.5 e-

Resolution

4.25 µm x 4.25 µm pixels

Speed

30 FPS

Interface

PCle, USB 3.0

 Iris 9 Scientific CMOS (sCMOS) camera is designed to deliver extremely high resolution images for live cell imaging applications. Iris 9 delivers a 9 Megapixel sensor with a 17.8 mm field of view ensuring it can maximize amount of data in a single frame.


 Key Features

Resolution and Pixel Size

The small, 4.25 µm pixels provide highly detailed images across the imaging plane, which allows for the highest resolution when using lower magnification objectives.

> Learn More

Calcium Imaging sample

sCMOS Sensitivity

The low noise and high quantum efficiency across a wide range of wavelengths produces higher quality images with lower exposure times than conventional CCD cameras.

Zstack Composite image

Advanced Triggering

Programmable Scan Mode provides increased control over the rolling shutter exposure and read-out functionality of CMOS sensors by providing access to the sensor timing settings to allow optimization around applications that require control over the line time.

> Learn More

Programmable Scan Mode image

Superior Background Quality

The Iris 9 features Pattern Noise Reduction Technology and Correlated Noise Reduction Technology to ensure that it delivers clean, pattern-free images with minimal pixel defects, delivering improved image quality in low light conditions.

> Learn More


Compact Form Factor

The Iris 9 is a compact 76 x 76 x 88 mm with optimized cooling for the size, ideal for integration into new or existing configurations.

Iris 9 Blueprint image



Iris 9 high resolution Scientific CMOS (sCMOS) camera is designed to deliver extremely high resolution images for live cell imaging applications.

Iris 9 delivers a 9 Megapixel sensor with a 17.8 mm field of view ensuring it can maximize amount of data in a single frame.

  • 73% Quantum Efficiency
  • 4.25 µm x 4.25 µm Pixel Area
  • 9 Megapixel

Key Features

high res scmos

Resolution and Pixel Size

The small, 4.25 µm pixels provide highly detailed images across the imaging plane, which allows for the highest resolution when using lower magnification objectives.

> Learn More

Zstack Composite image

sCMOS Sensitivity

The low noise and high quantum efficiency across a wide range of wavelengths produces higher quality images with lower exposure times than conventional CCD cameras.

Programmable Scan Mode image

Advanced Triggering

Programmable Scan Mode provides increased control over the rolling shutter exposure and read-out functionality of CMOS sensors by providing access to the sensor timing settings to allow optimization around applications that require control over the line time.

> Learn More

Superior Background Quality

The Iris 9 high res scmos features Pattern Noise Reduction Technology and Correlated Noise Reduction Technology to ensure that it delivers clean, pattern-free images with minimal pixel defects, delivering improved image quality in low light conditions.

> Learn More

Iris 9 Blueprint image

Compact Form Factor

The Iris 9 high res scmos is a compact 76 x 76 x 88 mm with optimized cooling for the size, ideal for integration into new or existing configurations.

For another option with a larger sensor, check out the IRIS 15 | Low Noise sCMOS Camera

Spectral Range

VIS (400 – 750 nm), NIR (750 – 1000 nm)

Resolution

2960 x 2960 (8.8 MP)

Applications

Life Science

Manufacturer

Photometrics

Sensor Technology

sCMOS

Pixel Pitch

4.25 µm x 4.25 µm

Frame Rate

10 – 100 fps

Readout Noise

1 – 2 e-

Interface

USB, PCIe
