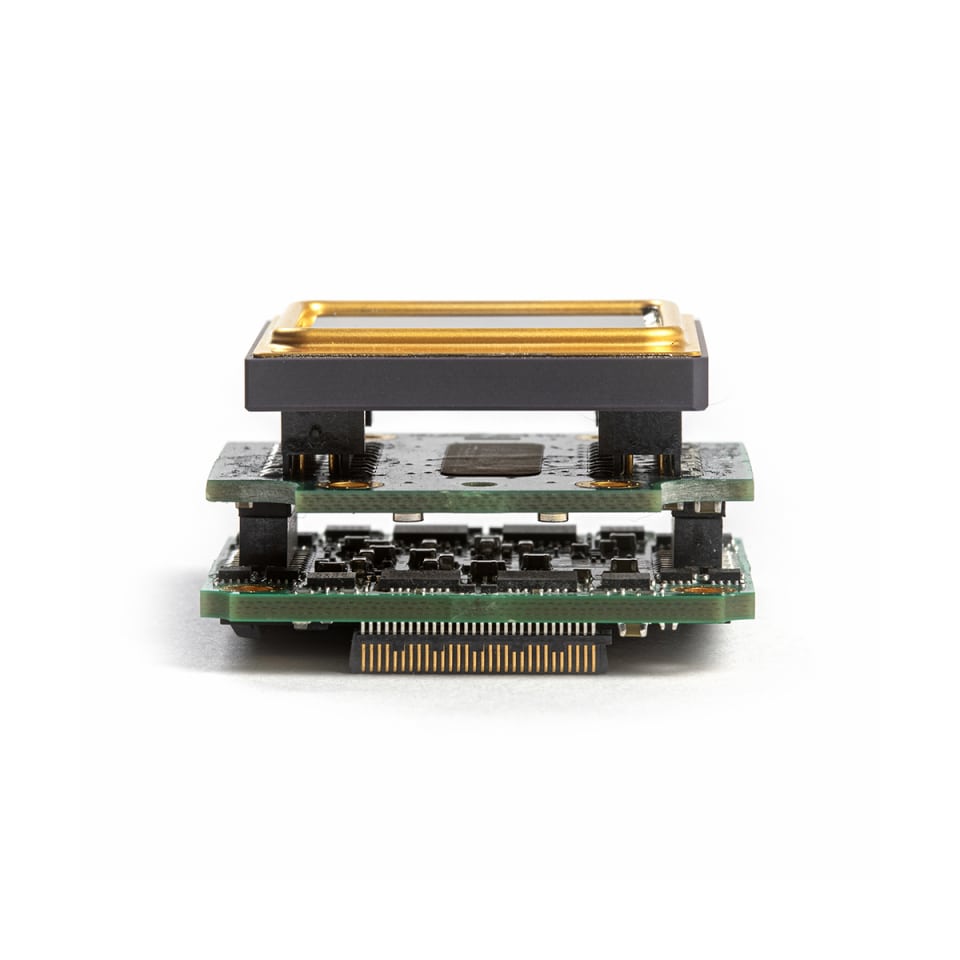

Dione-1280-OEM-02
thermal imaging camera core Dione 1280 OEM
thermal imaging camera core Dione 1280 OEM

Dione 1280 OEM | Low SWaP SXGA Thermal Camera Core

Sensor Type

Microbolometer - VOx

Resolution - pixel pitch

1280 x 1024 - 12 µm

Sensitivity

8 - 14 µm

Shutter Mode

Rolling shutter

NEDT

<60 [at 30 Hz, 300 K, F/1]

Interface

USB, MIPI or 16-bit DV

Very low latency & real trigger

Latency <100 µs for real-time information, accurate targeting and immediate reaction

Ultra-compact, uncooled thermal imaging core

The Dione 1280 OEM series is based on an uncooled 12 μm pitch microbolometer detector with a 1280 × 1024 resolution and NETD of less than 60 mK.

The cores are optimized for low SWaP (Size, Weight and Power). The overall size of the OEM core is 35 x 35 x 23.5 mm3 and weight is 27 gr. It utilizes Xenics image enhancement for advanced image processing while keeping power consumption low.

All Dione 1280 versions have the same SAMTEC ST5 connector and are GenICam compliant.

The ultra-compact Dione 1280 OEM series find application in safety and security systems, as well as in industrial thermal imaging systems.

Benefits & Features

• Low SWaP (Size, Weight and Power)
• GenICam compliant
• Shutterless and uncooled operation

Ultra-compact, uncooled

Ultra-compact, uncooled thermal imaging core

The Dione 1280 OEM series is based on an uncooled 12 μm pitch microbolometer detector with a 1280 × 1024 resolution and NETD of less than 60 mK.

The cores are optimized for low SWaP (Size, Weight and Power). The overall size of the OEM core is 35 x 35 x 23.5 mm3 and weight is 27 gr. It utilizes Xenics image enhancement for advanced image processing while keeping power consumption low.

All Dione 1280 versions have the same SAMTEC ST5 connector and are GenICam compliant.

The ultra-compact Dione 1280 OEM series find application in safety and security systems, as well as in industrial thermal imaging systems.

Benefits & Features
• State-of-the-art 1280 × 1024 microbolometer detector with 12 μm pitch
• Low SWaP (Size, Weight and Power)
• GenICam compliant
• Shutterless and uncooled operation

Sensitivity

8 – 14 µm
Material

VOx
Resolution

1280 x 1024 (SXGA – 1.3 MP)
Pixel Pitch

12 µm x 12 µm
Frame Rate Full Frame

60 Hz full frame
Cooling

Uncooled / TEC-less
Interface

USB, MIPI CSI-2, 16-bit DV
