DIONE S 1280 CAM LWIR Camera
DIONE S 1280 CAM LWIR Camera

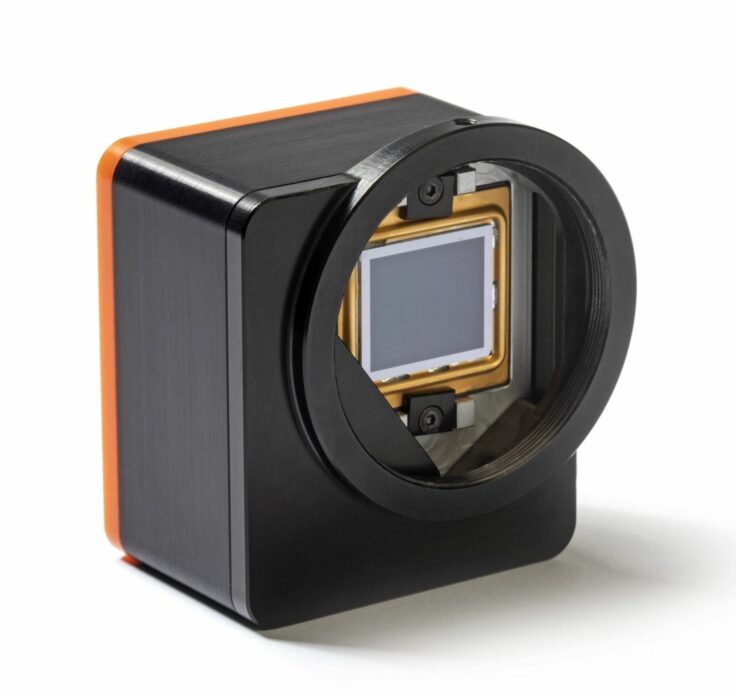

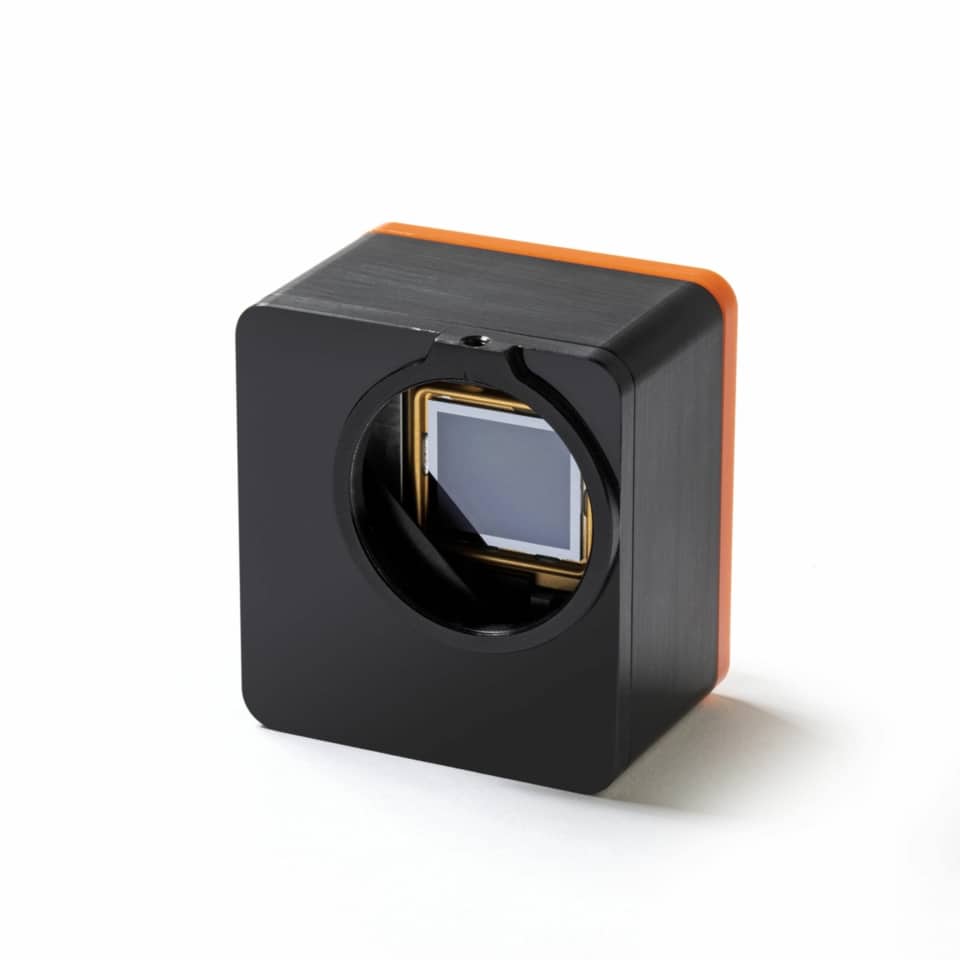

Dione S 1280 LWIR Camera Left View

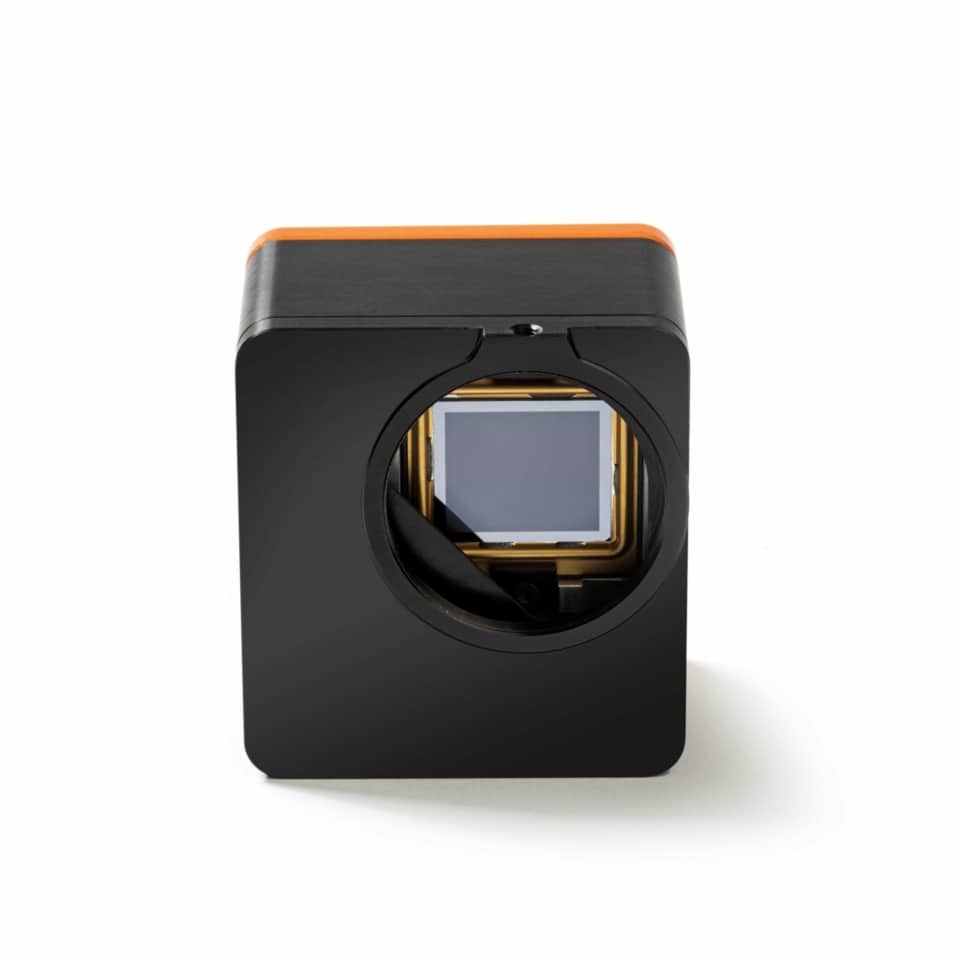

Dione S 1280 LWIR Camera Front View
Dione S 1280 LWIR Camera Rear View
Dione S 1280 CAM Series | High-Resolution shuttered LWIR camera
Dione S 1280 CAM Series | High-Resolution shuttered LWIR camera
DIONE S 1280 CAM LWIR Camera
Dione S 1280 LWIR Camera Left View
Dione S 1280 LWIR Camera Front View
Dione S 1280 LWIR Camera Rear View
DIONE S 1280 CAM LWIR Camera
Dione S 1280 LWIR Camera Left View
Dione S 1280 LWIR Camera Front View
Dione S 1280 LWIR Camera Rear View

Dione S 1280 CAM Series | High-Resolution shuttered LWIR camera

Sensor Type

Microbolometer

Resolution - pixel pitch

1280 x 1024 - 12 µm

Sensitivity

8 - 14 µm

Sensor Mode

Rolling shutter

NEDT

<50 [at 30 Hz, 300 K, F/1]

Interface

CameraLink, MIPI CSI-2, UVC

State-of-the-Art High Resolution Thermal Imaging Core

The Dione S 1280 CAM series is based on an uncooled 12 μm pitch microbolometer detector with a 1280 × 1024 resolution and NETD of less than 60 mK.

The camera cores are optimized for low SWaP (Size, Weight and Power). The Dione S 1280 CAM is lightweight and small with mechanical shutter. It utilizes Xenics image enhancement for advanced image processing while keeping power consumption low.

All Dione S 1280 versions have the same SAMTEC ST5 connector and are GenICam compliant. The Dione S 1280 CAM is available with multiple lens configurations, either M34 (Dione S 1280 CAM M34) or M45 (Dione S 1280 CAM M45).

The ultra-compact Dione S 1280 CAM series find application in safety and security systems, as well as in industrial thermal imaging systems.

Benefits & Features
• State-of-the-art 1280 × 1024 microbolometer detector with 12 μm pitch
• Low SWaP (Size, Weight and Power)
• GenICam compliant
• Shuttered and uncooled operation
• Availability of multiple lenses adds flexibility to integration programs

State-of-the-Art High Resolution Thermal Imaging Core

The Dione S 1280 series is based on an uncooled microbolometer detector with a 1280×1024 pixel resolution and 12 µm pixel pitch. The NETD (Noise Equivalent Temperature Difference) is less than 60 mK and the maximum frame rate is 60 Hz.

The Dione S 1280 CAM comes in two variations:

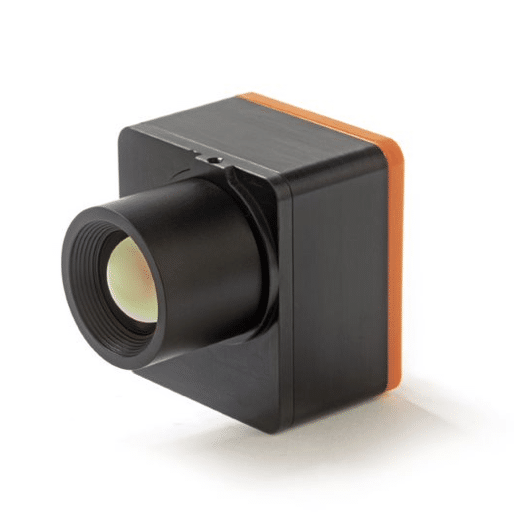

(1) Dione S 1280 CAM M34 with a small housing and M34x0.5 optical mount

(2) Dione S 1280 CAM M45 with a small housing and M45x0.75 optical mount

All Dione S 1280 versions benefit from Xenics’ image enhancement for advanced image processing while keeping power consumption low (approximately 2.1 W). A 16 bit digital video output (compatible with CameraLink) is available on all versions, via the SAMTEC ST5 connector. Moreover, GenICam compliance and availability of multiple lenses adds flexibility for integration programs in the target markets such as safety and security, transportation and industrial process monitoring.

Benefits & Features
• State-of-the-art 1280 × 1024 microbolometer detector with 12 μm pitch
• Low SWaP (Size, Weight and Power)
• GenICam compliant
• Shuttered and uncooled operation
• Availability of multiple lenses adds flexibility to integration programs

Applications include:

  • Safety and security (surveillance, search and rescue, firefighting, border control, situational awareness, UAV)
  • Automotive (advanced driver-assistance systems, autonomous driving)
  • Industrial automation (process control, predictive maintenance, fault condition detection)

Visit the manufacturer’s website here: https://www.xenics.com/long-wave-infrared-imagers/dione-s-1280-cam-series/

For more LWIR camera options, visit: https://www.axiomoptics.com/infrared-cameras-solutions-swir-cameras-mwir-lwir/#lwir-cameras-cores

Sensitivity

8 – 14 µm
Material

VOx
Resolution

1280 x 1024 (SXGA – 1.3 MP)
Frame Rate

10 – 100 fps
Pixel Pitch

12 µm x 12 µm
Cooling

Uncooled / TEC-less
Type

Camera
Interface

USB, Camera Link, MIPI CSI-2
Array Type

2D array / areascan
