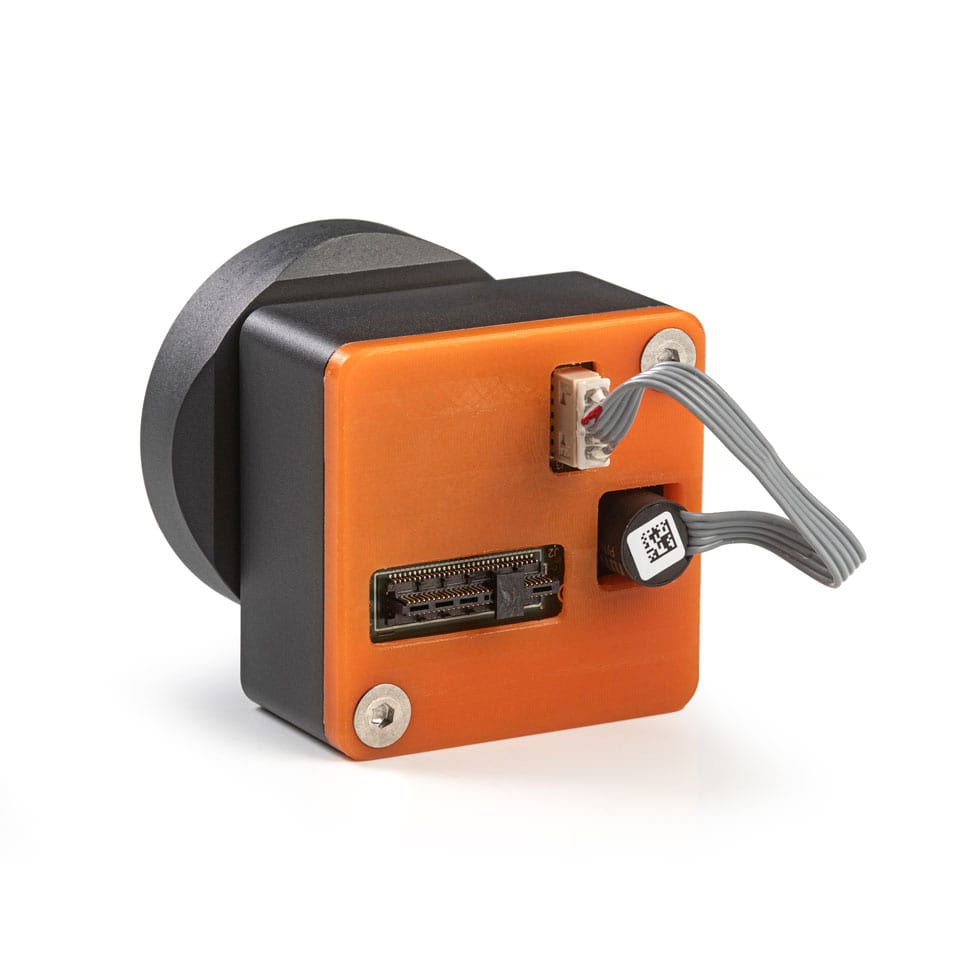

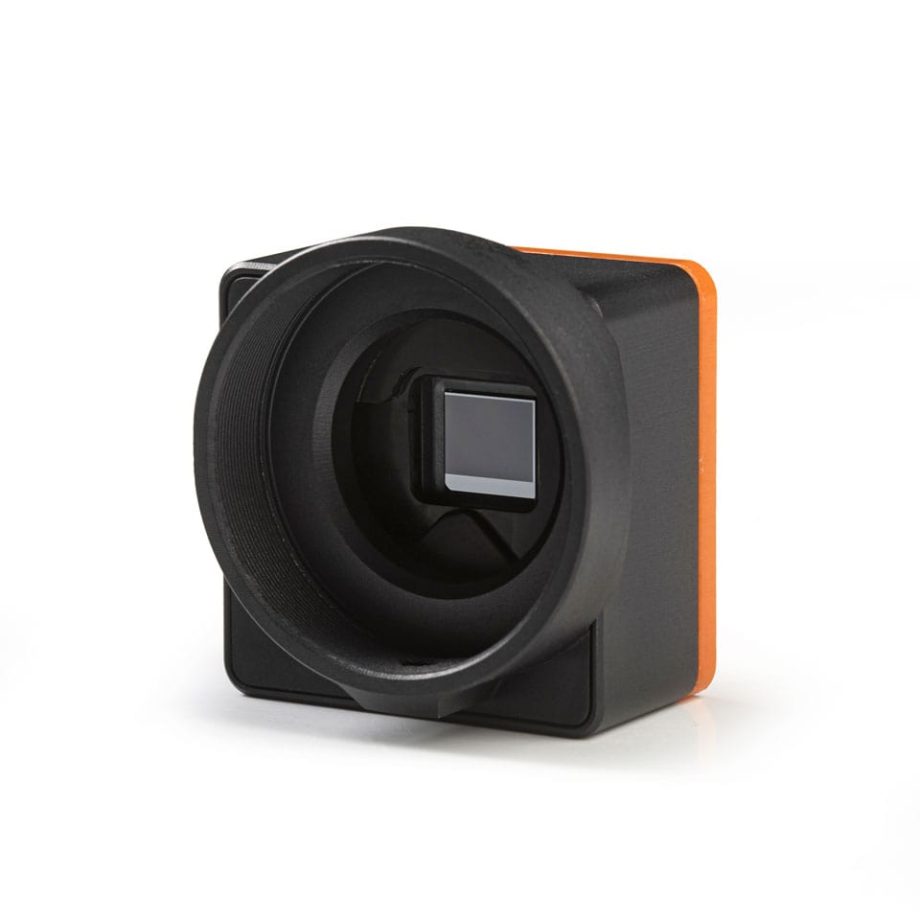

Dione S 640 CAM | VGA Shuttered Uncooled LWIR camera

Sensor Type

Microbolometer

Resolution

640 x 480

Pixel Pitch

12 µm

Shutter Mode

Mechanical shutter

NEDT

< 50mK

Interface

CameraLink, UVC, MIPI CSI-2

Ultra-compact, uncooled thermal imaging core

The Dione S 640 CAM series is based on an uncooled 12 μm pitch microbolometer detector with a 640 × 480 resolution and NETD of less than 60 mK.

The camera cores are optimized for low SWaP (Size, Weight and Power). The Dione S 640 CAM is lightweight and small with mechanical shutter. It utilizes Xenics image enhancement for advanced image processing while keeping power consumption low.

All Dione S 640 versions have the same SAMTEC ST5 connector and are GenICam compliant. The Dione S 640 CAM is available with multiple lens configurations, either M24 (Dione S 640 CAM M24) or M34 (Dione S 640 CAM M34).

The ultra-compact Dione S 640 CAM series find application in safety and security systems, as well as in industrial thermal imaging systems.

Benefits & Features

• State-of-the-art 640 × 480 microbolometer detector with 12 μm pitch
• Low SWaP (Size, Weight and Power)
• GenICam compliant
• Shuttered and uncooled operation
• Availability of multiple lenses adds flexibility to integration programs

Ultra-compact, uncooled thermal imaging core

The Dione S 640 CAM series is based on an uncooled 12 μm pitch microbolometer detector with a 640 × 480 resolution and NETD of less than 60 mK.

The camera cores are optimized for low SWaP (Size, Weight and Power). The Dione S 640 CAM is lightweight and small with mechanical shutter. It utilizes Xenics image enhancement for advanced image processing while keeping power consumption low.

All Dione S 640 versions have the same SAMTEC ST5 connector and are GenICam compliant. The Dione S 640 CAM is available with multiple lens configurations, either M24 (Dione S 640 CAM M24) or M34 (Dione S 640 CAM M34).

The ultra-compact Dione S 640 CAM series find application in safety and security systems, as well as in industrial thermal imaging systems.

Benefits & Features

• State-of-the-art 640 × 480 microbolometer detector with 12 μm pitch
• Low SWaP (Size, Weight and Power)
• GenICam compliant
• Shuttered and uncooled operation
• Availability of multiple lenses adds flexibility to integration programs

Sensitivity

8 – 14 µm

Material

VOx

Resolution

640 x 480

Pixel Pitch

12 µm x 12 µm

Interface

USB, MIPI CSI-2, 16-bit DV
