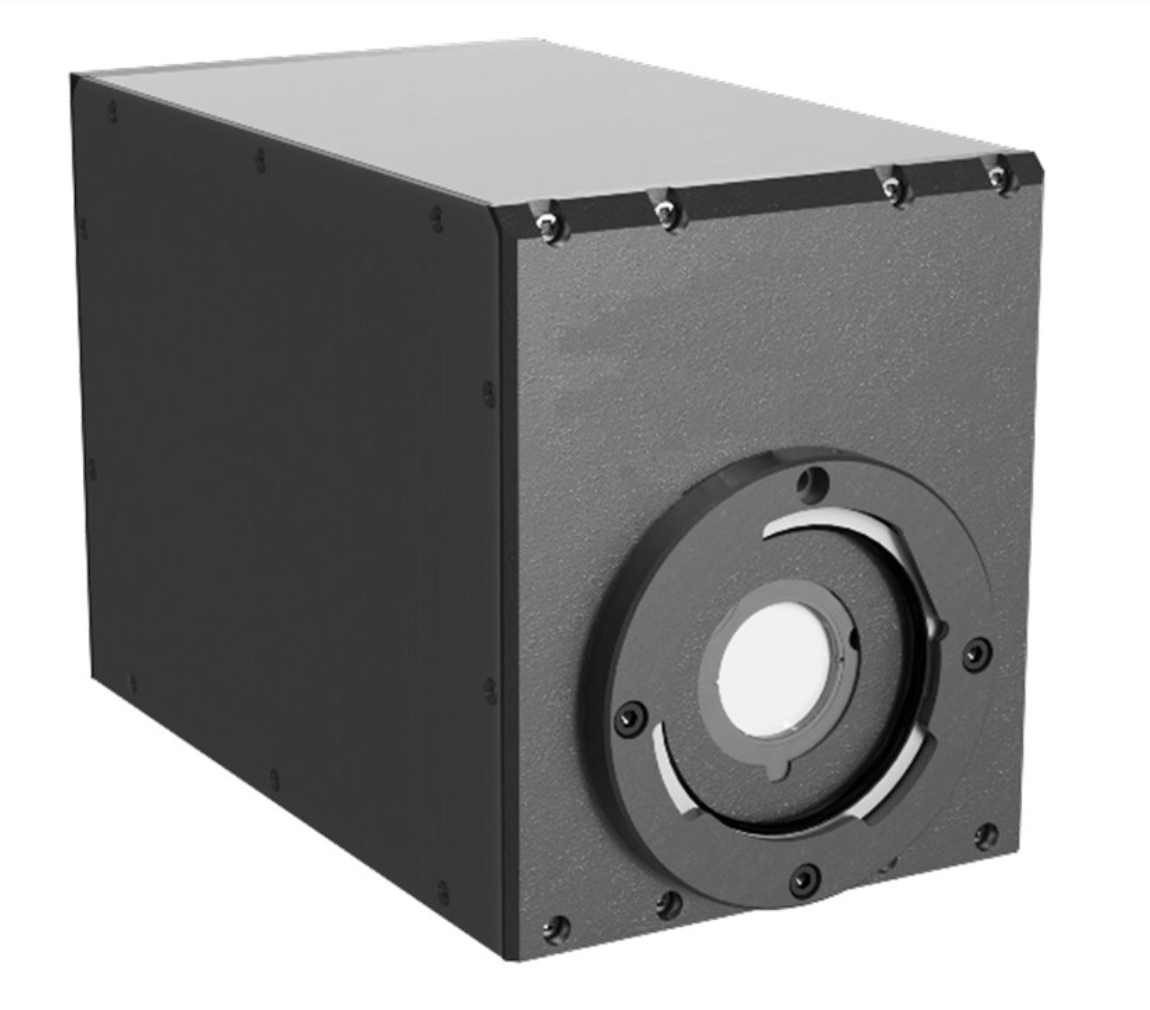

G900 series - cooled mwir broadband cameras
G900 series - cooled mwir broadband cameras

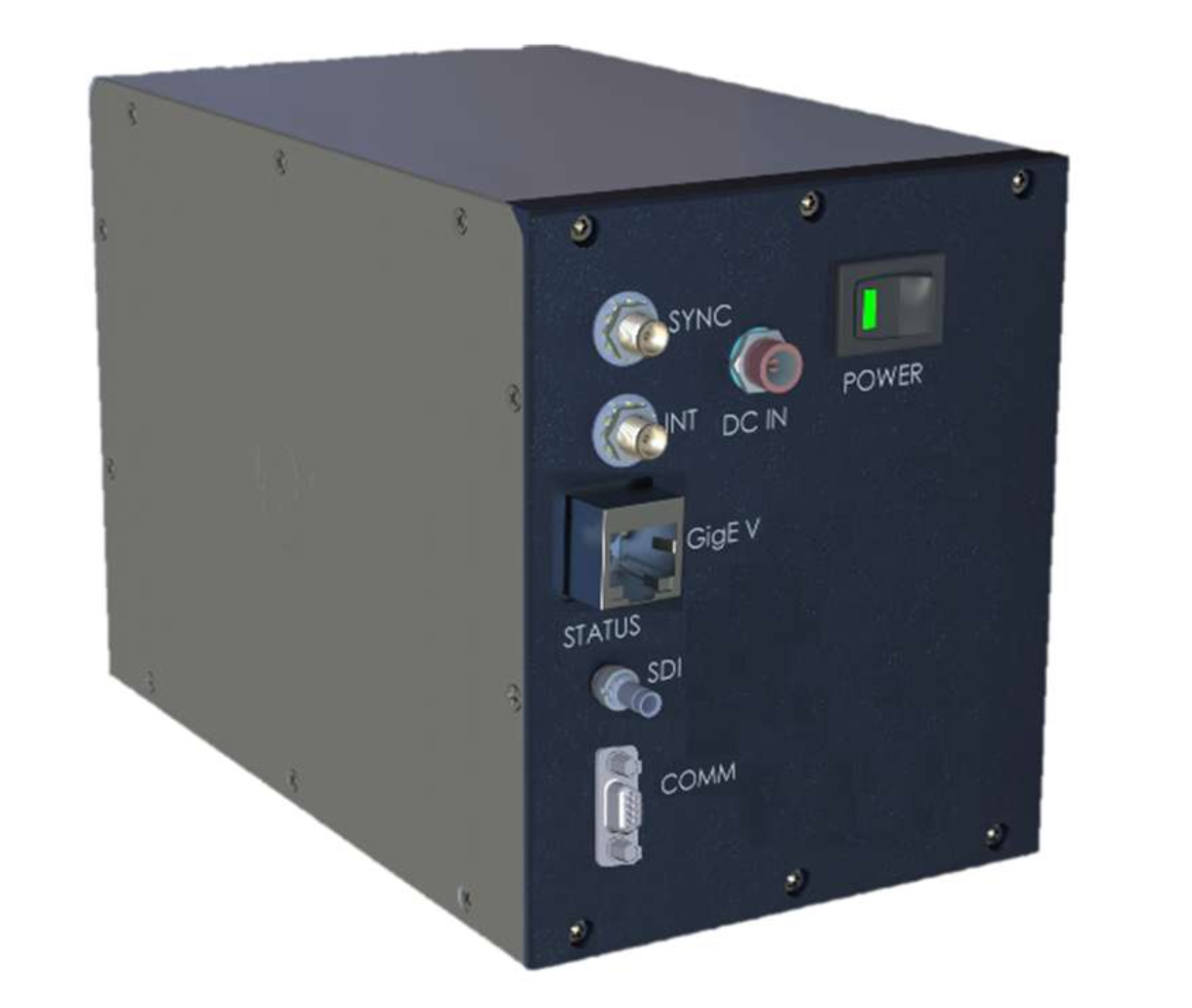

G900 series - cooled mwir broadband cameras (back pannel)
G900 series | VGA & SXGA Cooled MWIR 1-5µm cameras
G900 series | VGA & SXGA Cooled MWIR 1-5µm cameras - Image 2

G900 series | VGA & SXGA Cooled MWIR 1-5µm cameras

Sensor Type

InSb (VGA) - nBn (SXGA)

Resolution - pixel pitch

640x512 px - 20 µm or 1280x1024 px - 12 µm

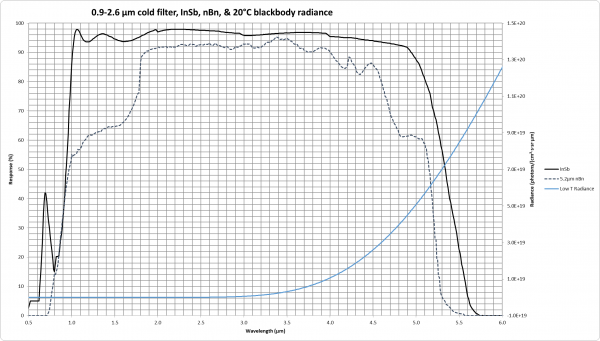

Spectral Response

0.9 µm to 5.5µm (InSb)

Shutter Mode - Frame rate full frame

Global - 119 Hz (VGA), 47 Hz (SXGA)

Cooling - Operating temp

closed cycle rotary cryocooler

Interface

GigE Genicam (Image data + control) - HD-SDI (monitoring)

Tag: Brand:

New G900 cooled  broadband MWIR cameras

The G900 series of cameras provide the same imaging resolution and performance as the IRC900 Series scientific cameras, but at a lower price point. The G900 Series is based on a closed cycle Stirling cooled sensor engine. Users can quickly and easily vary integration time, frame rate and window size. With SD and HD sensor formats, and customized Dewar configurations, the G900 Series offers customers easy integration and customization for personalized applications, at a competitive price point. Providing multiple outputs, users can view imagery directly from the G900 Series cameras using HD-SDI, and acquire and display digital data via GigE. Software options include WinIRC and a software developer’s kit to allow the user to acquire, display and analyze data from the G900 series cameras

Features:

  • Broadband spectral response (<1 to >5 µm) with optional cold filter (3-5 µm, CO2, eSWIR or custom)
  • High intrinsic dynamic range that can be further extended with superframing (cycling between up to 4 different exposure times)
  • Increased frame rates with windowing in both X and Y directions (min = 32 x 4 pixels)
  • Short exposure times as low as 550 ns
  • Ultra low latency sync (<200 ns)
  • GigE Genicam compliant interface (data + control)
  • HD-SDI video output for passive monitoring
  • f/2, f/2.3 and f/4 cold shield options
  • Small form factor (4″ x 4.8″ x 7.6″)



New G900 cooled  broadband MWIR cameras

The G900 series of cameras provide the same imaging resolution and performance as the IRC900 Series scientific cameras, but at a lower price point. The G900 Series is based on a closed cycle Stirling cooled sensor engine. Users can quickly and easily vary integration time, frame rate and window size. With SD and HD sensor formats, and customized Dewar configurations, the G900 Series offers customers easy integration and customization for personalized applications, at a competitive price point. Providing multiple outputs, users can view imagery directly from the G900 Series cameras using HD-SDI, and acquire and display digital data via GigE. Software options include WinIRC and a software developer’s kit to allow the user to acquire, display and analyze data from the G900 series cameras

Features:

  • Broadband spectral response (<1 to >5 µm) with optional cold filter (3-5 µm, CO2, eSWIR or custom)
  • High intrinsic dynamic range that can be further extended with superframing (cycling between up to 4 different exposure times)
  • Increased frame rates with windowing in both X and Y directions (min = 32 x 4 pixels)
  • Short exposure times as low as 550 ns
  • Ultra low latency sync (<200 ns)
  • GigE Genicam compliant interface (data + control)
  • HD-SDI video output for passive monitoring
  • f/2, f/2.3 and f/4 cold shield options
  • Small form factor (4″ x 4.8″ x 7.6″)
Sensitivity

1 – 5 µm
Material

InSb, nBn
Resolution

1280 x 1024 (SXGA – 1.3 MP), 640 x 512 (VGA)
Pixel Pitch

12 µm x 12 µm, 20 µm x 20 µm
Cooling

Cryo-cooled
Interface

HD-SDI, GigE
Array Type

2D array / areascan
