CinCam CMOS | Entry Level Beam Profiler

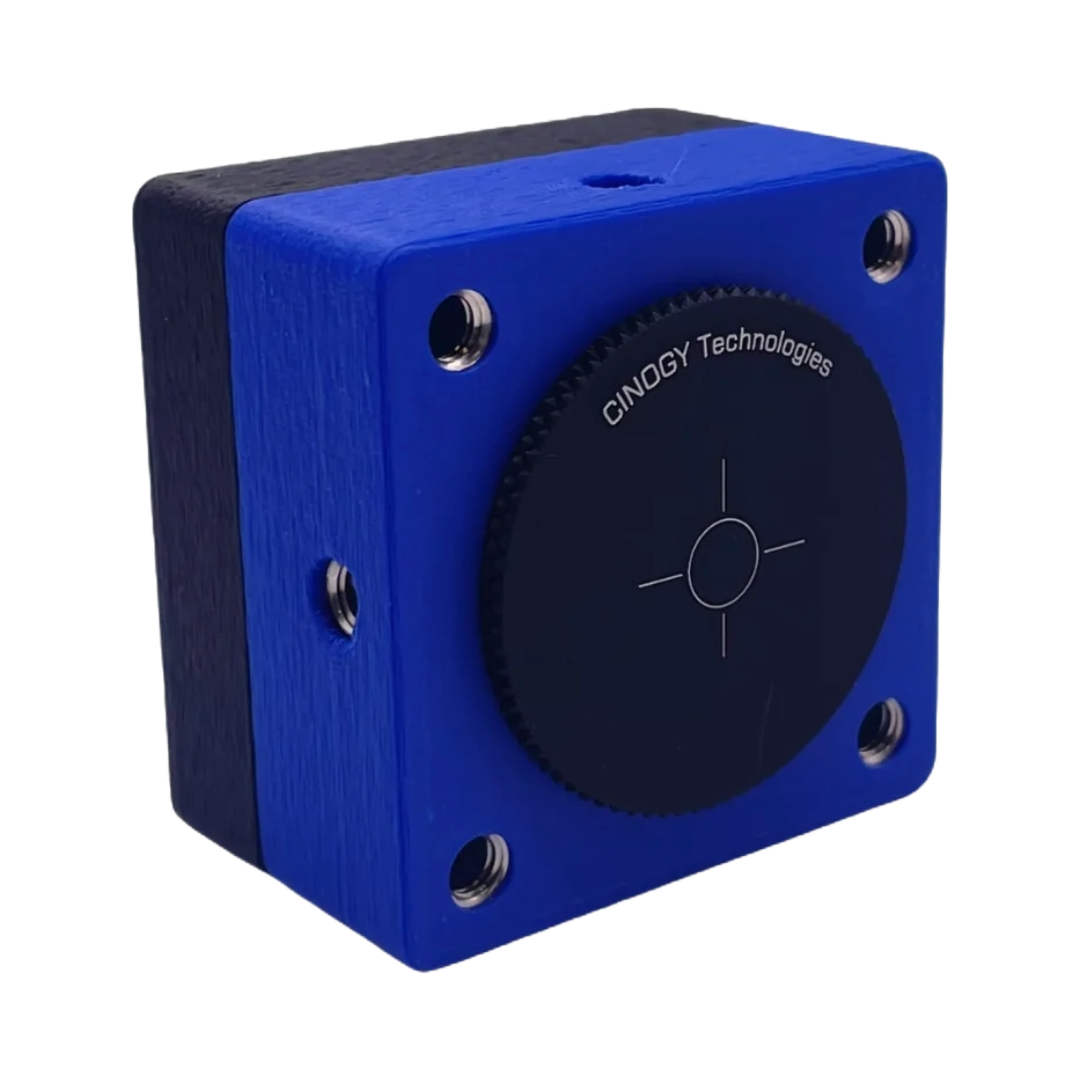

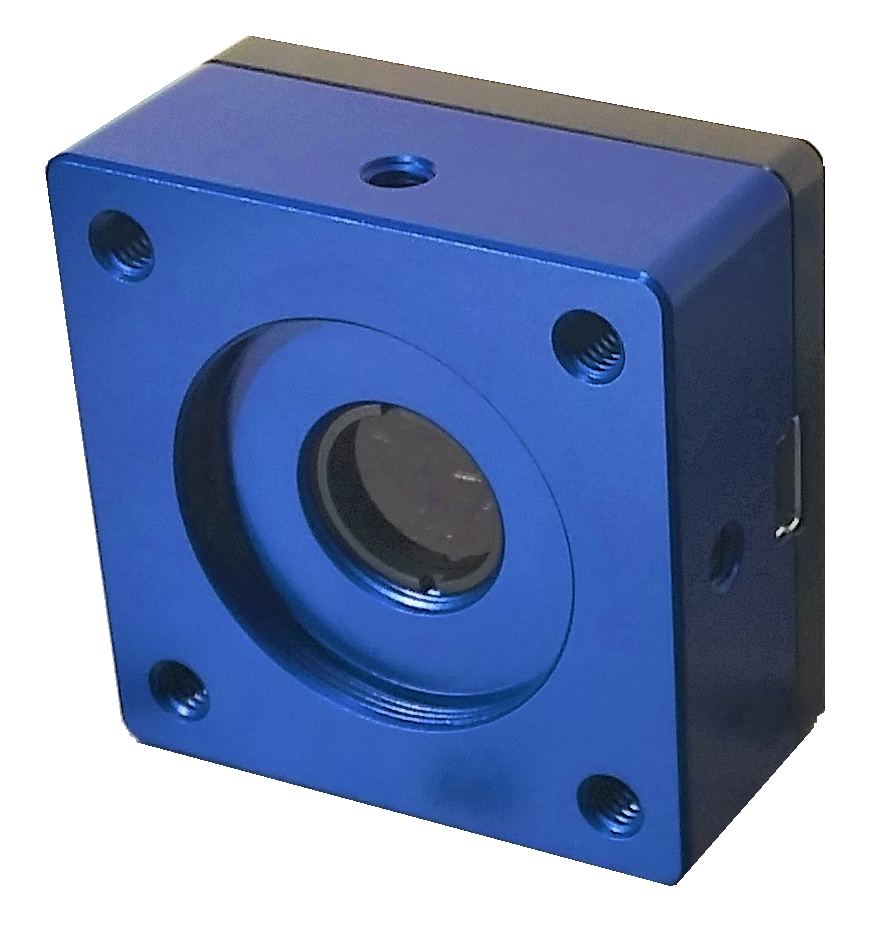

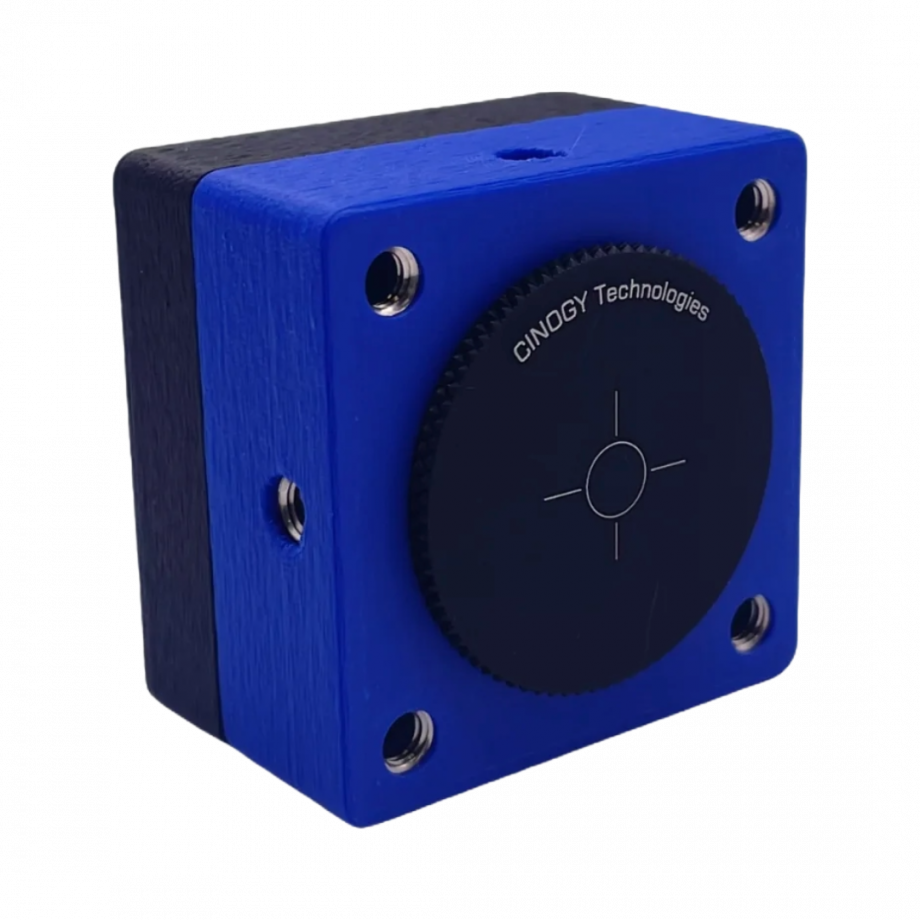

CinCam CMOS: A Cost-Effective Beam Profiler

The CinCam CMOS beam profiler is a cost-effective, high-performance solution designed for precise laser beam characterization in laboratory, research, and industrial environments. Optimized for excellent sensitivity, the CinCam CMOS features a megapixel-resolution sensor that delivers accurate, real-time beam analysis at frame rates of up to 20 frames per second. This enables reliable measurement of beam size, shape, position, and intensity distribution, even in dynamic or rapidly changing optical setups.

Its lightweight, compact design allows seamless integration into existing optical systems. The CinCam CMOS easily adapts to standard opto-mechanical components, optical benches, and imaging configurations, providing maximum flexibility for both permanent installations and portable measurement applications. Whether used for alignment, system validation, or ongoing process monitoring, the CinCam CMOS provides dependable performance in an accessible, entry-level platform.

The sensor is designed without cover glass, minimizing interference effects such as etalon fringes and ensuring higher measurement accuracy. Combined with its high resolution, wide dynamic range, and real-time monitoring capabilities, the CinCam CMOS offers exceptional value for users who require precise beam diagnostics without the complexity or cost of advanced profiling systems.

Key Features

• Compact, entry-level cmos beam profiler ideal for laboratory, educational, and industrial use

• High-resolution megapixel CMOS sensor without cover glass for improved accuracy and reduced interference artifacts

• Real-time beam monitoring with up to 20 fps and wide dynamic range for accurate analysis of static and dynamic beams

• Compact and lightweight design for easy integration into optical setups and opto-mechanical systems

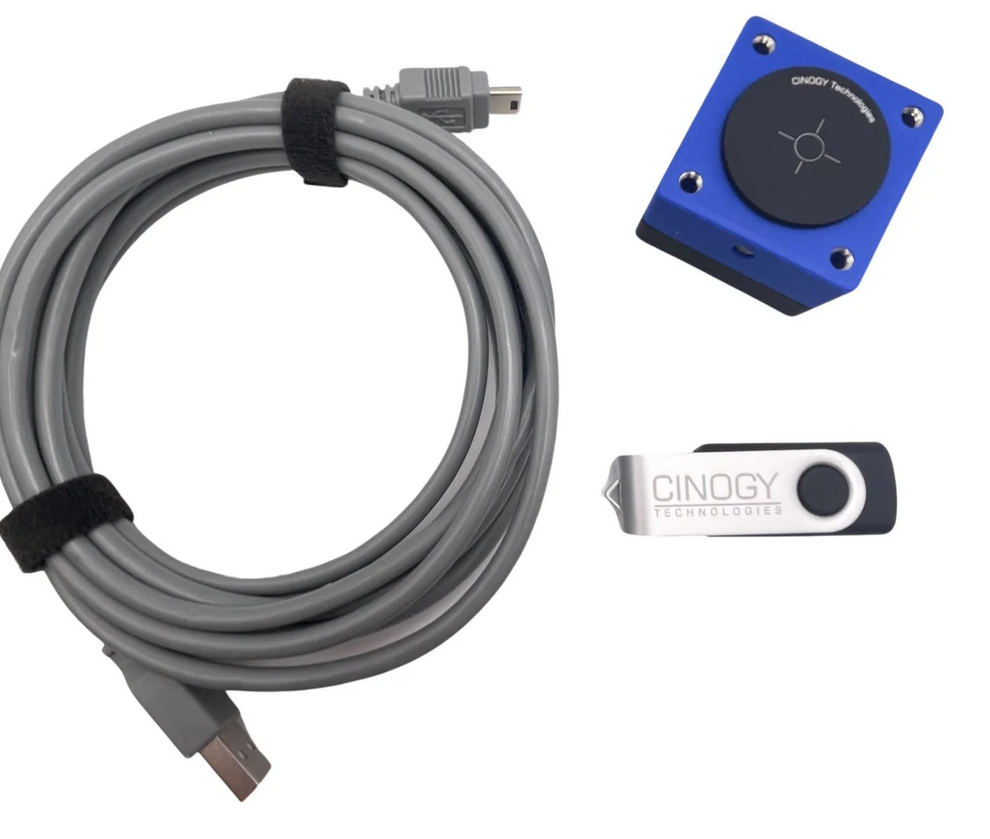

• Standard high-speed USB 2.0 connectivity for simple data transfer and straightforward plug-and-play operation

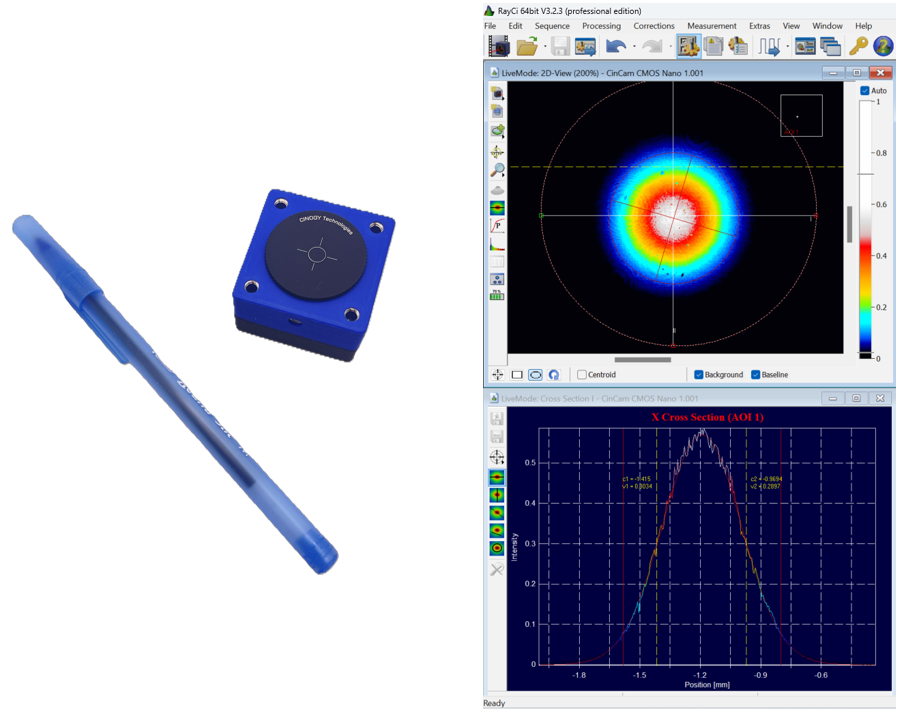

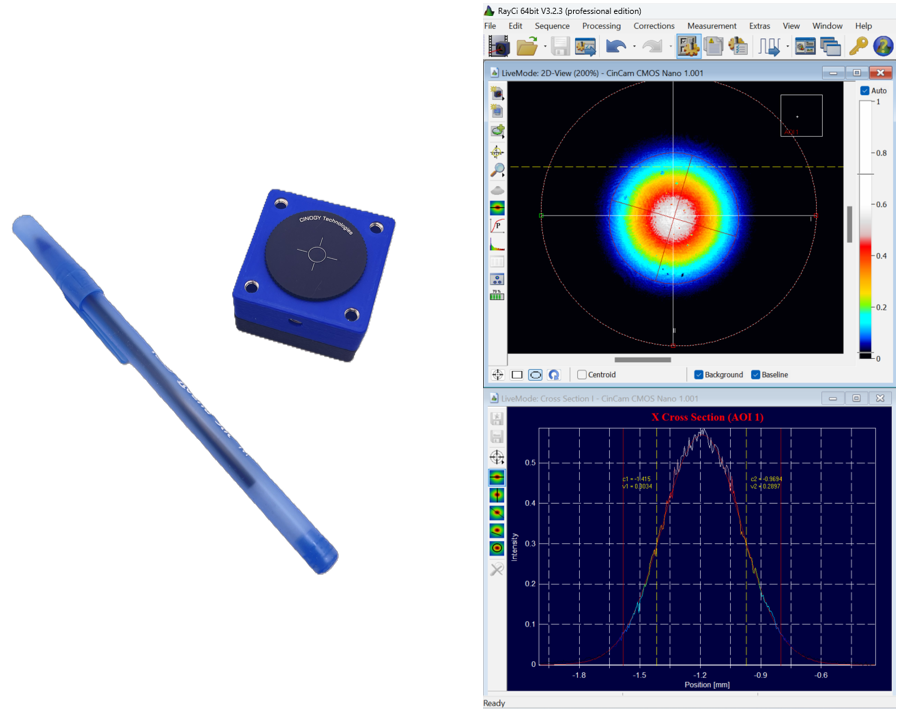

• Flexible software options available in Lite, Standard, and Professional versions to match different analysis requirements

Typical Applications

• Laser beam profiling and characterization

• Optical system alignment and optimization

• Research and development laboratories

• Industrial laser system setup and maintenance

• Educational and academic training environments

The CinCam CMOS provides an ideal balance of performance, simplicity, and affordability, making it an excellent choice for users seeking reliable beam profiling in a compact and versatile package.

Available to buy online on our online store

To learn more about laser beam profiling applications, visit our application page here.
