SeeCube Family | SXGA, VGA, QVGA Low SWaP LWIR Radiometric Thermal Cameras

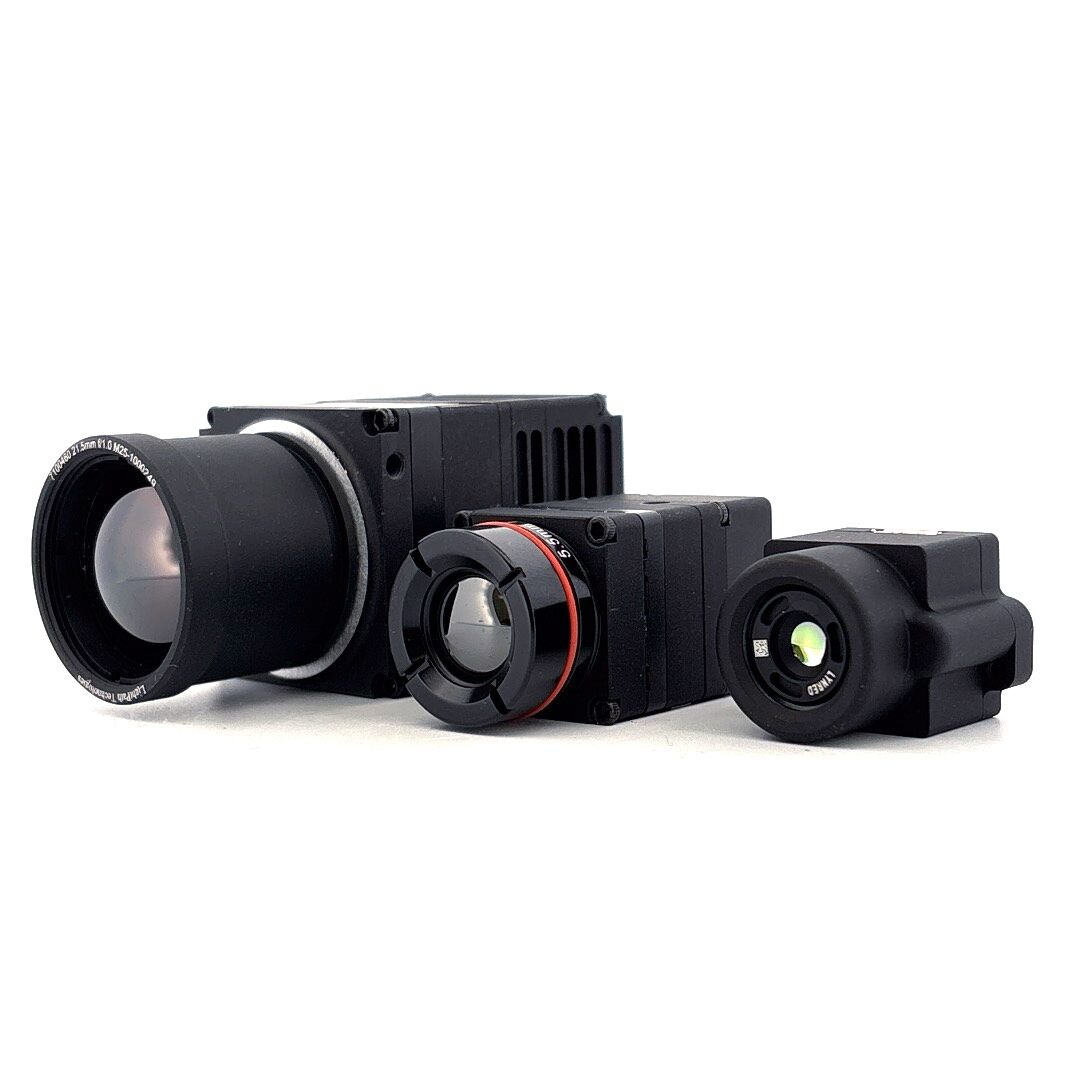

Meet Niels 12, Ernest 6 and Eileen 3, members of the SeeCube radiometric thermal camera module family

Introducing the Ernest 6, a standout in Senssight’s SeeCube family of radiometric thermal cameras, engineered to set a new standard in VGA thermal infrared camera modules. Featuring a 640×480 pixel array with a 12 μm pixel pitch and exceptional thermal sensitivity of 35 mK, it delivers precise imaging in an industry-leading 21 x 21 mm form factor. Equipped with a 60 Hz frame rate, a range of lens options offering 15° to 90° HFOV, and radiometric capabilities covering -10°C to 120°C, the Ernest 6 excels in demanding applications. Its low-power USB interface, optional shutterless calibration, and robust -35°C to 75°C operating range make it an ideal solution for industrial systems, night vision equipment, and unmanned aerial vehicles. Compact yet powerful, the Ernest 6 is designed for professionals who require reliability and performance without compromise.

The Niels 12 thermal infrared camera core is a powerhouse of performance packed into a remarkably compact form factor. Measuring just 32 x 32 mm in width and height, this camera delivers cutting-edge thermal imaging with an SXGA resolution of 1280×1024 pixels, all while maintaining an ultra-lightweight build starting at just 60g without a lens. Designed for seamless integration, its USB 3.1 connectivity ensures effortless data transfer, making it the perfect choice for high-performance applications where space and weight are critical factors. Whether deployed in industrial, defense, or scientific environments, the Niels 12 offers unmatched performance in a sleek, space-saving design.

The Niels 12 and Ernest 6 LWIR thermal camera cores offers three operational modes in a single, streamlined package. Their built-in mechanical shutter ensures precise shuttered performance, while a factory calibration enables exceptional image quality in shutterless mode, thus adapting effortlessly to diverse conditions. Additionally, pixel-level radiometric calibration enables accurate temperature measurements from -10ºC to +120ºC. The Niels 12 and Ernest 6 combine cutting-edge technology with a remarkably efficient design, setting a new standard in thermal imaging excellence.

SeeCube radiometric thermal camera core family in a nutshell

• Redefining low SWaP-C

Optimized for size, weight and power with a competitive price

Niels 12	Ernest 6	Eileen 3
SXGA – 1280 x 1024 px	VGA – 640 x 480 px	QVGA – 320 x 240 px
60 g (w/o lens)	20 g (w/o lens)	15 g (w/o lens)
< 1.7 W	< 400 mW	< 400 mW

• 3 modes in 1

1. shuttered operation: mechanical shutter by default on Niels12 and Ernest6 models
2. shutterless operation: enabled with optional factory calibration
3. radiometry: accurate temperature measurement between -10ºC to +120ºC with optional factory calibration (with lens on)

• USB interface

Direct connection to with USB connectivity – No need for an external power supply – multiple USB connector options on Ernest 6 only

USB-C / female / straight	USB-C / female / right angle	USB-C / male / right angle	USB-A Micro / female / straight	USB flex cable

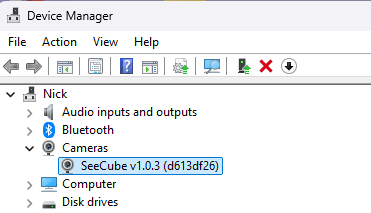

• UVC protocol (USB Video Class)

Webcam-like for experience for easy integration and plug-and-play feeling

• High sensitivity

NEdT of 35 mK w/o denoising or filtering

• Free App/SDK

OpenCV based application and C++ API for Windows 10/11, Linux, Linux for ARM (Nvidia Jetson, Raspberry Pi OS)
