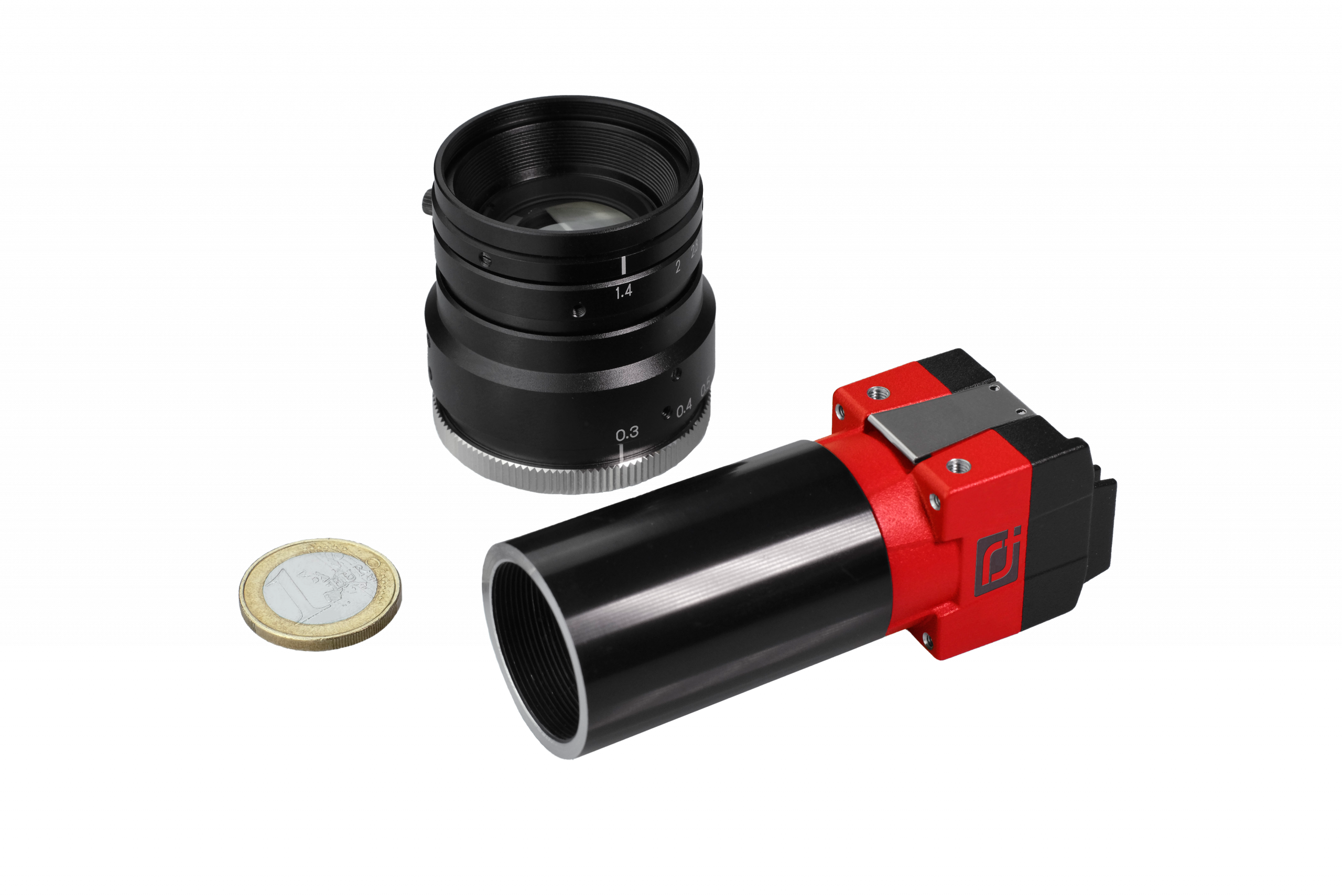

ULTRIS SWIR 1 | Hyperspectral Snapshot SWIR Camera

Cubert ULTRIS SWIR 1: Real-time Snapshot Hyperspectral Camera for SWIR Analysis

Unlock unparalleled insights with the Cubert ULTRIS SWIR 1, a revolutionary snapshot hyperspectral camera designed for real-time analysis in the Short-Wave Infrared (SWIR) spectrum (980-1650 nm). Experience the speed and precision of light field technology, delivering comprehensive spectral data cubes without the need for scanning, making it ideal for dynamic environments and diverse applications.

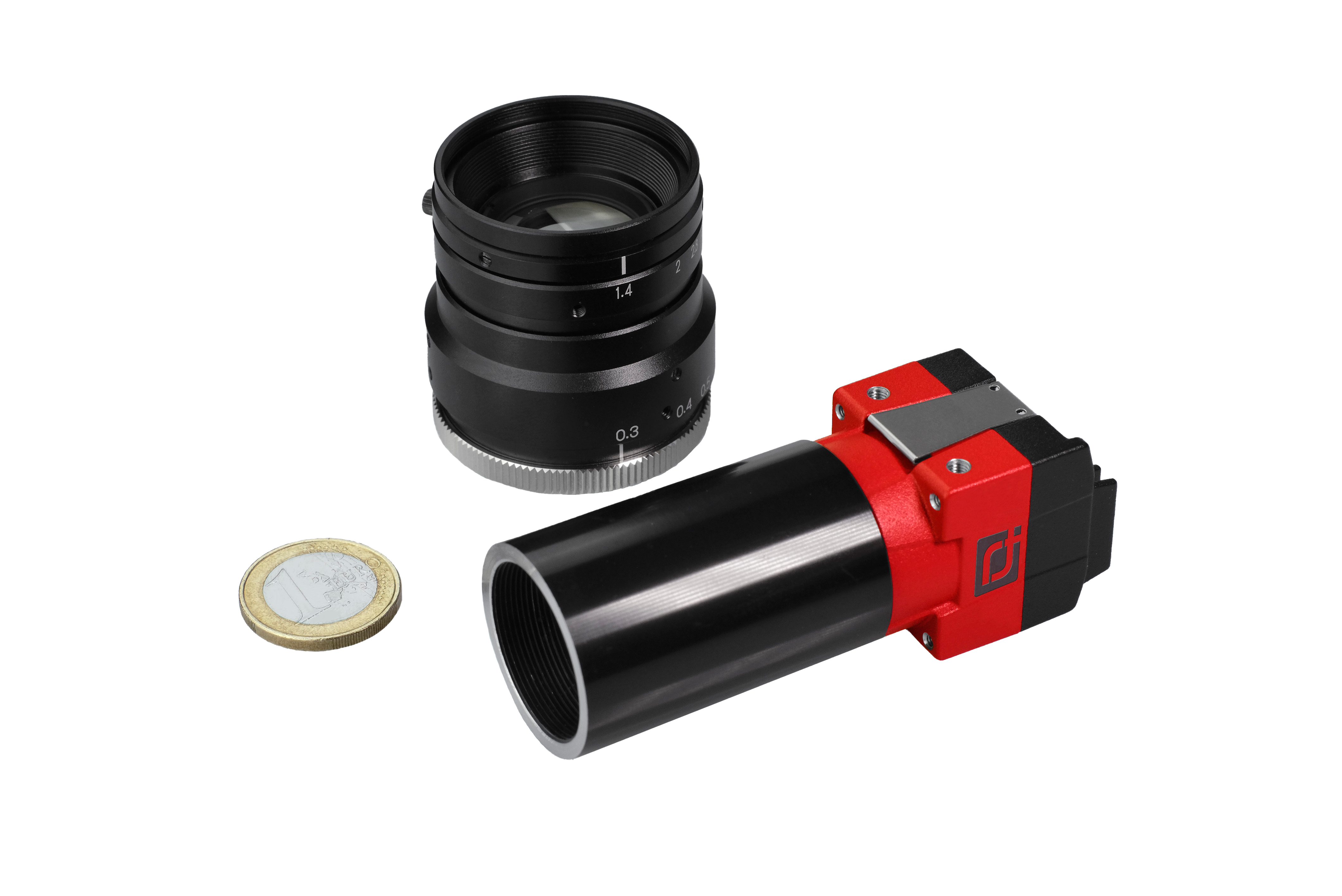

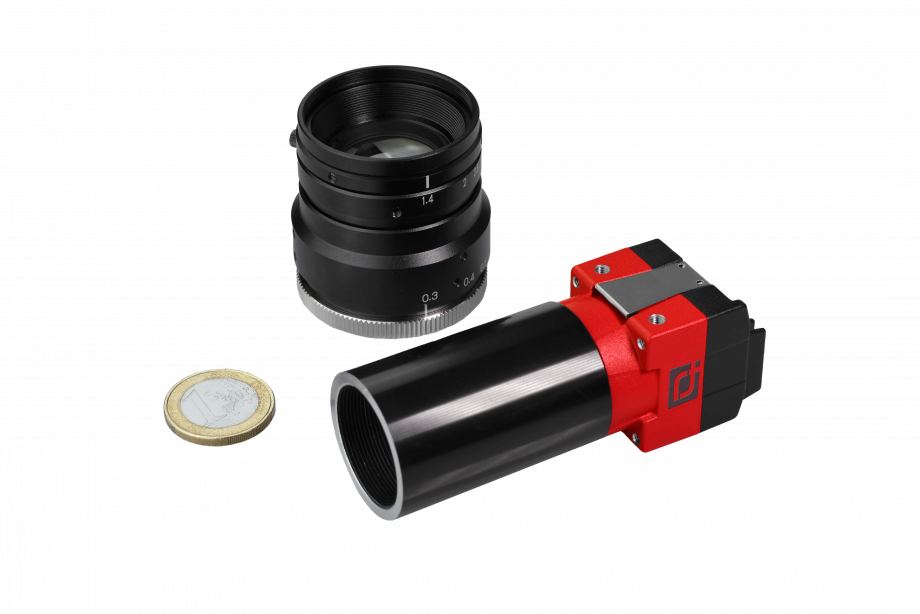

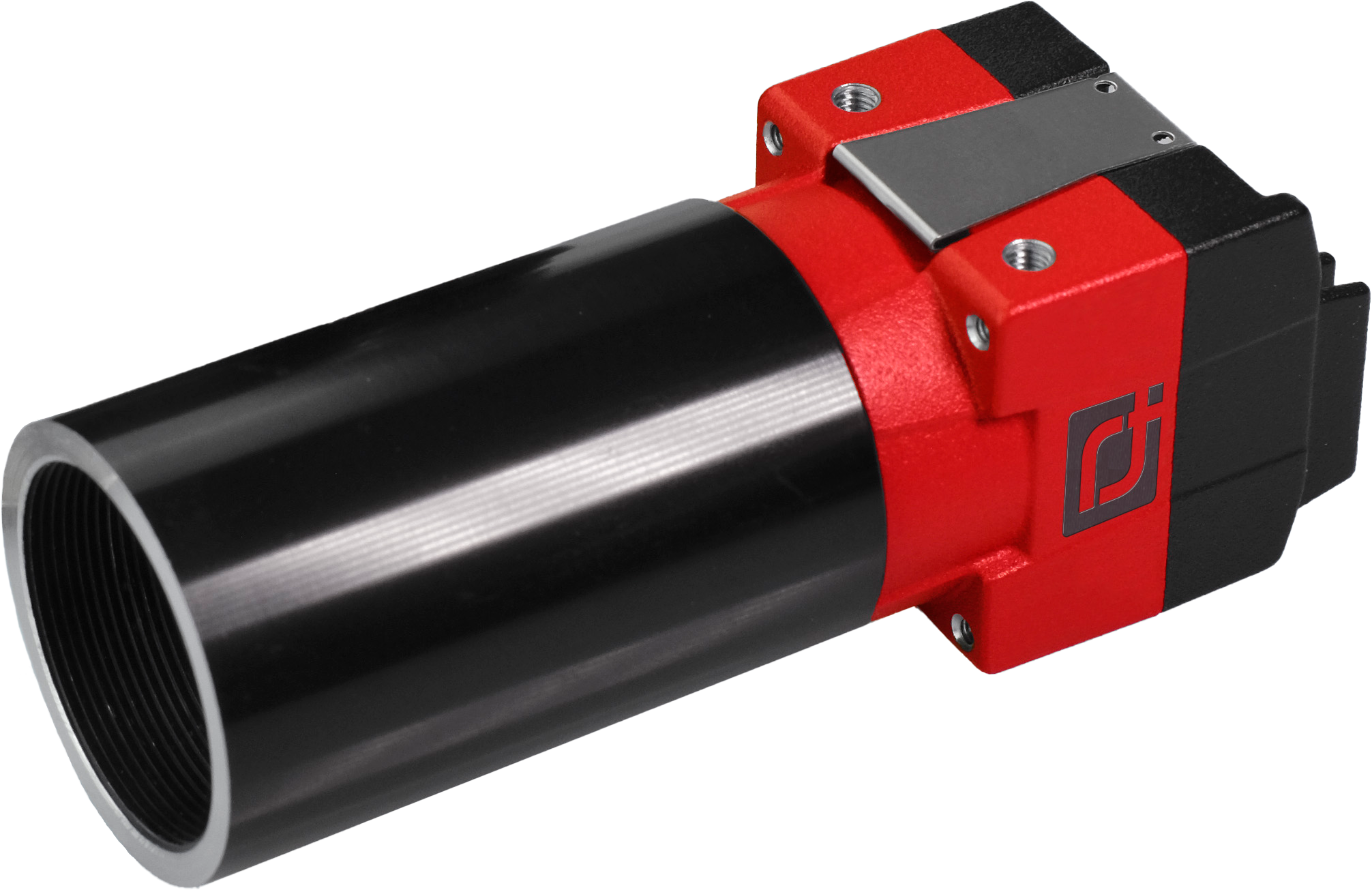

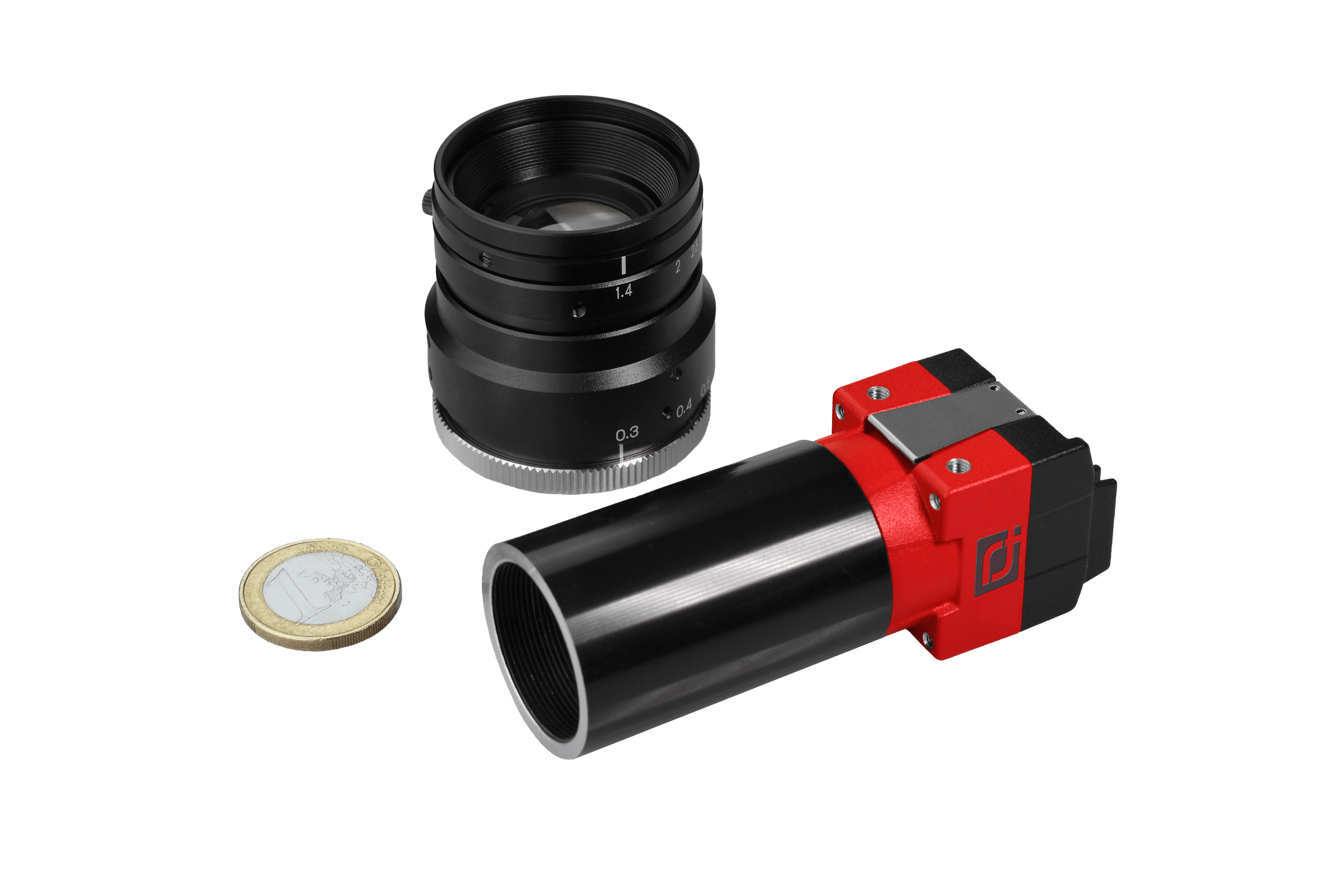

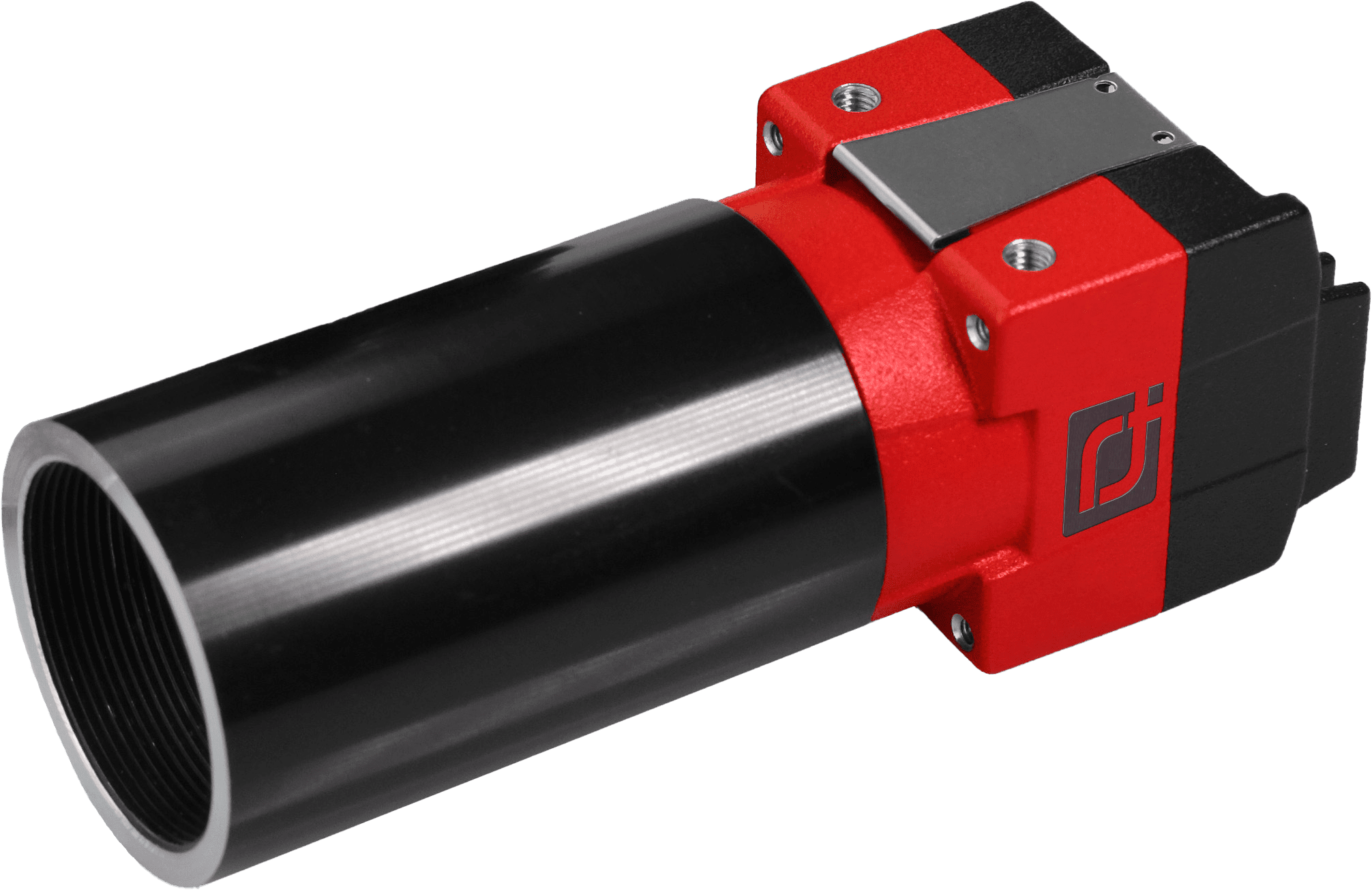

Unlike traditional push-broom systems, the ULTRIS SWIR 1 captures entire scenes in a single shot, providing immediate, high-quality hyperspectral information. Its compact design, robust C-mount compatibility for flexible lens options, and impressive 80 Hz frame rate ensure efficient data acquisition and seamless integration into your existing setups.

Key Features & Benefits:

• SWIR Imaging (980-1650 nm): Specialized spectral coverage for applications beyond the visible and NIR.
• Snapshot Hyperspectral Technology: Capture full spectral data cubes in a single shot, eliminating motion artifacts and enabling real-time analysis.
• High Frame Rate (Up to 80 Hz): Ideal for capturing fast-moving objects and dynamic processes.
• Compact & Lightweight Design: Easy integration into laboratory setups, industrial environments, or UAV systems.
• C-Mount Compatibility: Offers exceptional versatility with a wide range of attachable lenses.
• High Spatial Resolution (200 x 200 pixels): Delivers detailed imagery for precise analysis.
• 38 Spectral Bands: Provides comprehensive spectral information across the SWIR range.
• USB 3.0 Connectivity: Ensures fast and efficient data transfer.
• Global Shutter: Eliminates image distortion from motion.
• Robust & Reliable: Built for demanding applications.

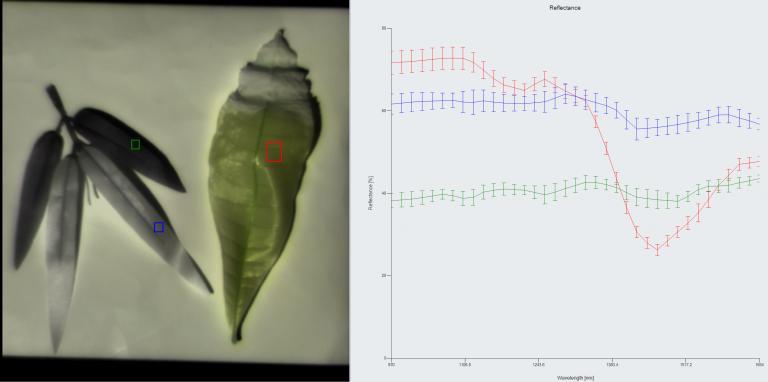

SWIR Hyperspectral Applications

• 1000-1100 nm: This range is particularly effective for precise moisture content mapping. It’s vital for understanding soil moisture levels and assessing the quality of agricultural products.
• 1100-1300 nm: Within these wavelengths, the camera excels at plastics quality assessment, assisting in their identification and sorting. It also contributes to detailed moisture analysis in food products.
• 1300-1500 nm: This part of the spectrum is key for detecting carbon-hydrogen bonds in organic compounds, offering valuable insights for chemical analysis and understanding molecular composition.
• 1500-1700 nm: The highest end of the camera’s range is exceptional for water content assessment. This includes rapid evaluations in agricultural goods and comprehensive analysis of moisture in various other substances.

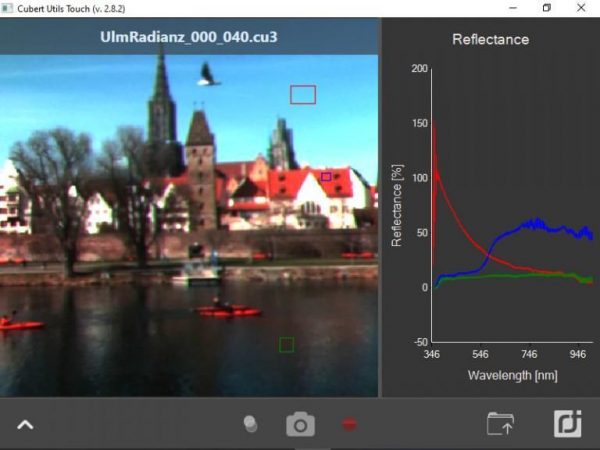

CUVIS Software

The ULTRIS X20 is seamlessly integrated with Cubert’s CUVIS Software, the foundational platform for Cubert’s hyperspectral imaging solutions. CUVIS combines advanced capabilities with exceptional ease of use, simplifying the complexities of hyperspectral imaging while providing powerful tools for real-time data acquisition and analysis. It offers a robust set of features, including customizable settings, white and dark current referencing, and multiple operating modes to ensure accurate and efficient imaging across various applications. CUVIS provides tools for advanced processing directly within its intuitive interface, allowing users to utilize plugins for specific imaging needs, calculate and display custom spectral indices, and efficiently record, process, and save raw data in formats like ENVI and TIFF. Tailored for both standalone use and incorporation into larger workflows, CUVIS is built to support AI integration and emerging technologies. For seamless integration into your established processes, a Software Development Kit (SDK) with wrappers for C++ and Python is also available.
