More InformationIncorporating Kowa’s special coating technology, the 1″ format HC-SW series maintains high transmission from 800nm to 2000nm. These lenses are designed for NIR and Short Wavelength Infrared (SWIR) applications.

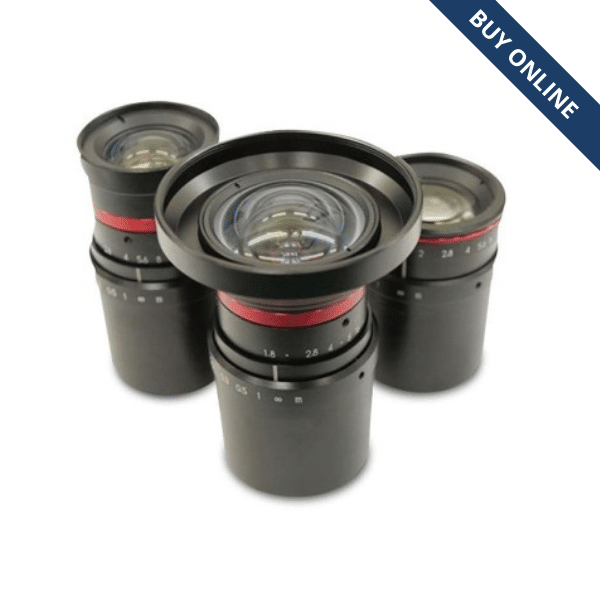

VIS-SWIR lenses | 1″ format C-Mount Lenses by KOWA
Lens format
1"
Lens mount
C-mount

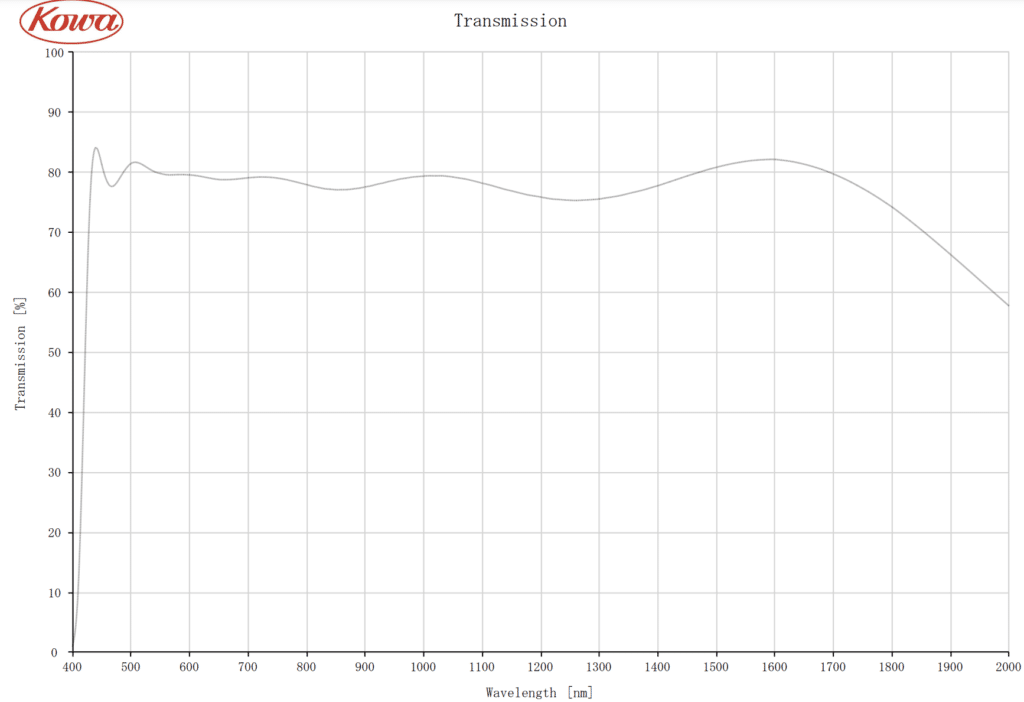

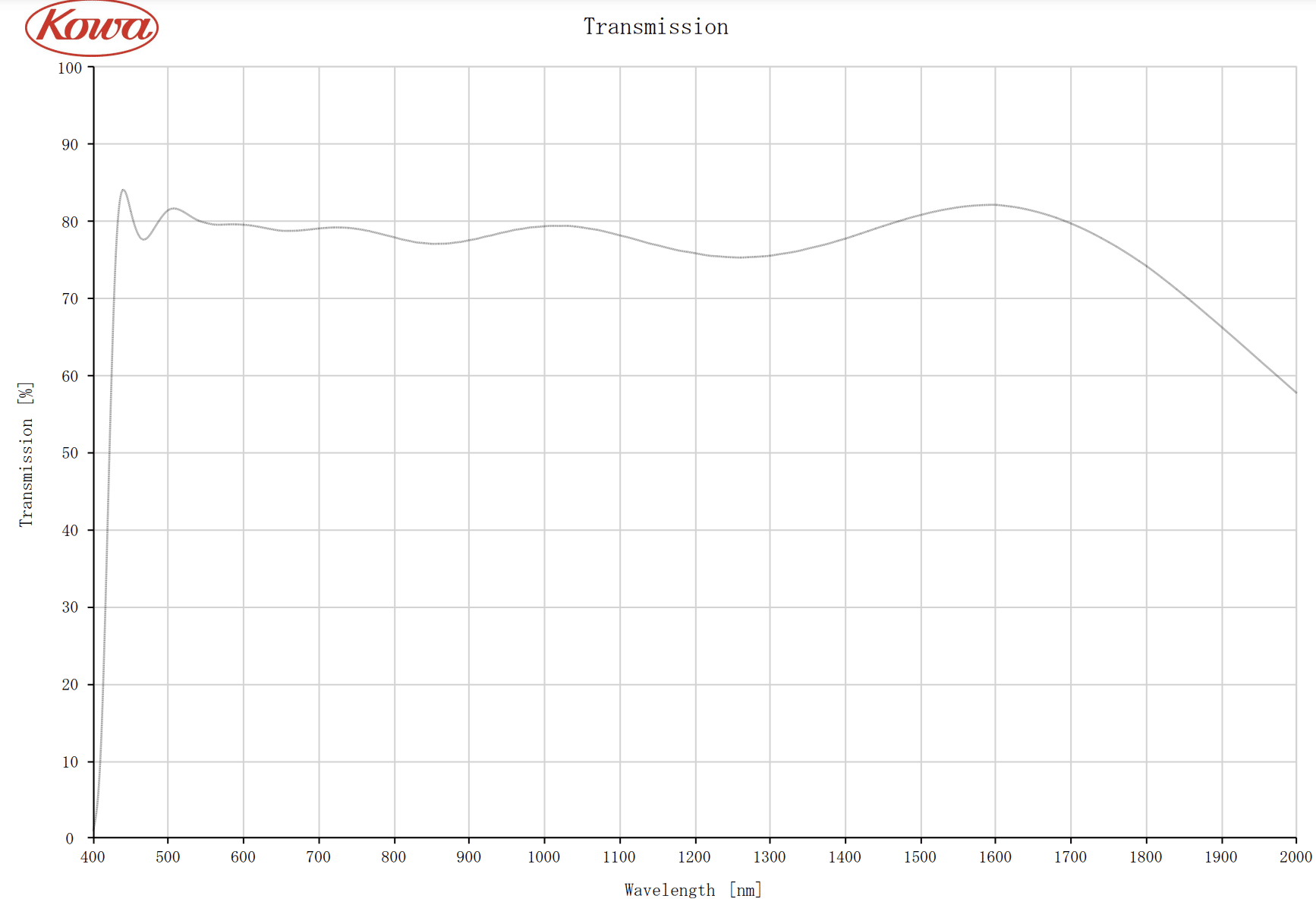

Transmission
VIS + SWIR 450-2000 nm
Control
Manual iris and focus
Iris range
F1.8 - F/16
Kowa LM-HC-VIS-SWIR lenses with a transmission of 450-2000 nm cover the range from visible to SWIR with the advantage of a reduced focus shift.
The lenses are suitable for a large number of applications with VIS-SWIR and hyperspectral cameras to precisely analyse the reflection properties of materials over a wide range of wavelengths. This is often used in machine vision for material analysis and grading.
LM25HC-VIS-SWIR1″ (12.8 x 9.6 x 16mm)25mmF1.8 – 16C-mount
| Model Number | Lens Format | Focal Length | Iris Range (F-stop) | Mount |
| LM8HC-VIS-SWIR | 1″ (12.8 x 9.6 x 16mm) | 8mm | F1.8 – 16 | C-mount |

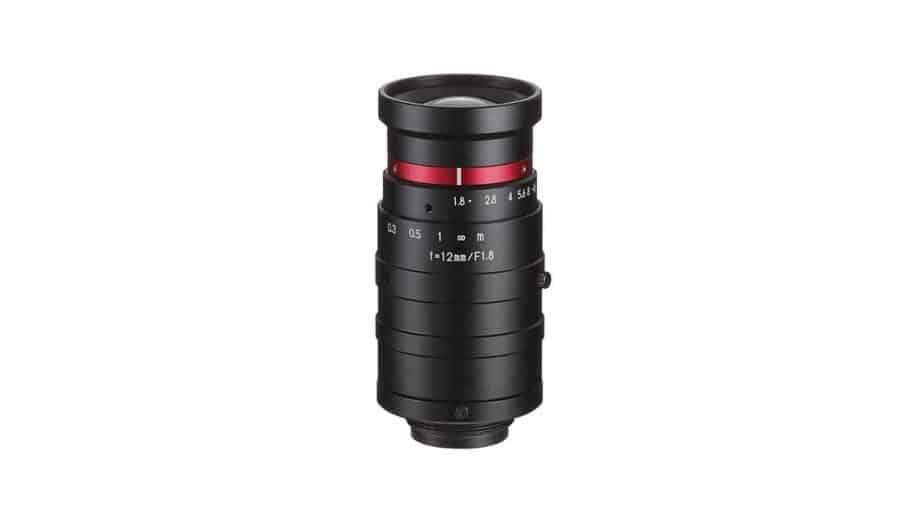

| LM12HC-VIS-SWIR | 1″ (12.8 x 9.6 x 16mm) | 12mm | F1.8 – 16 | C-mount |
| LM16HC-VIS-SWIR | 1″ (12.8 x 9.6 x 16mm) | 16mm | F1.8 – 16 | C-mount |
| LM25HC-VIS-SWIR | 1″ (12.8 x 9.6 x 16mm) | 25mm | F1.8 – 16 | C-mount |
| LM35HC-VIS-SWIR | 1″ (12.8 x 9.6 x 16mm) | 35mm | F1.8 – 16 | C-mount |
| LM50HC-VIS-SWIR | 1″ (12.8 x 9.6 x 16mm) | 50mm | F1.8 – 16 | C-mount |
| Text1 | Fixed Focal Length 8, 12, 16, 25, 35, 50 mm |
|---|---|
| Text 2 | VIS + SWIR 400 – 2000 nm |
| Text 3 | 1" format |
| Text 4 | C-mount lens interface |
| Text 5 | Designed for broadband use with no focus-shift |
