SCION SWIR 640/1280 | Next Generation High-Speed Low-Noise Cameras

Format

640 x 512 or 1280 x 1024

Pixel Size

10 µm

Sensor Material

VISGaAs

Wavelength Range

0.4 - 1.7

QE Peak

85%

Frame rate, maximum full frame

700 Hz (640) - 175 Hz (1280)

Tag: IR: SWIR Brand: Teledyne Photometrics

SCION SWIR Camera

The SCION SWIR cameras, the latest SWIR camera from Teledyne, delivers exceptional performance from 0.4 to 1.7 μm visible and short-wavelength infrared imaging. Featuring an advanced VISGaAs sensor and thermoelectric cooling this camera offers reduced noise and improved temperature stability, ensuring higher quality and more reliable imaging. Teledyne LightField® software provides complete control enabling easy capture, analysis, and processing of high-quality images and spectra.

Key Features

Built with long-life vacuum chamber and high reliability thermoelectric cooling for worry-free and consistent operation, year after year
Built-in F/1.4 cold shield cuts down on background signal
Teledyne provided custom cold shield and filters options available
Choice of full camera or OEM model with sensor and proximity boards
Multiple regions of interest can be read out, allowing you to focus on the data that matters
Offering “Sample Up The Ramp” (SUPR) for low noise at low signal conditions

Specifications
Models	VGA	SXGA
Format	640 x 512	1280 x 1024
Pixel Size	10 µm	10 µm
Sensor Material	VISGaAs	VISGaAs
Wavelength Range	0.4 - 1.7 µm	0.4 - 1.7 µm
QE peak	85%	85%
Frame rate, maximum full frame	700 Hz	175 Hz
Cooling	-55°C air	-65°C water
Cooling Method	Thermoelectric cooling	Thermoelectric cooling
Read Noise (e-, high gain)	<30	<30
Full Well (e-, low gain)	1M	1M
Dark current (e-/p/sec), air cooling	Target <60	Target <60
Shutter	Global	Rolling
Sample Modes	ITR, IWR, Sample-Up-The-Ramp (SUPR)	ITR, IWR, Sample-Up-The-Ramp (SUPR)
Cold Shield	f/1.4 (optional cold filter)	optional cf/1.4 (optional cold filter)old filter
Data Interface	USB3 or CameraLink	USB3 or CameraLink
NUC	yes	yes

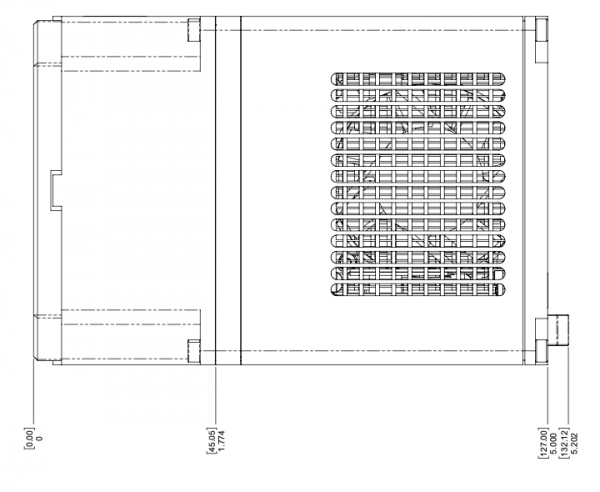

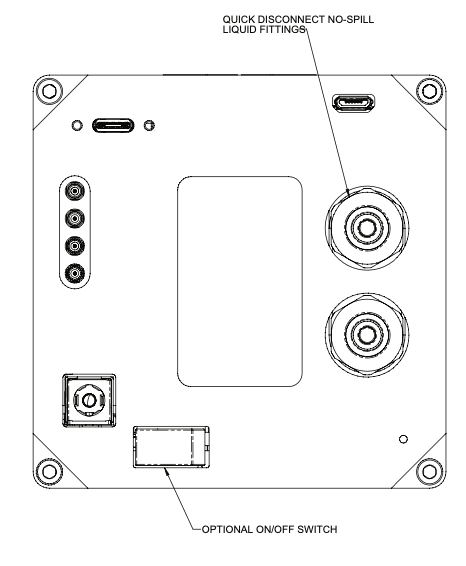

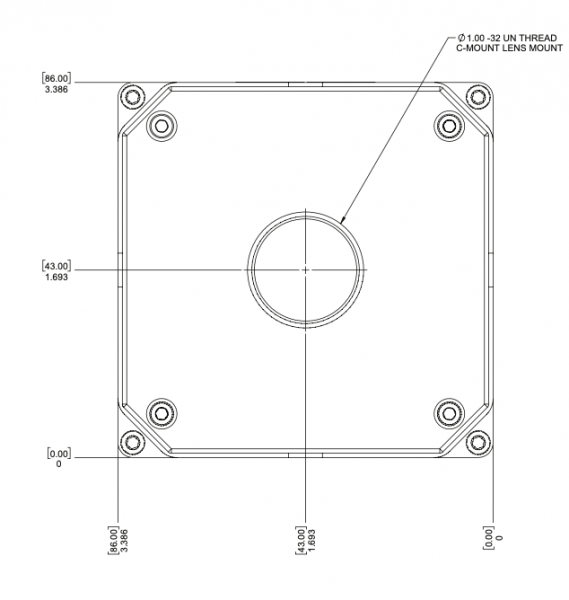

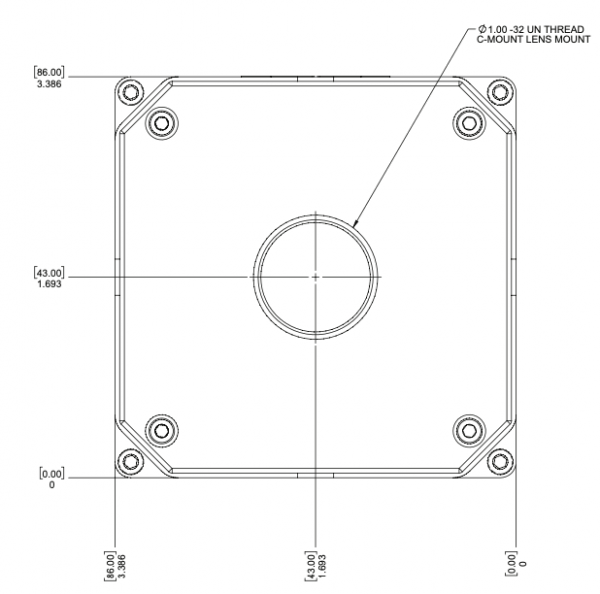

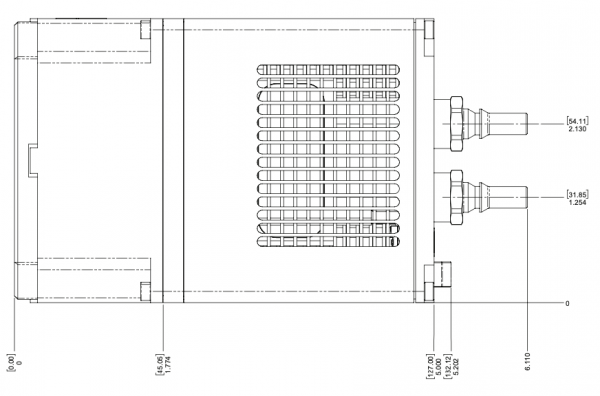

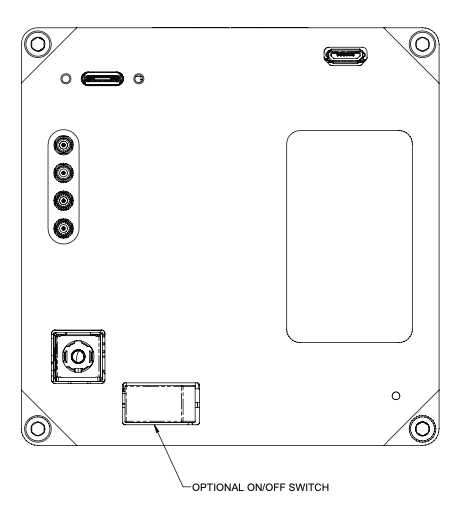

Camera Dimensions (maximum)	Camera: 86 x 86 x 127 mm (H x W x D)	Camera: 86 x 86 x 127 mm (H x W x D)
Aquisition Software	LightField®, SDK and API for Windows and Linux	LightField®, SDK and API for Windows and Linux

“Sample-Up-The-Ramp” (SUPR) and Non-Destructive Readout (NDR)

- In SUTR mode, each pixel is read multiple times during a single integration without resetting the accumulated charge. This non-destructive readout preserves the signal while providing several key advantages for high-precision imaging:

1. Extended Dynamic Range: Multiple reads capture signal before saturation, allowing accurate measurements even for bright sources.
2. Cosmic Ray and Noise Mitigation: Intermediate reads help identify and correct artifacts such as cosmic ray hits and Random Telegraph Noise (RTN).
3. Lower Effective Read Noise: Fitting a slope to multiple samples reduces noise by approximately the square root of the number of reads.
4. Rich Data for Analysis: Each read is stored as a slice in a 3D datacube, enabling advanced processing techniques like slope fitting and artifact correction.

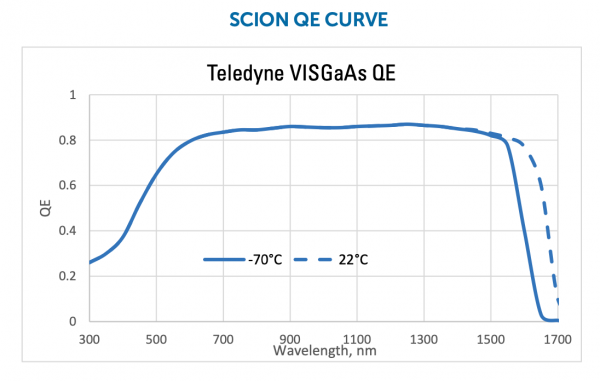

Scion Swir camera

Typical Applications

Hyperspectral imaging
Chemical sensing
Scientific research
Medical imaging
Silicon inspection

Integration timeline and datacube structure

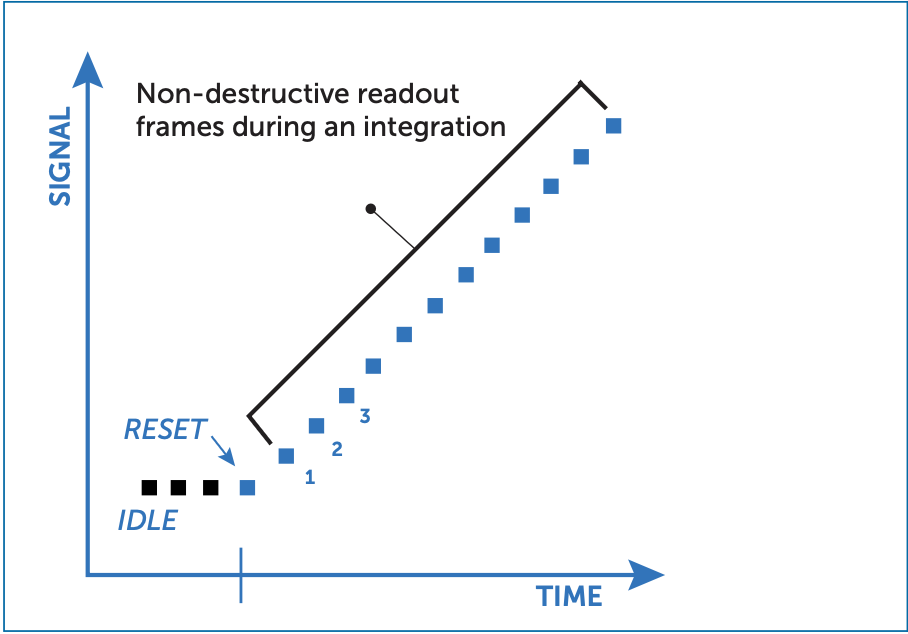

Non-destructive readouts during a single integration are shown as incremental signal measurements over time, starting from reset and idle states.

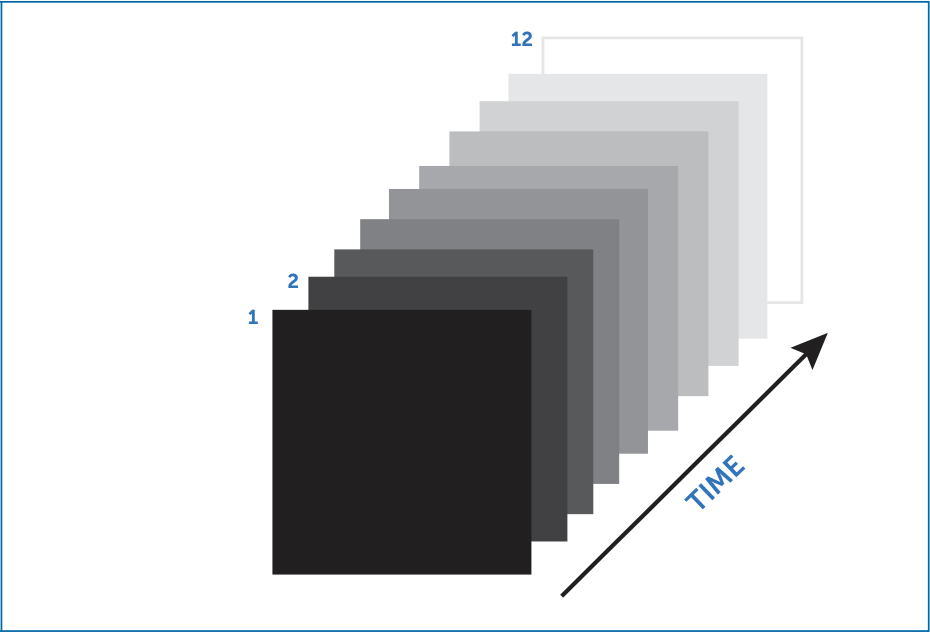

Each read is stored as a slice in a 3D datacube, enabling time sequenced data analysis for slope fitting and artifact correction.

Pixel ramp behaviors during integration

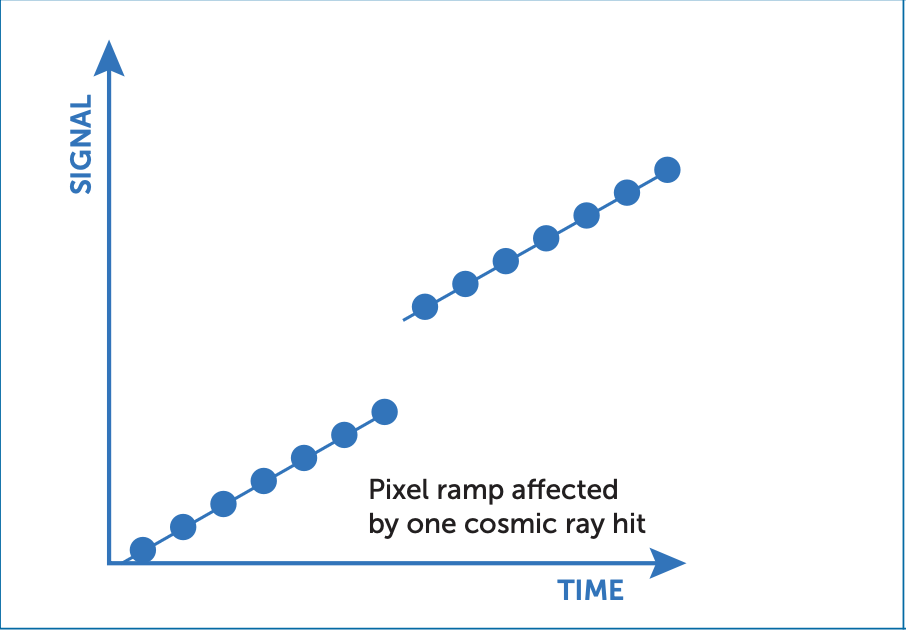

A cosmic ray hit introduces a sudden signal increase, dividing the ramp into two segments.

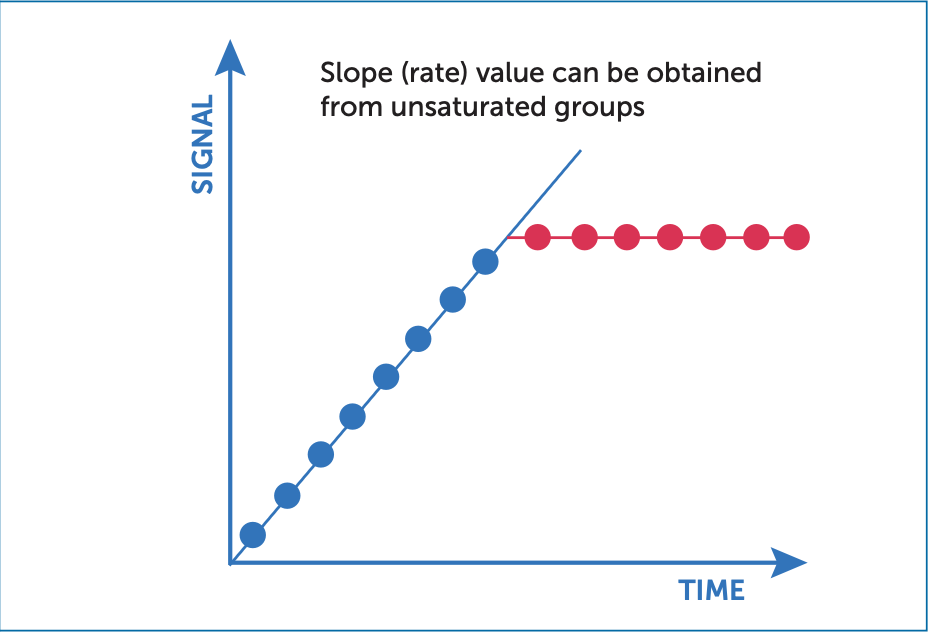

A pixel ramp reaching saturation; only unsaturated points (blue) are used to estimate the signal accumulation rate, while saturated points (red) are excluded. Each point represents a readout group.
