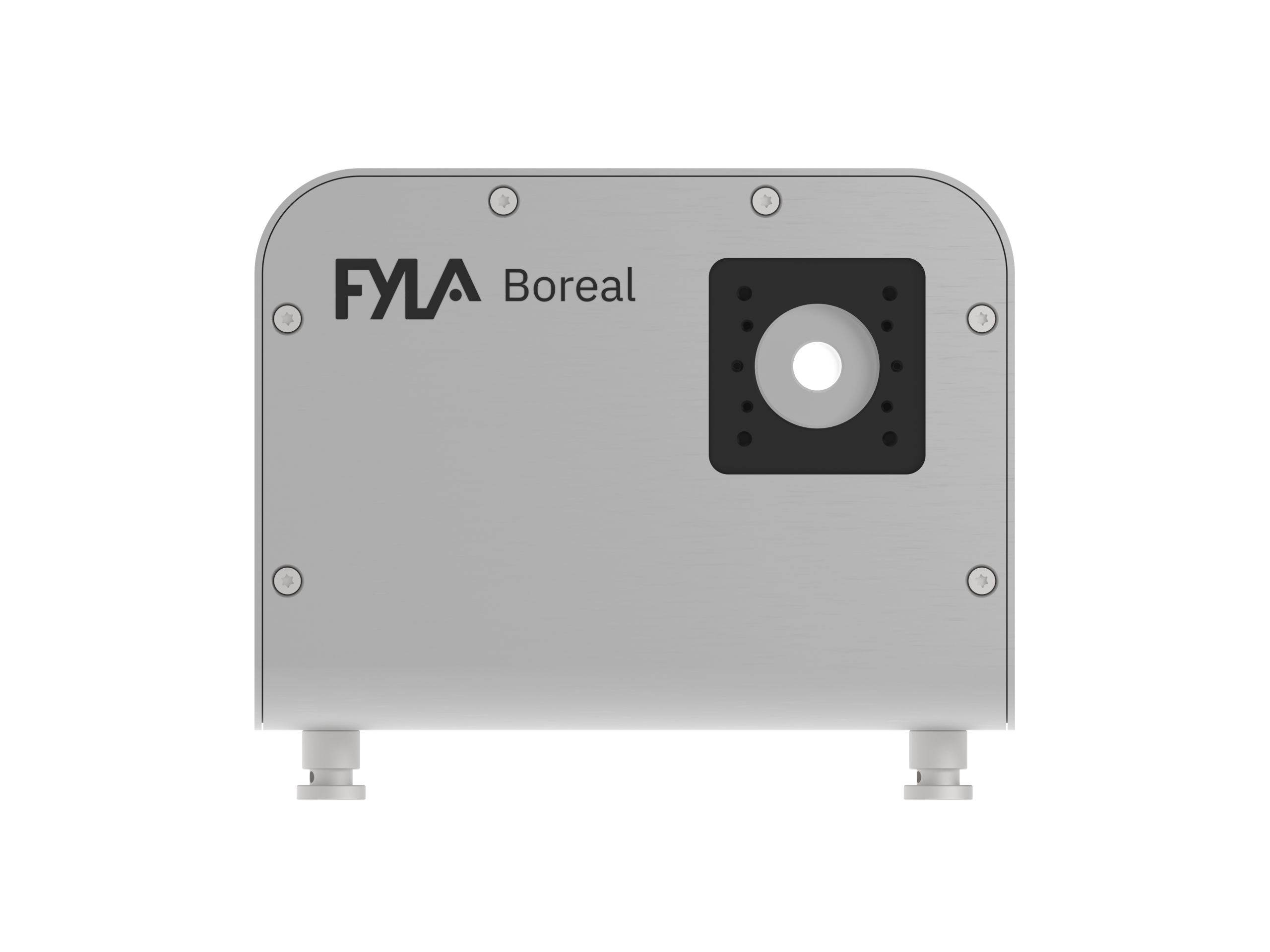

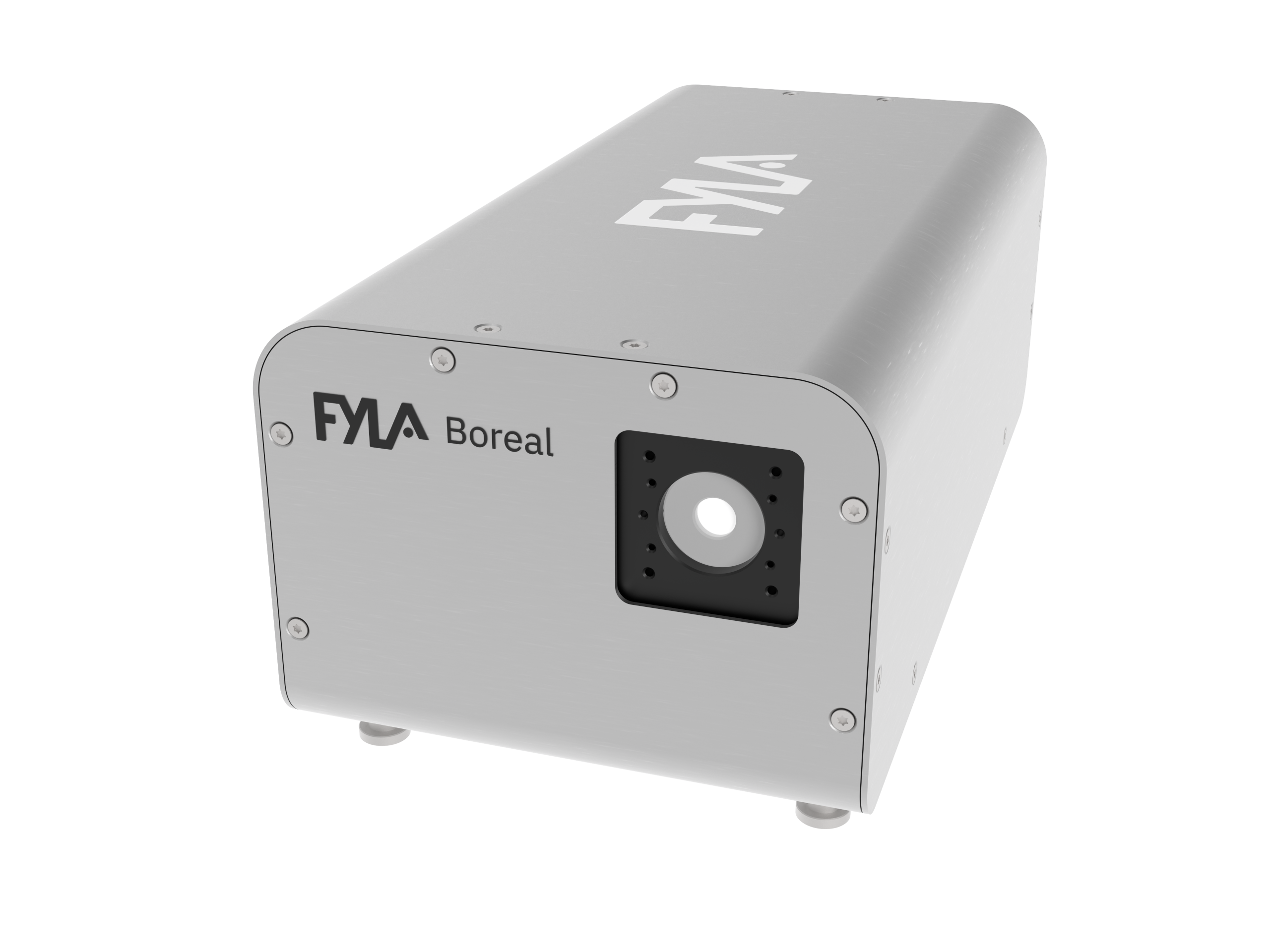

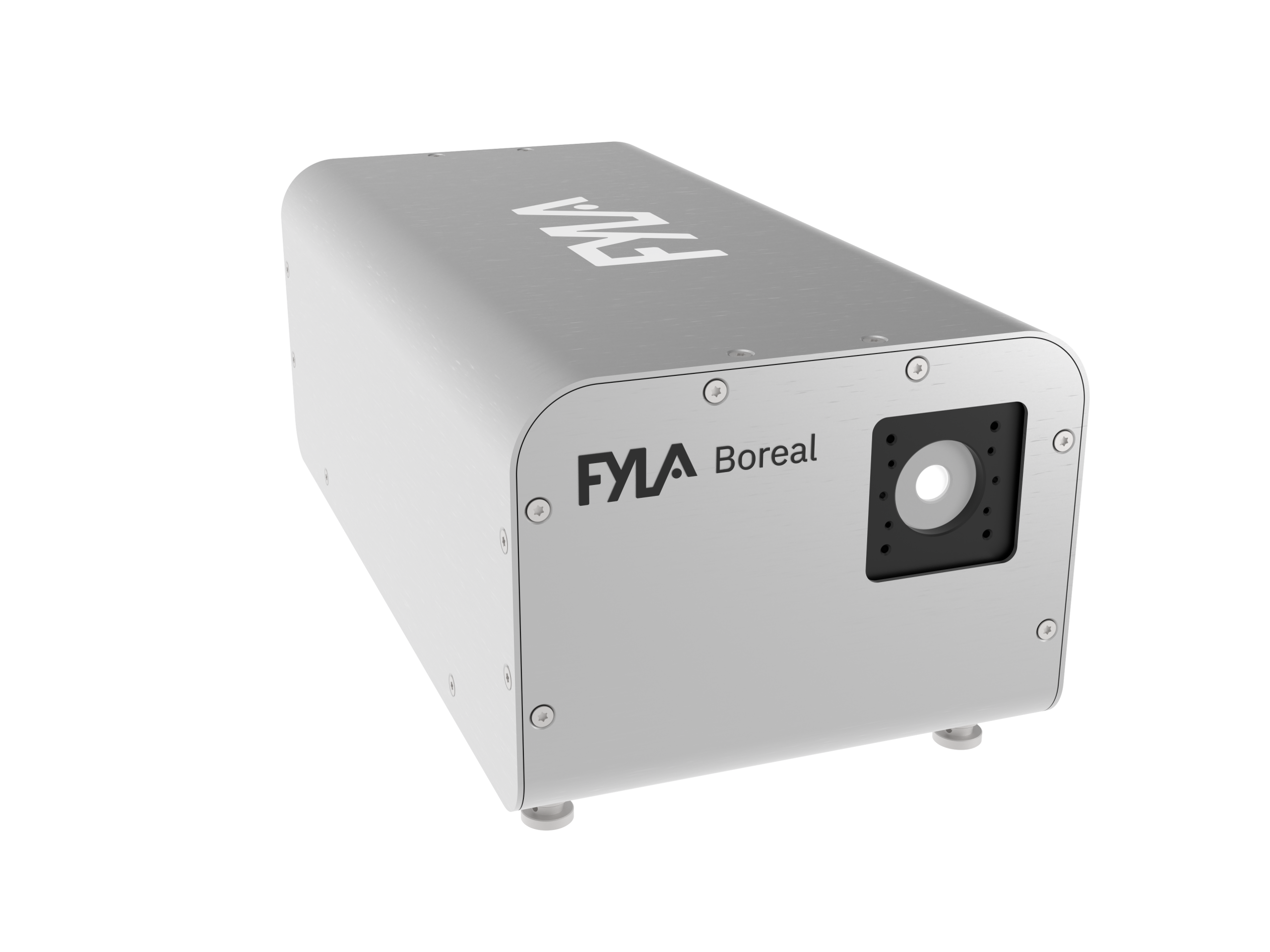

Boreal Tunable Optical Filter
Tuning Range
400-1000nm (VIS); 1000-1700nm (NIR)
Adjustable Bandwidth
10-600nm (VIS); 10-700nm (NIR)
Transmission Losses
≤ 10 % (free space output, VIS); ≤ 20 % (free space output, NIR)
Output
Free-space (VIS & NIR), or Fiber (VIS)
Control
USB
Wavelength Resolution
1nm
BOREAL Visible and NIR Tunable Filter: High-Resolution Wavelength Selection for Supercontinuum Laser Systems
The FYLA Boreal is a precision tunable bandpass filter designed to convert broadband supercontinuum sources into a flexible, narrowband, wavelength-selectable illumination system. Engineered for advanced spectroscopy, microscopy, and optical characterization, Boreal enables users to isolate any wavelength across the visible-to-NIR spectrum with high spectral control and stability.
Optimized as an accessory for SYLA supercontinuum laser platforms, Boreal transforms a white-light source into a programmable monochromatic or narrowband source—without sacrificing spatial coherence or output stability.

Key Features
Broad Tunable Spectral Range

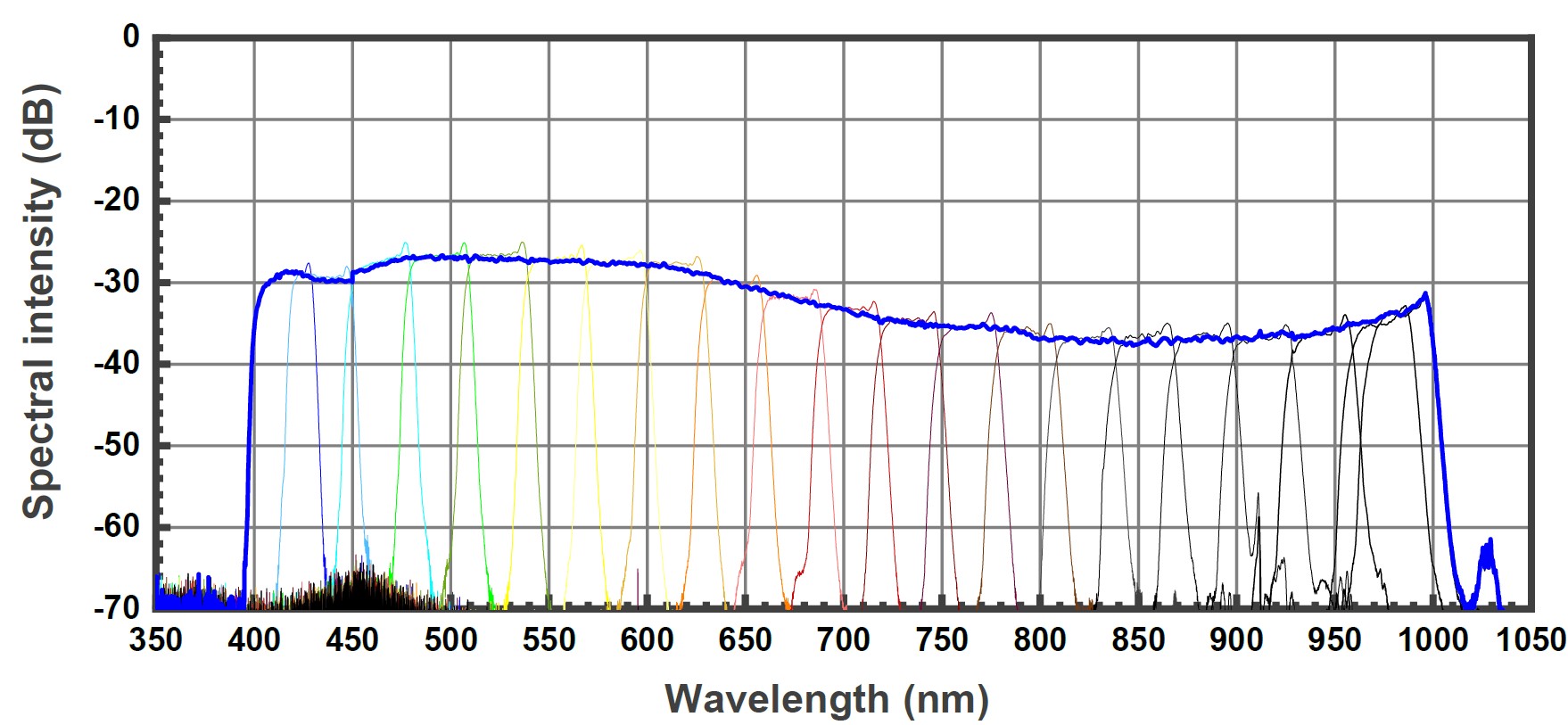

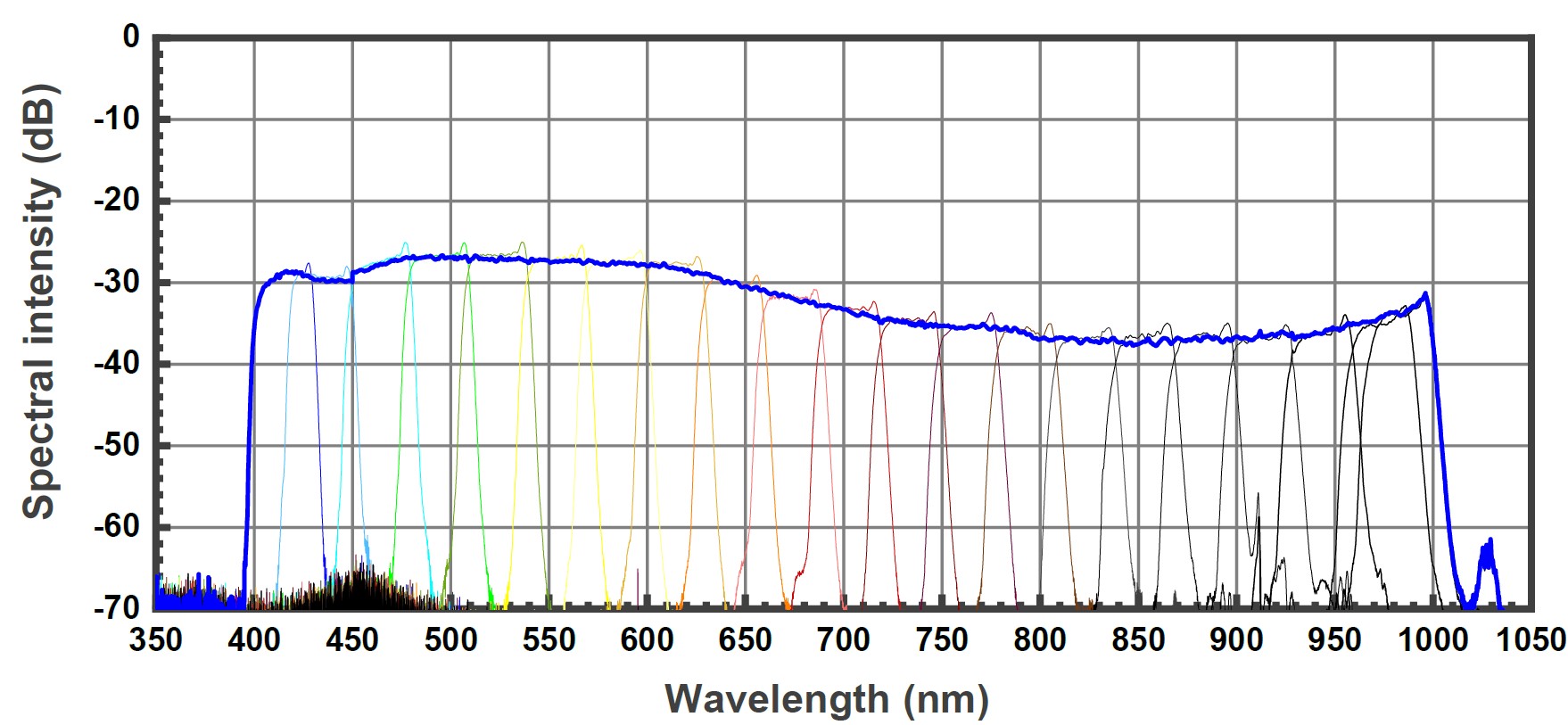

- Continuous wavelength selection across 400–1000 nm (VIS) or 1000-1700 nm (NIR)
Tunable Bandwidth Control
- Adjustable spectral bandwidth for applications requiring high-resolution (narrow linewidth), or high-throughput illumination (broader bandwidth)
- Fine control over spectral profile without manual mechanical filter exchange
Plug-and-Play Integration
- Designed as an accessory to FYLA supercontinuum lasers
- Simple optical coupling and system integration
- Software-driven wavelength tuning for rapid operation
Working Principle
Boreal operates as a tunable bandpass filtering system integrated with a broadband supercontinuum laser. While the supercontinuum source emits an ultra-wide spectrum, Boreal is used to spectrally filter this output. This spectral selection isolates an ajustable bandwidth wavelength band, resulting in an output beam that deliverestunable monochromatic or quasi-monochromatic light. This approach eliminates the need for multiple discrete lasers while preserving high spatial coherence, diffraction-limited beam quality, and a wide spectral coverage.

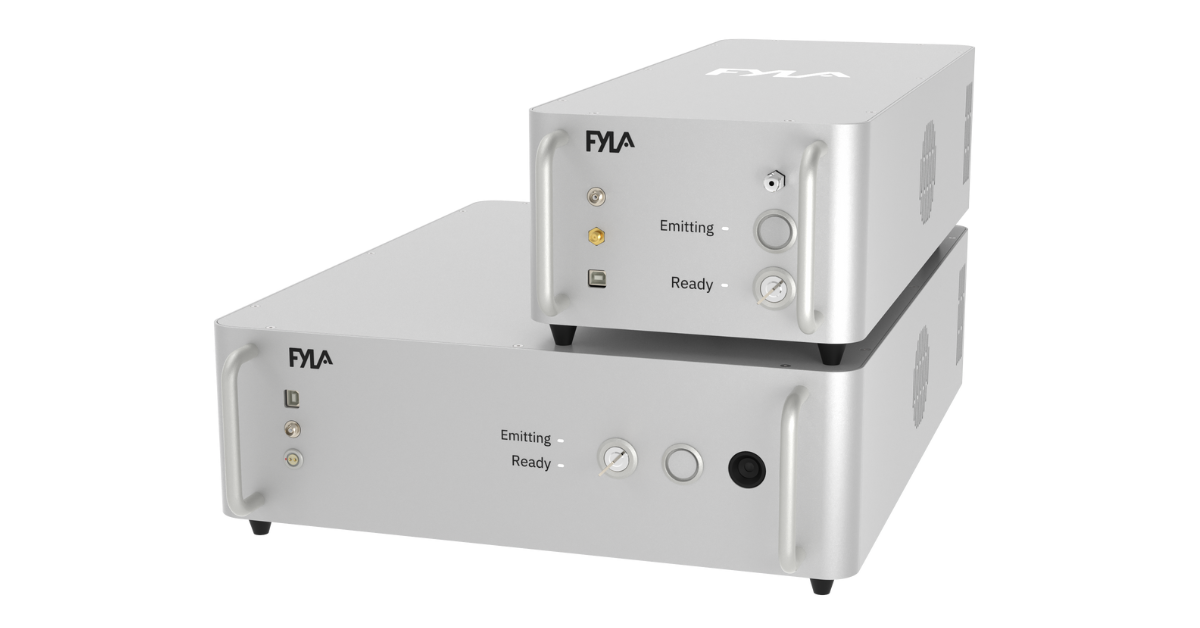

System Integration
Boreal is designed to operate seamlessly with FYLA supercontinuum laser platforms, forming a compact and highly versatile light engine:
- Broadband source + Boreal = fully tunable laser system
- Replaces multiple discrete lasers with a single integrated solution
- Reduces system complexity and alignment requirements
This architecture is particularly advantageous in automated or multi-wavelength measurement environments.
The Boreal tunable filters enable a new level of flexibility in optical systems by converting broadband supercontinuum light into a fully tunable, high-resolution spectral source. Its combination of wide spectral coverage, software-controlled tuning, and seamless integration makes it an essential tool for modern spectroscopy, imaging, and photonics research.
1
2
3
4
5
6
7
8
9
10
11
12
13
| Technical Specifications | ||
|---|---|---|
| Boreal Tunable VIS Range | Boreal Tunable NIR Range | |
| Spectral Range | 400-1000nm* | 1000-1700nm |
| Optical Output | Free space of fiber output (1m) | Free space output |
| Power Requirements | 110V – 220V 50/60 Hz | 110V – 220V 50/60 Hz |
| Input Connections | Coupling holder (Laser), Power supply, USB port (System control) | Coupling holder (Laser), Power supply, USB port (System control) |
| Displayed Parameters (Controlled) | Min/Max wavelength selection & Central wavelength/Bandwidth selection | Min/Max wavelength selection & Central wavelength/Bandwidth selection |
| Control Modes | Remote (USB port) | Remote (USB port) |
| Operating Temperature | 20 - 30 ºC | 20 - 30 ºC |
| Storage Temperature | 0 - 60ºC | 0 - 60ºC |
| Bandwidth | 10 - 600 nm | 10 - 700 nm |
| Simultaneous selectable band | 1 | 1 |
| Resolution | 1 nm | 1 nm |
| Insertion losses (full bandwidth) | ≤ 10 % (free space output); ≤ 30 % (Multimode fibre output); ≤ 60 % (Singlemode fibre output) | ≤ 20 % (free space output) |
* Initial wavelength depends on the supercontinuum source
Applications
Spectroscopy & Optical Characterization
- Absorption / transmission spectroscopy
- Reflectance measurements
- Photoluminescence excitation (PLE)
Life Sciences & Microscopy
- Fluorescence microscopy
- Hyperspectral imaging
- Confocal and multiphoton systems
Photonics & Semiconductor Testing
- Photonic integrated circuits characterization
- Thin-film and material analysis
- Optical component testing
Advanced R&D Systems
- Tunable illumination for experimental setups
- Calibration of detectors and sensors
- Broadband-to-monochromatic source conversion
