Skylark 785 NX
Skylark 785 NX | Single Frequency CW DPSS NIR Laser

Skylark 785 NX | Single Frequency CW DPSS NIR Laser

Wavelength

785 nm

Output Power

Up to 400 mW

Spectral Bandwidth

≤ 300 kHz

Spatial Mode

TEM₀₀

Spectral Stability

± 0.2 pm

Operational Mode

CW, intracavity-locked SLM

Tag: Brand:

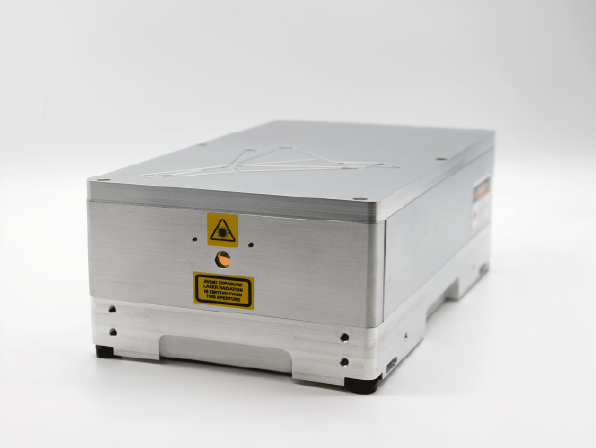

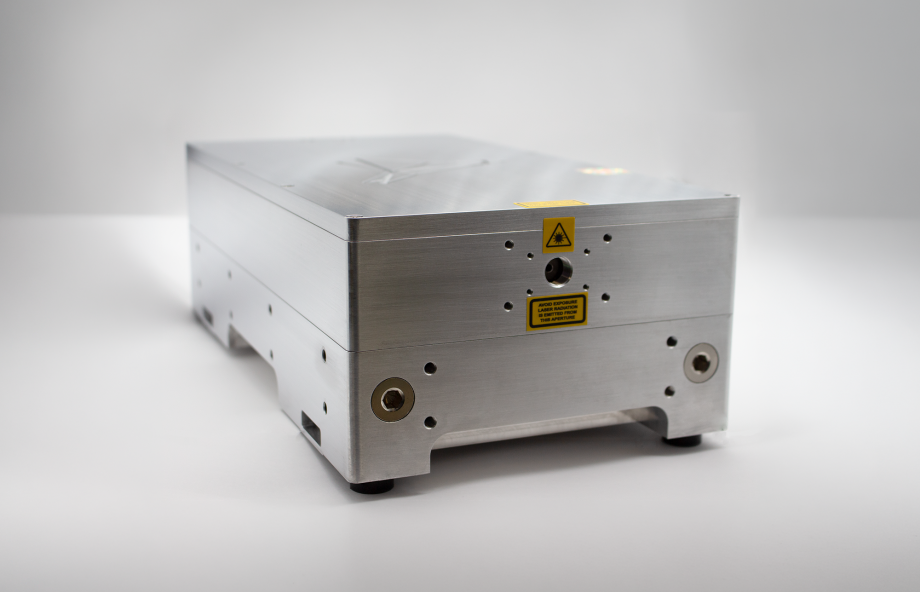

Skylark 785 NX: Single-Frequency CW DPSS NIR Laser

The Skylark 785 NX is a single-frequency CW DPSS NIR laser that delivers ultra-stable, narrow-linewidth output with low noise and a pure TEM₀₀ beam. It provides up to 400 mW of power at a wavelength of 785 nm. Engineered for consistent, long-term reliability, this laser ensures reproducible results for a variety of advanced Raman techniques and other demanding applications.

Key Features

  • Ultra-Narrow Linewidth: A spectral bandwidth of ≤ 300 kHz provides exceptional spectral purity, which is critical for achieving high-resolution, high-contrast Raman spectra.
  • Ultra-Stable Power Output: The laser maintains power stability of ≤ 2.0% over an 8-hour operation period. This guarantees reliable and consistent results for long-running processes.
  • Ultra-Low Power Noise: With an output power noise of ≤ 0.3% RMS (10 Hz – 10 MHz), the Skylark 785 NX minimizes signal distortion, ensuring high-clarity measurements in noise-sensitive applications.
  • Ultra-Low ASE Noise: The laser’s ultra-low ASE (Amplified Spontaneous Emission) noise of < -80 dB ensures a clean spectral profile, which is essential for high signal-to-noise ratio in applications like Raman spectroscopy.

Skylark 785 NX: Single-Frequency CW DPSS NIR Laser

The Skylark 785 NX is a single-frequency CW DPSS NIR laser that delivers ultra-stable, narrow-linewidth output with low noise and a pure TEM₀₀ beam. It provides up to 400 mW of power at a wavelength of 785 nm. Engineered for consistent, long-term reliability, this laser ensures reproducible results for a variety of advanced Raman techniques and other demanding applications.

Key Features

  • Ultra-Narrow Linewidth: A spectral bandwidth of ≤ 300 kHz provides exceptional spectral purity, which is critical for achieving high-resolution, high-contrast Raman spectra.
  • Ultra-Stable Power Output: The laser maintains power stability of ≤ 2.0% over an 8-hour operation period. This guarantees reliable and consistent results for long-running processes.
  • Ultra-Low Power Noise: With an output power noise of ≤ 0.3% RMS (10 Hz – 10 MHz), the Skylark 785 NX minimizes signal distortion, ensuring high-clarity measurements in noise-sensitive applications.
  • Ultra-Low ASE Noise: The laser’s ultra-low ASE (Amplified Spontaneous Emission) noise of < -80 dB ensures a clean spectral profile, which is essential for high signal-to-noise ratio in applications like Raman spectroscopy.

Thermal Management Options

  • Closed-loop water chiller: By integrating a compact, closed-loop cooling system, the laser’s intensity stability is significantly improved. This design also makes the laser system portable, as it does not need to be connected to an external water source.
  • Fan-assisted heatsink: This compact and economical laser cooling system is fully integrated into the laser platform. It uses intelligent controls to actively maintain a stable wavelength and intensity output.
  • Fiber Coupling: The laser offers external fiber coupling options to simplify integration, achieving greater than 95% efficiency with multimode fibers and over 70% with single-mode fibers.

Skylark 785 NX single frequency CW DPSS NIR laser – Datasheet
