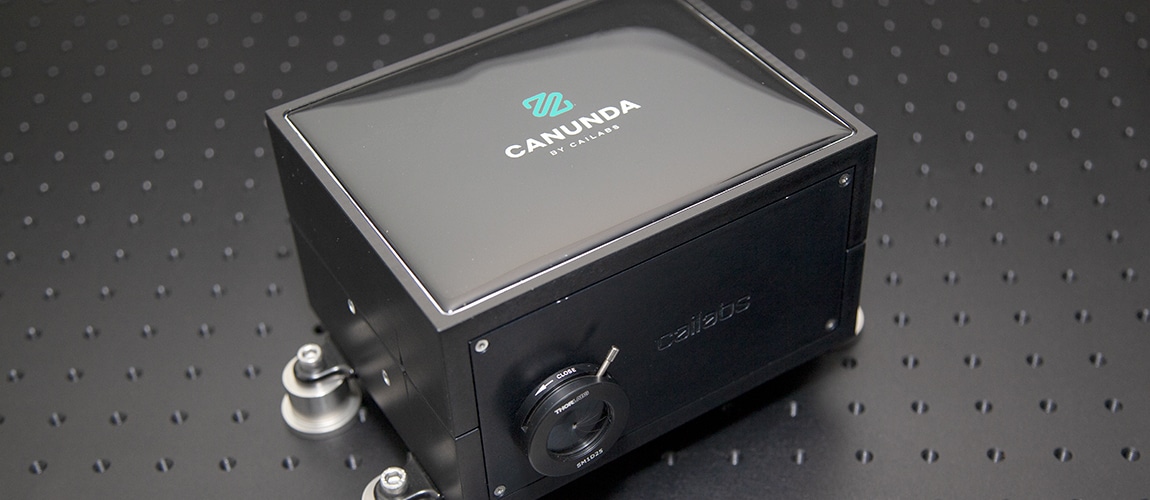

Canunda-Split | Ultrafast Laser Beam Shaper

The CANUNDA-SPLIT beam splitting module allows you to combine excellent splitting quality and homogeneity with the flexibility to electronically choose between several patterns.

With its excellent transmission, the CANUNDA-SPLIT enables optimal parallel laser processing and improved efficiency.

The fully reflective architecture of the modules allows high peak power of up to 1 mJ for femtosecond pulses! The CANUNDA-SPLIT modules have been integrated into micromachining machines and have been proven to maintain their performance over the full field of view of an F-theta lens.

CANUNDA-SPLIT is the ideal compromise for parallel processing in terms of flexibility, quality and cost.

Designed to improve laser processing, the CANUNDA range provides versatile and effective laser beam shaping. CANUNDA improves the quality, precision, speed and stability of processing for all types of laser source, whether single-mode or multimode.

The CANUNDA range of fully reflective solutions ensure stable, low-loss beam shaping capable of withstanding the high power of cutting or welding lasers or the high energy levels achieved by ultrashort pulse lasers for micromachining processes.

The CANUNDA-HP beam shaping modules can be used to shape high-power continuous lasers. They can perform symmetrical (ring, or ring with a central spot) or asymmetrical shaping, such as a spot followed by a line.

The fully reflective design of the shaping module supports very high average power (16 kW, demonstrated in partnership with the Institut Maupertuis). It can be cooled in a homogeneous manner for optimal results, thus minimizing thermal focus shift.

For more products from the CANUNDA line, visit: https://www.axiomoptics.com/adaptive-optics-solution-2/
