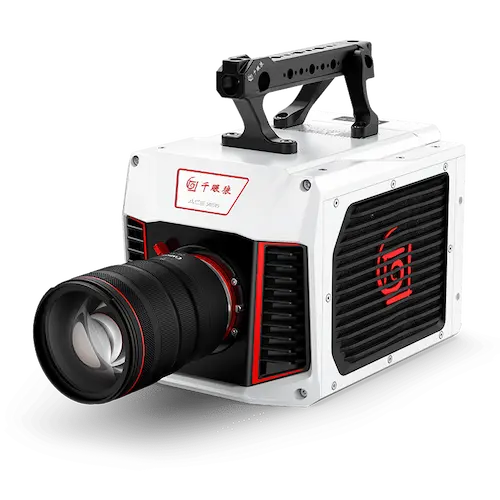

ACE Series: Ultra-High-Speed Cameras for Advanced Scientific & Industrial Applications

The ACE Series high-speed cameras represent advanced ultra-high-speed imaging solutions designed for observing microsecond-level transient processes. Equipped with a high-sensitivity Back-Side Illuminated (BSI) CMOS sensor, these cameras achieve extraordinary frame rates of up to 65,000 fps at full 1280 x 1024 resolution, delivering an uncompromised balance between temporal resolution and high image quality. Featuring a peak quantum efficiency (QE) of 88%, massive onboard memory capacity up to 512 GB RAM, and ultra-short 240 ns PIV straddle time, the ACE series provides exceptional sensitivity and high-speed image capture for demanding research environments.

Built with robust environmental adaptability, the ACE series features an integrated mechanical shutter, high shock/vibration resistance (30g shock, 7.5 Grms vibration), optional wide operating temperatures (-35°C to 60°C), and high-speed 10Gb Ethernet connectivity.

Key Advantages:

• BSI CMOS Technology: High-sensitivity sensor providing up to 88% peak QE for exceptional low-light high-speed imaging.

• Ultra-High Frame Rates: Up to 65,000 fps at 1280 X 1024 full resolution.

• Massive Onboard Memory: Equipped with 512 GB high-speed RAM for extensive ultra-fast recording sessions.

• Particle Image Velocimetry (PIV): Extremely short 240 ns inter-frame straddle time for high-precision PIV imaging.

• High-Speed Data & Video Output: Includes 10Gb Ethernet, SDI/HDMI direct video monitoring, and DC IRIG B code timing synchronization.

• Rugged & Reliable Construction: Operating temperature range up to -35°C to 60°C (customizable), EMC protection, and 30g shock resistance.
